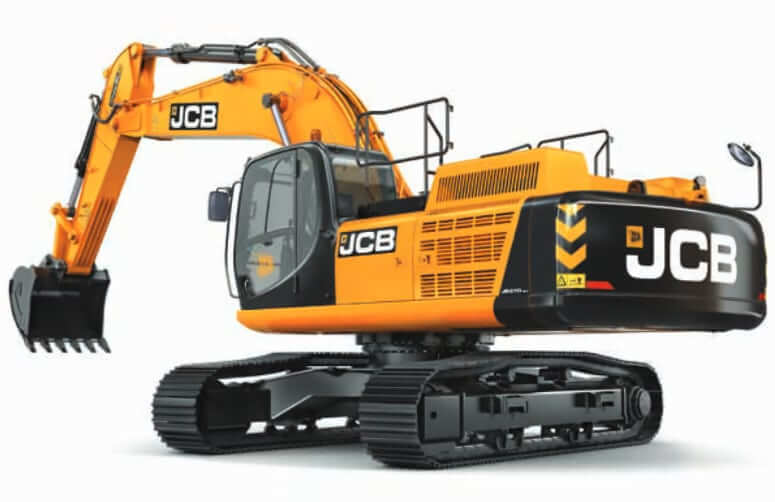

Working Range (Dipper 2.2 m / Boom 6.4 m)
| Dipper / Boom Length | 7.3 ft (2.21 m) / 21.2. ft (6.45 m) |
| Shipping Length Of Unit | 36.33 ft in (11070 mm) |
| Shipping Height Of Unit | 11.83 ft in (3610 mm) |
| Max Cutting Height | 31.92 ft in (9740 mm) |
| Max Loading Height | 22 ft in (6710 mm) |
| Max Reach Along Ground | 32.41 ft in (9876 mm) |
| Max Vertical Wall Digging Depth | 16.5 ft in (5020 mm) |
| Max Digging Depth | 20.92 ft in (6370 mm) |
| Minimum Swing Radius | 183.98 in (4673 mm) |
| Max Digging Reach | 33.09 ft in (10083 mm) |
| Max.Dumping Height | 22.3 ft in (6797 mm) |
Working Range (Dipper 2.6 m / Boom 6.4 m)
| Dipper / Boom Length | 8.6 ft (2.63 m) / 21.2. ft (6.45 m) |
| Shipping Length Of Unit | 36 ft in (10980 mm) |
| Max Cutting Height | 32.75 ft in (9980 mm) |
| Shipping Height Of Unit | 11.75 ft in (3570 mm) |
| Max Loading Height | 22.67 ft in (6910 mm) |
| Max Reach Along Ground | 34 ft in (10370 mm) |
| Max Vertical Wall Digging Depth | 18.43 ft in (5610 mm) |
| Max Digging Depth | 22.33 ft in (6800 mm) |
| Max Digging Reach | 34.43 ft in (10492 mm) |
| Minimum Swing Radius | 182.6 in (4638 mm) |
| Max.Dumping Height | 22.98 ft in (7003 mm) |
Working Range (Dipper 3.2 m / Boom 6.4 m)
| Dipper / Boom Length | 10.6 ft (3.23 m) / 21.2. ft (6.45 m) |
| Shipping Length Of Unit | 35.67 ft in (10880 mm) |
| Max Cutting Height | 33.67 ft in (10280 mm) |
| Max Loading Height | 23.58 ft in (7190 mm) |
| Shipping Height Of Unit | 11.25 ft in (3360 mm) |
| Max Reach Along Ground | 35.92 ft in (10940 mm) |
| Max Vertical Wall Digging Depth | 20.83 ft in (6340 mm) |
| Max Digging Depth | 24.25 ft in (7390 mm) |
| Max Digging Reach | 36.21 ft in (11036 mm) |
| Max.Dumping Height | 23.89 ft in (7279 mm) |
| Minimum Swing Radius | 159.73 in (4057 mm) |
Working Range (Dipper 4.0 m / Boom 6.4 m)
| Dipper / Boom Length | 13.2 ft (4.03 m) / 21.2. ft (6.45 m) |
| Shipping Length Of Unit | 36 ft in (10870 mm) |
| Shipping Height Of Unit | 12.67 ft in (3850 mm) |
| Max Cutting Height | 34.58 ft in (10550 mm) |
| Max Loading Height | 24.5 ft in (7460 mm) |
| Max Reach Along Ground | 38.33 ft in (11680 mm) |
| Max Digging Depth | 26.92 ft in (8190 mm) |
| Max Vertical Wall Dig Depth | 23.33 ft in (7460 mm) |
| Max Digging Reach | 38.64 ft in (11777 mm) |
| Max.Dumping Height | 24.8 ft in (7557 mm) |
| Minimum Swing Radius | 178 in (4521 mm) |
Dimensions
| Ground Clearance | 1.67 ft in (506 mm) |
| Height To Top Of Cab | 10.42 ft in (3170 mm) |
| Width To Outside Of Tracks | 9.5 ft in (2990 mm) |
| Length Of Track On Ground | 13.01 ft in (3965 mm) |
| Tail Swing Radius | 11.72 ft in (3571 mm) |
| Counterweight Clearance | 3.93 ft in (1195 mm) |
| Track Length On Ground | 11.69 ft in (3563 mm) |
| Undercarriage Overall Length | 15.91 ft in (4848 mm) |
| Removal Counterweight Clearance | 3.92 ft in (1190 mm) |
Undercarriage
| Track Gauge | 7.5 ft in (2390 mm) |
| Shoe Size | 24 in (600 mm) |
| Number Of Track Rollers Per Side | 2 |
| Number Of Carrier Rollers Per Side | 9 |
| Number Of Shoes Per Side | 50 |
| Track Adjustment | Grease cylinder type |
| Travel Speed | 3.3 mph (5.2 km/h) |
| Gradeability | 70 |
| Drawbar Pull | 54904 lb (244 kN) |
| Ground Pressure | 9.1 psi (62.75 kPa) |
| Parking Brake | Disc type |
| Brakes Type | Fully hydrostatic, two speed with autoshift. |
| Service Brake | Hydraulic counter balance valve. |
Slew System
| Swing Speed | 9.5 rpm |
| Slew Torque | 111 kNm |
| Slew Motor | Axial piston type |
| Slew Gear | Arge diameter, internally toothed fully sealed grease bath lubricated |
| Slew Brake | Hydraulic braking plus automatic spring applied disc type parking brake |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Rolls-Royce MTU |
| Engine Model | MTU 6R 1000 |
| Displacement | 469.9 cu in (7.7 L) |
| Bore | 4.3 in (110 mm) |
| Stroke | 5.3 in (135 mm) |
| Net Power | 281 hp (210 kw) |
| Power Measured @ | 1900 rpm |
| Peak Torque | 848 lb ft (1150 Nm) |
| Torque Measured @ | 1400 rpm |
| Fuel Consumption at Peak Torque | 189 g/kWh |
| Fuel Consumption at Rated Power | 212 g/kWh |
| Combustion System | Common rail |
| Fuel System | Direct injection |
| Air Filtration | Dry element with secondary safety element and in-cab warning indicator |
| Aftertreatment | SCR, EGR, DOC |
| Aspiration | Turbocharged and intercooled |
| Emission Standards | US EPA Tier 4 Final EPA + EU Stage IV |
Operational Specs
| Operating Weight | 71053 lb (32229 kg) |
| Max Dipper Tearout | 46625 lbf (207.4 kN) |
| Max Bucket Tearout | 51931 lbf (231.0 kN) |
| Operating Voltage | 24 V |
| Alternator | 100 amps |
| Battery | 2x 12V, Heavy duty |

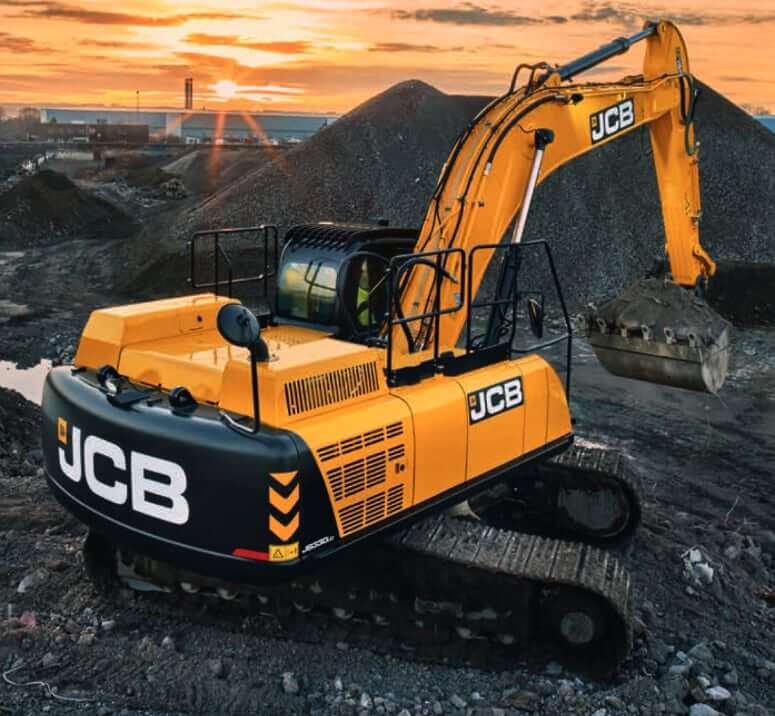

Buckets
| Reference Bucket Capacity | 2 yd3 (1.5 m3) |
| Minimum Bucket Capacity | 1.6 yd3 (1.2 m3) |
| Maximum Bucket Capacity | 2.5 yd3 (1.9 m3) |
Hydraulic System
| Type | A variable flow negative control system with flow on demand, multi function open centre |
| Main Pumps | 2 variable displacement axial piston type |
| Hydraulic Pump Flow Capacity | 153.7 gal/min (582 L/min) |
| Servo Pump (Gear type) Flow | 7.5 gal (28.5 L/min) |
| Relief Valve Setting, Boom/Arm/Bucket | 4627 psi (31900 kPa) |
| Relief Valve Setting, Boom/Arm/Bucket (w/ Power Boost) | 5047 psi (34800 kPa) |
| Relief Valve Setting, Swing Circuit | 3626 psi (25000 kPa) |
| Relief Valve Setting, Travel Circuit | 5047 psi (34800 kPa) |
| Relief Valve Setting, Pilot Circuit | 638 psi (4400 kPa) |

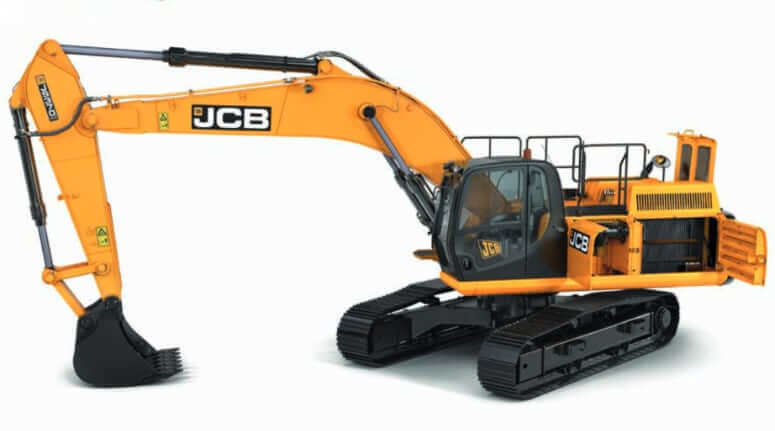

Service Refill Capacities
| Fuel Tank Capacity | 156 gal (590 L) |
| DEF Tank Capacity | 12.5 gal (47 L) |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Cooling System Capacity | 10.1 gal (38 L) |
| Hydraulic System Capacity | 113.6 gal (430 L) |
| Swing Drive Fluid Capacity | 3.9 gal (14.5 L) |
