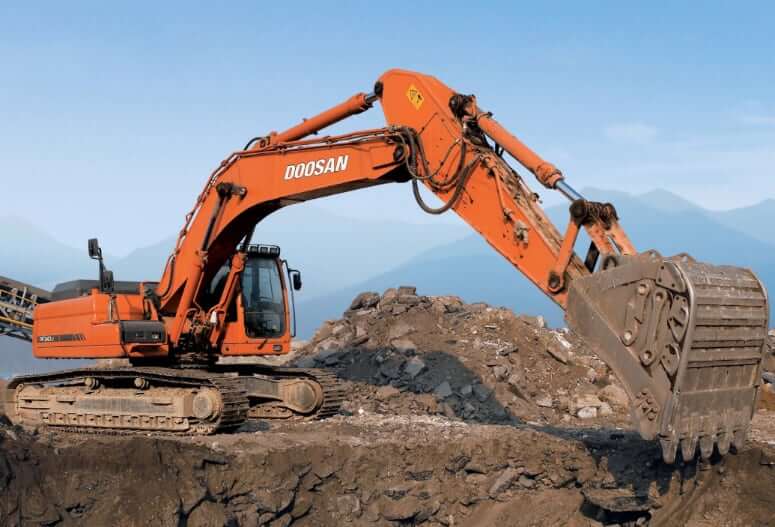

Working Range
| Boom/Arm Length | Boom 21’4″ (6500 mm) / Stick 8’6″ (2600 mm) |
| Shipping Length Of Unit | 37.34 ft in (11380 mm) |
| Shipping Height Of Unit | 11.79 ft in (3592 mm) |
| Max Cutting Height | 32.79 ft in (9994 mm) |
| Max Loading Height | 22.58 ft in (6882 mm) |
| Max Reach Along Ground | 34.07 ft in (10382 mm) |
| Max Vertical Wall Digging Depth | 16.81 ft in (5121 mm) |
| Max Digging Depth | 22.74 ft in (6931 mm) |
Working Range (Boom/Arm Option 2)
| Boom/Arm Length | Boom 21’4″ (6500 mm) / Stick 10’6″ (3200 mm) |
| Shipping Length Of Unit | 37.01 ft in (11280 mm) |
| Max Cutting Height | 33.95 ft in (10345 mm) |
| Shipping Height Of Unit | 11.03 ft in (3360 mm) |
| Max Loading Height | 23.61 ft in (7196 mm) |
| Max Reach Along Ground | 36.01 ft in (10975 mm) |
| Max Vertical Wall Digging Depth | 19.41 ft in (5916 mm) |
| Max Digging Depth | 24.72 ft in (7533 mm) |
Working Range (Boom/Arm Option 3)
| Boom/Arm Length | Boom 21’4″ (6500 mm) / Stick 13’0″ (3950 mm) |
| Shipping Length Of Unit | 37.08 ft in (11300 mm) |
| Max Cutting Height | 35.6 ft in (10848 mm) |
| Max Loading Height | 30.72 ft in (9363 mm) |
| Shipping Height Of Unit | 11.43 ft in (3483 mm) |
| Max Reach Along Ground | 38.55 ft in (11748 mm) |
| Max Vertical Wall Digging Depth | 22.5 ft in (6858 mm) |
| Max Digging Depth | 27.19 ft in (8287 mm) |
Dimensions
| Height To Top Of Cab | 10.26 ft in (3125 mm) |
| Width To Outside Of Tracks | 10.77 ft in (3280 mm) |
| Length Of Track On Ground | 13.29 ft in (4050 mm) |
| Tail Swing Radius | 11.49 ft in (3500 mm) |
| Removal Counterweight Clearance | 3.93 ft in (1195 mm) |
| Ground Clearance | 20 in (510 mm) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Doosan |
| Engine Model | Doosan DL08 |
| Displacement | 466 cu in (7.7 L) |
| Bore | 4.3 in (108 mm) |
| Stroke | 5.5 in (139 mm) |
| Net Power | 247 hp (184.2 kw) |
| Power Measured @ | 1750 rpm |
| Peak Torque | 846 lb ft (1147 Nm) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharged |
| Air Cleaner | Double element and pre-filtered Turbo with auto dust evacuation |
| Emission Standards | US EPA Tier 4 + EU Stage V |
Operational Specs
| Operating Weight | 75178 lb (34100 kg) |
| Max Operating Weight (w/ 900 mm Triple Grouser) | 77603 lb (35200 kg) |
| Operating Voltage | 24 V |
| Alternator | 50 amps |
| Battery | 2x 12 V, 150 Ah |
| Starter | 24 V, 8 hp (6 kW) |
| Sound Level Guarantee (2000/14/EC) | 104 dB(A) |
| Cab Sound Level (ISO 6396) | 73 dB(A) |
Buckets
| Standard Bucket Capacity | 1.93 yd3 (1.48 m3) |
| Digging Force | 54012 lbf (240 kN) |
| Bucket Angle | 178° |
Undercarriage
| Shoe Size (Standard) | 24 in (600 mm) |
| Shoe Size (Optional) | 28 in (700 mm) / 32 in (800 mm) / 34 in (850 mm) / 36 in (900 mm) |
| Ground Pressure | 9.2 psi (64 kPa) |
| Number Of Shoes Per Side | 48 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 9 |
| Maximum Gradeability | 35° (70%) |
| Max Traction Force | 59525 lbf (265 kN) |
| Max Travel Speed (low) | 1.9 mph (3.1 km/h) |
| Max Travel Speed (high) | 2.9 mph (4.7 km/h) |
Swing Mechanism
| Swing Speed | 8.9 rpm |
| Swing Drive | An axial piston motor with two-stage planetary reduction gear is used for the swing |
| Swing Brake | The swing brake for parking is activated by spring and released hydraulically |
Hydraulic System
| Type | Cross-sensing pump hydraulic system |
| Pump Type | 2x variable displacement axial piston pumps + 1x gear pump |
| Main Pump Flow Capacity | 2x 70 gal/min (2x 265 L/min) |
| Pilot Pump Flow Capacity | 5.6 gal/min (21.4 L/min) |
| Boom/Arm/Bucket Pressure | 4700 psi (32400 kPa) |
| Boom/Arm/Bucket Pressure (Power Mode) | 4975 psi (34300 kPa) |
| Travel Circuit Pressure | 4700 psi (32400 kPa) |
| Swing Circuit Pressure | 3916 psi (27000 kPa) |

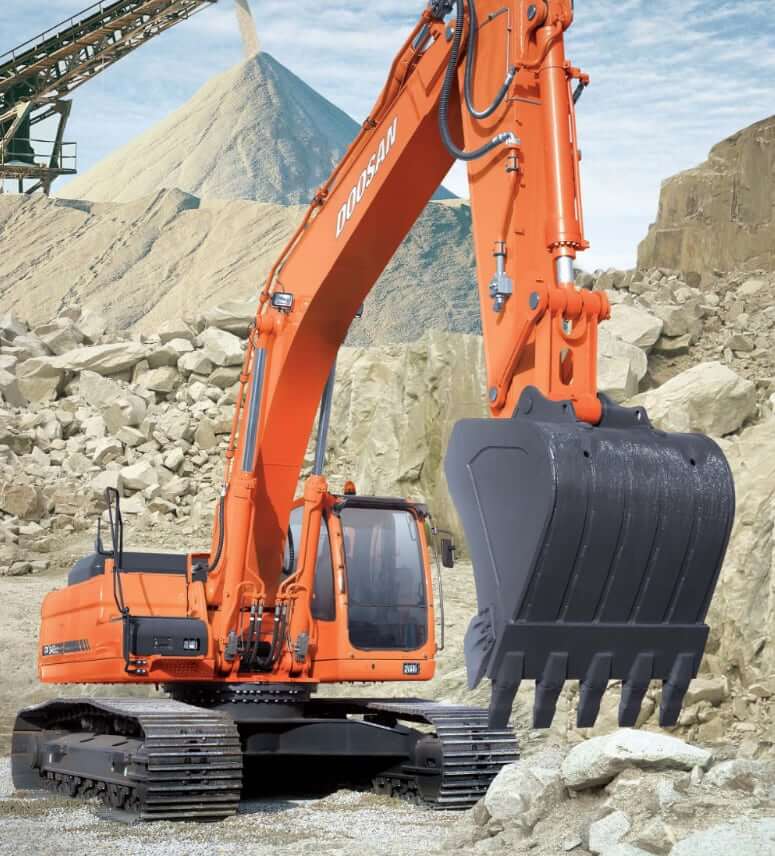

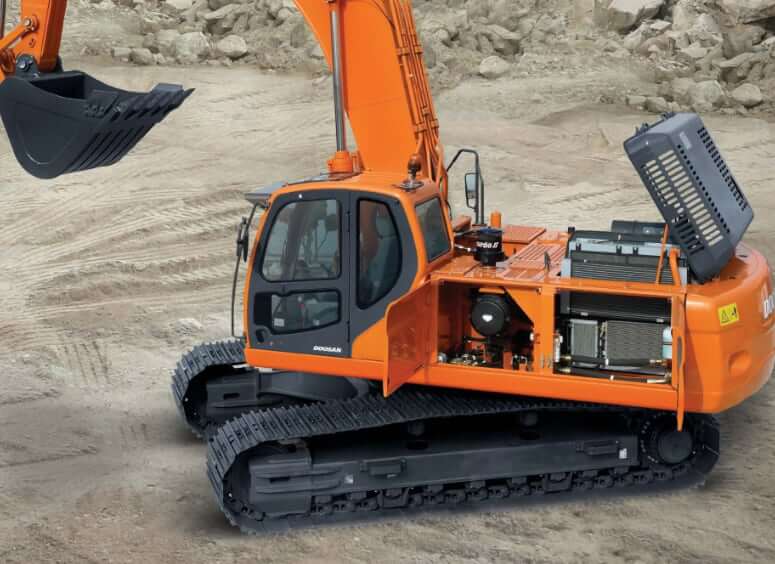

Service Refill Capacities
| Fuel Tank Capacity | 145 gal (550 L) |
| Engine Oil Capacity | 9.6 gal (36 L) |
| Cooling System Capacity | 9 gal (34 L) |
| Hydraulic System Capacity (w/ tank) | 121.5 gal (460 L) |
| Hydraulic Tank Capacity | 85.6 gal (324 L) |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Final Drive Fluid Capacity (each) | 1.5 gal (5.5 L) |
