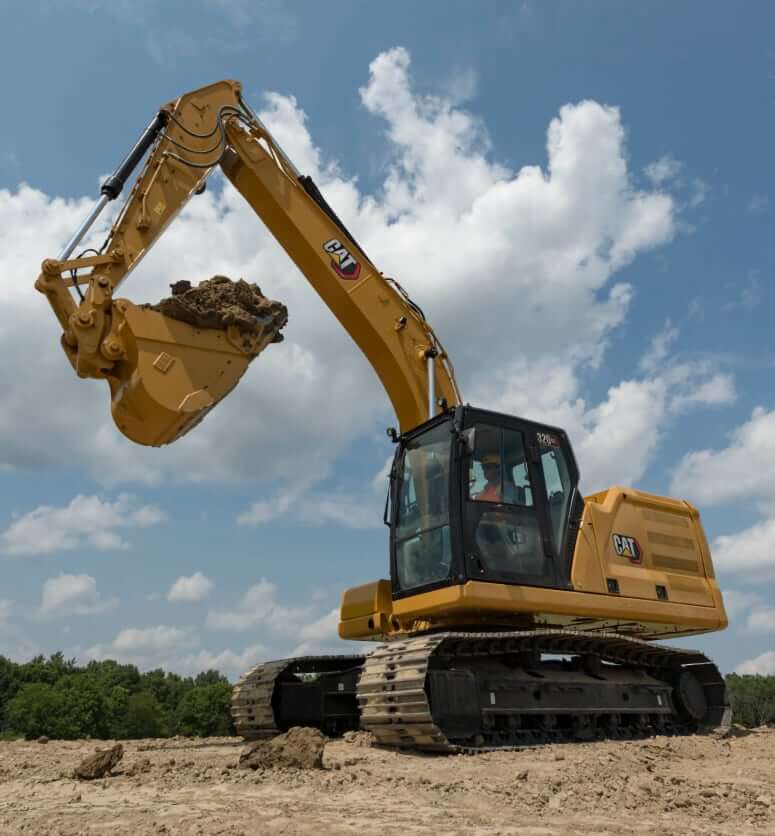

Working Ranges
| Max Digging Depth |
261 in (6620 mm) |
| Max Reach at Ground Line |
398 in (9760 m) |
| Max Cutting Height |
367 in (9330 mm) |
| Max Loading Height |
259 in (6590 mm) |
| Min Loading Height |
89 in (2270 mm) |
| Max Depth Cut for 2440 mm (8 ft) Level Bottom |
254 in (6440 mm) |
| Max Vertical Wall Dig Depth |
211 in (5360 mm) |
| Bucket Digging Force (ISO) |
33720 lbf (150 kN) |
| Stick Digging Force (ISO) |
22710 lbf (101 kN) |

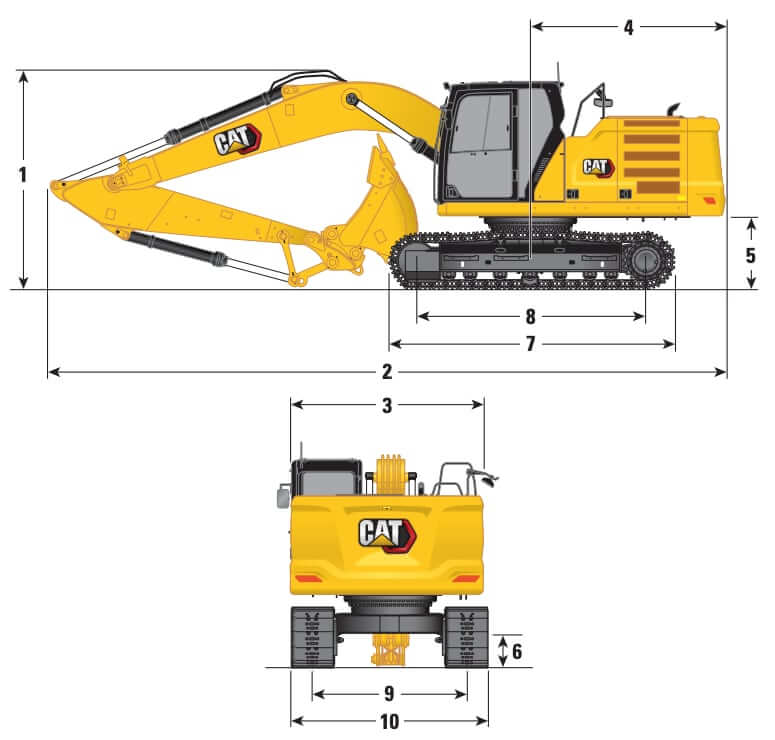

Dimensions
| 1. Height to Top of Cab |
117 in (2960 mm) |
| Height to Top of FOGS |
122 in (3100 mm) |
| Handrail Height |
116 in (2950 mm) |
| Height w/ Boom/Stick/Bucket Installed |
124 in (3160 mm) |
| Height w/ Boom/Stick Installed |
115 in (2910 mm) |
| Height w/ Boom Installed |
98 in (2480 mm) |
| 2. Length w/ Boom/Stick/Bucket Installed |
375 in (9530 mm) |
| Length w/ Boom/Stick Installed |
374 in (9500 mm) |
| Length w/ Boom Installed |
333 in (8450 mm) |
| 3. Upperframe Width |
109 in (2780 mm) |
| 4. Tail Swing Radius |
111 in (2830 mm) |
| 5. Counterweight Clearance |
41 in (1050 mm) |
| 6. Ground Clearance |
19 in (470 mm) |
| 7. Track Length |
175 in (4450 mm) |
| 8. Length to Center of Rollers |
144 in (3650 mm) |
| 9. Track Gauge |
94 in (2380 mm) |
| 10. Undercarriage Width: 790 mm (31 in) Shoes |
125 in (3170 mm) |
| Bucket Type |
HD |
| Bucket Capacity |
1.50 yd3 (1.14 m3) |
| Bucket Tip Radius |
58 in (1467 mm) |
| Boom Option (Reach Boom) |
224 in (5690 mm) |
| Stick Option (Reach Stick R2.9B1) |
114 in (2896 mm) |
Engine Details
| Number of Cylinders |
4 |
| Engine Make |
Caterpillar |
| Engine Model |
Cat C4.4 ACERT |
| Displacement |
269 cu in (4.5 L) |
| Bore |
4.13 in (105 mm) |
| Stroke |
5.0 in (127 mm) |
| Net Power |
121 hp (90.3 kw) |
| Gross Power |
122 hp (91.0 kw) |
| Power Measured @ |
2200 rpm |
| Aspiration |
Turbocharged and aftercooled |
| Emission Standards |
US EPA Tier 4 Final, EU Stage IV |

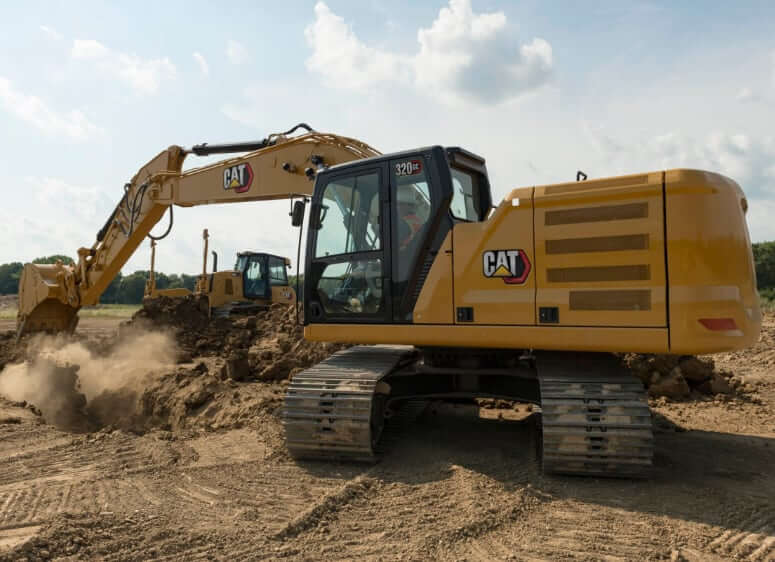

Weights
| Operating Weight |
49400 lb (22400 kg) |
| Base Machine Weight* |
32600 lb (14800 kg) |
| Track Shoes, 31 in (790 mm) |
7300 lb (3290 kg) |
| Two Boom Cylinders |
750 lb (340 kg) |
| Counterweight |
9300 lb (4200 kg) |
| Swing Frame |
4210 lb (1910 kg) |
| Undercarriage |
9700 lb (4390 kg) |
| Reach Boom18’8″ (5.7 m) |
3700 lb (1690 kg) |
| Reach Stick R2.9B1 (9’6″) |
2400 lb (1080 kg) |
| HD Bucket (without linkage), 1.0 m3 (1.31 yd3) |
1900 lb (880 kg) |
| Quick Coupler / Pin Grabber QC |
850 lb (390 kg) |
*Base Machine with counterweight, swing frame, standard base frame with HD track rollers and standard carrier rollers for long undercarriage, without boom cylinders – does not include 90% fuel and 165 lb (75 kg) operator.
Swing
| Swing Speed |
11.6 rpm |
| Maximum Swing Torque |
54900 lb ft (74.4 kNm) |
| Tail Swing Radius |
111 in (2830 mm) |
| Fine Swing Control |
Standard |
Undercarriage
| Standard Track Shoes Width |
31 in (790 mm) |
| Number of Shoes (each side) |
49 |
| Number of Track Rollers (each side) |
8 |
| Number of Carrier Rollers (each side) |
2 |
Drive
| Maximum Travel Speed |
3.6 mph (5.9 km/h) |
| Maximum Drawbar Pull |
45000 lb (200 kN) |
| Maximum Gradeability |
35° (70%) |
Hydraulic System
| Total Pump Flow |
2x 58 gal/min (2x 221 L/min) |
| Max Pressure – Equipment |
5075 psi (35000 kPa) |
| Max Pressure – Travel |
4974 psi (34300 kPa) |
| Max Pressure – Swing |
3625 psi (25000 kPa) |
| Control |
Tool control (two pumps, one/two way high-pressure flow) |

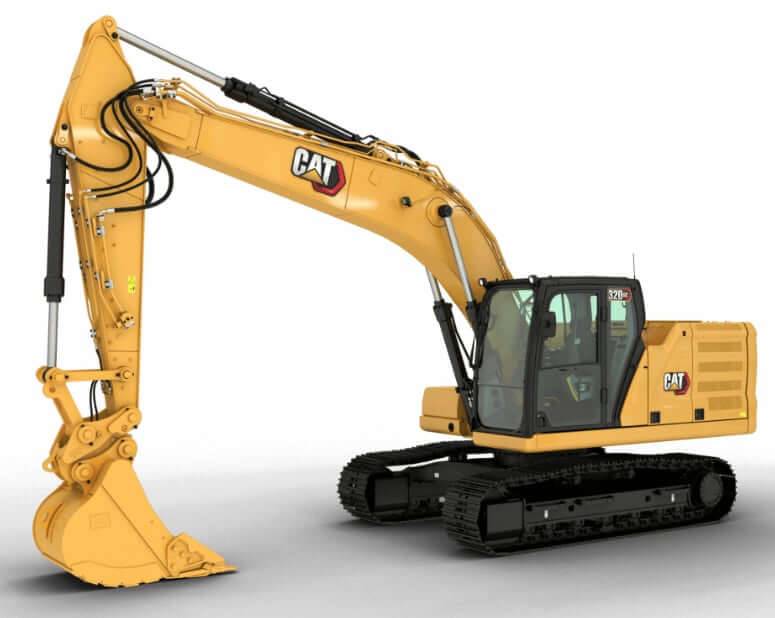

Service Refill Capacities
| Fuel Tank Capacity |
86.6 gal (328 L) |
| DEF Tank Capacity |
10.3 gal (39 L) |
| Engine Oil Capacity |
4 gal (15.2 L) |
| Cooling System Capacity |
6.6 gal (25 L) |
| Swing Drive – Each |
1.3 gal (5 L) |
| Final Drive – Each |
1.3 gal (5 L) |
| Hydraulic Tank Capacity |
30.4 gal (115 L) |
| Hydraulic System Capacity (w/ tank) |
61.8 gal (234 L) |
