Dimensions
| Overall Length | 186 in (4724 mm) |
| Overall Width | 102.5 in (2603 mm) |
| Overall Height | 103.3 in (2623 mm) |
| Height of Drawbar Above Ground | 22.4 in (568 mm) |
| Ground Clearance | 18.3 in (464 mm) |
Undercarriage
| Track Gauge | 78 in (1981 mm) |
| Length Of Track On Ground | 124 in (3150 mm) |
| Shoe Size (Standard) | 22 in (559 mm) |
| Track Pitch | 9 in (229 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 7 |
| Number Of Shoes Per Side | 40 |
Engine Details
| Number Of Cylinders | 8 |
| Engine Make | Detroit Diesel |
| Engine Model | Detroit Diesel 8V-71T |
| Displacement | 568 cu in (9.3 L) |
| Bore | 4.25 in (108 mm) |
| Stroke | 5.0 in (127 mm) |
| Gross Power | 245 hp (182.7 kw) |
| Power Measured @ | 2100 rpm |
| Injection System | Mechanical unit injector fuel system |
| Compression Ratio | 17.0:1 |
| Aspiration | Turbocharged |
Operational Specs
| Operating Weight (20% of fuel) | 47460 lb (21527 kg) |
| Operating Voltage | 24 V |
| Alternator | 50 amps |
| Battery | 2x 12 V, 225 Ah, heavy duty batteries |
Transmission
| Type | Allison CRT-6031 hydraulically controlled planetary gearing transmission |
| Torque Converter | Allison TC-540-3E hydraulic torque converter with fixed stator |
| Number of Gears | 3F x 3R |
| Service Brakes | Self-adjusting oil cooled, multiple disc, full power modulated foot brake |
| Parking Brake | Automatically applied when engine and crawler are stopped |
Speeds

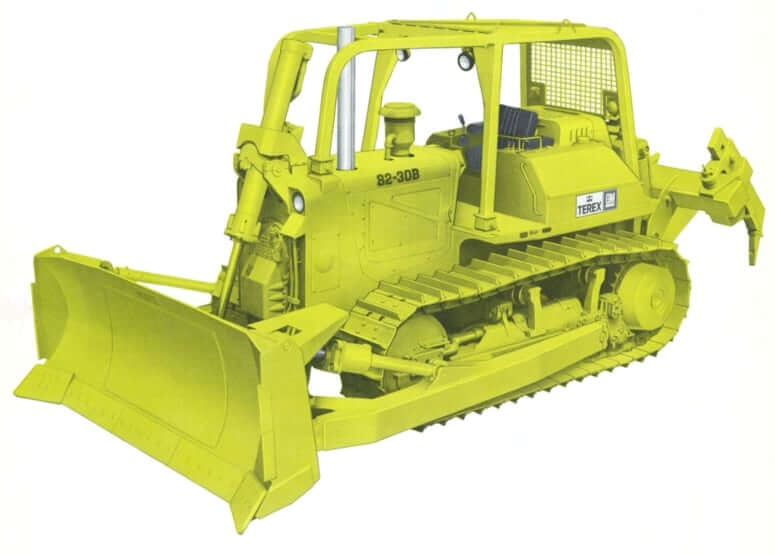

| Terex 82-30B | Forward | Reverse |
|---|---|---|
| Max Speed (low) | 2.3 mph (3.70 km/h) | 2.8 mph (4.51 km/h) |
| Max Speed (intermed.) | 4.2 mph (6.76 km/h) | 5.1 mph (8.21 km/h) |
| Max Speed (high) | 7.0 mph (11.26 km/h) | 8.4 mph (13.52 km/h) |
Service Refill Capacities
| Fuel Tank Capacity | 125 gal (473 L) |
| Engine Oil Capacity (with Filter) | 10 gal (38 L) |
| Cooling System Capacity | 34 gal (129 L) |
| Final Drives Capacity | 13 gal (50 L) |
| Transmission Oil Capacity | 42 gal (159 L) |
