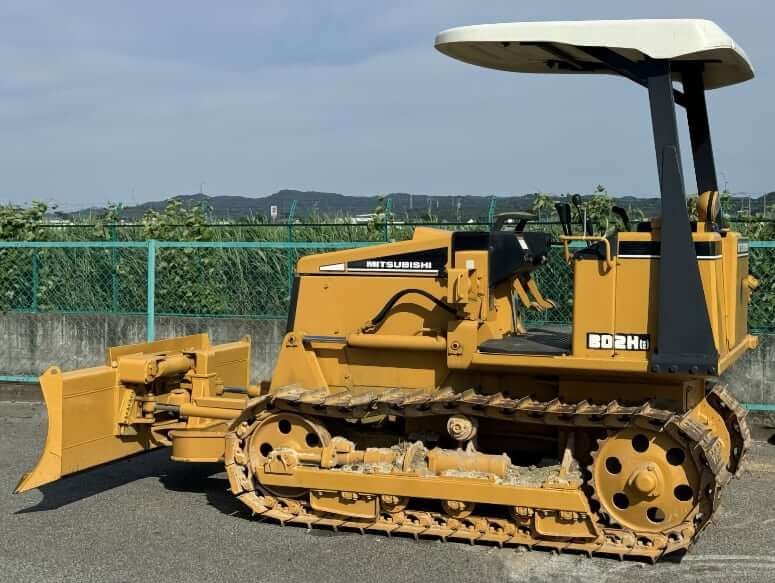

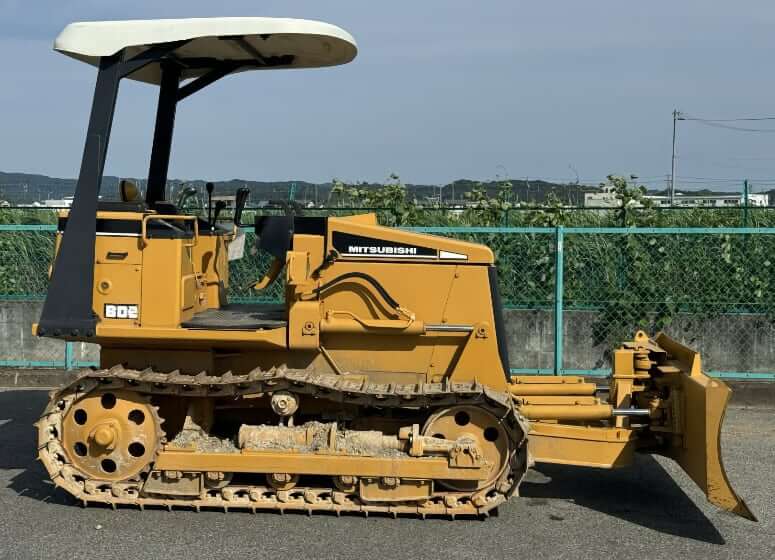

Dimensions
| Length w/ Dozer Blade* | 133.5 in (3390 mm) |
| Length w/o Dozer Blade | 95.1 in (2415 mm) |
| Length of Track on Ground | 68.5 in (1740 mm) |
| Width Over Tracks | 74.8 in (1900 mm) |
| Height to Top of Cab | 95.5 in (2425 mm) |
| Height w/o Cab | 67.9 in (1725 mm) |
| Ground Clearance | 11.8 in (300 mm) |
| Minimum Turning Radius | 86.6 in (2200 mm) |
* Dimensions of the Mitsubishi BD2H-S Dozer

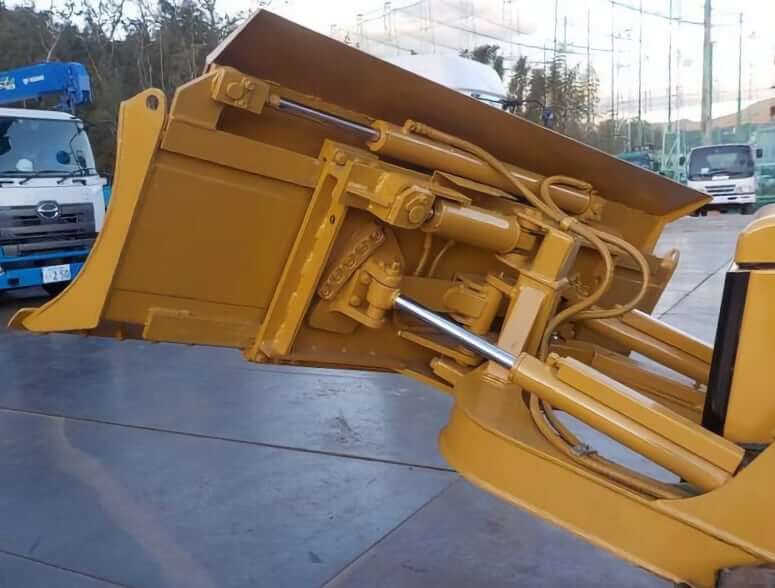

Dozer Blade
| Blade Width (Option 1) | 87.8 in (2230 mm) |
| Blade Width (Option 2) | 100 in (2540 mm) |
| Blade Width (Option 3) | 125.2 in (3180 mm) |
| Blade Height (Option 1) | 23.5 in (595 mm) |
| Blade Height (Option 2) | 23.5 in (595 mm) |
| Blade Height (Option 3) | 19.7 in (500 mm) |
| Maximum Dozer Blade Raise | 34.1 in (865 mm) |
| Maximum Dozer Blade Lower | 16.5 in (420 mm) |
| Tilt Stroke | 13.4 in (340 mm) |
| Blade Angle | 25° |

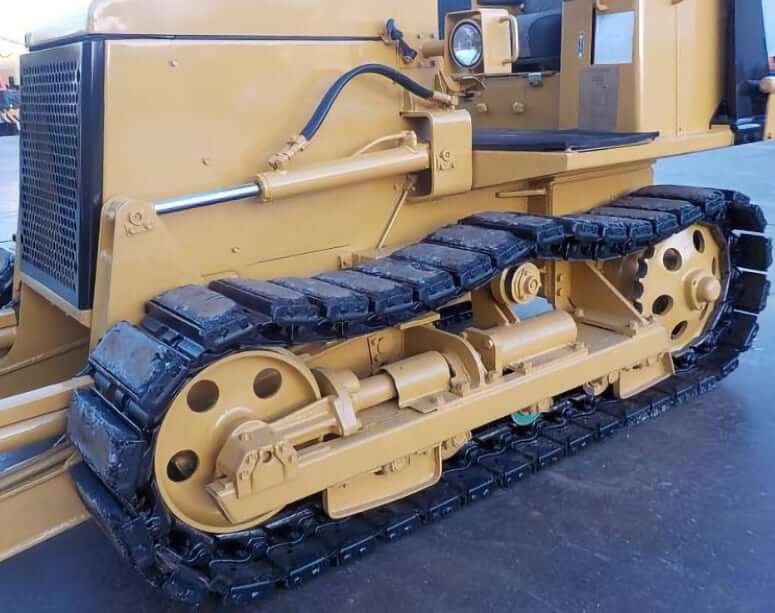

Undercarriage
| Track Gauge | 55.1 in (1400 mm) |
| Track Shoe Width (Standard) | 11.8 in (300 mm) |
| Track Shoe Width (Optional for Swamp Dozer) | 20 in (500 mm) |
| Track Shoe Width (Optional for Super Swamp Dozer) | 28 in (710 mm) |
| Length of Track on Ground | 68.5 in (1740 mm) |
S – Swamp Dozer with Broad Straight Blade and Track Shoe Width 20 in (500 mm)
SS – Super Swamp Dozer with Broad Straight Blade and Track Shoe Width 28 in (710 mm)

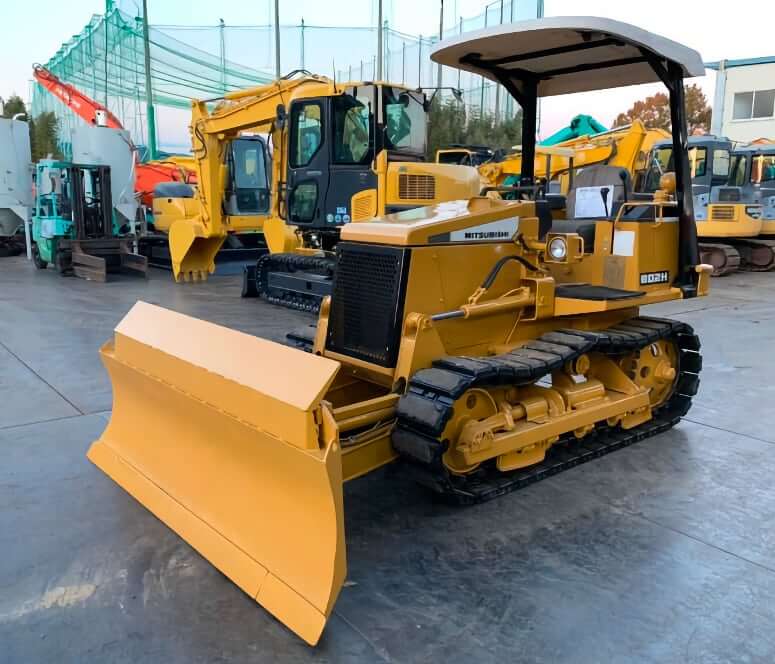

Weight
| Operating Weight, BD2H-3-HB0 | 8157 lb (3700 kg) |
| Operating Weight, BD2H-3-HB5 | 8334 lb (3780 kg) |
| Operating Weight, BD2H-E-HB0 | 7937 lb (3600 kg) |
| Operating Weight, BD2H-E-S-HB1 | 8576 lb (3890 kg) |
| Operating Weight, BD2H-E-S-HB6 | 9105 lb (4130 kg) |
| Operating Weight, BD2H-HB0 | 7937 lb (3600 kg) |
| Operating Weight, BD2H-HB5 | 8334 lb (3780 kg) |
| Operating Weight, BD2HS-HB1 | 8929 lb (4050 kg) |
| Operating Weight, BD2HS-HB6 | 8752 lb (3970 kg) |
| Operating Weight, BD2HSS-HB2 | 9480 lb (4300 kg) |
| Operating Weight, BD2HSS-HB7 | 9656 lb (4380 kg) |
| Operating Weight, BD2HSSS-HB3 | 10252 lb (4650 kg) |
| Power Angling / Tilt Blade Weight | 1213 lb (550 kg) |
| Power Tilt Blade Weight | 882 lb (400 kg) |
| Loader Bucket Weight | 529 lb (240 kg) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Mitsubishi |
| Engine Model | Mitsubishi S4SE1 |
| Displacement | 203.2 cu in (3.33 L) |
| Bore | 3.70 in (94 mm) |
| Stroke | 4.72 in (120 mm) |
| Gross Power | 40 hp (29.9 kw) |
| Power Measured @ | 2300 rpm |
| Lubrication System | Pressure feed by gear pump |
| Fuel Filter | Cartridge, paper element |
| Combustion Chamber | Swirl chamber |
| Air Cleaner | Paper element |
| Aspiration | Naturally aspirated |
| Fuel Consumption | 1.45 gal/h (5.5 L/h) |
Operational Specs
| Ground Pressure* | 3.13 psi (21.6 kPa) |
| Operating Voltage | 24 V |
| Alternator | 20 amps |
| Battery | 2x 12 V, 60 Ah |
| Noise Level (Full Load) | 66 dB(A) |
| Indicators, Gauges, Switches | Water temperature gauge; Service meter; OK monitor; Battery switch; Fuel gauge; Lighting switch; Glow plug indicator; Starter switch |
* Data of the Mitsubishi BD2H-S Dozer
Transmission
| Mitsubishi BD2H | DD | DPS |
|---|---|---|
| Transmission Type | Direct Drive transmission | Direct Power Shift |
| Number Of Forward Gears | 3 | 3 |
| Number Of Reverse Gears | 2 | 3 |
| Max Travel Speed (forward) | 4.7 mph (7.6 km/h) | 4.5 mph (7.2 km/h) |
| Max Travel Speed (reverse) | 3.9 mph (6.2 km/h) | 5.3 mph (8.5 km/h) |
Hydraulic System
| Pump Type | Hydraulic Gear Pump |
| Hydraulic Pump Flow Capacity | 14.3 gal/min (54 L/min) |
| Main Relief Valve | 2560 psi (17700 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 15.8 gal (60 L) |
| Engine Oil Capacity | 1.8 gal (7 L) |
| Cooling System Capacity (w/ radiator) | 3.4 gal (13 L) |
| Hydraulic Tank Capacity | 8.7 gal (33 L) |
| Main Clutch Capacity (DD) | 1.5 gal (5.5 L) |
| Damper Case Capacity (DPS) | 0.9 gal (3.5 L) |
| Transmission Case Capacity (DD) | 2.5 gal (9.5 L) |
| Transmission Case Capacity (DPS) | 2.9 gal (11 L) |
| Transfer/Bevel Gear Capacity (DPS) | 1.8 gal (7 L) |
| Final Drives Capacity | 1.7 gal (6.5 L) |
