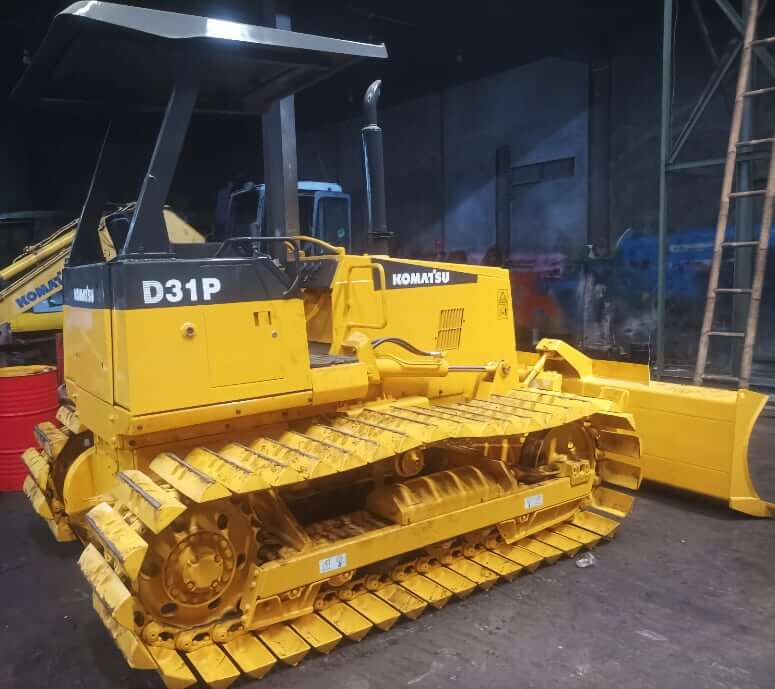

Dimensions
| Overall Length w/ Blade | 155.1 in (3940 mm) |
| Length of Track on Ground | 86 in (2185 mm) |
| Width Over Tracks | 65 in (1650 mm) |
| Overall Width Over Blade | 113.2 in (2875 mm) |
| Height to Top of Cab | 106.1 in (2695 mm) |
| Height to Top of Exhaust | 105.3 in (2675 mm) |
| Height to Top of Operator Seat | 77 in (1955 mm) |
| Width of Cab | 49.2 in (1250 mm) |
| Length of Cab | 51.6 in (1310 mm) |
| Ground Clearance | 14.2 in (360 mm) |
Dozer Blade
| Blade Width | 113.2 in (2875 mm) |
| Blade Height | 31.1 in (790 mm) |
| Blade Capacity (SAE) | 1.70 yd3 (1.3 m3) |
| Blade Weight | 1980 lb (900 kg) |
| Max Cutting Depth | 12.6 in (320 mm) |
| Max Lift above Ground | 36.0 in (915 mm) |
| Max Tilt Adjustment | 16.5 in (420 mm) |

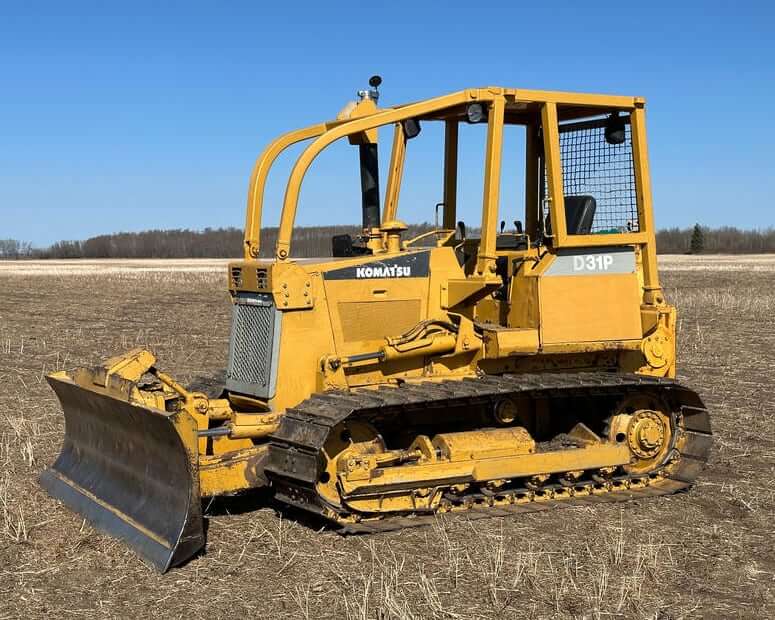

Undercarriage
| Track Gauge (Standard) | 65 in (1650 mm) |
| Track Gauge (Optional) | 57 in (1450 mm) |
| Shoe Size (Standard) | 23.6 in (600 mm) |
| Number of Carrier Rollers per Side | 1 |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 41 |
| Grouser Height | 1.9 in (47 mm) |
| Ground Contact Area | 4064 in2 (26220 cm2) |
| Ground Pressure (Fully equipped) | 3.9 psi (0.27 kg/cm2) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Komatsu |
| Engine Model | Komatsu S4D102E-1 |
| Displacement | 240 cu in (3.9 L) |
| Bore | 4.02 in (102 mm) |
| Stroke | 4.72 in (120 mm) |
| Gross Power | 75 hp (56 kw) |
| Net Power | 70 hp (52 kw) |
| Power Measured @ | 2350 rpm |
| Peak Torque | 217 lb ft (294 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational Specs
| Operating Weight | 13470 lb (6110 kg) |
| Max Operating Weight | 15850 lb (7205 kg) |
| Max Drawbar Pull | 19760 lb (8960 kg) |
| Operator Station | Cab with ROPS / Canopy with ROPS |
| Operating Voltage | 24 V |
| Alternator | 25 amps |
| Battery | 2x 12 V, 70 Ah |
| Working LIghts | 2 front + 1 rear |
| Starting Motor | 4.5 kw, 24 V |
Transmission
| Type | Komatsu HYDROSHIFT transmission with planetary gears, hydraulically-controlled, force-lubricated |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| Max Forward Speed | 4.1 mph (6.5 km/h) |
| Max Reverse Speed | 4.5 mph (7.1 km/h) |
| Steering | Single steering lever controls all direction movement. Wet, multiple-disc steering clutches are PPC controlled |
| Service Brakes | Wet, contracting-band, steering brakes to allow easy, light-touch steering/braking actions |
| Final Drive | Spur gear, single-reduction final drives. Bolt-on type sprockets for easy replacement. |
Hydraulic System
| Type | Gear-type hydraulic pump mounted on rear of engine |
| Pump Type | Gear-type pump |
| Pump Flow Capacity | 24.0 gal/min (90 L/min) |
| Relief Valve Pressure | 2490 psi (17160 kPa) |
| Control Valves | Three control valves for power-angle-tiltdozer |
| Additional Control Valve | Additional control valve required for ripper |
| Hydraulic Cylinders | Double-acting, piston type |
| Blade Lift | 2x cylinders – 3.54 in (90 mm) |
| Blade Tilt | 1x cylinder – 3.54 in (90 mm) |
| Blade Angling | 2x cylinders – 3.54 in (90 mm) |
Service Refill Capacities
| Fuel Tank Capacity | 30.4 gal (115 L) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Cooling System Capacity | 5.8 gal (22 L) |
| Transmission Oil Capacity | 3.4 gal (13 L) |
| Damper Case Fluid Capacity | 0.4 gal (1.5 L) |
| Bevel Gear Case / Steering clutch | 12.4 gal (47 L) |
| Final Drive, 1450 mm Track Gauge (each side) | 2.5 gal (9.5 L) |
| Final Drive, 1650 mm Track Gauge (each side) | 3.2 gal (12 L) |
What are the 3 dip sticks under seat?
Steering Clutch/Brake Oil Dipstick (Left and Right) + Transmission/Hydraulic Oil Dipstick
