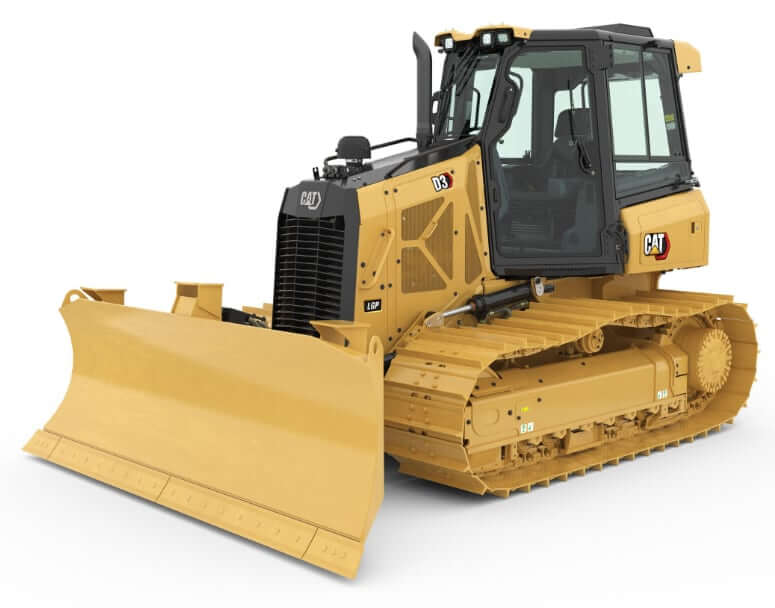

Dimensions

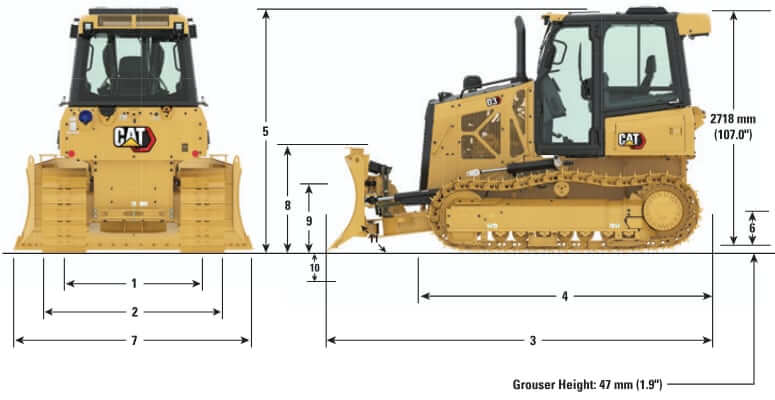

| CAT D3 LGP | Shoes, 26 in (660 mm) | Shoes, 30 in (762 mm) |
|---|---|---|
| 1. Track Gauge | 68.9 in (1750 mm) | 73.2 in (1860 mm) |
| 2. Width of Dozer (standard shoes, no blade) | 94.9 in (2410 mm) | 103.5 in (2630 mm) |
| 3. Overall Length (with blade) | 169.6 in (4309 mm) | 169.6 in (4309 mm) |
| 4. Length of Basic Dozer (without blade) | 128.7 in (3270 mm) | 128.7 in (3270 mm) |
| 5. Dozer Height | 109 in (2769 mm) | 109 in (2769 mm) |
| 6. Ground Clearance | 13 in (332 mm) | 13 in (332 mm) |
| Max Length (with blade and ripper attachment) | 216 in (5486 mm) | 216 in (5486 mm) |

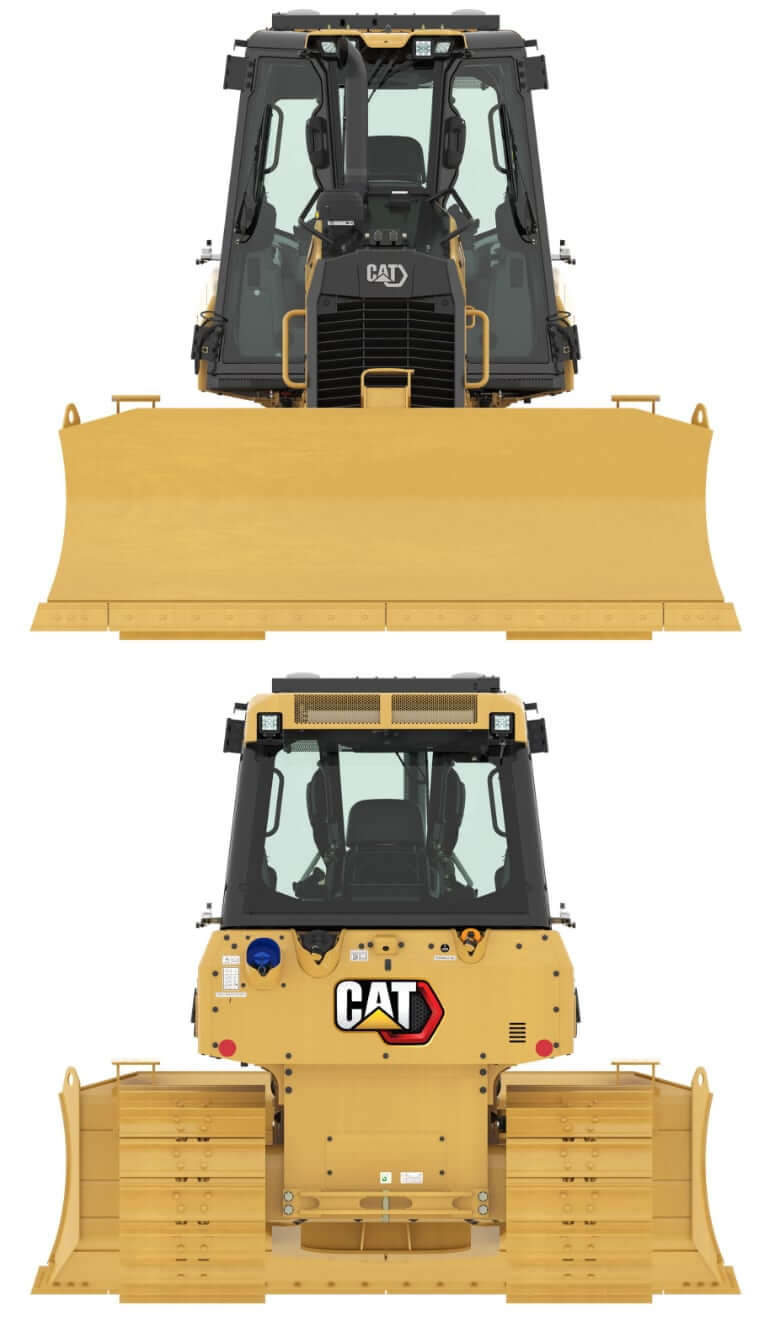

Dozer Blade
| 7. Blade Width | 126.8 in (3220 mm) |
| 8. Blade Height | 39.8 in (1010 mm) |
| 9. Blade Lift Height | 30.2 in (767 mm) |
| 10. Digging Depth | 23.2 in (590 mm) |
| 11. Blade Cutting Edge Angle, Adjustable | 52° to 58° |
| Maximum Tilt | 17.6 in (448 mm) |
| Maximum Angle (either side) | 25° |
| Blade Width at Maximum Angle | 115.7 in (2940 mm) |
| Blade Capacity (SAE) | 3.06 yd3 (2.34 m3) |
Ripper
| Type | Parallelogram ripper |
| Number of Shanks | 3 |
| Max Digging Depth | 13.3 in (337.5 mm) |
| Max Reach at Ground Line | 30.2 in (766 mm) |
| Max Ground Clearance Under Tip | 17.6 in (448 mm) |
| Ripper Width | 67.3 in (1710 mm) |
| Ripper Height | 6.5 in (165 mm) |
| Ripper Weight | 1222 lb (554 kg) |

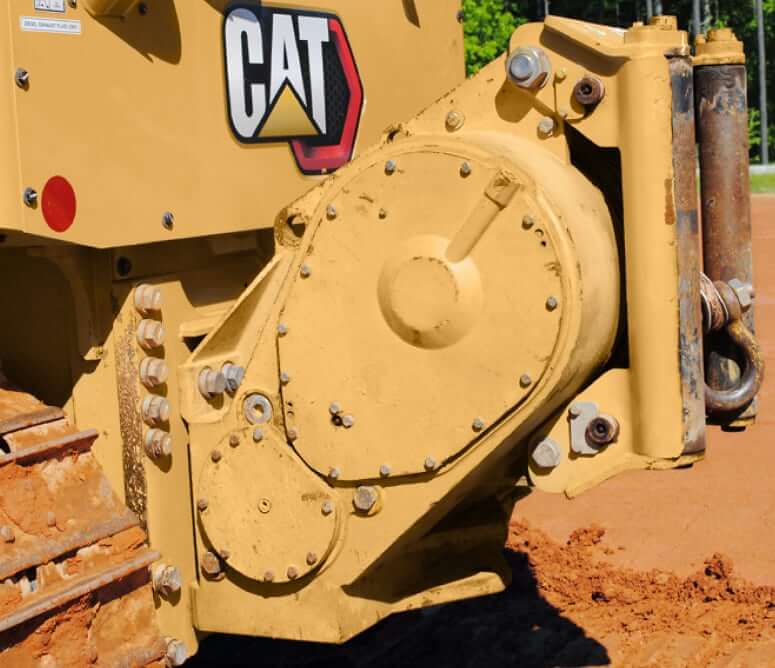

Winch
| CAT D3 LGP | High Performance Winch | Retrieval Winch |
|---|---|---|
| Weight | 1345 lb (610 kg) | 1747 lb (794 kg) |
| Winch Drive | Hydrostatic | Hydraulic |
| Control | Hydraulic | Hydraulic |
| Speed | Variable | Variable |
| Winch Length | 27.76 in (705 mm) | 35.63 in (905 mm) |
| Overall Width | 29.2 in (741 mm) | 27.91 in (709 mm) |
| Drum Diameter | 10 in (254 mm) | 8 in (203.2 mm) |
| Drum Width | 10.8 in (274 mm) | 9.65 in (245 mm) |
| Throat Clearance | 6.75 in (171.5 mm) | 5.6 in (141.4 mm) |
| Rope Diameter – Recommended | 0.63 in (16 mm) | 5/8 in (16 mm) |
| Rope Diameter – Optional | 0.75 in (19 mm) | 3/4 in (19 mm) |
| Drum Capacity – Recommended Cable | 371 ft (113 m) | 277 ft (84 m) |
| Drum Capacity – Optional Cable | 256 ft (78 m) | 195 ft (59 m) |
| Max Line Pull – Bare Drum | 40000 lb (18144 kg) | 32150 lb (14583 kg) |
| Max Line Pull – Full Drum | 25000 lb (11340 kg) | 20350 lb (9231 kg) |
| Max Line Speed – Bare Drum | 131 ft/min (40 m/min) | 50 ft/min (15 m/min) |
| Max Line Speed – Full Drum | 207 ft/min (63 m/min) | 79 ft/min (24 m/min) |

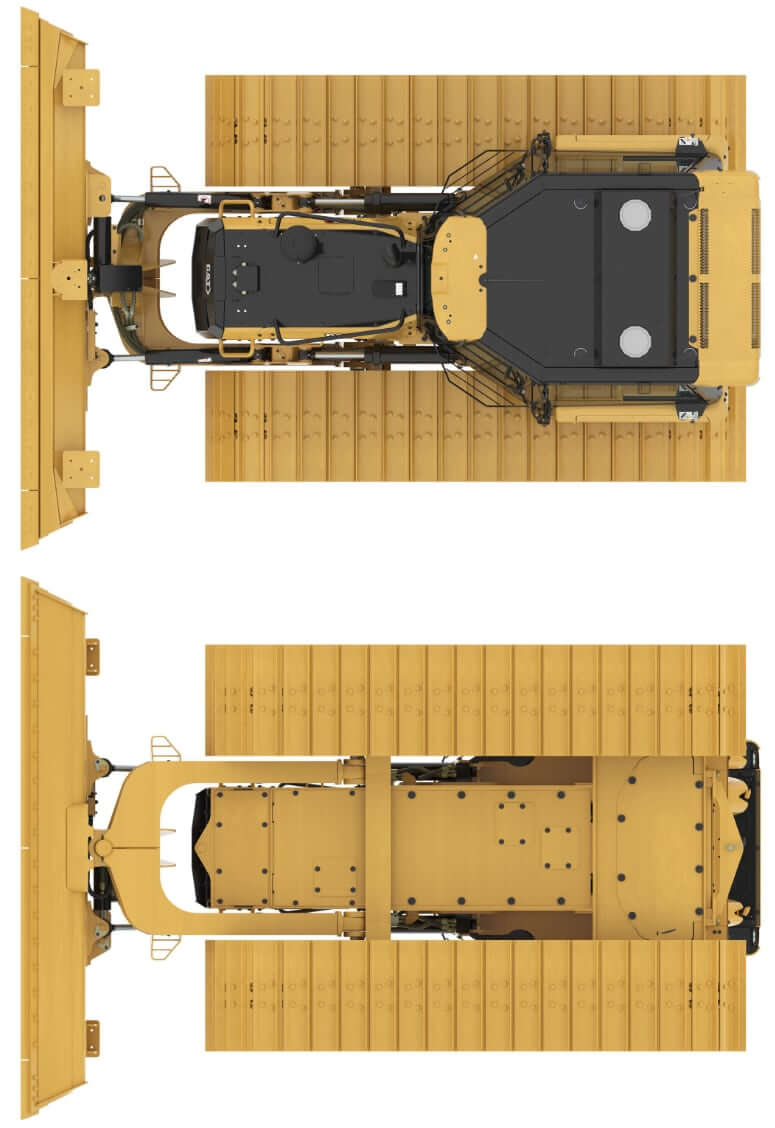

Undercarriage
| Length of Track on Ground | 91 in (2310 mm) |
| Shoe Width, LGP (Standard) | 26 in (660 mm) |
| Shoe Width, LGP (Optional) | 30 in (762 mm) |
| Ground Pressure, LGP 26 in (660 mm) | 4.5 psi (31.2 kPa) |
| Ground Pressure, LGP 30 in (762 mm) | 3.9 psi (27.2 kPa) |
| Track Adjuster | Hydraulic track adjusters |
| Track Gauge, LGP 26 in (660 mm) | 69 in (1750 mm) |
| Track Gauge, LGP 30 in (762 mm) | 73 in (1860 mm) |
| Number of Track Rollers Per Side | 7 |
| Number of Shoes Per Side (Heavy Duty Undercarriage) | 40 |
| Number of Shoes Per Side (Abrasion Undercarriage) | 36 |
| Seal of Track | Sealed and lubricated track (SALT) or abrasion undercarriage |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat C3.6 |
| Displacement | 220.9 cu in (3.6 L) |
| Bore | 3.86 in (98 mm) |
| Stroke | 4.72 in (120 mm) |
| Net Power | 104 hp (77.6 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 417 lb ft (566 Nm) |
| Torque Measured @ | 1500 rpm |
| Fuel System | Direct injection |
| Compression Ratio | 17.0:1 |
| Air Cleaner | Air cleaner with precleaner, automatic dust ejection and underhood intake |
| Aftertreatment | DOC+DPF+SCR |
| Aspiration | Turbocharged aftercooled |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs

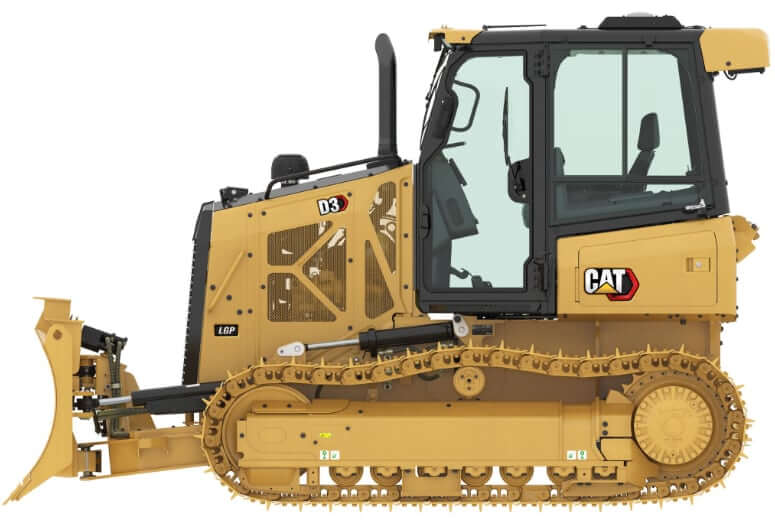

| Operating Weight, LGP 26 in (660 mm) | 21369 lb (9693 kg) |
| Operating Weight, LGP 30 in (762 mm) | 21810 lb (9893 kg) |
| Operating Voltage | 12 V |
| Alternator | 150 amps |
| Battery | 12 V, 90 Ah, RC: 170 min, CCA 1000, Group Size: 30H, 31 |
| Starter | 12 V, 5.4 hp (4 kw) |
Operator Environment

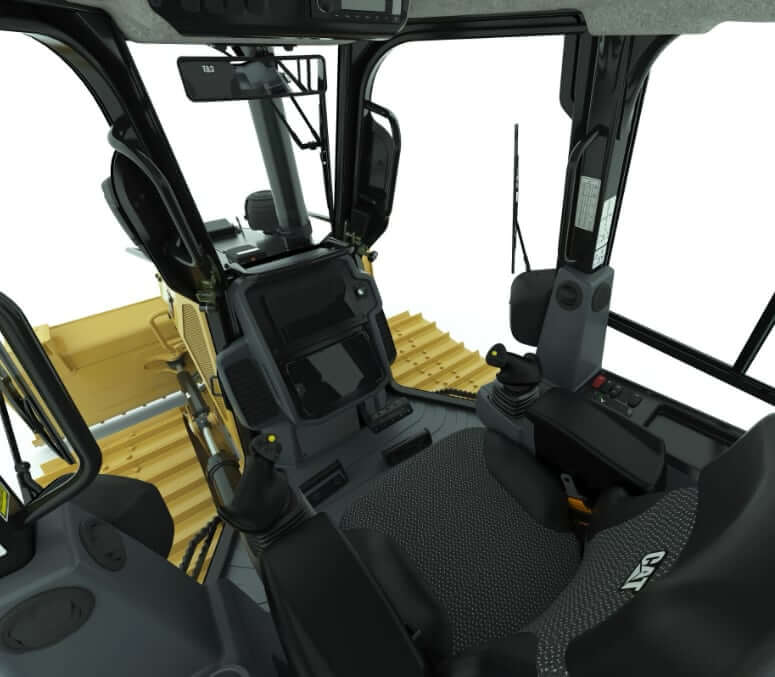

| Canopy | Standard – ROPS / FOPS canopy |
| Cab | Optional EROPS cab w/ air-conditioning |
| Operator Seat | Adjustable air suspended seat, cloth or vinyl |
| Operator Seat (Optional) | Heated and ventilated air suspended seat with heated controls, cloth |
| Seat Belt | Hi-vis retractable seat belt 3 in (76 mm) |
| Display (Optional) | Full-color 10 in (254 mm) touchscreen grade display |
| Working Lights | 4 integrated front halogen lights + 2 rear halogen lights |
| Working Lights (Optional) | 4 integrated front LED lights, 2 rear LED lights |

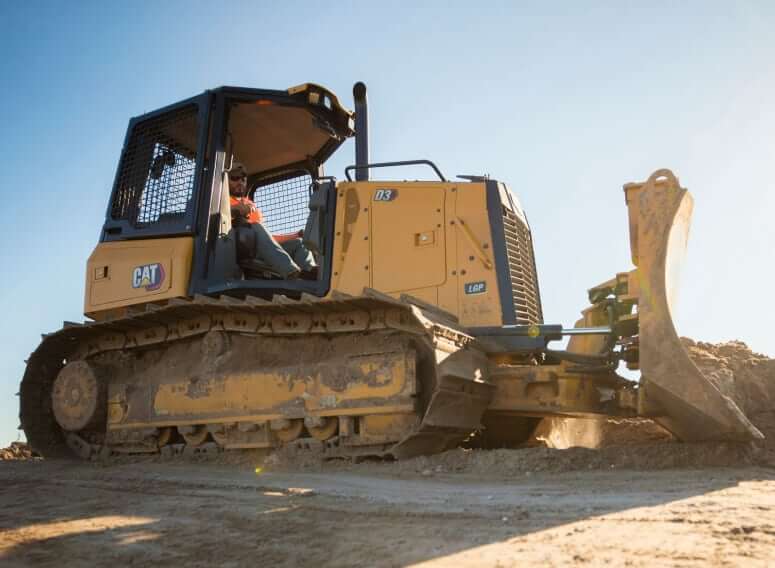

Transmission
| Type | Dual path, closed loop, hydrostatic transmission (load sensing system) |
| Number of Gears | Infinite forward and reverse |
| Max Forward Speed | 5.6 mph (9.0 km/h) |
| Max Reverse Speed | 6.2 mph (10.0 km/h) |
| Drive Pumps | 1 |
| Track Motors | 2 |
| Final Drives | Large planetary gear set |
| Steering | Steer Assist automates track steering with light or heavy loads |
| Service Brakes | Single pedal combining decel and brake functions |

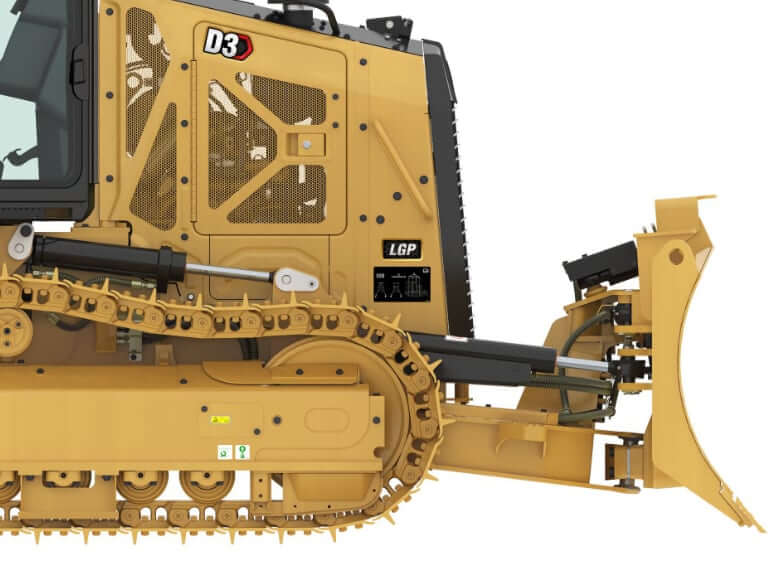

Hydraulic System
| Hydraulic System w/ 3 Valves | Standard |
| Hydraulic System w/ 4 Valves | Four valve for use with ripper |
| Hydraulic System w/ 4 Valves | Four valve for use with winch |
| Control Type | Single lever, three function control |
| Main Pump Flow | 17.2 gal/min (65 L/min) |
| Relief Valve Setting (Main Pump) | 2988 psi (20600 kPa) |
| Relief Valve Setting (Drive Pump) | 7033 psi (48500 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 51.5 gal (195 L) |
| DEF Tank Capacity | 4.9 gal (19 L) |
| Engine Oil Capacity | 2.8 gal (10.5 L) |
| Cooling System Capacity | 5.0 gal (19 L) |
| Transmission / Hydraulic System Capacity | 23.8 gal (90 L) |
| Final Drives Capacity (each side) | 2.6 gal (10 L) |
| Winch Housing Capacity | 1.2 gal (4.7 L) |
