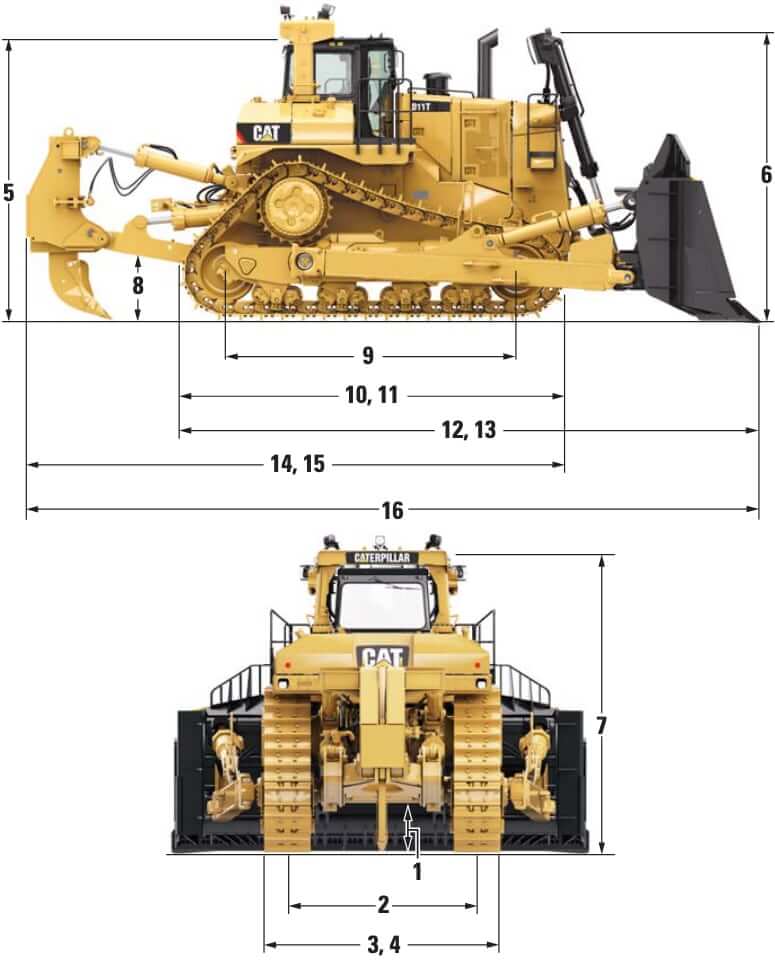

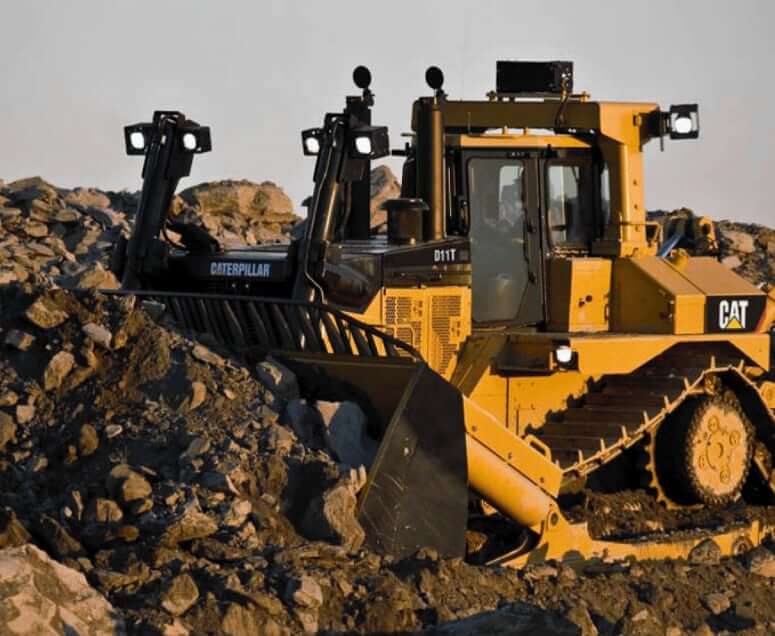

Dimensions
| 1. Ground Clearance | 31.4 in (798 mm) |
| 2. Track Gauge | 114.0 in (2896 mm) |
| 3. Width without Trunnions (Standard Shoe) | 149.8 in (3806 mm) |
| 4. Width over Trunnions | 172.4 in (4379 mm) |
| 5. Height (FOPS Cab) | 173.4 in (4405 mm) |
| 6. Height (Top of Stack) | 179.1 in (4549 mm) |
| 7. Height (ROPS/Canopy) | 185.9 in (4723 mm) |
| 8. Drawbar Height (Center of Clevis) | 37.1 in (942 mm) |
| 9. Length of Track on Ground | 175.0 in (4444 mm) |
| 10. Overall Length Basic Tractor | 242.5 in (6160 mm) |
| 11. Length Basic Tractor with Drawbar | 242.5 in (6160 mm) |
| 12. Length with CD-Blade | 345.1 in (8765 mm) |
| 13. Length with U-Blade | – |
| 14. Length with Single-Shank Ripper | 319.2 in (8107 mm) |
| 15. Length with Multi-Shank Ripper | 331.8 in (8427 mm) |
| 16. Overall Length CD-Blade and Single-shank Ripper | 421.7 in (10712 mm) |
Carrydozer Blade
| Type | Cat 11CD Blade |
|---|---|
| Blade Capacity (SAE J1265) | 57.0 yd3 (43.6 m3) |
| Width w/ Blade (over end bits) | 264.0 in (6706 mm) |
| Blade Height | 116.3 in (2955 mm) |
| Digging Depth (Rack back) | 27.1 in (688 mm) |
| Digging Depth (Full dump) | 67.2 in (1708 mm) |
| Blade Ground Clearance (Rack back) | 72.8 in (1850 mm) |
| Blade Ground Clearance (Full dump) | 12.1 in (307 mm) |
| Maximum Tilt | 70.9 in (1800 mm) |
| CD Blade Weight | 53099 lb (24085 kg) |
Ripper
| CAT D11T CD Ripper | Single-shank | + Multi-shank Arrangement |
|---|---|---|
| Max Penetration Force (shank vertical) | 85652 lbf (381 kN) | 82055 lbf (365 kN) |
| Max Penetration (standard tip) | 63.5 in (1612 mm) | 43.3 in (1100 mm) |
| Pryout Force (multi-shank ripper with one tooth) | 141405 lbf (629 kN) | 142978 lbf (636 kN) |
| Max Clearance Raised (under tip, pinned in bottom hole) | 43.7 in (1111 mm) | 42.9 in (1090 mm) |
| Overall Beam Width | 131.5 in (3340 mm) | |
| Number of Shank Holes | 4 | 2 |
| Weight (with one shank) | 27472 lb (12461 kg) | 25993 lb (11790 kg) |
Undercarriage
| Shoe Size (Standard) | 36 in (915 mm) |
| Shoe Type | Extreme Service |
| Track Gauge | 114 in (2896 mm) |
| Track Pitch | 12.5 in (318 mm) |
| Grouser Height | 4 in (102 mm) |
| Length of Track on Ground | 175 in (4444 mm) |
| Ground Contact Area | 12605 in2 (8.1 m2) |
| Number of Carrier Rollers per Side | 1 |
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 41 |
| Track Roller Frame Oscillation | 13.8 in (351 mm) |
Engine Details
| Emission Standards | US EPA Tier 2 | US EPA Tier 4F |
|---|---|---|
| Number of Cylinders | 12 | 12 |
| Engine Make | Caterpillar | Caterpillar |
| Engine Model | Cat C32 ACERT | Cat C32 ACERT |
| Displacement | 1959 cu in (32.1 L) | 1959 cu in (32.1 L) |
| Bore | 5.7 in (145 mm) | 5.7 in (145 mm) |
| Stroke | 6.4 in (162 mm) | 6.4 in (162 mm) |
| Gross Power | 932 hp (695 kw) | 913 hp (681 kw) |
| Net Power | 850 hp (634 kw) | 850 hp (634 kw) |
| Power Measured @ | 1800 rpm | 1800 rpm |
| Peak Torque | 3793 lb ft (5143 Nm) | 4323 lb ft (5861 Nm) |
| Torque Measured @ | 1400 rpm | 1200 rpm |
| Compression Ratio | 16.5:1 | 16.0:1 |
| Fuel System | MEUI injection | MEUI injection |
| Aspiration | Turbocharged Aftercooled (TA) | Twin Turbocharged Aftercooled (TTA) |
Operational Specs
| Operating Weight | 248500 lb (112718 kg) |
| Shipping Weight | 83340 lb (37802 kg) |
| Operating Voltage | 24 V |
| Alternator | 150 amps |
| Battery | 4x 12 V, 200 Ah |
| Working Lights | 5x HID / 7x Halogen |
| Operator Station | ROPS / FOPS Cab |
| Sound Level (interior) | 79 dB(A) |
| Sound Level (exterior) | 87 dB(A) |
Transmission
| Type | Planetary powershift transmission |
| Clutch Diameter | 21 in (533 mm) |
| Number of Gears | 3F / 3R |
| Max Forward Speed | 7.3 mph (11.8 km/h) |
| Max Reverse Speed | 8.7 mph (14.0 km/h) |
| Torque Converter | A single-stage torque converter |
| Final Drives | Four planet, double-reduction planetary final drives |
| Service Brakes | Spring applied multiple-disc brakes |
| Parking Brake | Electronic park brake |
Hydraulic System
| Pump Type | Gear-type pump |
| Implement Pump Flow | 177 gal/min (670 L/min) |
| Tilt Pump Flow Capacity | 66 gal/min (250 L/min) |
| Carrydozer Relief Valve Pressure | 3500 psi (24135 kPa) |
| Tilt Cylinder Relief Valve Pressure | 3600 psi (24825 kPa) |
| Ripper (Lift) Relief Valve Pressure | 3500 psi (24135 kPa) |
| Ripper (Pitch) Relief Valve Setting | 3500 psi (24135 kPa) |
| Control | Electronically controlled for bulldozer and ripper control |

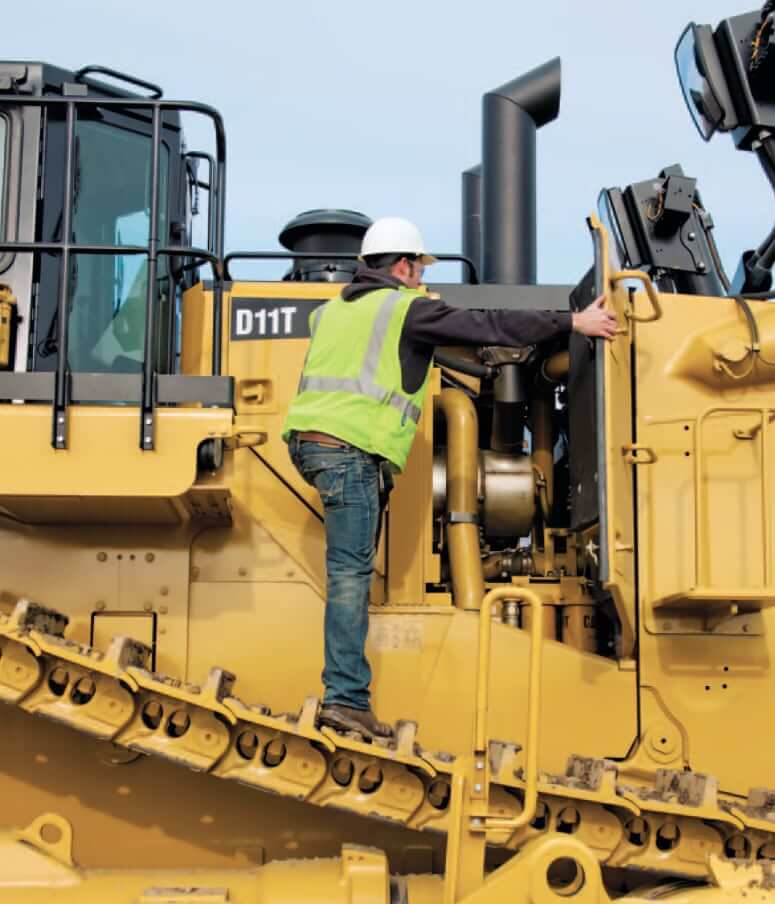

Service Refill Capacities
| Fuel Tank Capacity | 425 gal (1609 L) |
| Fuel Tank Capacity (Platform Ready) | 470 gal (1778 L) |
| Fuel Tank Capacity (High Capacity) | 505 gal (1911 L) |
| Engine Oil Capacity (w/ filter) | 27.2 gal (103 L) |
| Cooling System Capacity | 71.1 gal (269 L) |
| Hydraulic Tank Capacity | 58.9 gal (223 L) |
| Transmission Oil Capacity | 90.9 gal (344 L) |
| Final Drives Fluid Capacity (each) | 12.4 gal (47 L) |
| Roller Frames (each) | 24.8 gal (94 L) |
| Pivot Shaft Compartment | 18.8 gal (71 L) |
