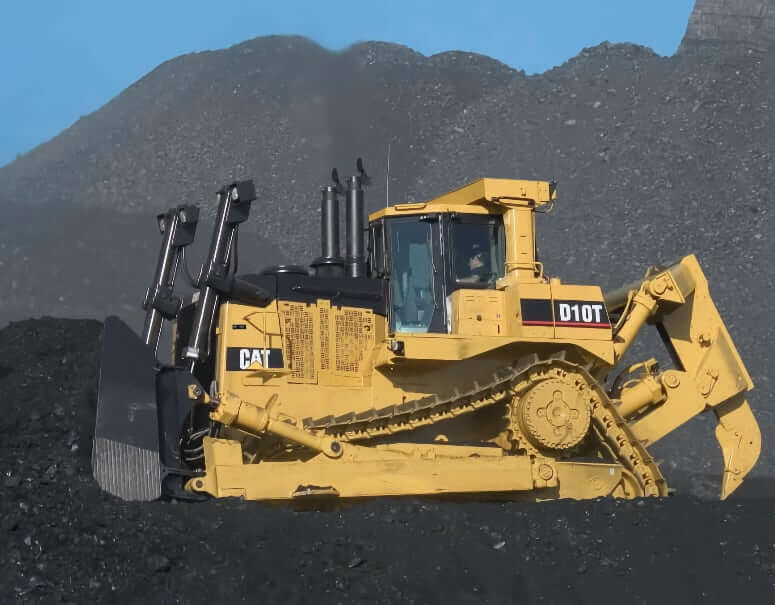

Dimensions
| Overall Length (SU Blade / SS Ripper) |
364 in (9260 mm) |
| Length Basic Tractor with Drawbar |
210 in (5331 mm) |
| Length with SU-blade |
295 in (7500 mm) |
| Length with U-blade |
305 in (7754 mm) |
| Length with Single-Shank Ripper |
283 in (7091 mm) |
| Length with Multi-Shank Ripper |
277 in (7048 mm) |
| Width without Trunnions (Standard Shoe) |
124 in (3160 mm) |
| Width Over Trunnions |
146 in (3716 mm) |
| Height (Stripped Top) |
127 in (3222 mm) |
| Height (Cab) |
161 in (4078 mm) |
| Height (Canopy) |
171 in (4340 mm) |
| Height (Top of Stack) |
179 in (4543 mm) |
| Drawbar Height (Center of Clevis) |
31 in (779 mm) |
| Ground Clearance |
24 in (615 mm) |
| Length of Track on Ground |
153 in (3885 mm) |
| Track Gauge |
100 in (2500 mm) |
Dozer Blades
| CAT D10T Dozer w/ |
10SU Blade |
10U Blade |
| Capacity (SAE J1265) |
24.2 yd3 (18.5 m3) |
28.7 yd3 (22 m3) |
| Width (over end bits) |
15.9 ft (4860 mm) |
17.25 ft (5260 mm) |
| Height |
6.9 ft (2120 mm) |
6.9 ft (2120 mm) |
| Digging Depth |
26.5 in (674 mm) |
26.5 in (674 mm) |
| Ground Clearance |
58.9 in (1497 mm) |
58.9 in (1497 mm) |
| Maximum Tilt |
39.1 in (993 mm) |
42.3 in (1074 mm) |
| Weight* |
22550 lb (10229 kg) |
23775 lb (10784 kg) |
| Total Operating Weight** |
146400 lb (66407 kg) |
147625 lb (66962 kg) |
* Includes blade tilt cylinder.
** Total Operating Weight: Includes hydraulic controls, blade tilt cylinder, coolant, lubricants, 100% fuel, ROPS, FOPS cab, Blade, Single-Shank Ripper, 24 in (610 mm) ES shoes, and operator.
Undercarriage
| Standard Shoe Size |
24 in (610 mm) |
| Track Pitch |
10.2 in (260 mm) |
| Grouser Height |
3.7 in (93 mm) |
| Track Gauge |
100 in (2550 mm) |
| Length of Track on Ground |
153 in (3885 mm) |
| Number of Carrier Rollers per Side |
1 (Optional) |
| Number of Track Rollers per Side |
8 |
| Number of Shoes per Side |
44 |
| Ground Contact Area |
7326 in2 (4.7 m2) |
| Track Roller Frame Oscillation |
13.8 in (351 mm) |
Engine Details
| Number of Cylinders |
12 |
| Engine Make |
Caterpillar |
| Engine Model |
CAT C27 ACERT |
| Displacement |
1648 cu in (27 L) |
| Bore |
5.4 in (137 mm) |
| Stroke |
6.0 in (152 mm) |
| Gross Power |
646 hp (482 kw) |
| Net Power |
574 hp (428 kw) |
| Power Measured @ |
1800 rpm |
| Aspiration |
Turbocharged |
| Emission Standards |
US EPA Tier 3 + EU Stage IIIA |
Operational Specs
| Operating Weight |
146500 lb (66451 kg) |
| Shipping Weight |
106400 lb (48263 kg) |
| Operating Voltage |
24 V |
| Alternator |
95 amps |
| Battery |
2x 12 V, 190 Ah |
| ROPS |
SAE J1040 MAY94, ISO 3471:1994 |
| FOPS |
SAE J/ISO 3449 APR98 Level II, and ISO 3449:1992 Level II |
Transmission
| Type |
Powershift transmission |
| Number of Gears |
3F / 3R |
| Max Forward Speed |
7.9 mph (12.7 km/h) |
| Max Reverse Speed |
9.8 mph (15.8 km/h) |
| Service Brakes |
Hydraulically applied multiple-disk brakes |
| Brake Clutches Diameter |
15.4 in (392 mm) |
| Max Drawbar Pull |
225000 lbf (1001 kN) |
Hydraulic System
| Pump Type |
Gear pump |
| Lift Cylinder Flow Capacity |
107 gal/min (404 L/min) |
| Tilt Cylinder Flow Capacity |
30 gal/min (112 L/min) |
| Bulldozer Relief Valve Setting |
2725 psi (18790 kPa) |
| Tilt Cylinder Relief Valve Setting |
2950 psi (20340 kPa) |
| Ripper (Lift) Relief Valve Setting |
2725 psi (18790 kPa) |
| Ripper (Pitch) Relief Valve Setting |
2725 psi (18790 kPa) |
| Number of Valves |
Hydraulic system includes four valves for use with blade and ripper |
Service Refill Capacities
| Fuel Tank Capacity |
318 gal (1204 L) |
| Engine Oil Capacity (w/ filter) |
18 gal (68 L) |
| Cooling System Capacity |
34.9 gal (132 L) |
| Hydraulic System Capacity |
38 gal (144 L) |
| Powertrain Fluid Capacity |
51 gal (193 L) |
| Final Drives Fluid Capacity (each) |
6 gal (23 L) |
| Roller Frames Capacity (each) |
23.8 gal (90 L) |
| Pivot Shaft Compartment |
8 gal (30.3 L) |
