Dimensions
| Length with Standard Blade | 223.4 in (5675 mm) |
| Width Over Tracks | 153.5 in (3900 mm) |
| Height to Top of Cab | 127 in (3226 mm) |
| Length of Track on Ground | 106.3 in (2700 mm) |
| Ground Clearance | 15 in (381 mm) |
Standard Blade
| Width | 153.5 in (3900 mm) |
| Height | 43.7 in (1110 mm) |
| Cutting Depth | 21 in (534 mm) |
| Capacity | 4.8 yd3 (3.7 m3) |
| Blade Angle (Both Directions) | 45° |

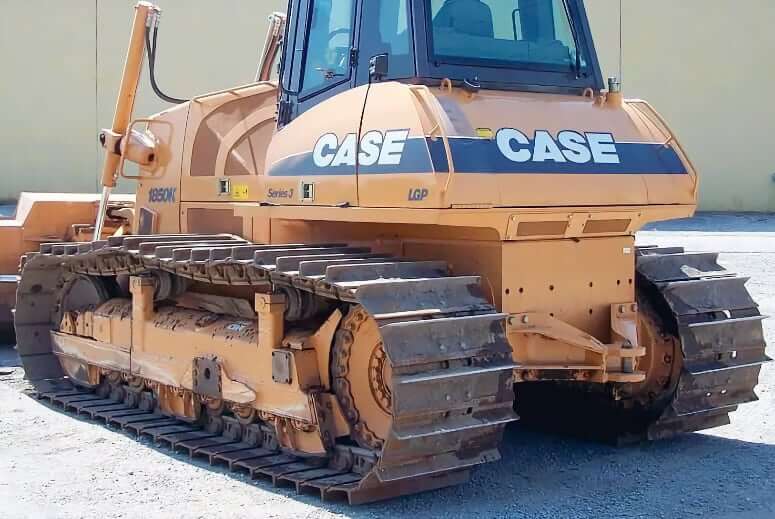

Undercarriage
| Track Gauge | 82 in (2082 mm) |
| Standard Shoe Size | 36 in (915 mm) |
| Track Pitch | 8 in (203 mm) |
| Number of Track Rollers per Side | 8 |
| Number of Carrier Rollers per Side | 2 |
| Number of Shoes per Side | 45 |
| Ground Pressure | 5.4 psi (37.6 kPa) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Case |
| Engine Model | Case 667TA/EBF Family IV |
| Displacement | 409 cu in (6.7 L) |
| Bore | 4.1 in (104 mm) |
| Stroke | 5.2 in (132 mm) |
| Gross Power | 210 hp (157 kw) |
| Net Power | 199 hp (148 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 702 lb ft (952 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 3 |
Operational Specs
| Operating Weight | 49450 lb (22430 kg) |
| Ripper Weight | 4431 lbs (2010 kg) |
| Operating Voltage | 24 V |
| Alternator | 65 amps |
| Battery | 2x 12 V, CCA 650 |
| Service Brakes | Multi-disc, spring-applied, hydraulic pressure release, oil cooled; applied by depressing center floor brake pedal |
| Parking Brake | Heavy-duty, spring-applied, hydraulic pressure release |
| Blade Types (Standard) | 154 in (3900 mm) Straight PT Blade |
| Blade Types (Optional) | 142.5 in (3620 mm) Semi-U Blade 142 in (3607 mm) PAT Blade 160 in (4064 mm) PAT Blade |
Transmission
| Transmission Type | Countershaft modulated full powershift |
| Number of Gears | 3F / 3R |
| Max Forward Speed | 6.8 mph (10.9 km/h) |
| Max Reverse Speed | 8.1 mph (13.0 km/h) |
| Transmission OilFilter | 25 micron absolute, spin-on replaceable |
Hydraulic System
| Type | Load sensing hydraulics |
| Pump Type | Variable piston pump |
| Pump Flow Capacity | 65.8 gal/min (249 L/min) |
Service Refill Capacities
| Fuel Tank Capacity | 106 gal (401.2 L) |
| Engine Oil Capacity (w/ filter) | 5.1 gal (19 L) |
| Cooling System Capacity | 6.7 gal (25 L) |
| Hydraulic Tank Capacity | 122.6 gal (118 L) |
| Final Drives Capacity (per side) | 8.8 gal (33 L) |
