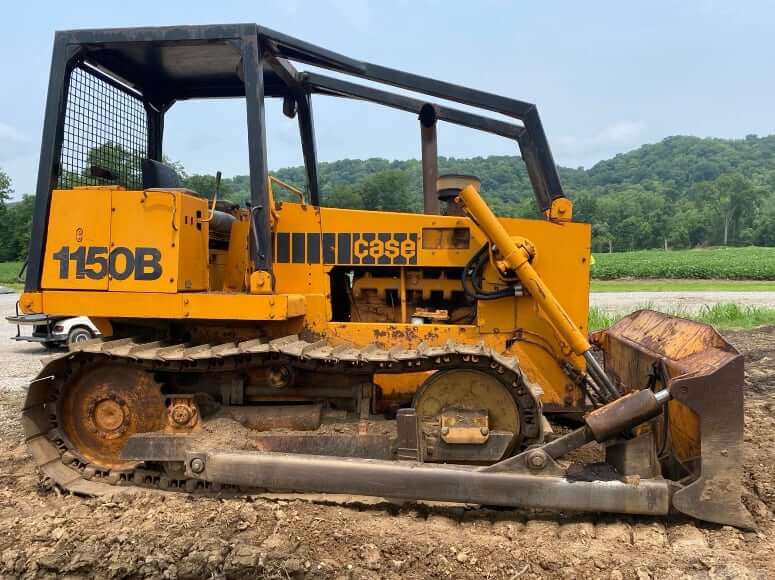

Dimensions
| Width Over Tracks | 77 in (1956 mm) |
| Length w/ Dozer Blade (approx.) | 176 in (4470 mm) |
| Height to Top of ROPS | 114 in (2885 mm) |
| Height to Top of Exhaust | 105 in (2654 mm) |
| Height to Top of Operator Seat | 87 in (2210 mm) |
| Drawbar Clearance | 15 in (381 mm) |
| Ground Clearance | 13 in (330 mm) |
Undercarriage
| Standard Shoe Size | 15 in (381 mm) |
| Optional Shoe Size | 16 in (406 mm) |
| Width Over Tracks | 77 in (1956 mm) |
| Track Gauge | 62 in (1574 mm) |
| Length of Track on Ground | 86.7 in (2202 mm) |
| Ground Contact Area, 15 in (381 mm) | 2601 in2 (1.68 m2) |
| Ground Contact Area, 16 in (406 mm) | 2770 in2 (1.79 m2) |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 6 |
| Number of Carrier Rollers Per Side | 1 |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Case |
| Engine Model | Case A451BD |
| Displacement | 451 cu in (7.4 L) |
| Bore | 4.37 in (111 mm) |
| Stroke | 5.00 in (127 mm) |
| Gross Power | 125 hp (93.3 kw) |
| Net Power | 105 hp (78.3 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 359 lb ft (487 Nm) |
| Torque Measured @ | 1300 rpm |
| Lubrication System | Dry type, two-stage air cleaner with service indicator |
| Air Cleaner | Dry type, two-stage air cleaner with service indicator |
| Aspiration | Naturally aspirated |
Operational Specs
| Max Operating Weight | 29700 lb (13472 kg) |
| Ripper Weight | 2200 lb (998 kg) |
| Winch Weight | 1500 lb (680 kg) |
| Operating Voltage | 24 V |
| Battery | 2x 12 V |
| ROPS | Four-post ROPS Canopy |
Transmission
| Type | Constant mesh, four speed full powershift transmission with torque converter |
| Torque Converter | Single stage, hydrokinetic type, 13 in (330 mm) diameter with 2.92: 1 ratio |
| Number of Gears | 4F / 4R |
| Max Forward Speed | 6.0 mph (9.7 km/h) |
| Max Reverse Speed | 7.2 mph (11.5 km/h) |
| Steering | Steering controlled by independent hydraulic clutches in transmission or by multiple disc power brakes |
| Types of Turns | Power turns, gradual turns, counter-rotation, and brake turns |
| Final Drives | Spur and bull gear type, single reduction. One-piece line-bored case with final drive seal guards |
| Service Brakes | Two multiple disc power brakes, oil cooled, independently controlled by power brake pedals for steering. Center pedal for controlled braking. Separate pedal provides braking without disengaging transmission |
| Parking Brake | Hand operated over-center parking brake |
Winch
| Type | Hyster W5A |
| Winch Drive | Mechanical |
| Control | Mechanical to hydraulic valve |
| Cable Drum Capacity, 0.56 in (14.3 mm) | 499 ft (152 m) |
| Cable Drum Capacity, 0.75 in (19.1 mm) | 287 ft (87 m) |
| Drum Rotation | Overwind |
| Drum Diameter | 8.5 in (216 mm) |
| Rated Line Pull (bare drum) | 50000 lbf (222 kN) |
| Winch Weight | 1500 lb (680 kg) |

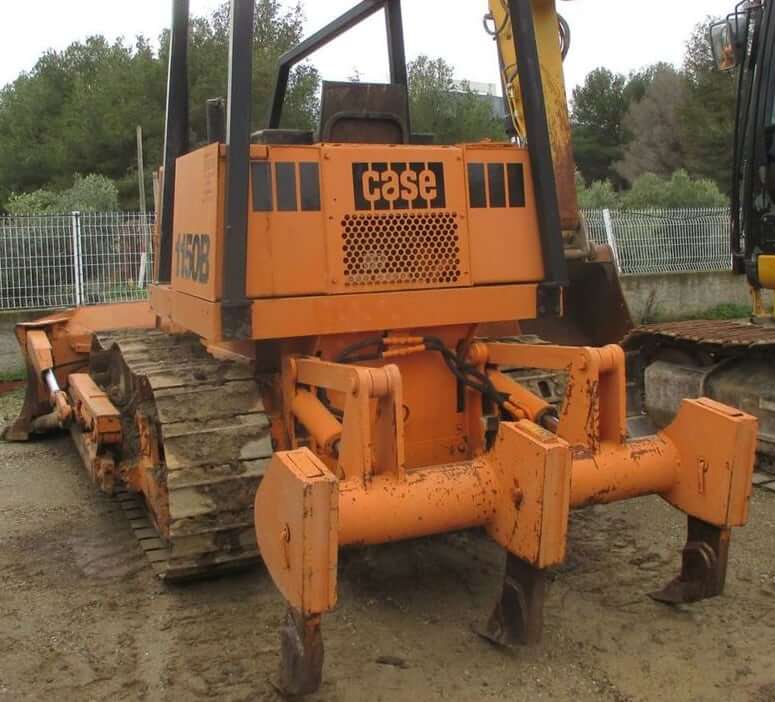

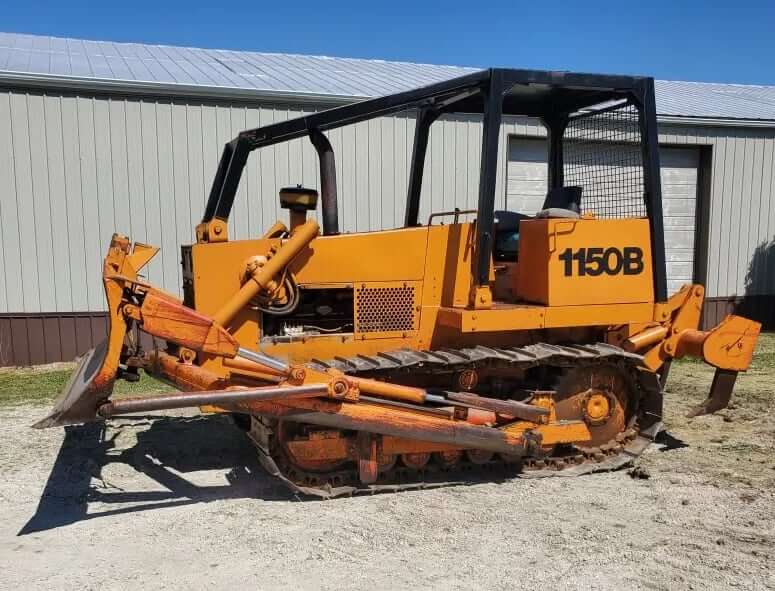

Ripper
| Ripper Type | Parallelogram |
| Ripper Width | 66 in (1676 mm) |
| Max Penetration | 17 in (432 mm) |
| Ripper Ground Clearance (at carry) | 12.5 in (317 mm) |
| Number of Shanks | 3 |
| Shank Spacing | 31 in (787 mm) |
| Ripper Tips | Replaceable |
| Ripper Weight | 2200 lb (998 kg) |
| Ripper Hydraulic Cylinders, 2x (diameter x stroke x rod) | 3.5 x 10.0 x 1.75 in (89 x 254 x 44 mm) |
Hydraulic System
| Type | Open center, parallel with pressure compen-sation |
| Pump Type | Gear type, torque converter mounted, driven from engine |
| Pump Flow Capacity | 52 gal/min (197 L/min) |
| Relief Valve Pressure | 2200 psi (15168 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 52 gal (196.8 L) |
| Engine Oil Capacity (w/ filter) | 3.8 gal (14.2 L) |
| Cooling System Capacity | 13 gal (49.3 L) |
| Hydraulic System Capacity | 15 gal (56.8 L) |
| Transmission Oil Capacity | 15 gal (56.8 L) |
| Final Drives Capacity (each) | 2.1 gal (7.6 L) |
