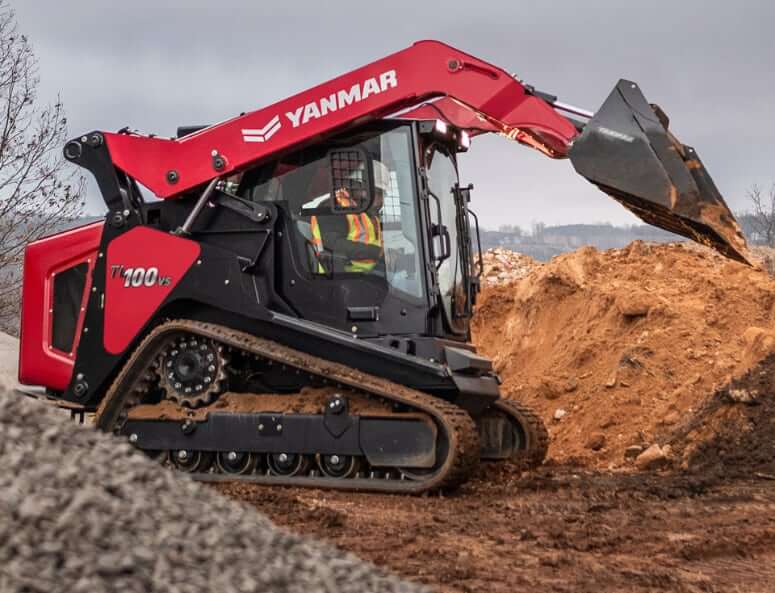

Loader Performance
| Tipping Load | 10800 lb (4899 kg) |

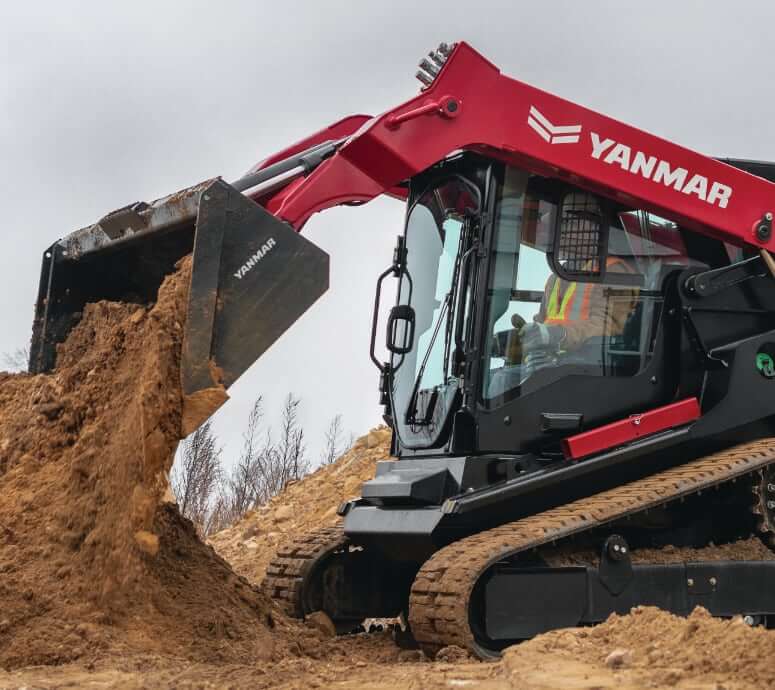

| Operating Capacity at 35% of Tipping Load | 3780 lb (1715 kg) |
| Lift Arm Path | Vertical |
| Standard Bucket Width | 78 in (1981 mm) |
| Standard Bucket Capacity | 16.1 ft3 (0.46 m3) |
| Optional Bucket Width | 84 in (2134 mm) |
| Optional Bucket Capacity | 17.5 ft3 (0.50 m3) |
| Pallet Forks (Width / Capacity) | 48 in (1219 mm) / 6200 lb (2812 kg) |
Dimensions
| Length w/ Bucket | 154 in (3912 mm) |
| Overall Width w/ Bucket | 78 in (1981 mm) |
| Overall Height to Top of ROPS | 84.5 in (2146 mm) |
| Hinge Pin Height – Fully Raised | 132 in (3353 mm) |
| Ground Clearance | 15 in (381 mm) |
| Reach at Max Lift and Dump | 43 in (1092 mm) |
| Dump Angle – Fully Raised | 42° |
| Front Departure Angle | 28° |
| Rear Departure Angle | 30° |

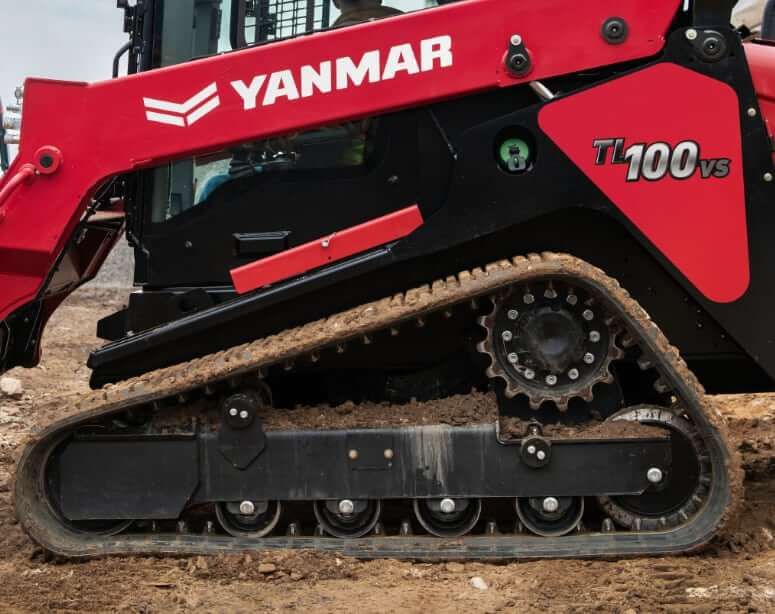

Undercarriage
| Track Width | 17.7 in (450 mm) |
| Length of Track on Ground | 67 in (1702 mm) |
| Ground Contact Area | 2372 in2 (1.53 m2) |
| Ground Pressure | 4.4 psi (30.3 kPa) |
| Undercarriage Suspension | Two independent torsion axles per undercarriage |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TNV94FHT |
| Displacement | 187 cu in (3.054 L) |
| Bore | 3.70 in (94 mm) |
| Stroke | 4.33 in (110 mm) |
| Net Power | 103.5 hp (77.2 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 291 lb ft (395 Nm) |
| Torque Measured @ | 1475 rpm |
| Cooling System | Belt-driven fan and anti-freeze filled radiator cooling system |
| Fuel System | Common Rail. Direct Injection |
| Air Cleaner | Three-stage intake air cleaner |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF + SCR |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs

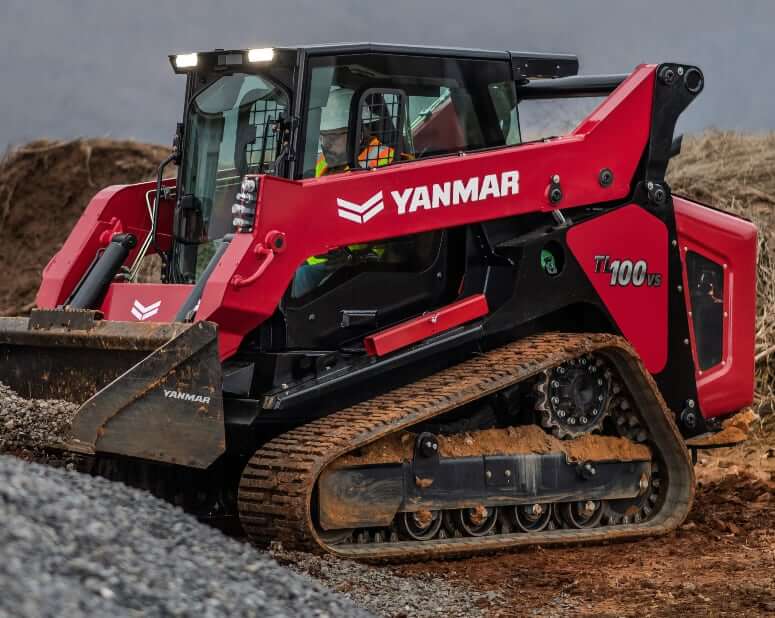

| Operating Weight (Open Cab) | 10555 lb (4788 kg) |
| Operating Weight (Closed Cab) | 10835 lb (4915 kg) |

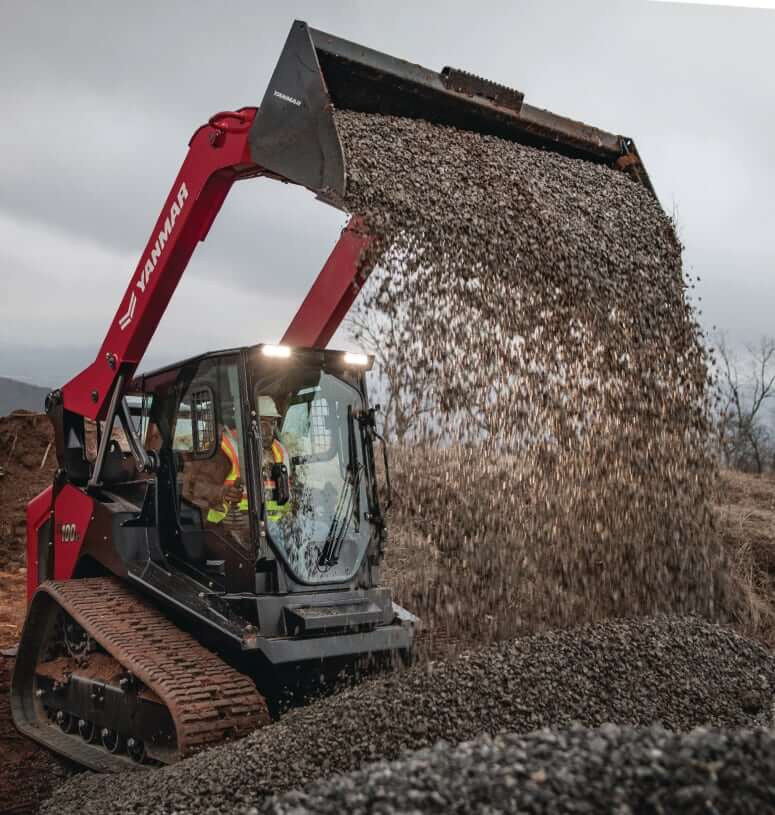

| Max Lift Height | 132 in (3353 mm) |
| Operating Voltage | 12 V |
| Alternator | 80 amps |
| Battery | 12 V, CCA 950 |
Operator Environment
| Operator Station | Open ROPS Cab or All-Weather Cab with curved glass door |
| ROPS | ISO 3471, SAE J2292, OSHA 1596 |
| FOPS | ISO 3449 Level 1 (level 2 optional) |
| Operator Seat | Mechanical suspension seat with 2 in (51 mm) seat belt |
| Controls | Fixed joystick controls. Optional: electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds |
| Display | Fuel, tachometer, engine temp, hour meter, battery, trip meter, hydraulic temperature, water temperature, multiple languages |
| Working Lights | 2x front LED lights + 2 rear LED lights |

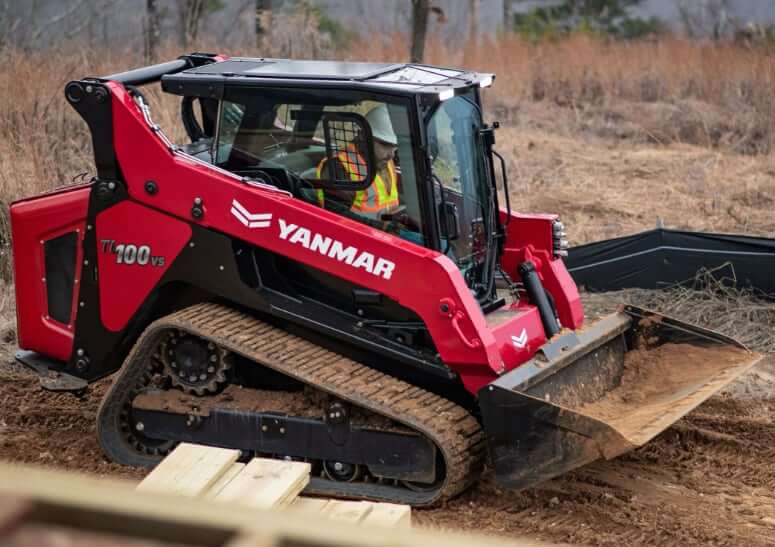

Transmission
| Type | Hydrostatic transmission |
| Motor Type | Dual hydraulic drive motors |
| Max Travel Speed | 8 mph (12.8 km/h) |

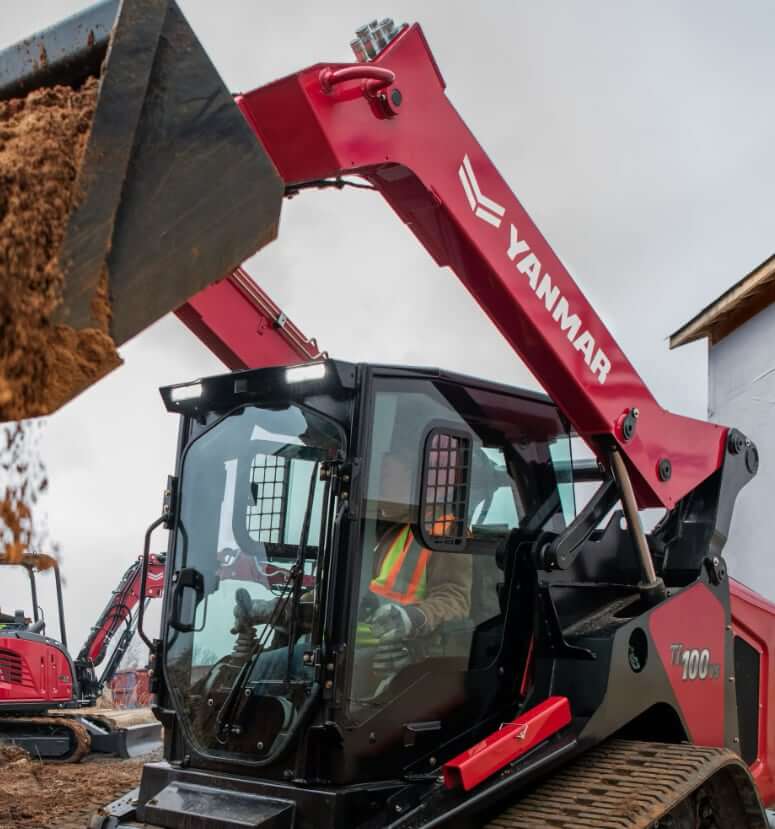

Hydraulic System
| Pump Flow Capacity | 23 gal/min (87 L/min) |
| Pump Flow Capacity, High-Flow | 41 gal/min (155.2 L/min) |
| Max System Pressure | 3481 psi (24000 kPa) |
| Max System Pressure, High Flow | 3989 psi (27503 kPa) |
| Controls | Intermittent via joystick button or continuous via console switch. High flow is adjustable |
| Couplers | Flat Faced Couplers: 1/2 in low flow, 3/4 in high flow |
| Hydrauli Oil Cooling | Side-by-side radiator and oil cooler |
Service Refill Capacities
| Fuel Tank Capacity | 34 gal (128.7 L) |
| DEF Tank Capacity | 5 gal (18.9 L) |
| Engine Oil Capacity (w/o filter) | 2.8 gal (10.5 L) |
| Cooling System Capacity (w/o radiator) | 1.1 gal (4.2 L) |
