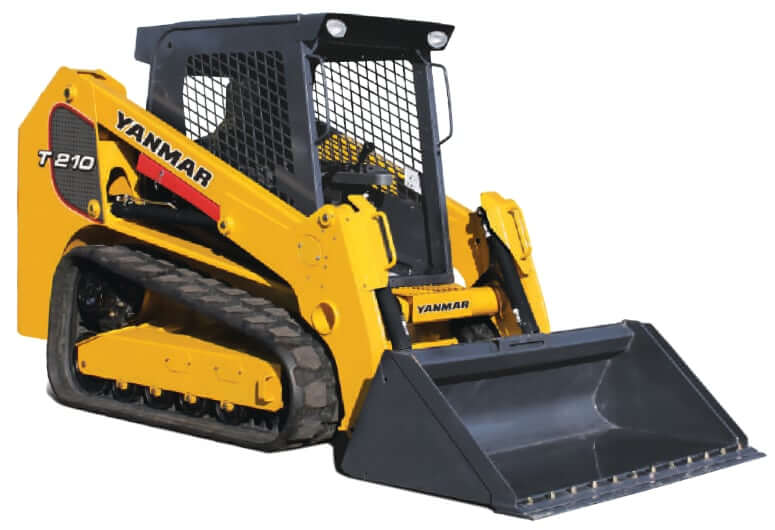

Loader Performance
| Tipping Load | 6000 lb (2722 kg) |
| Operating Capacity at 35% of Tipping Load | 2100 lb (953 kg) |
| Operating Capacity at 50% of Tipping Load | 3000 lb (1361 kg) |
| Bucket Breakout – Tilt Cylinder | 5492 lbf (24.4 kN) |
| Bucket Breakout – Lift Cylinder | 5398 lbf (24.0 kN) |
| Bucket Width | 73.9 in (1877 mm) |
Dimensions
| Length w/ Bucket | 152.3 in (3868 mm) |
| Length w/o Bucket | 114.5 in (2908 mm) |
| Overall Width w/o Bucket | 69.5 in (1765 mm) |
| Overall Width w/ Bucket | 73.9 in (1877 mm) |
| Overall Height to Top of ROPS | 83.1 in (2111 mm) |
| Operating Height – Fully Raised With Spillgaurd | 172 in (4369 mm) |
| Dump Angle – Fully Raised | 39° |
| Dump Height – Fully Raised | 95.7 in (2431 mm) |
| Reach at Max Lift and Dump | 37 in (940 mm) |
| Hinge Pin Height – Fully Raised | 128 in (3251 mm) |
| Ground Clearance | 13 in (330 mm) |
| Digging Position – Below Ground | 0.2 in (5.1 mm) |
| Carry Position | 7 in (179 mm) |
| Max Rollback Angle – Fully Raised | 102.5° |
| Max Rollback Angle at Ground | 30° |
| Max Rollback Angle at Carry Position | 33° |
| Front Departure Angle | 29.2° |
| Clearance Radius – Front with Bucket | 98.1 in (2492 mm) |
| Clearance Radius – Rear with Standard Counterweight | 64.6 in (1641 mm) |
Undercarriage
| Track Width | 17.7 in (450 mm) |
| Track Type | Rubber |
| Track Rollers | 5 |
| Roller Type | Steel |
| Crawler Length | 58.4 in (1483 mm) |
| Grouser Height | 1 in (25 mm) |
| Track Gauge | 51.7 in (1313 mm) |
| Ground Pressure | 4.7 psi (32 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TNV98CT- NMSL |
| Displacement | 203 cu in (3.319 L) |
| Bore | 3.86 in (98 mm) |
| Stroke | 4.33 in (110 mm) |
| Net Power | 70.7 hp (52.7 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 206 lb ft (279.3 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage ⅢA |
Operational Specs
| Operating Weight | 9890 lb (4486 kg) |
| Max Operating Capacity | 2100 lb (953 kg) |
| Max Lift Height | 128 in (3251 mm) |
| Operating Voltage | 12 V |
| Alternator | 95 amps |
| Battery | 12 V |
Transmission
| Type | Hydrostatic transmission |
| Max Travel Speed, Low | 5.4 mph (8.7 km/h) |
| Max Travel Speed, High | 7.9 mph (12.7 km/h) |
| Drawbar Pull | 12359 lbf (55 kN) |
Hydraulic System
| Auxiliary Hydraulic Flow | 21.8 gal/min (82.5 L/min) |
| High-Flow Capacity | 35.9 gal/min (135.8 L/min) |
| Transmission Pump Type | Axial Piston |
| Transmission Motor Type | Axial Piston with Planetary Reduction |
Service Refill Capacities
| Fuel Tank Capacity | 24.3 gal (92 L) |
| Engine Oil Capacity | 2.7 gal (10.4 L) |
| Cooling System Capacity | 3.8 gal (14.4 L) |
| Hydraulic System Capacity (w/ tank) | 21.5 gal (81.4 L) |
| Hydraulic Tank Capacity | 13.8 gal (52.2 L) |
| Travel Reduction Unit Capacity (each side) | 0.26 gal (1 L) |
Yanmar T210-1 Filters
| Engine Oil Filter | 172216-20100 |
| Fuel Filter | 172559-00110 |
| Water / Fuel Separator Element | 172217-15120 |
| Primary Air Filter | 172551-02050 |
| Secondary Air Filter | 172217-05150 |
| Cab Air FIlter | 172551-03090 |
| Fresh Air Filter | 172551-00010 |
| Hydraulic Oil Filter | 172559-00120 |
| V-Belt Fun, B44 | 172217-15130 |
| V-Belt A/C Compressor | 172551-03830 |
| V-Belt A/C Compressor | 172559-00040 |
