Loader Performance
| Tipping Load | 5000 lb (2268 kg) |
| Operating Capacity at 35% of Tipping Load | 1750 lb (794 kg) |
| Operating Capacity at 50% of Tipping Load | 2500 lb (1134 kg) |
| Bucket Breakout – Tilt Cylinder | 5189 lbf (23.1 kN) |
| Bucket Breakout – Lift Cylinder | 4840 lbf (21.5 kN) |
| Bucket Width | 66 in (1674 mm) |
Dimensions
| Length w/ Bucket | 144 in (3658 mm) |
| Length w/o Bucket | 110.8 in (2814 mm) |
| Overall Width w/o Bucket | 64.4 in (1636 mm) |
| Overall Width w/ Bucket | 66 in (1674 mm) |
| Overall Height to Top of ROPS | 82.8 in (2103 mm) |
| Operating Height – Fully Raised With Spillgaurd | 168 in (4267 mm) |
| Dump Angle – Fully Raised | 40.2° |
| Dump Height – Fully Raised | 98 in (2489 mm) |
| Reach at Max Lift and Dump | 34.5 in (876 mm) |
| Hinge Pin Height – Fully Raised | 127.5 in (3239 mm) |
| Ground Clearance | 13.3 in (343 mm) |
| Digging Position – Below Ground | 0.3 in (7.6 mm) |
| Carry Position | 7 in (179 mm) |
| Max Rollback Angle – Fully Raised | 102.5° |
| Max Rollback Angle at Ground | 30° |
| Max Rollback Angle at Carry Position | 33° |
| Front Departure Angle | 30.4° |
| Clearance Radius – Front with Bucket | 91.4 in (2322 mm) |
| Clearance Radius – Rear with Standard Counterweight | 62.1 in (1577 mm) |
Undercarriage
| Track Width | 12.6 in (320 mm) |
| Track Type | Rubber |
| Track Rollers | 4 |
| Roller Type | Steel |
| Crawler Length | 54.8 in (1392 mm) |
| Grouser Height | 1 in (25 mm) |
| Track Gauge | 51.7 in (1313 mm) |
| Ground Pressure | 6.2 psi (42.75 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TNV98C-NMSL |
| Displacement | 203 cu in (3.319 L) |
| Bore | 3.86 in (98 mm) |
| Stroke | 4.33 in (110 mm) |
| Net Power | 68.4 hp (51 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 179 lb ft (242.7 Nm) |
| Torque Measured @ | 1600 rpm |
| Fuel System | Direct Injection (DI). Common Rail |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 Final + EU Stage ⅢA |
Operational Specs
| Operating Weight | 8605 lb (3903 kg) |
| Max Operating Capacity | 1750 lb (794 kg) |
| Max Lift Height | 127.5 in (3239 mm) |
| Operating Voltage | 12 V |
| Alternator | 95 amps |
| Battery | 12 V |
Transmission
| Type | Hydrostatic transmission |
| Max Travel Speed, Low | 5.1 mph (8.2 km/h) |
| Max Travel Speed, High | 7.5 mph (12.1 km/h) |
| Drawbar Pull | 11840 lbf (52.7 kN) |
Hydraulic System
| Auxiliary Hydraulic Flow | 18.5 gal/min (70 L/min) |
| High-Flow Capacity | 34 gal/min (128.8 L/min) |
| Transmission Pump Type | Axial Piston |
| Transmission Motor Type | Axial Piston with Planetary Reduction |
Service Refill Capacities
| Fuel Tank Capacity | 24.3 gal (92 L) |
| Engine Oil Capacity | 2.7 gal (10.4 L) |
| Cooling System Capacity | 3.5 gal (13.3 L) |
| Travel Reduction Unit Capacity (each side) | 0.26 gal (1 L) |
| Hydraulic System Capacity (w/ tank) | 18.5 gal (70 L) |
| Hydraulic Tank Capacity | 11 gal (41.6 L) |

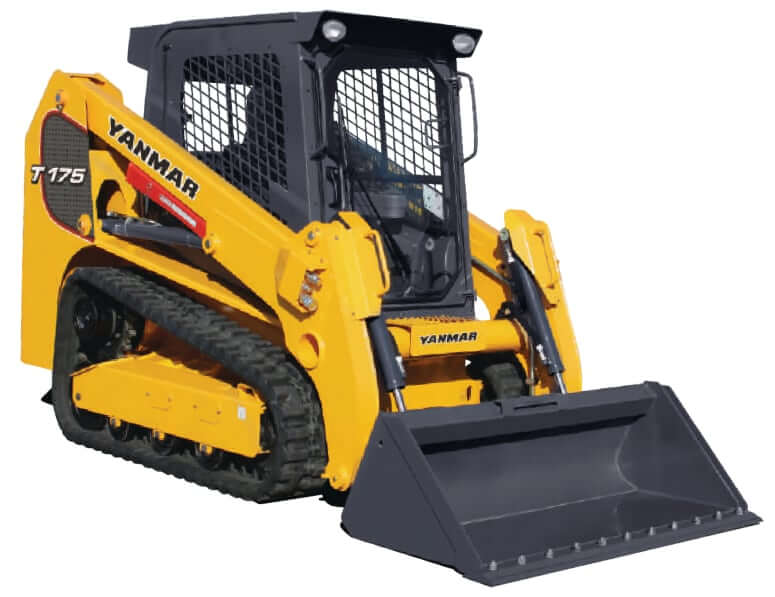

Yanmar T175-1 Filters
| Main Air Filter | 172217-05140 |
| Secondary Air Filter | 172217-05150 |
| Engine Oil Filter | 172216-20100 |
| Cab Air FIlter | 172551-03090 |
| Fresh Air Filter | 172551-00010 |
| Hydraulic Oil Filter | 172551-00380 |
| V-Belt Fun / Alternator / A/C Compressor | 172551-03830 |
