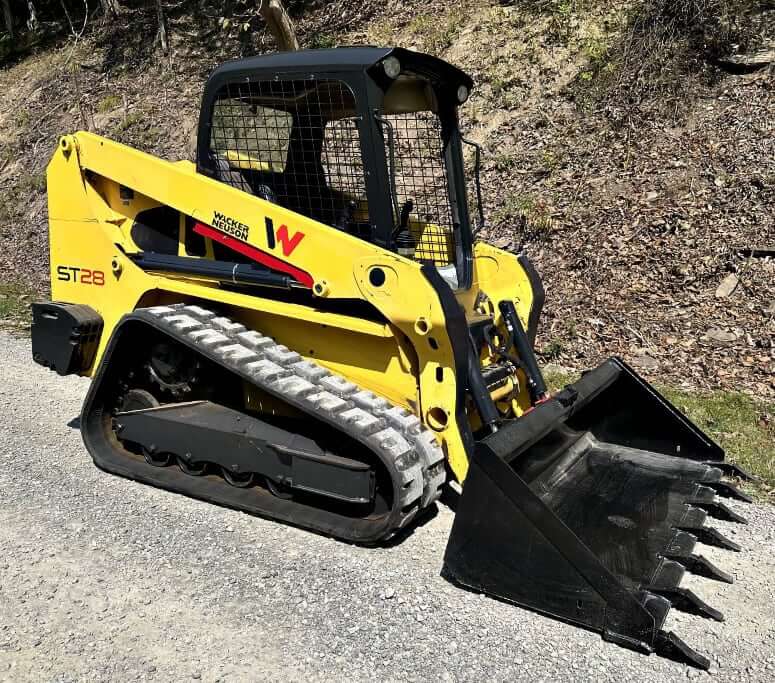

Loader
| Rated Operating Capacity, ROC 50% | 2800 lb (1270 kg) |
| Rated Operating Capacity, ROC 35% | 1960 lb (889 kg) |
| Boom Breakout Force | 5000 lbf (22.24 kN) |
| Bucket Breakout Force | 5300 lbf (23.58 kN) |
| Bucket Width (Standard) | 78 in (1981 mm) |

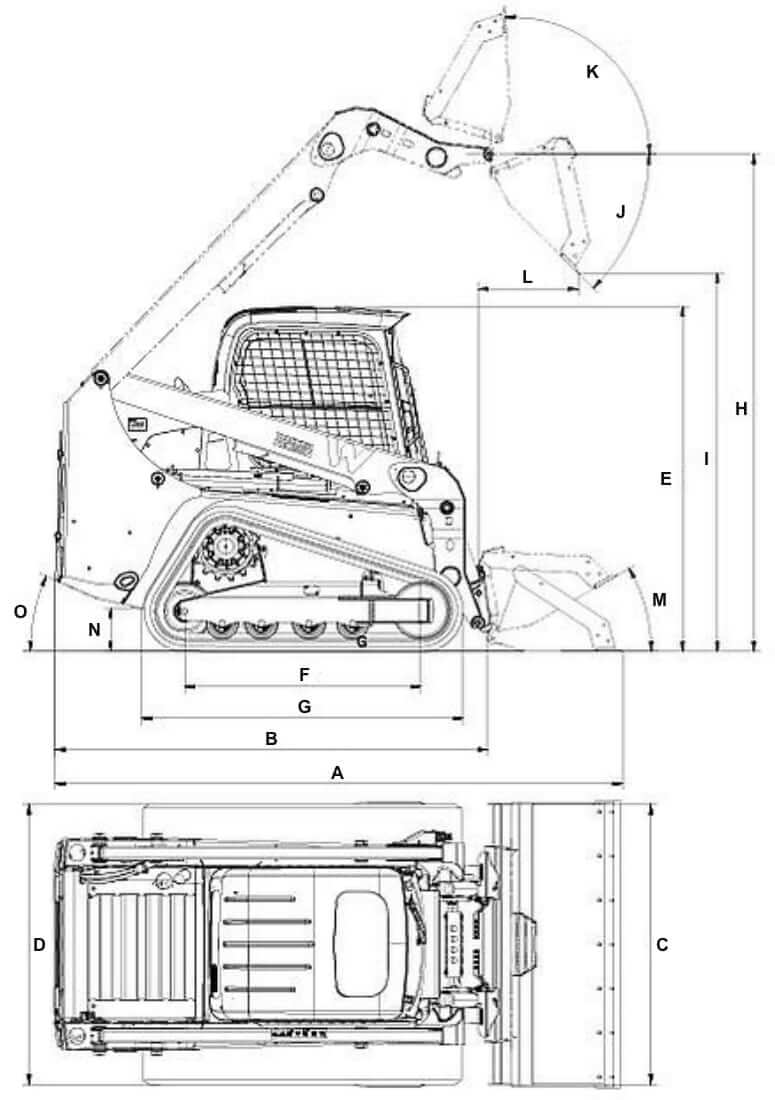

Dimensions
| A. Overall Length w/ Bucket | 136.6 in (3470 mm) |
| B. Overall Length w/o Bucket | 106.6 in (2708 mm) |
| D. Width Over Standard Tracks | 67.1 in (1704 mm) |
| D. Width Over Wide Tracks | 70.3 in (1786 mm) |
| E. Height to Top of ROPS | 83 in (2108 mm) |
| F. Length of Track on Ground | 57.2 in (1453 mm) |
| H. Height Hinge Pin Max | 119.6 in (3038 mm) |
| I. Clearance at Max Lift and Dump | 91.3 in (2319 mm) |
| J. Dump Angle w/ Bucket at Max Height | 42° |
| K. Bucket Rollback at Max Stroke Height | 30° |
| L. Reach at Max Lift and Dump | 29.3 in (744 mm) |
| M. Bucket Rollback at Ground Level | 30° |
| N. Ground Clearance | 9.1 in (231 mm) |
| O. Angle of Departure | 30.7° |

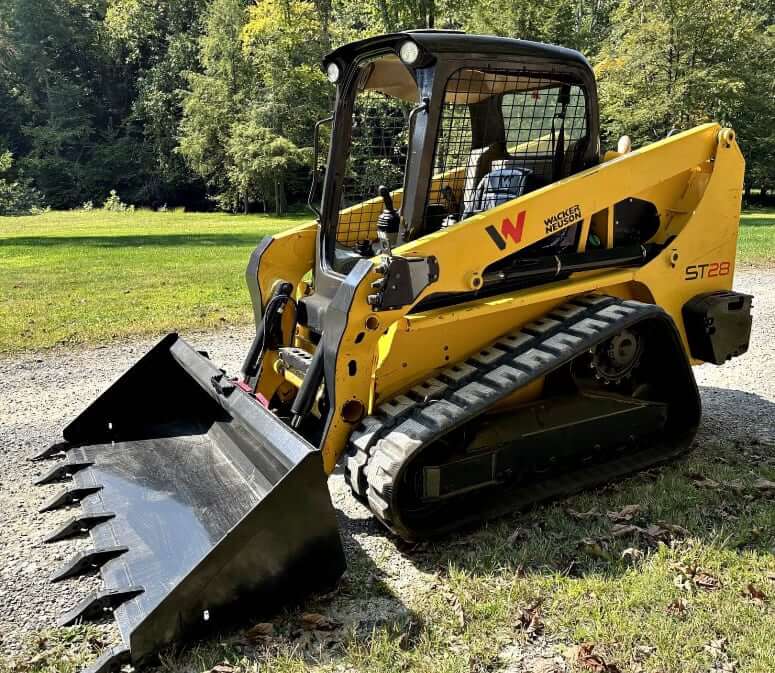

Weight
| Operating Weight | 7829 lb (3551 kg) |
| Counterweight (rear) #1 | 170 lb (77 kg) |
| Counterweight (rear) #2 | 340 lb (154 kg) |
| Counterweight (rear) #3 | 510 lb (231 kg) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Kohler |
| Engine Model | Kohler KDI 2504 TCR |
| Displacement | 151.5 cu in (2.482 L) |
| Bore | 3.46 in (88 mm) |
| Stroke | 4.02 in (102 mm) |
| Gross Power | 74 hp (55.2 kw) |
| Power Measured @ | 2750 rpm |
| Peak Torque | 165.9 lb ft (225 Nm) |
| Torque Measured @ | 1500 rpm |
| Injection System | Direct injection (Common rail) |
| Fuel Consumption, Best Point | 210 g/kWh |
| Fuel Consumption, Max Power @2400 rpm | 226 g/kWh |
| Aspiration | Turbocharged aftercooled |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs
| Operating Weight | 7829 lb (3551 kg) |
| Operating Voltage | 12 V |
| Alternator | 60 amps |
| Battery | 12 V, CCA 950 |
| Operator Seat | Suspension seat / Air ride seat |

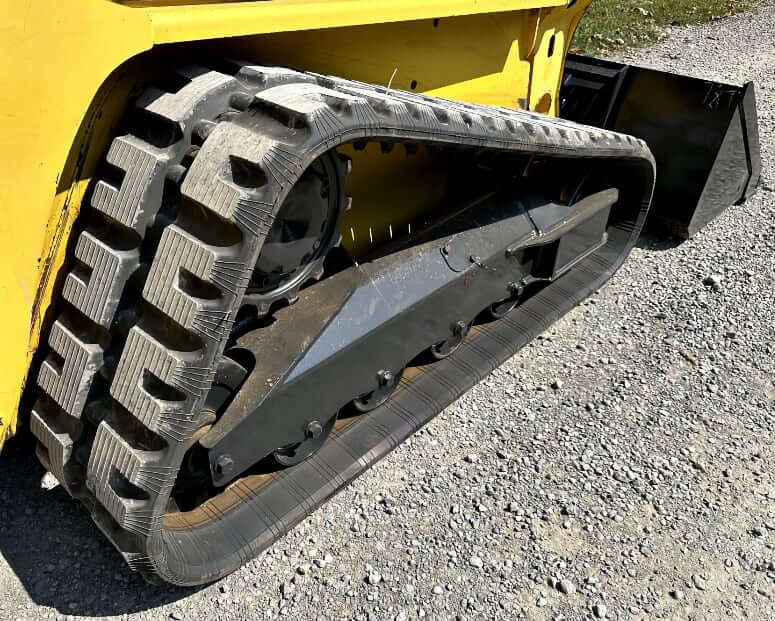

Undercarriage
| Track Width (Standard) | 12.6 in (320 mm) |
| Track Width (Wide) | 15.7 in (400 mm) |
| Length of Track on Ground | 57.2 in (1453 mm) |
| Max TravelSpeed, Low Range | 7 mph (11.3 km/h) |
| Max Travel Speed, High Range | 10 mph (16.1 km/h) |

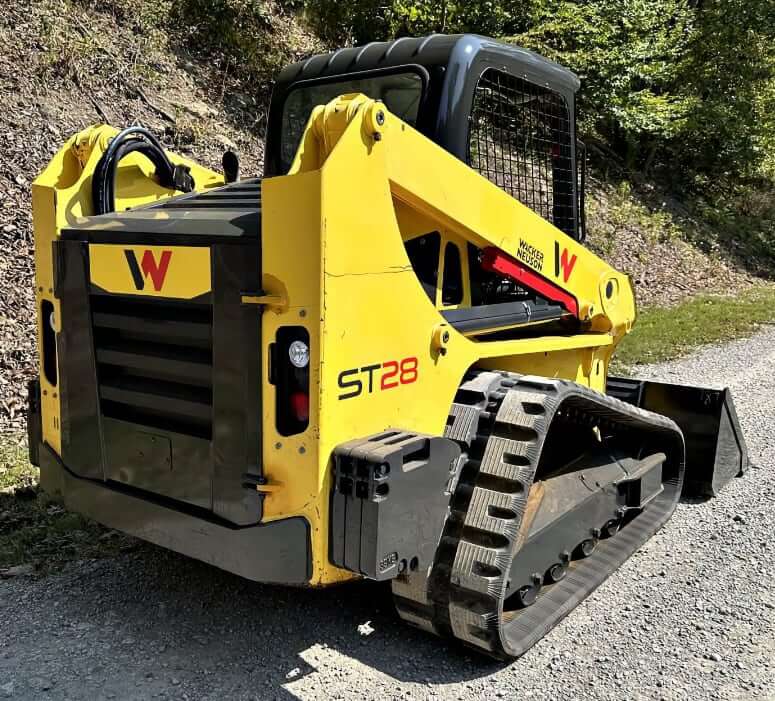

Hydraulic System
| Standard Flow Pump Capacity | 20 gal/min (75.7 L/min) |
| High Flow Pump Capacity | 30 gal/min (113.6 L/min) |
| Relief Valve Pressure | 3500 psi (24100 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 30 gal (113.6 L) |
| Engine Oil Capacity (w/ filter) | 3 gal (11.5 L) |
| Cooling System Capacity | 1.7 gal (6.5 L) |
| Hydraulic Tank Capacity | 2.9 gal (11 L) |
