Loader Performance
| Tipping Load | 12500 lb (5670 kg) |

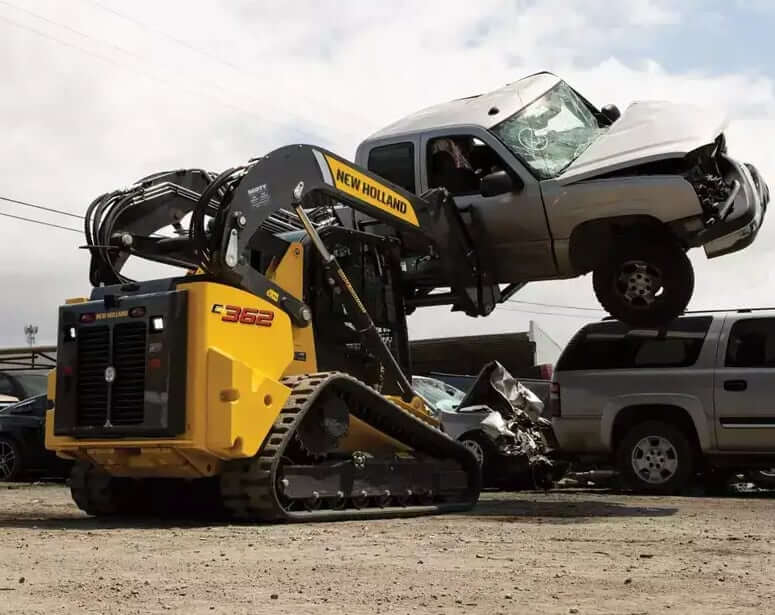

| Rated Operating Capacity, 50% | 6200 lb (2812 kg) |
| Rated Operating Capacity, 35% | 4340 lb (1969 kg) |
| Bucket Breakout Force | 12907 lbf (57.4 kN) |
| Boom Breakout Force | 12084 lbf (53.8 kN) |
| Standard Bucket Width | 78 in (1981 mm) |
| Lift Arm Path | Vertical |

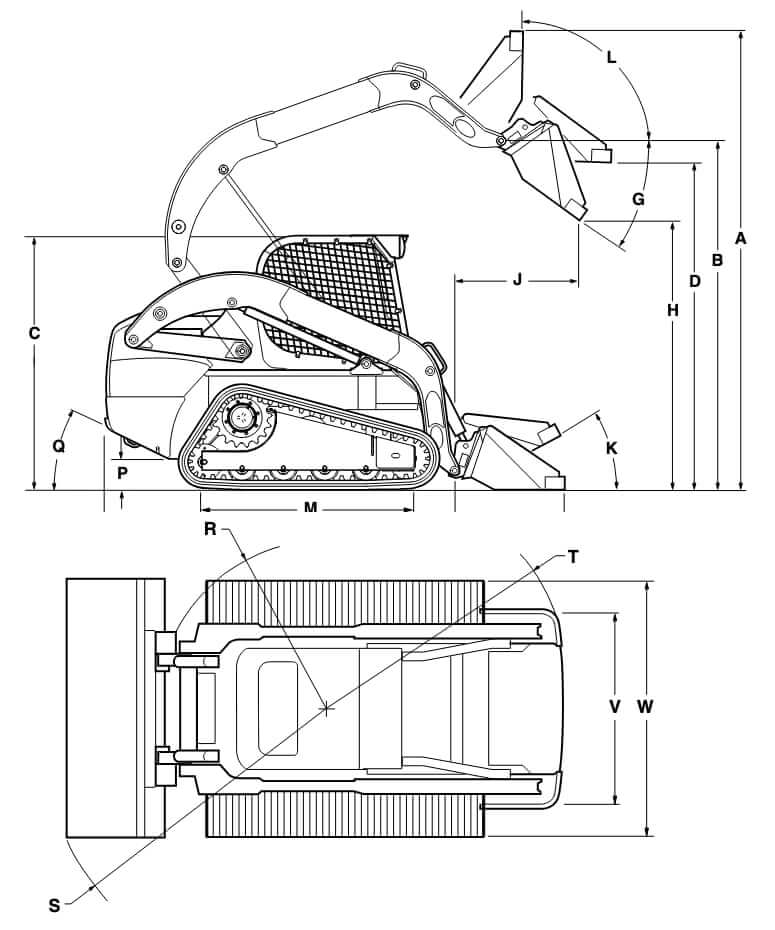

Dimensions
| A. Overall Operating Height w/ Low Profile Extended Bucket | 189.6 in (4816 mm) |
| B. Bucket Hinge Pin Height | 140.2 in (3562 mm) |
| C. Height to Top of Cab w/ ROPS | 84.6 in (2150 mm) |
| D. Bottom of Level Bucket, Fully Raised | 133.3 in (3386 mm) |
| E. Overall Length w/o Attachment (w/ Coupler) | 129.5 in (3290 mm) |
| F. Overall Length w/ Low Profile Extended Bucket | 172.7 in (4386 mm) |
| G. Dump Angle | 46.1° |

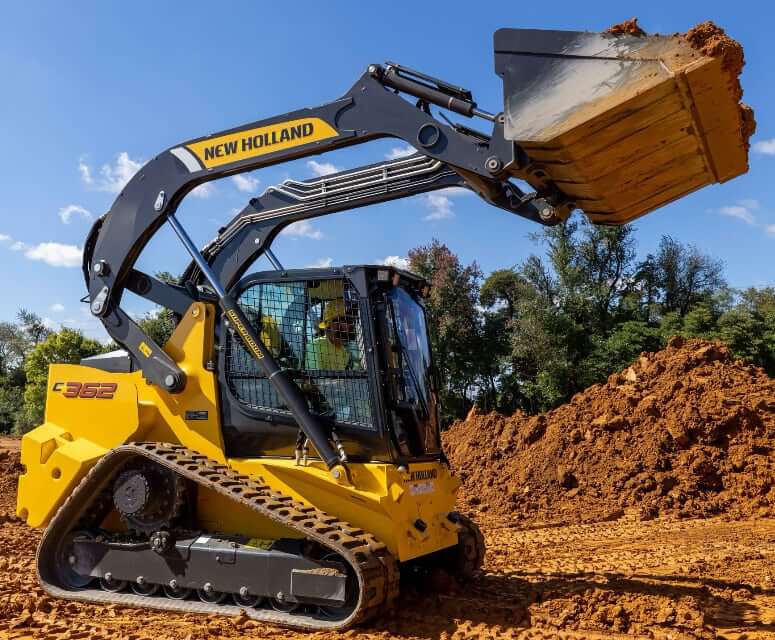

| H. Dump Height w/ Low Profile Bucket @ 45° | 99.2 in (2519 mm) |
| J. Dump Reach (Max Height) @ 45° | 39 in (990 mm) |
| K. Rollback at Ground | 30° |
| L. Bucket at Full Height | 84° |
| M. Track on Ground | 66 in (1677 mm) |
| P. Ground Clearance (Bottom of Belly Pan) | 12.6 in (321 mm) |
| Q. Angle of Departure | 38° |
| R. Clearance Circle w/o Bucket | 67.4 in (1712 mm) |
| S. Clearance Circle w/ 78 in Extended Low Profile on Ground | N/A |
| T. Clearance Circle Rear | 114 in (2913 mm) |
| V. Track Gauge | 60.5 in (1538 mm) |
| W. Overall Width w/o Bucket | 78.3 in (1988 mm) |

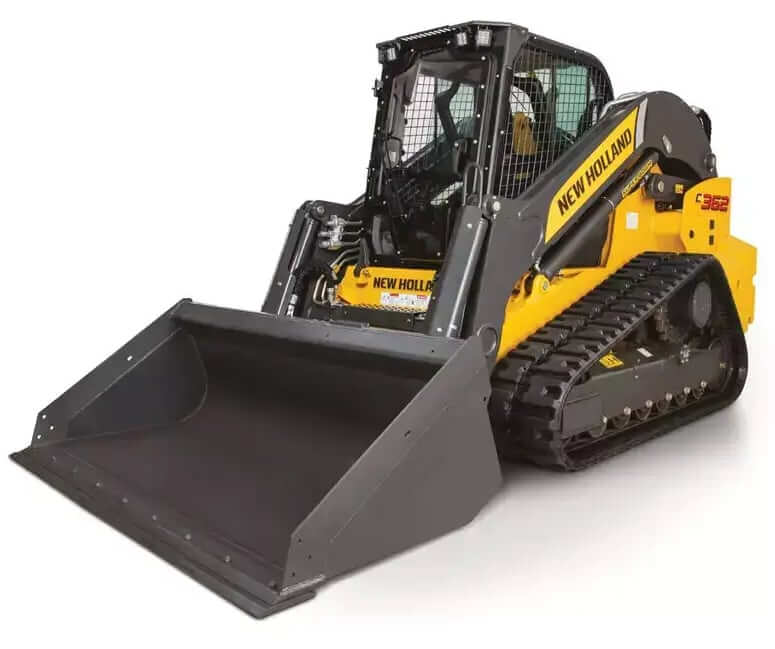

Buckets for New Holland C362
| New Holland C362 | Bucket Width | Heaped Capacity |
|---|---|---|
| Light Material Bucket | 84 in (2134 mm) | 27.9 ft3 (0.79 m3) |
| Low Profile Extended Bucket | 78 in (1981 mm) | 18.6 ft3 (0.53 m3) |
| Low Profile Extended Bucket | 84 in (2134 mm) | 20.2 ft3 (0.57 m3) |
| Manure & Slurry Bucket | 84 in (2134 mm) | 22.5 ft3 (0.64 m3) |
| Heavy Duty Dirt Bucket | 78 in (1981 mm) | 15.9 ft3 (0.45 m3) |
| Heavy Duty Dirt Bucket | 84 in (2134 mm) | 19.4 ft3 (0.55 m3) |
| Heavy-Duty Extended Bucket w/ Smart Fit Teeth | 78 in (1981 mm) | 18.9 ft3 (0.54 m3) |
| Heavy-Duty Extended Bucket w/ Smart Fit Teeth | 84 in (2134 mm) | 20.5 ft3 (0.58 m3) |
| XHD (Extra Heavy Duty) Bucket | 84 in (2134 mm) | 33.8 ft3 (0.96 m3) |
| XHD (Extra Heavy Duty) Bucket w/ Teeth | 84 in (2134 mm) | 33.8 ft3 (0.96 m3) |

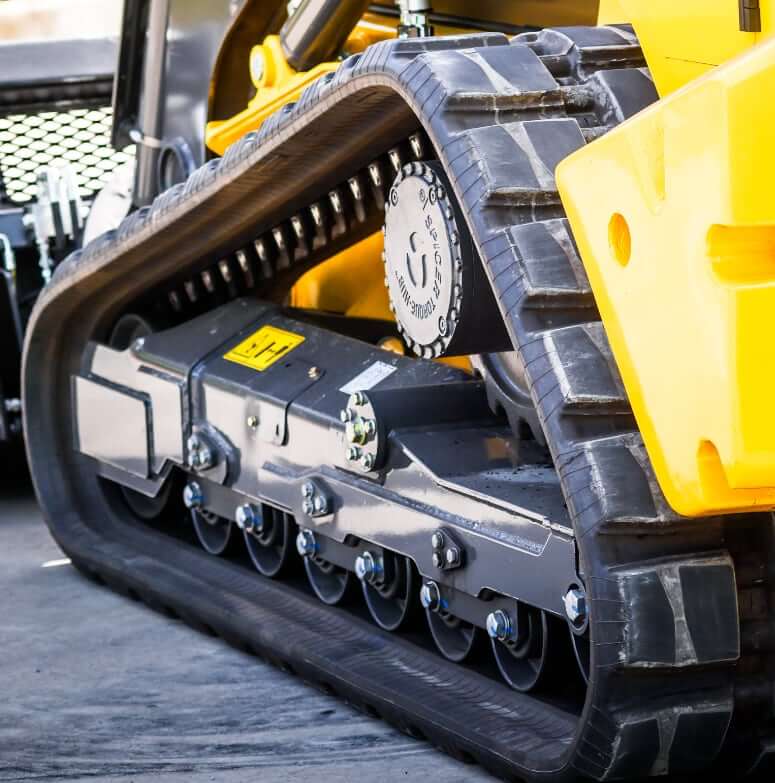

Undercarriage
| System | H-Pattern |
| Number of Track Rollers (per side) | 6 |
| Number of Track Idlers (per side) | 2 |
| Shoe Size (track belt) | 17.7 in (450 mm) |
| Length of Track on Ground | 66 in (1677 mm) |
| Over Track Width | 78.3 in (1988 mm) |
| Track Guage | 60.5 in (1538 mm) |
| Ground Pressure | 6.1 psi (42.1 kPa) |
| Track Suspension | Optional TerraGlide track suspension, maintenance-free |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | FPT Industrial |
| Engine Model | FPT F5B FL413D*C005 |
| Displacement | 207 cu in (3.38 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.3 in (110 mm) |
| Net Horsepower | 114 hp (85 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 339 lb ft (460 Nm) |
| Torque Measured @ | 1400 rpm |
| Low Idle | 1150 rpm |
| High Idle | 2500 rpm |
| Fuel System | Direct Injection (HPCR) |
| Fuel Filter | Pre-filter Spin on, Beta(30) = 200, Main filter Spin on, Beta(4) > 50, Beta (6) > 200 |
| Lubrication System | Forced by gear pump, pressure relief valve, oil filter |
| Aspiration | Turbocharged Aftercooled with external EGR and SCR |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB |
Operational Specs

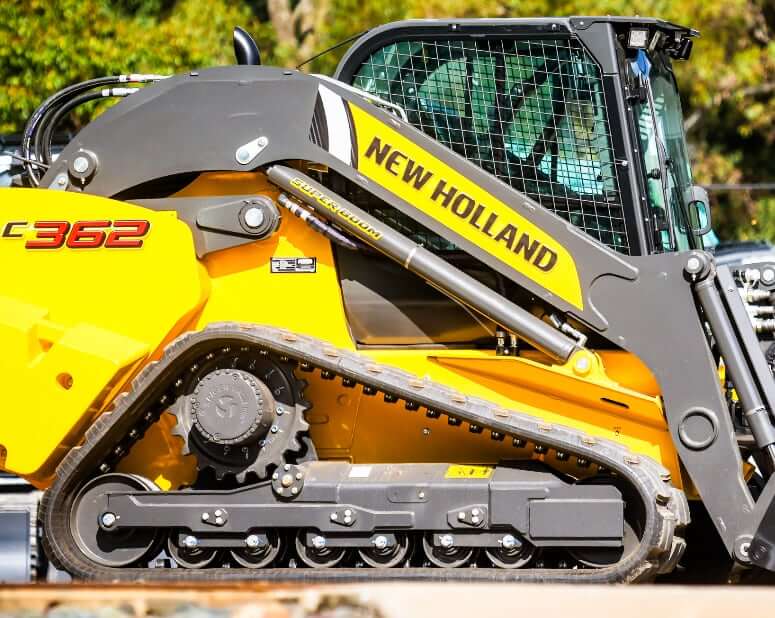

| Operating Weight | 16100 lb (7311 kg) |
| Shipping Weight (w/ bucket) | 15800 lb (7182 kg) |
| Operating Voltage | 12 V |
| Alternator | 100 amps |
| Battery | 12 V, CCA 1000 |

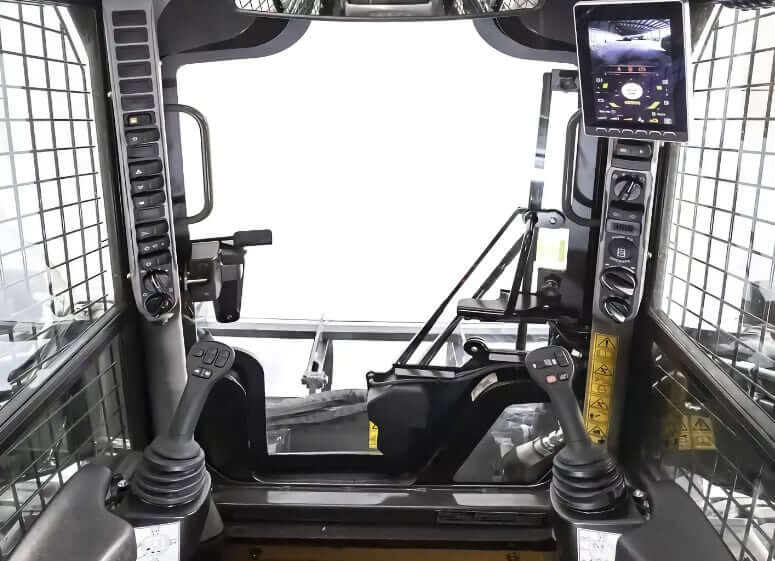

Operator Environment
| Cab | Fully sealed and pressurized cab |
| Cab Safety | ROPS + FOPS |
| Operator Seat | Suspension seat or heated, composite air-ride seat |
| Display | LCD display (8 in) with integrated rear camera |
| Loader Control | Electro-Hydraulic Joystick |
| Travel Control | Adjustable electro-hydraulic controls |
| Working Lights | 2x LED front work lights and 2x LED side lamps |
Power Train
| Type | Hydrostatic transmission |
| Max Travel Speed, Low | 5 mph (8 km/h) |
| Max Travel Speed, High | 8.7 mph (14 km/h) |
| Parking Brake | SAHR disc. Depress on/off brake button on instrument panel, disconnect lapbelt, get off seat, or stop engine |
| Final Drive | Planetary gearbox with 2-speed motor |
| Drive Pump Flow | 40 gal/min (151.4 L/min) |
| Drive System Relief | 5802 psi (40000 kPa) |
| Control | Electro hydraulic |

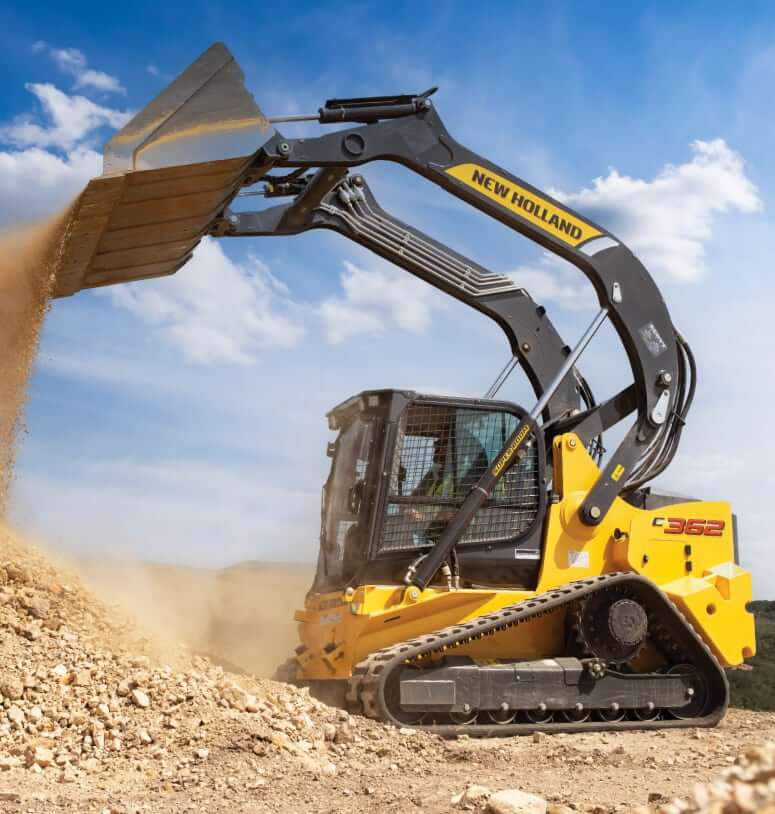

Hydraulic System
| Main Pump Type | Tandem Pump, Integral |
| Pump Flow Capacity | 24.2 gal/min (91.7 L/min) |
| Pump Flow Capacity (High Flow) | 41.6 gal/min (157.5 L/min) |
| Relief Valve Pressure | 3450 psi (23700 kPa) |
| Pump Flow Capacity (Enhanced High Flow) | 41.6 gal/min (157.5 L/min) |
| Relief Valve Pressure (Enhanced High Flow) | 4100 psi (28300 kPa) |
| Loader Control Valve Type | 3 spool / closed-center load sensing |
| Hydrauli Oil Filter | 6 microns / spin on |
Hydraulic Circle Time
| Raise Time | 4.2 sec |
| Lower Time | 2.2 sec |
| Dump Time | 2.3 sec |
| Roll Back Time | 1.6 sec |
Service Refill Capacities
| Fuel Tank Capacity | 30.8 gal (116.5 L) |
| DEF Tank Capacity | 3.3 gal (12.4 L) |
| Engine Oil Capacity (w/ filter) | 2.2 gal (8.5 L) |
| Cooling System Capacity | 3.4 gal (13 L) |
| Hydraulic System Capacity (w/ tank) | 10.7 gal (40.5 L) |

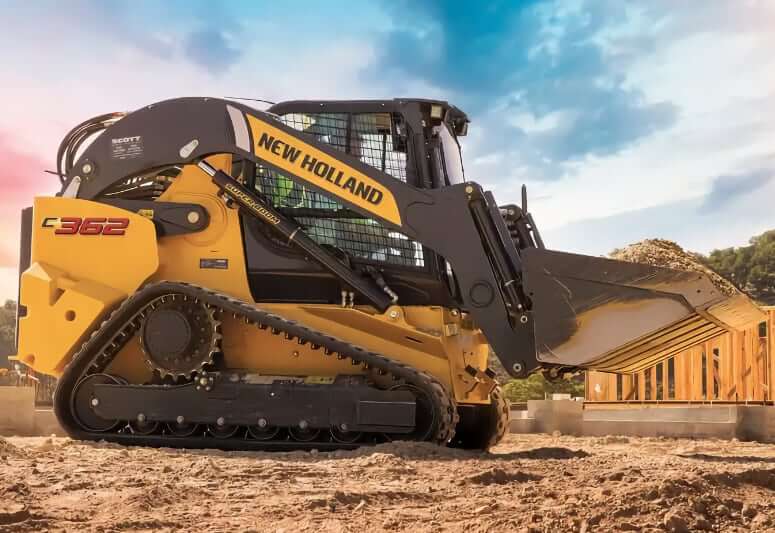

The New Holland C362 compact track loader is engineered for versatility, power, and precision across the toughest job sites. With its robust lift capacity, advanced hydraulics, and optional hydraulic attachment coupler, operators can quickly and safely switch between tools to maximize productivity and uptime.

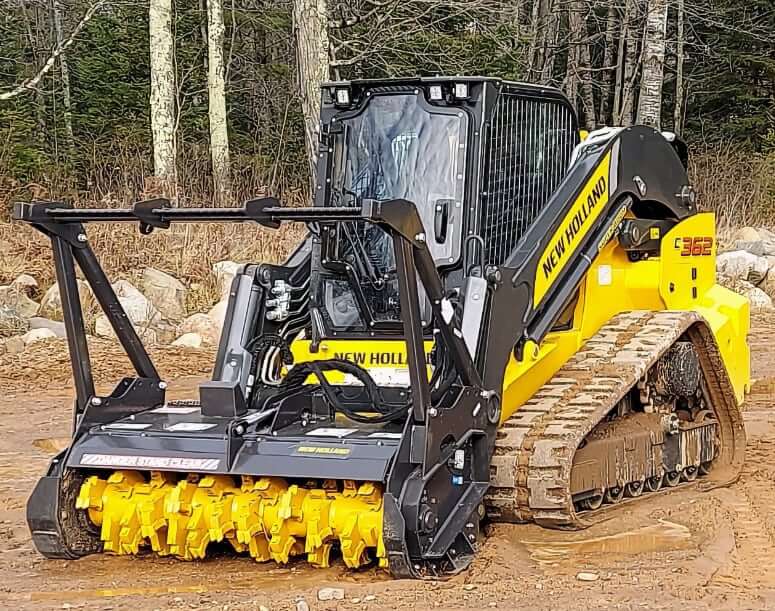

From earthmoving and grading to landscaping, agriculture, and snow management, the C362 supports an extensive lineup of New Holland attachments to match every task. Popular tools include 4-in-1 buckets, pallet forks, angle brooms, and augers for general work, while specialized options like cold planers, dozer blades, mulching heads, and laser graders bring precision to demanding applications.
For material handling, bale spears, manure forks, and silage defacers add agricultural utility, while snow blades, snow pushers, and snow blowers make the machine a winter-ready performer. Whether it’s construction, farming, or property maintenance, the New Holland C362 offers the power and flexibility to handle it all – turning a single loader into a multi-purpose powerhouse with the right attachment.
