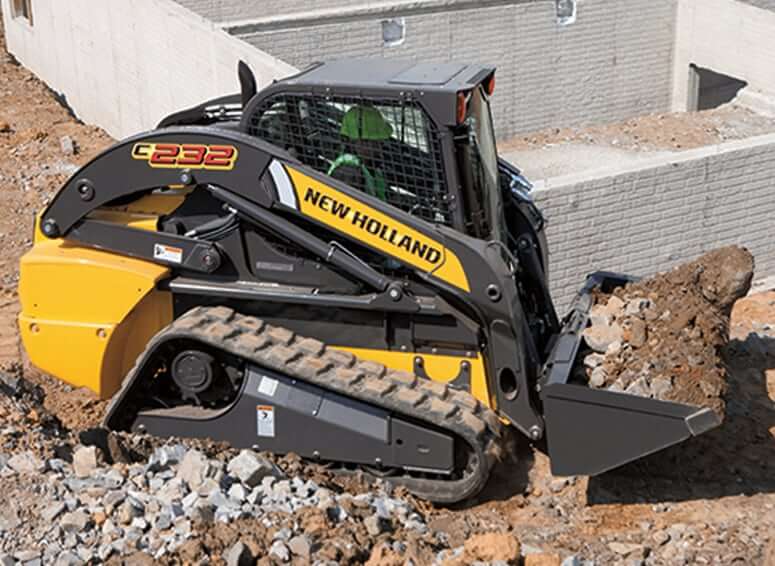

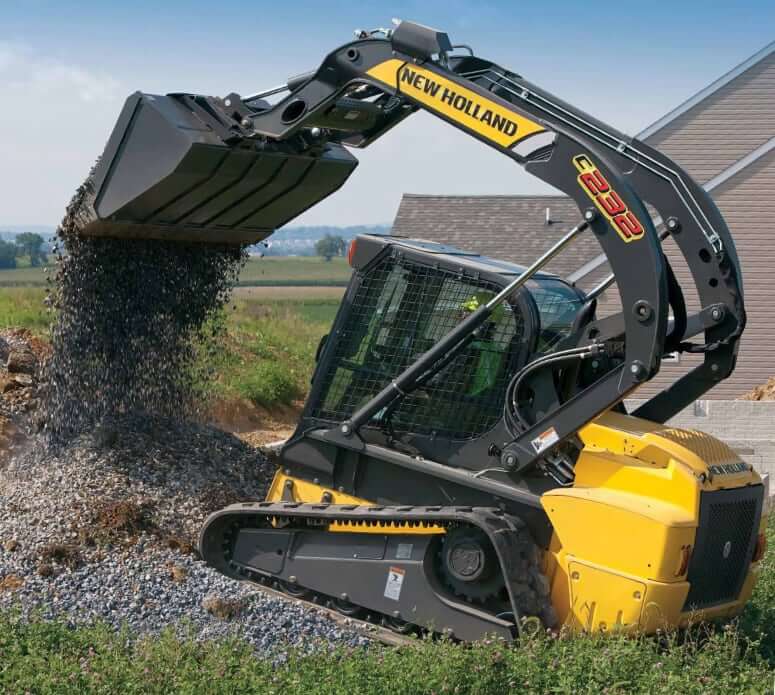

Loader Performance
| Tipping Load | 6400 lb (2902 kg) |
| Rated Operating Capacity, 50% | 3200 lb (1451 kg) |
| Rated Operating Capacity, 35% | 2240 lb (1018 kg) |
| Bucket Breakout Force | 7360 lbf (32.7 kN) |
| Boom Breakout Force | 4840 lbf (21.5 kN) |
| Standard Bucket Width | 78 in (1981 mm) |
| Lift Arm Path | Vertical |
Dimensions
| A. Overall Operating Height w/ Foundry/Excavating Bucket Short Lip | 161.3 in (4096 mm) |
| A. Overall Operating Height w/ Low Profile/Standard Lip Bucket | 165.3 in (4199 mm) |
| A. Overall Operating Height w/ Low Profile Extended/Long Lip Bucket | 170.4 in (4327 mm) |
| B. Bucket Hinge Pin Height | 131.1 in (3330 mm) |
| C. Height to Top of Cab w/ ROPS | 80.4 in (2043 mm) |
| D. Bottom of Level Bucket, Fully Raised | 124.2 in (3155 mm) |
| E. Overall Length w/o Attachment (w/ Coupler) | 117.8 in (2993 mm) |
| F. Overall Length w/ Foundry Excavation Bucket on Ground | 142.9 in (3631 mm) |
| F. Overall Length w/ Low Profile Bucket | 147.0 in (3734 mm) |
| F. Overall Length w/ Low Profile Extended Bucket | 152.1 in (3863 mm) |
| G. Dump Angle | 55° |
| H. Dump Height w/ Foundry/Excavating Bucket Short Lip | 104.5 in (2655 mm) |
| H. Dump Height w/ Low Profile/Standard Lip Bucket | 101.6 in (2581 mm) |
| J. Dump Reach (Max Height) | 34.4 in (875 mm) |
| K. Rollback at Ground | 33° |
| L. Bucket at Full Height | 85° |
| M. Track on Ground | 64.5 in (1639 mm) |
| P. Ground Clearance (Bottom of Belly Pan) | 9.5 in (243 mm) |
| Q. Angle of Departure | 32° |
| R. Clearance Circle w/o Bucket | 58.2 in (1482 mm) |
| S. Clearance Circle w/ 78 in Foundry Bucket in Carry Position | 87.6 in (2225 mm) |
| S. Clearance Circle w/ 78 in Low Profile Bucket on Ground | 91.4 in (2322 mm) |
| S. Clearance Circle w/ 78 in Extended Low Profile on Ground | 95.8 in (2434 mm) |
| V. Track Gauge | 58.3 in (1480 mm) |
| W. Overall Width | 76 in (1930 mm) |

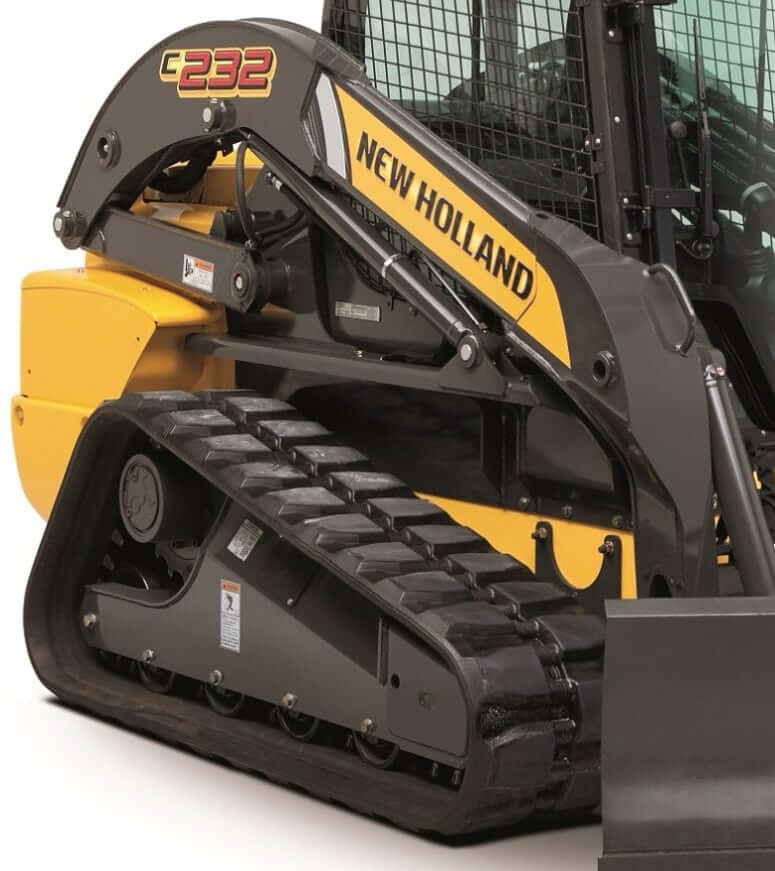

Undercarriage
| System | S-Wave Pattern |
| Shoe Size (track belt) | 17.7 in (450 mm) |
| Number of Track Rollers (per side) | 4 |
| Number of Track Idlers (per side) | 2 |
| Ground Pressure | 4.2 psi (29 kPa) |
| Track Guage | 58.3 in (1480 mm) |
| Length of Track on Ground | 64.5 in (1639 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | FPT Industrial |
| Engine Model | FPT / F5H FL463A*F001 |
| Displacement | 207 cu in (3.38 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.3 in (110 mm) |
| Gross Power | 74 hp (55 kw) |
| Net Power | 68 hp (51 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 232 lb ft (314 Nm) |
| Torque Measured @ | 1400 rpm |
| Low Idle | 1150 rpm |
| High Idle | 2500 rpm |
| Fuel System | HPCR Direct Injection |
| Fuel Filter | Pre-spin on 30 microns. Main-spin on 4 microns |
| Lubrication System | Forced by gear pump, pressure relief valve, oil filter, heat exchanger with 5 elements |
| Aspiration | Turbocharged Aftercooled with external EGR |
| Emission Standards | US EPA Tier 4 Final |
Operational Specs
| Operating Weight | 9634 lb (4370 kg) |
| Shipping Weight | 9300 lb (4220 kg) |
| Operating Voltage | 12 V |
| Alternator | 100 amps |
| Battery | 12 V |

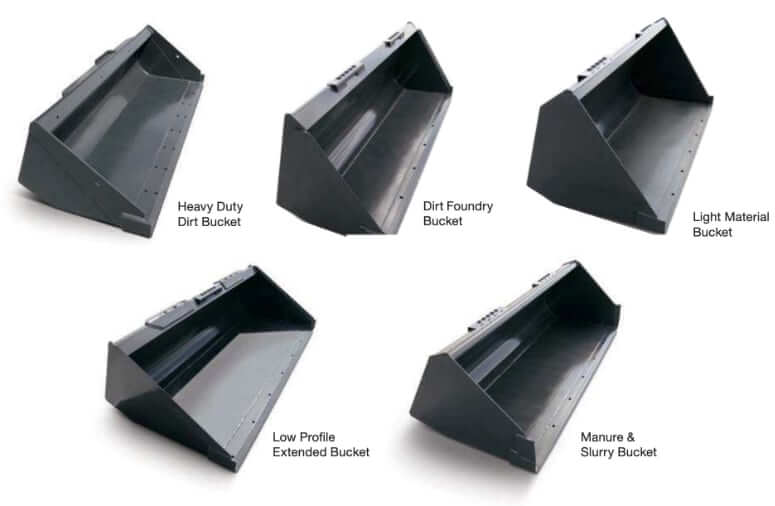

| Bucket Types | Heavy duty; foundry/excavating with short lip; light material; low profile extended; manur and slurry bucket |
Power Train
| Type | Hydrostatic transmission |
| Max Travel Speed, Low | 5.1 mph (8.2 km/h) |
| Max Travel Speed, High | 7.6 mph (12.2 km/h) |
| Parking Brake | SAHR disc. Depress on/off brake button on instrument panel, disconnect lapbelt, get off seat, or stop engine |
| Final Drive | Planetary gearbox with 2-speed motor |
| Drive Pump Flow | 24.2 gal/min (91.5 L/min) |
| Drive System Relief | 5220 psi (36000 kPa) |
| Control | Mechanical or Electro hydraulic |
Hydraulic System
| Main Pump Type | Gear pump |
| Pump Flow Capacity | 24.2 gal/min (91.7 L/min) |
| Pump Flow Capacity, High Flow (Optional) | 37.6 gal/min (142.4 L/min) |
| Loader Control Valve Type | 3 spool / open center / series |
| Relief Valve Pressure | 3046 psi (21000 kPa) |
| Hydrauli Filter | 6 microns / spin on |
Hydraulic Circle Time
| Raise Time | 3.9 sec |
| Lower Time | 2.5 sec |
| Dump Time | 2.7 sec |
| Roll Back Time | 2.0 sec |
Service Refill Capacities
| Fuel Tank Capacity | 25.5 gal (96.5 L) |
| Engine Oil Capacity (w/ filter) | 2.2 gal (8.5 L) |
| Cooling System Capacity | 3.4 gal (13 L) |
| Hydraulic System Capacity (w/ tank) | 11.8 gal (44.5 L) |
