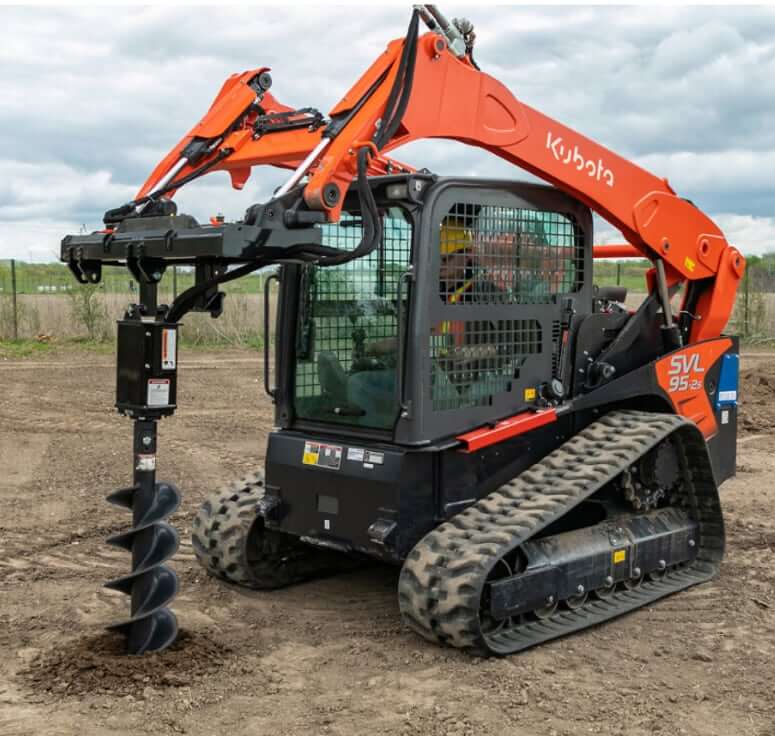

- Augers (SA20, SA35)

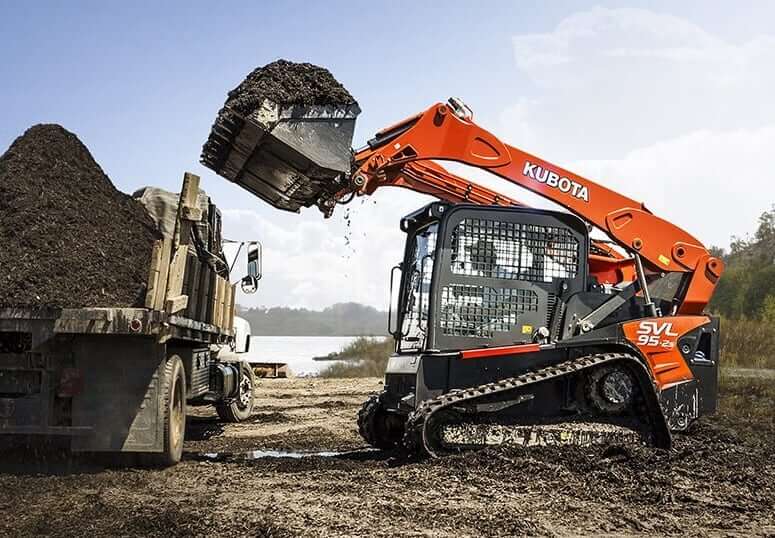

Loader
| Rated Operating Capacity (35% Tipping Load) | 3200 lb (1451 kg) |
| Tipping Load | 9143 lb (4147 kg) |
| Breakout Force (Bucket) | 7961 lb (3611 kg) |
| Breakout Force (Lift arm) | 6742 lb (3058 kg) |
| Bucket Width | 80 in (2032 mm) |
| Lift Arm Path | Vertical |
Dimensions
| A. Length of Track on Ground | 65.6 in (1667 mm) |
| B. Track Gauge | 59.5 in (1512 mm) |
| C. Length without Bucket | 123.5 in (3137 mm) |
| D. Length with Bucket on Ground | 154.6 in (3929 mm) |
| E. Height to Top of Cab | 83.3 in (2116 mm) |
| F. Bucket Hinge Pin Height at Max. Lift | 128.5 in (3264 mm) |
| G. Rollback Angle at Carry Position | 27° |
| H. Reach at Max. Lift and Dump | 40.7 in (1035 mm) |
| I. Ground Clearance | 11.5 in (293 mm) |
| J. Departure Angle | 31° |
| K. Max. Dump Angle | 43° |
| L. Vehicle Width (Standard / Wide Track) | 77.2 in (1962 mm) |
| M. Width with Bucket | 80 in (2032 mm) |
| N. Turning Radius from Center – Machine Rear | 63.4 in (1610 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | Kubota V3800-TIEF4 |
| Displacement | 230 cu in (3.769 L) |
| Bore | 3.94 in (100 mm) |
| Stroke | 4.72 in (120 mm) |
| Gross Horsepower | 96.4 hp (71.9 kw) |
| Net Horsepower | 87.0 hp (64.9 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 284 lb ft (385 Nm) |
| Torque Measured @ | 1500 rpm |
| Combustion System | Direct injection |
| Fuel System | Common rail system |
| Aspiration | Turbocharged and Aftercooled |
| Aftertreatment | DOC + DPF + SCR |
| Emission Standards | US EPA/CARB Tier 4 + EU Stage IIIB |
Power Train
| Type | Hydrostatic transmission |
| Number of Gears | Two-speed travel, Electronic Travel Torque Management |
| Max Travel Speed (Low) | 5.0 mph (8.0 km/h) |
| Max Travel Speed (High) | 7.3 mph (11.7 km/h) |
| Traction Force | 12178 lbf (54.2 kN) |

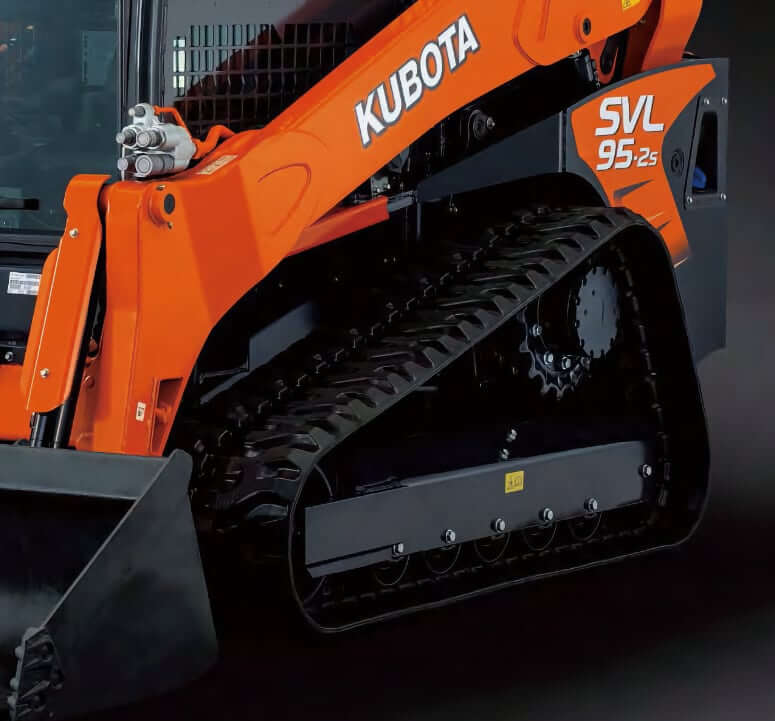

Undercarriage
| Length of Track on Ground | 65.6 in (1667 mm) |
| Track Width | 17.7 in (450 mm) |
| Ground Pressure | 4.5 psi (31.0 kPa) |
| Number of Track Rollers (per side) | 5 |
| Track Roller Type | Triple Flange Lower Track Rollers |
| Track Frame | The undercarriage forms an integral part of the main frame |
| Departure Angle | 31° |
Operational Specs
| Operating Weight (Open Cab) | 11299 lb (5125 kg) |
| Operating Weight (Closed Cab) | 11574 lb (5250 kg) |
| Max Operating Lift Capacity (ROC) | 3200 lb (1451 kg) |
| Operating Voltage | 12 V |
| Alternator | 115 amps |
| Battery | 12 V, CCA 950, Group Size: 31 |
Cab

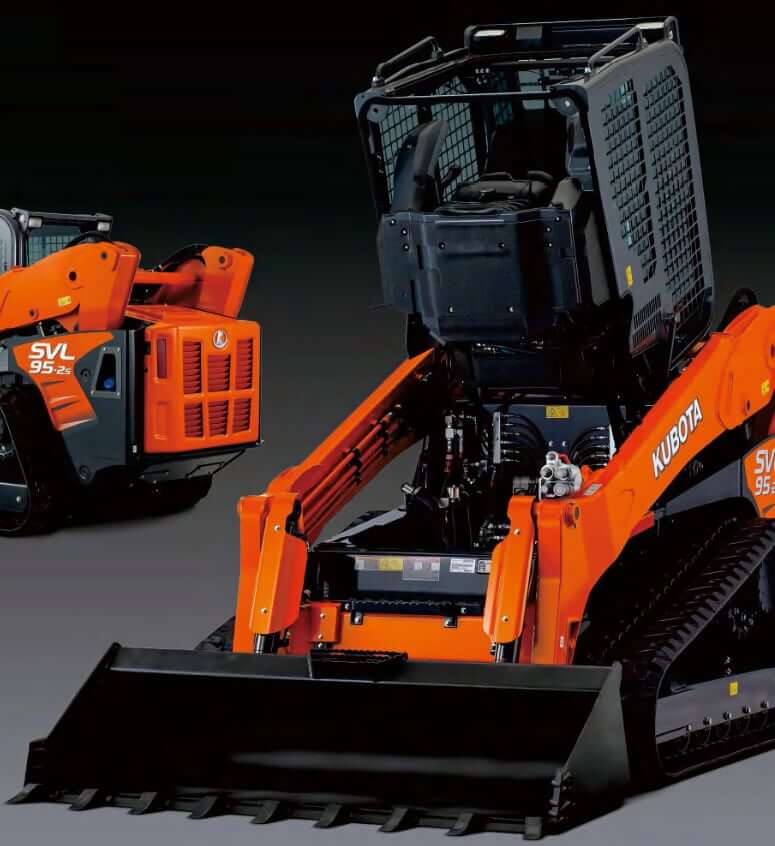

| Open Cab (Standard) | ROPS / FOPS Level 1 |
| Cab Front Height | 35 in (890 mm) |
| Cab Front Width | 45 in (1141 mm) |
| Operator Seat | The standard suspension seat. (Air Suspension seat is optional) |
| Seat Belt | 2 in (50.8 mm) Retractable seat belt |
| Working Lights | 2x Front + 2 Rear working lights |

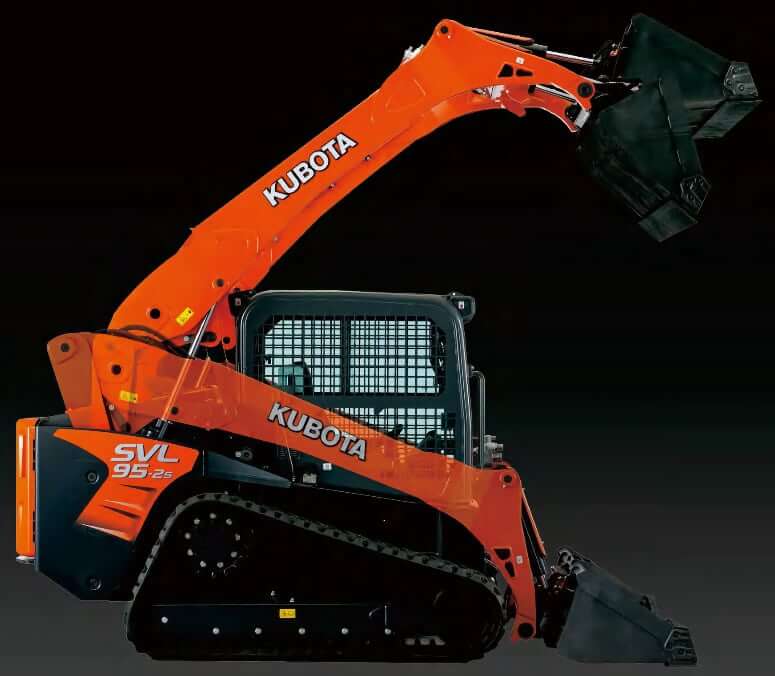

Hydraulic System
| Type | Standard hydraulics / High Flow hydraulics (optional) |
| Standard Pump Flow | 23.1 gal/min (87.6 L/min) |
| High Flow Pump Flow | 40.0 gal/min (152.0 L/min) |
| Standard Relief Valve Pressure | 3553 psi (24500 kPa) |
| Coupler Manifold | 1/2″ and 3/4″ couplers |

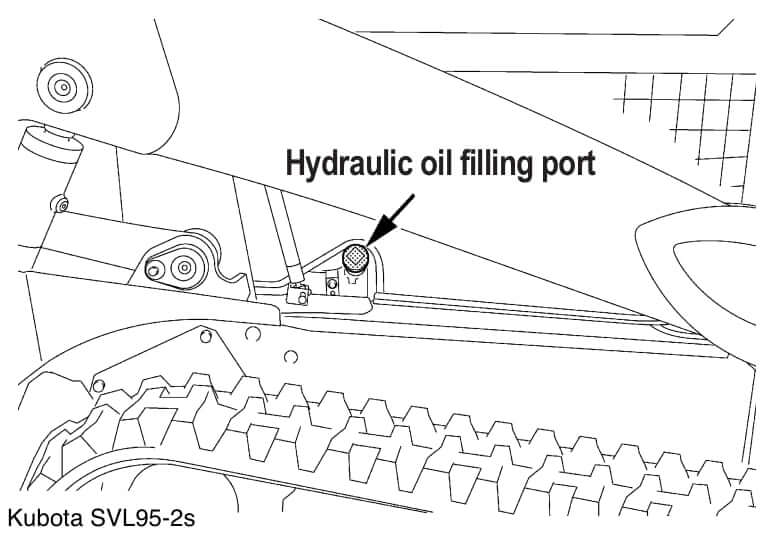

| Hydraulic Oil Fill Location | The Kubota SVL95-2s hydraulic oil filling port is located on the right side of the loader above the track (hydraulic tank cap) |

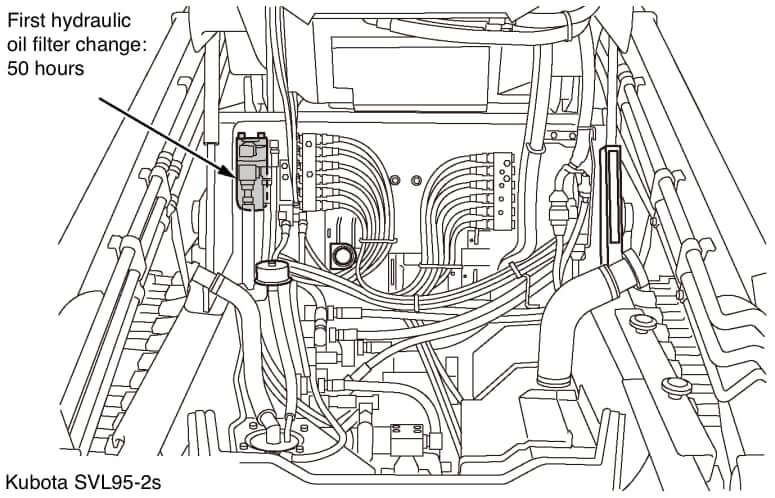

Hydraulic Oil Filter Location
Replacing Hydraulic Oil Filter (First filter change: 50 hours): Raise the cab. Remove the hydraulic oil filter with the wrench and Replace with the new one. Oil the O-ring of the new hydraulic filter cartridge lightly. Then tighten the hydraulic filter cartridge by hand. Ensure old O-ring is removed before installing new cartridge.

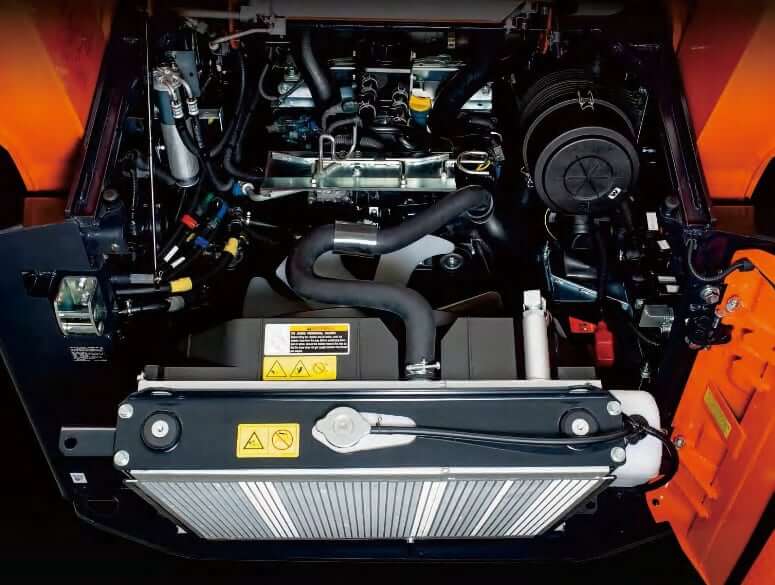

Service Refill Capacities
| Fuel Tank Capacity | 28.8 gal (109 L) |
| DEF Tank Capacity | 5 gal (18.8 L) |
| Engine Oil Capacity | 2.9 gal (11 L) |
| Cooling System Capacity | 3.7 gal (14 L) |
| Travel Reduction Unit (each) | 0.42 gal (1.6 L) |
| Hydraulic System Fluid Capacity | 17.96 gal (68 L) |
| Hydraulic Tank Capacity | 10.1 gal (38.1 L) |

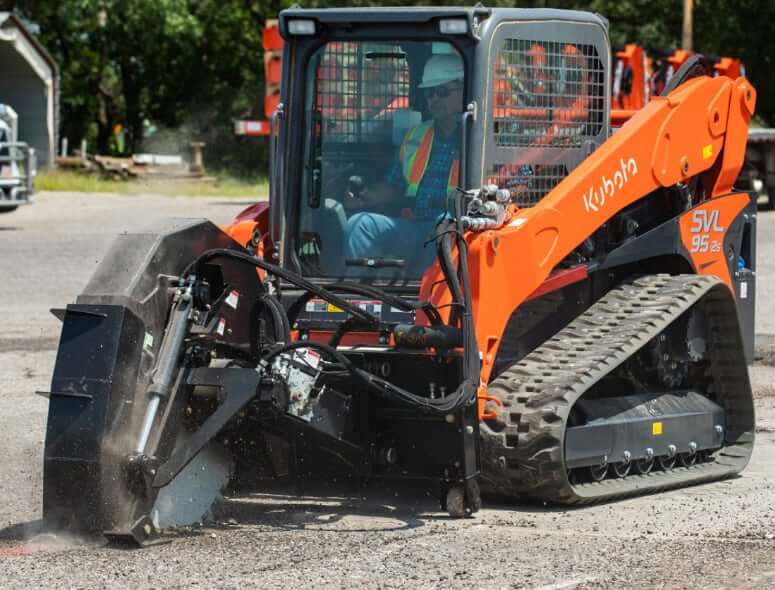

Kubota SVL95-2s Attachments
The Kubota SVL95-2s Compact Track Loader is built for heavy-duty performance and is compatible with a wide array of powerful attachments that elevate its productivity across multiple industries. For land management and vegetation control, rotary cutters like the SC2560 through SC7072 deliver reliable cutting efficiency with various widths and hydraulic flow capacities to match jobsite demands. Auger models such as the SA20 and SA35 provide powerful and precise drilling for fencing, landscaping, and utility installation. The TR48 and TR60 trenchers are engineered for high-performance trenching in tough soil conditions.
For demolition and breaking applications, Kubota’s BR-series hydraulic breakers – from the compact BR310 to the heavy-duty BR860 – offer a range of impact forces to suit various tasks. During winter operations, the SBL2566, SBL2574, and SBL2584 snow blowers ensure fast and effective snow removal. Collectively, these attachments make the SVL95-2s a highly adaptable and capable machine for year-round use in construction, agriculture, landscaping, and municipal work.

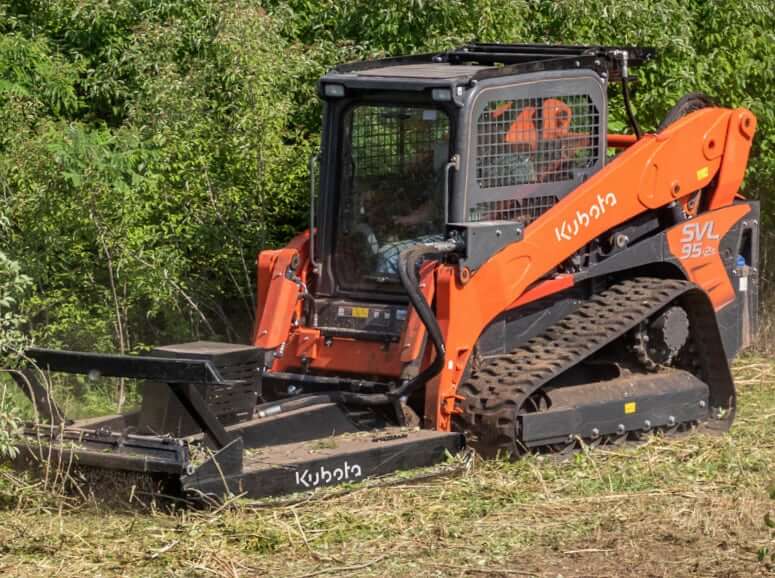

SC60 / SC70 Series Cutters
| Specification | SC6072 | SC7072 |
|---|---|---|
| Cutter Weight (with skid shoes) | 1980 lb (900 kg) | 2580 lb (1170 kg) |
| Cutting Width | 72 in (1800 mm) | 73.5 in (1870 mm) |
| Overall Width | 84 in (2100 mm) | 84.375 in (2140 mm) |
| Overall Length | 92 in (2300 mm) | 92.25 in (2340 mm) |
| Cutting Capacity | 6 in (150 mm) Diameter | 7 in (178 mm) Diameter |
| Drive Motor Flow | 18 – 31 gal/min (68 – 117 L/min) | 26 – 43 gal/min (98.4 – 162.8 L/min) |
| Hydraulic Pressure | — | Up to 3500 psi |
| Deck Thickness | 1/4 in (6 mm) | 1/4 in (6 mm) |
| Side Skirt Construction | 1/4 in (6 mm) | 1/4 in (6 mm) |
| Blade Carrier | Round 3/4 in (19 mm) Plate | Two round 1/2 in (12.7 mm) plate weldments |
| Blade Size | 1/2 in (12.7 mm) | 3/4 in (19.05 mm) Double edge |
| Blade Tip Speed | 12900 fpm (66 mps) @ 31 gal/min (117 L/min) | 14870 fpm (75 mps) @ 43 gal/min (162.8 L/min) |
| Skid Shoes Construction | 1/4 in (6 mm) Plate | 3/8 in (10 mm) Plate |
| Front Deck Protection | — | Bi-fold door with single row chain guard |
| Deck Wear Protection | Four corner-mounted skid shoes | — |
| Deck Lift Height Protection | Height limiting safety chain | Height adjustment safety chain |
| Mulching Teeth | — | 3/4 in (19.05 mm) Square carbide |
SC40 Series Cutters
| Specification | SC4060 | SC4072 |
|---|---|---|
| Cutter Weight (with skid shoes, without front roller wheels) | 1324 lb (601 kg) | 1634 lb (741 kg) |
| Cutting Width | 61.5 in (1560 mm) | 73.5 in (1870 mm) |
| Overall Width | 72 in (1830 mm) | 84.5 in (2150 mm) |
| Overall Length | 78 in (1980 mm) | 89 in (2260 mm) |
| Cutting Capacity | 4 in (102 mm) Diameter | |
| Drive Motor – Standard Flow | 15 – 26 gal/min (56.8 – 94.6 L/min) | |
| Drive Motor – High Volume | 27 – 43 gal/min (98.4 – 162.8 L/min) | |
| Deck Thickness | 1/4 in (6 mm) | |
| Side Skirt Construction | 1/4 in (6 mm) | |
| Blade Carrier | Heavy-duty round 5/8 in (16 mm) plate | |
| Deck Wear Protection | Four corner-mounted skid shoes and two mid skid shoes | |
| Blade Size | 1/2 x 5 in (13 x 127 mm), bi-directional | |
| Skid Shoes Construction | 3/8 in (10 mm) Plate | |
| Blade Tip Speed (15–26 gal/min @ 26 gal/min) | 14455 fpm (73.4 mps) | 17345 fpm (88 mps) |
| Blade Tip Speed (27–43 gal/min @ 43 gal/min) | 15440 fpm (78.4 mps) | 18527 fpm (94.1 mps) |
| Deck Lift Height Protection | Height adjustment safety chain | |
SC25 Series Cutters
| Specification | SC2560 | SC2572 |
|---|---|---|
| Cutter Weight (w/o skid shoes, gauge wheel, & protective door) | 871 lb (395 kg) | 1098 lb (498 kg) |
| Gauge Wheel Weight (Optional) | 129 lb (59 kg) | |
| Cutting Width | 60 in (1520 mm) | 72 in (1830 mm) |
| Overall Width | 65.5 in (1660 mm) | 78 in (1980 mm) |
| Overall Length | 73 in (1850 mm) | 91 in (2310 mm) |
| Cutting Capacity | 2 in (51 mm) Diameter | |
| Low Volume Drive Flow | 11 – 20 gal/min (41.6 – 75.7 L/min) | |
| Medium Volume Drive Flow | 21 – 25 gal/min (79.5 – 94.6 L/min) | |
| High Volume Drive Flow | 26 – 30 gal/min (98.4 – 113.6 L/min) | |
| Deck Thickness | 10 gauge (3.4 mm) | |
| Side Skirt Construction | 1/4 in (6 mm) | |
| Skid Shoes Construction (Optional) | Standard-duty: 1/2 x 2 in (60 x 51 mm) steel Heavy-duty: 3/8 x 3 in (10 x 76 mm) steel |
|
| Blade Carrier | Heavy-duty round pan stump jumper | |
| Blade Size | 1/2 x 4 in (13 x 102 mm) updraft | |
| Blade Tip Speed (11–20 gal/min @ 20 gal/min) | 14100 fpm (71.6 mps) | 14000 fpm (71.1 mps) |
| Blade Tip Speed (21–25 gal/min @ 25 gal/min) | 14000 fpm (71.1 mps) | 13800 fpm (70.1 mps) |
| Blade Tip Speed (26–30 gal/min @ 30 gal/min) | 13000 fpm (66.0 mps) | 13000 fpm (66.0 mps) |
| Deck Lift Height Protection | Safe chain limiter | |
SBL25 Series Snow Blowers
| Specification | SBL2566 | SBL2574 | SBL2584 |
|---|---|---|---|
| Working Width | 66 in (1680 mm) | 74 in (1880 mm) | 84 in (2130 mm) |
| Overall Width | 71.5 in (1820 mm) | 79.5 in (2020 mm) | 89.5 in (2270 mm) |
| Weight (w/ skid shoes, motor, etc.) | 816 lb (370 kg) | 938 lb (426 kg) | 988 lb (448 kg) |
| Low Volume Motor Flow | 12 – 19 gal/min (45.4 – 71.9 L/min) | ||
| Medium Volume Motor Flow | 20 – 26 gal/min (75.7 – 98.4 L/min) | ||
| High Volume Motor Flow | 27 – 33 gal/min (102.2 – 124.9 L/min) | ||
| Hydraulic Pressure Rating | 2500 – 3500 psi (17.2 – 24.1 MPa) | ||
| Main Housing Material | 10 gauge (3.4 mm) | ||
| Side Plate Material | 3/16 in (5 mm) | ||
| Chute Opening at Base | 10 in (254 mm) | 12 in (305 mm) | |
| Impeller Housing Depth | 8 in (203 mm) | 10 in (254 mm) | |
| Impeller Diameter | 24 in (610 mm) | ||
| Number of Impeller Blades | 4 | ||
| Auger Diameter | 16 in (406 mm) | ||
| Number of Auger Paddles | 4 | ||
| Cutting Edge | Bolt-on, reversible & replaceable full-length cutting edge | ||
| Skid Shoes | Bolt-on, adjustable & replaceable | ||
| Chute Rotation | 220° (Hydraulically driven sprocket) | ||
| Spout Deflector | Hydraulic operation | ||
SBL30 Series Snow Blowers
| Spec | SBL3074 | SBL3084 |
|---|---|---|
| Required Hydraulic Flow | 17 – 23 gal/min (64.4 – 87.1 L/min) | 17 – 23 gal/min (64.4 – 87.1 L/min) |
| Required Hydraulic High Flow | 27 – 33 gal/min (102.2 – 124.9 L/min) | 27 – 33 gal/min (102.2 – 124.9 L/min) |
| Max. Operating Pressure | 3500 psi (24130 kPa) | 3500 psi (24130 kPa) |
| Operating Weight | 737 lb (334 kg) | 791 lb (359 kg) |
| Working Width | 74 in (1880 mm) | 84 in (2134 mm) |
| Overall Height (Chute Closed) | 69 in (1753 mm) | |
| Overall Length | 38.3 in (972 mm) | |
| Impeller Diameter | 26.4 in (670 mm) | |
| Impeller Width | 7 in (178 mm) | |
| Number of Impeller Blades | 5 | |
| Auger Type | Single | |
| Auger Diameter | 16 in (406 mm) | |
| Housing Thickness | 10 gauge (3.4 mm) | |
| Side Panel Thickness | 1/4 in (6.35 mm) | |
| Chute Rotation | 270°, Hydraulically driven sprocket | |
| Deflector Adjustment | Foldable Chute. Hydraulic operation | |
| Cutting Edge Material | Steel or Poly | |
SBL35 Series Snow Blowers
| Spec | SBL3574 | SBL3584 |
|---|---|---|
| Required Hydraulic High Flow | 34 – 41 gal/min (128.7 – 155.2 L/min) | 34 – 41 gal/min (128.7 – 155.2 L/min) |
| Max. Operating Pressure | 3500 psi (24130 kPa) | 3500 psi (24130 kPa) |
| Operating Weight | 1005 lb (455 kg) | 1058 lb (480 kg) |
| Working Width | 74 in (1880 mm) | 84 in (2134 mm) |
| Overall Height (Chute Closed) | 69 in (1753 mm) | |
| Overall Length | 38.3 in (972 mm) | |
| Impeller Diameter | 26.4 in (670 mm) | |
| Impeller Width | 7 in (178 mm) | |
| Number of Impeller Blades | 5 | |
| Auger Type | Single | |
| Auger Diameter | 16 in (406 mm) | |
| Housing Thickness | 10 gauge (3.4 mm) | |
| Side Panel Thickness | 1/4 in (6.35 mm) | |
| Chute Rotation | 270°, Hydraulically driven sprocket | |
| Deflector Adjustment | Foldable Chute. Hydraulic operation | |
| Cutting Edge Material | Steel or Poly | |

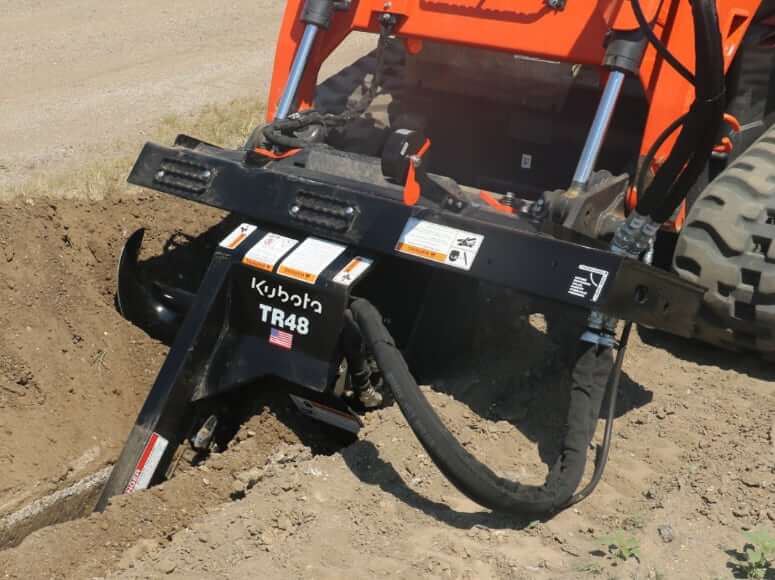

Trenchers (TR48 and TR60)
| Specification | TR48 | TR60 |
|---|---|---|
| Weight w/ 2 Pitch Cup Chain & Hydraulic Side Shift | 1236 lb (561 kg) | 1300 lb (590 kg) |
| Overall Length | 90.5 in (2300 mm) | 102.5 in (2600 mm) |
| Standard Boom Length | 65.5 in (1660 mm) | 77.5 in (1970 mm) |
| Digging Depth at 60° | 48 in (1220 mm) | 60 in (1520 mm) |
| Overall Width | 64 in (1630 mm) | |
| Auger Diameter | 15.5 in (394 mm) | |
| Side Shift Options | 22 in (559 mm) to right of center | |
| Side Shift Travel | 22 in (559 mm) | |
| Trenching Widths Available | 6, 8, 10 in (152, 203, 254 mm) | |
| Hydraulic Motor Flow (Low) | 12 – 24 gal/min (45.4 – 90.8 L/min) | |
| Hydraulic Motor Flow (High) | 24 – 40 gal/min (90.8 – 151.4 L/min) | |
| Chain Speed (Low Flow) | 227 – 366 fpm (69 – 112 m/min) | 221 – 373 fpm (67 – 114 m/min) |
| Motor Case Drain | Standard | |
| Motor Reversible | Yes | |
| Chain Tightener | Grease cylinder | |
| Crumber Shoe | Floating | |
| Patented Depth Indicator | Standard (Viewable from operator seat) | |
| Roller Guide Bearings at Boom Head | Ball bearings with triple-lip seals & metal shroud | |
| Drive Bearings Between Motor & Drive Sprocket | Heavy-duty sealed single & double row bearings | |
| Chain Options | Cup teeth (2 or 4 pitch), scorpion or alligator w/ cup teeth | |
| Frame Construction | 5/16 in (8 mm) thick w/ 3/4 in (19 mm) reinforced bar | |
| Trencher Chain | 2.0 in (51 mm) pitch | |
| Tensile Strength Anti-flex | 50000 lb (22680 kg) | |
Hydraulic Breakers
| Breakers | BR310 | BR360 | BR460 |
|---|---|---|---|
| Frequency Range | 1300 – 2500 bpm | 1200 – 2600 bpm | 1000 – 2000 bpm |
| Operating Weight | 165 lb (75 kg) | 247 lb (112 kg) | 350 lb (160 kg) |
| Oil Flow Range | 3.9 – 8.7 gal/min (15 – 33 L/min) | 5.3 – 12.7 gal/min (20 – 48 L/min) | 7.9 – 16.6 gal/min (30 – 63 L/min) |
| Operating Pressure | 1450 – 1740 psi (10000 – 12000 kPa) | 1740 – 2030 psi (12000 – 14000 kPa) | 1740 – 2030 psi (12000 – 14000 kPa) |
| Pressure Relief Setting Min | 2170 – 2460 psi (15000 – 17000 kPa) | 2460 – 2760 psi (17000 – 19000 kPa) | 2460 – 2760 psi (17000 – 19000 kPa) |
| Pressure Relief Setting Max | — | 3190 psi (22000 kPa) | 3190 psi (22000 kPa) |
| Tool Shank Diameter | 1.42 in (36 mm) | 1.65 in (42 mm) | 1.97 in (50 mm) |
| Breakers | BR510 | BR560 | BR860 |
| Frequency Range | 600 – 1800 bpm | 500 – 1700 bpm | 500 – 1700 bpm |
| Operating Weight | 610 lb (275 kg) | 820 lb (370 kg) | 1110 lb (505 kg) |
| Oil Flow Range | 9.2 – 23.8 gal/min (35 – 90 L/min) | 10.5 – 31.7 gal/min (40 – 120 L/min) | 13.2 – 39.6 gal/min (50 – 150 L/min) |
| Operating Pressure | 1300 – 2030 psi (9000 – 14000 kPa) | 1300 – 2030 psi (9000 – 14000 kPa) | 1450 0 2030 psi (10000 – 14000 kPa) |
| Pressure Relief Setting Min | 2030 – 2900 psi (14000 – 20000 kPa) | 2030 – 2760 psi (14000 – 19000 kPa) | 2180 – 2760 psi (15000 – 19000 kPa) |
| Pressure Relief Setting Max | 3190 psi (22000 kPa) | ||
| Tool Shank Diameter | 2.83 in (72 mm) | 3.15 in (80 mm) | 3.54 in (90 mm) |
Augers (SA20, SA35)
| Specs | SA20 | SA35 |
|---|---|---|
| Required Hydraulic Flow | 10 – 20 gal/min @ 1500 – 3500 psi (37.9 – 75.7 L/min @ 10.3 – 24.1 MPa) | 10 – 30 gal/min @ 1500 – 3500 psi (37.9 – 113.6 L/min @ 10.3 – 24.1 MPa) |
| Required Hydraulic High Flow | 15 – 30 gal/min @ 1500 – 3500 psi (56.8 – 113.6 L/min @ 10.3 – 24.1 MPa) | 15 – 30 gal/min @ 1500 – 3500 psi (56.8 – 113.6 L/min @ 10.3 – 24.1 MPa) |
| Base Weight w/o Options | 284 lb (128.8 kg) | 372 lb (168.7 kg) |
| Auger Flighting Thickness | 5/16 in (8 mm) | 5/16 in (8 mm) |
| Auger Teeth | Forged, individually replaceable – 40° angle on flat side, 50° angle on angled side | |
