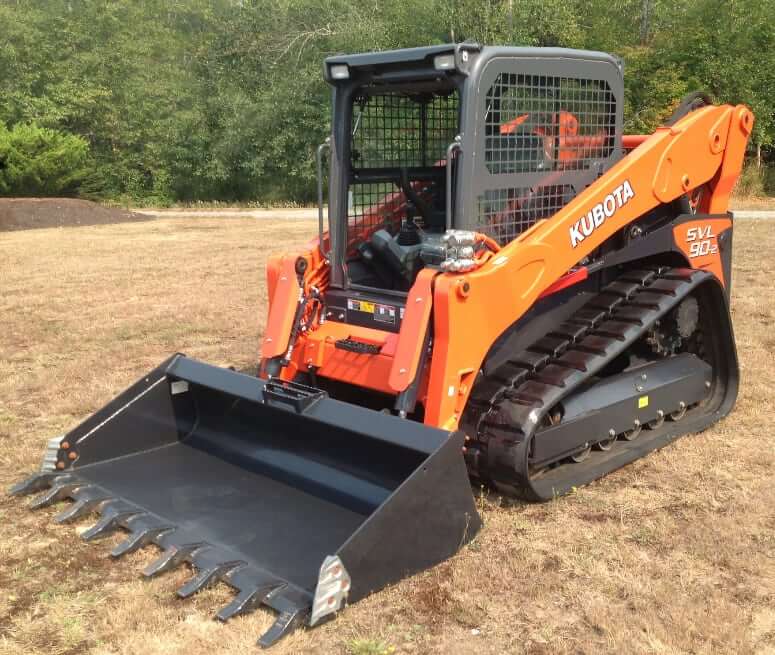

Loader
| Rated Operating Capacity (35% Tipping Load) | 3010 lb (1365 kg) |
| Rated Operating Capacity (50% Tipping Load) | 4300 lb (1950 kg) |
| Tipping Load | 8600 lb (3900 kg) |
| Breakout Force (Bucket) | 7961 lbf (35.4 kN) |
| Breakout Force (Lift arm) | 6742 lbf (26.1 kN) |
| Lifting Capacity | 5869 lb (3058 kg) |
| Bucket Width | 80 in (2032 mm) |
| Lift Arm Path | Vertical |

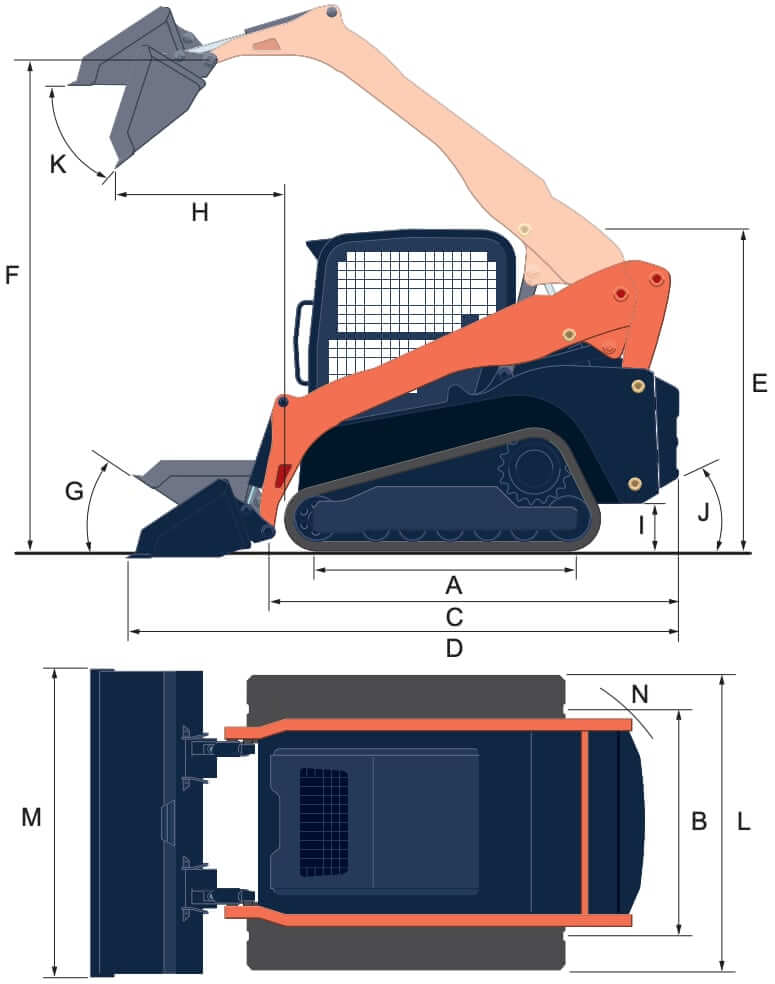

Dimensions
| A. Length of Track on Ground | 65.6 in (1667 mm) |
| B. Track Gauge | 59.5 in (1512 mm) |
| C. Length without Bucket | 117 in (2972 mm) |
| D. Length with Bucket on Ground | 148.2 in (3764 mm) |
| E. Height to Top of Cab | 83.4 in (2118 mm) |
| F. Bucket Hinge Pin Height at Max. Lift | 128.6 in (3266 mm) |
| G. Rollback Angle at Carry Position | 27° |
| H. Reach at Max. Lift and Dump | 40.7 in (1035 mm) |
| I. Ground Clearance | 11.8 in (299 mm) |
| J. Departure Angle | 31° |
| K. Max. Dump Angle | 43° |
| L. Vehicle Width (Standard / Wide Track) | 77.2 in (1962 mm) |
| M. Width with Bucket | 80 in (2032 mm) |
| N. Turning Radius from Center – Machine Rear | 56.7 in (1440 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | Kubota V3800-CR-TE4 |
| Displacement | 230 cu in (3.769 L) |
| Bore | 3.94 in (100 mm) |
| Stroke | 4.72 in (120 mm) |
| Gross Horsepower | 92.0 hp (68.6 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 228.7 lb ft (310 Nm) |
| Torque Measured @ | 1500 rpm |
| Combustion System | Direct injection |
| Fuel System | Common rail system |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Emission Standards | US EPA Tier 4 Interim |
Power Train
| Type | Hydrostatic transmission |
| Number of Gears | Two-speed travel, Electronic Travel Torque Management System |
| Max Travel Speed (Low) | 5.0 mph (8.0 km/h) |
| Max Travel Speed (High) | 7.3 mph (11.7 km/h) |
| Traction Force | 12178 lbf (54.2 kN) |

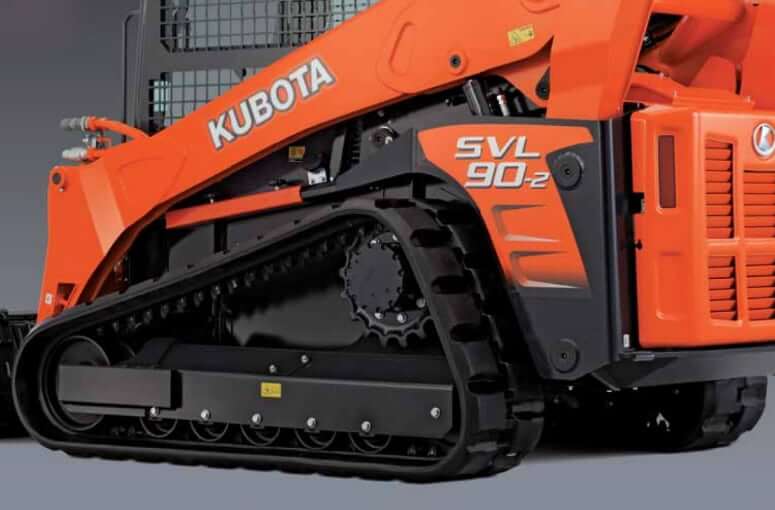

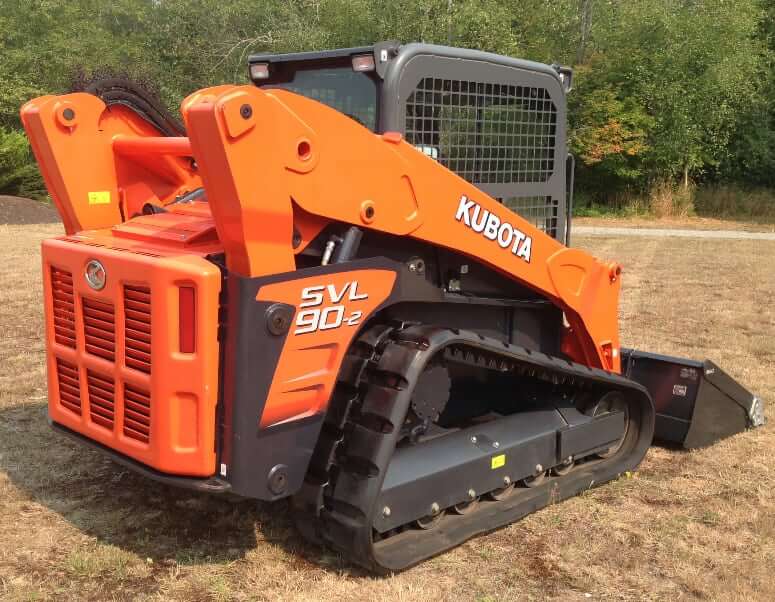

Undercarriage
| Length of Track on Ground | 65.6 in (1667 mm) |
| Track Width | 17.7 in (450 mm) |
| Ground Pressure (Open Cab) | 4.2 psi (29.0 kPa) |
| Ground Pressure (Closed Cab) | 4.3 psi (29.6 kPa) |
| Number of Track Rollers (per side) | 5 |
| Track Roller Type | Triple Flange Lower Track Rollers |
| Track Frame | The undercarriage forms an integral part of the main frame |
| Departure Angle | 31° |

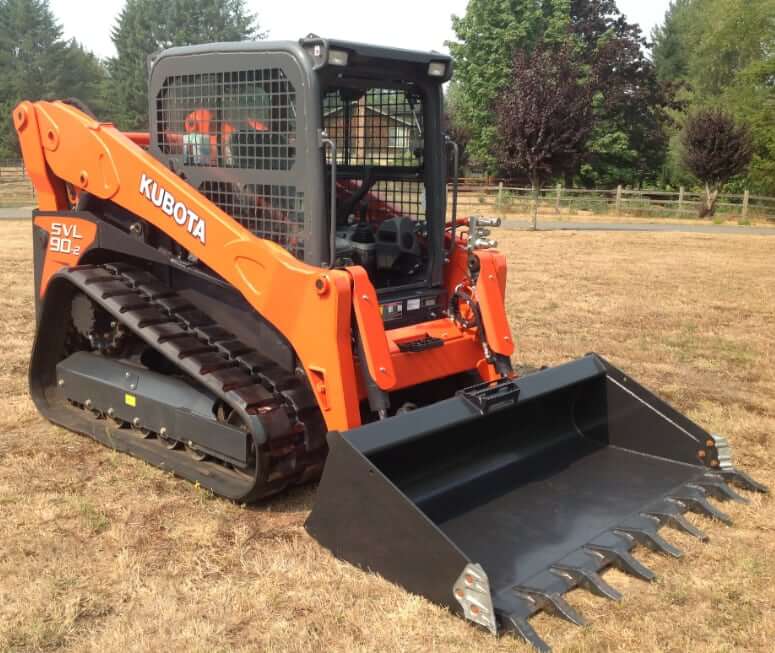

Operational Specs
| Operating Weight (Open Cab) | 11023 lb (5000 kg) |
| Operating Weight (Closed Cab) | 11299 lb (5125 kg) |
| Max Lifting Capacity | 5869 lb (3058 kg) |
| Operating Voltage | 12 V |
| Alternator | 80 amps |
| Battery | 12 V, CCA 950, Group Size: 31 |
Cab
| Open Cab (Standard) | ROPS / FOPS Level 1 |
| Cab Front Height | 35 in (890 mm) |
| Cab Front Width | 45 in (1141 mm) |
| Operator Seat | The standard suspension seat. (Air Suspension seat is optional) |
| Seat Belt | 2 in (50.8 mm) Retractable seat belt |
| Working Lights | 2x Front + 2 Rear working lights |
Hydraulic System
| Type | Standard hydraulics / High Flow hydraulics (optional) |
| Hydraulic Pump Flow | 25.4 gal/min (94.9 L/min) |
| AUX High Flow | 36.5 gal/min (138.3 L/min) |
| Relief Valve Pressure | 3555 psi (24511 kPa) |
| Coupler Manifold | 1/2″ and 3/4″ couplers |

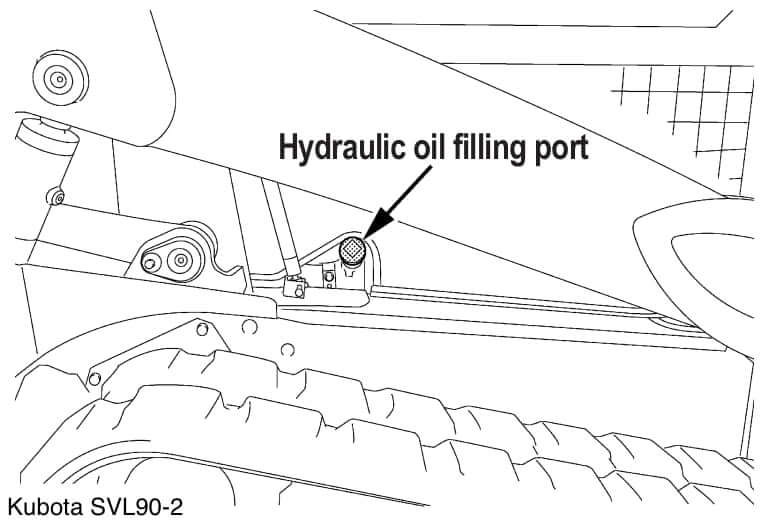

| Hydraulic Oil Fill Location | The Kubota SVL90-2 hydraulic oil filling port is located on the right side of the loader above the track (hydraulic tank cap) |
Service Refill Capacities
| Fuel Tank Capacity | 29.9 gal (113 L) |
| Engine Oil Capacity | 2.9 gal (11 L) |
| Cooling System Capacity | 2.9 gal (11 L) |
| Hydraulic System Fluid Capacity | 18 gal (68 L) |
| Hydraulic Tank Capacity | 10.1 gal (38.1 L) |
| Travel Reduction Unit (each) | 0.42 gal (1.6 L) |
Hydraulic Oil Filter Location

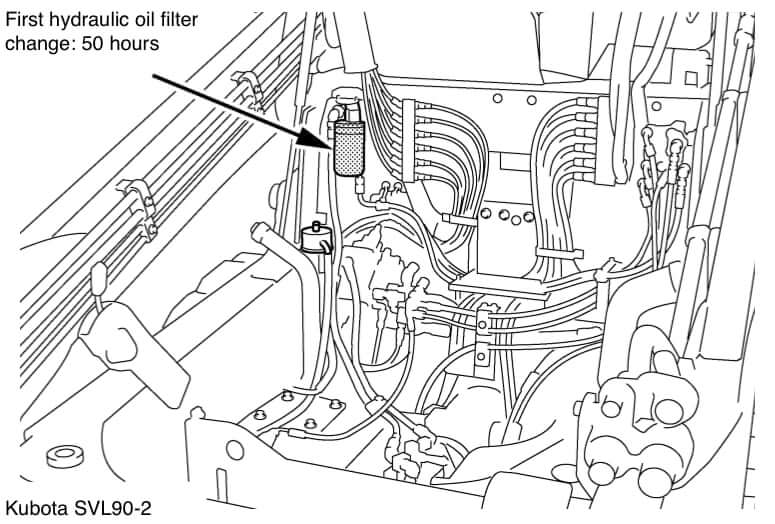

Replacing Hydraulic Oil Filter (First filter change: 50 hours): Raise the cab. Remove the hydraulic oil filter with the wrench and Replace with the new one. Oil the O-ring of the new hydraulic filter cartridge lightly. Then tighten the hydraulic filter cartridge by hand.
