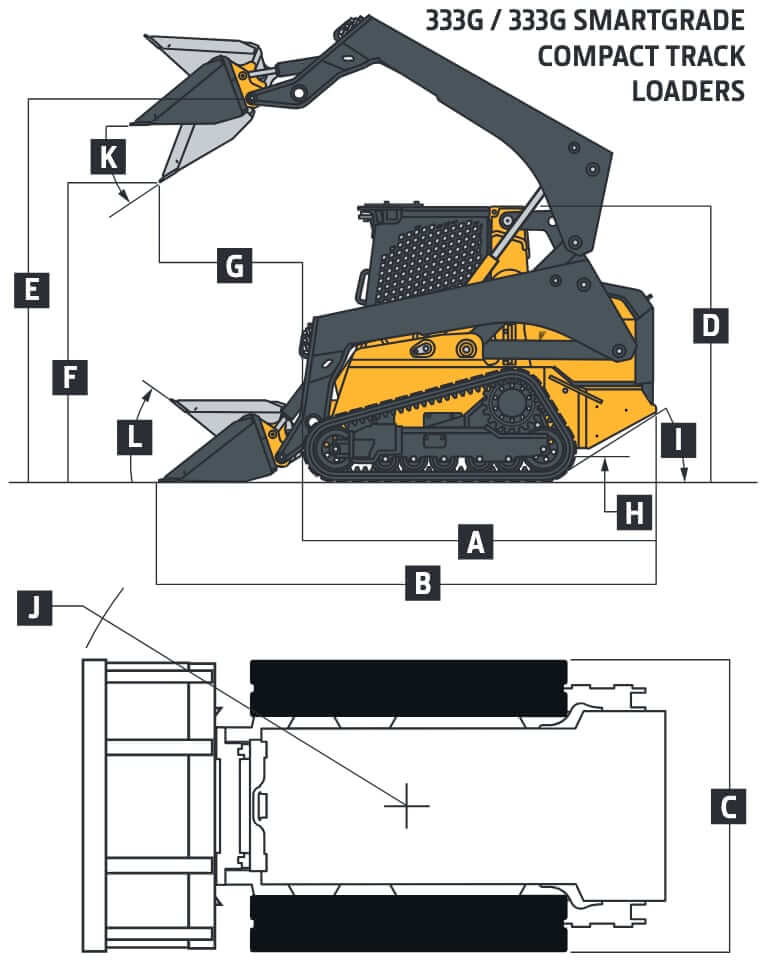

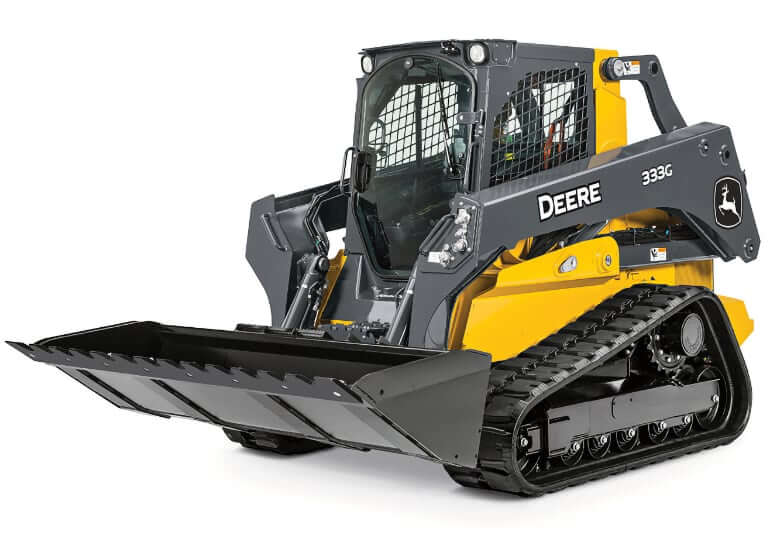

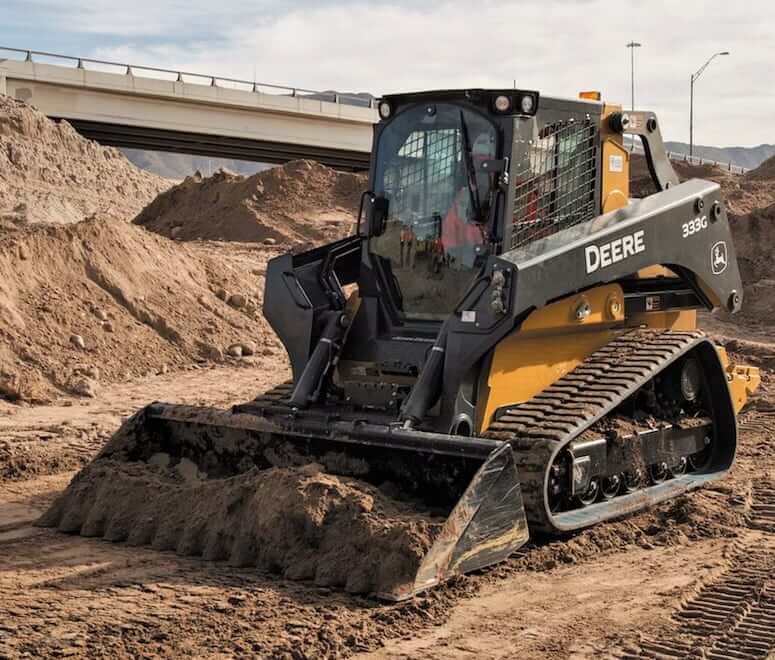

Dimensions
| Model | Deere 333G | SmartGrade |
|---|---|---|
| A. Length Without Bucket | 122 in (3100 mm) | 122 in (3100 mm) |
| B. Length With Foundry Bucket | 146 in (3710 mm) | 146 in (3710 mm) |
| C. Width w/o Bucket, 15.8″ (400 mm) Shoe | 78.9 in (2000 mm) | 78.9 in (2000 mm) |
| C. Width w/o Bucket, 17.7″ (450 mm) Shoe | 80.7 in (2050 mm) | 80.7 in (2050 mm) |
| D. Height to Top of ROPS (w/ GNSS) | 86.7 in (2200 mm) | 90.5 in (2300 mm) |
| E. Height to Hinge Pin | 132 in (3350 mm) | 132 in (3350 mm) |
| F. Dump Height w/ Foundry Bucket | 106 in (2690 mm) | 106 in (2690 mm) |
| G. Dump Reach w/ Foundry Bucket | 28 in (710 mm) | 28 in (710 mm) |
| G. Dump Reach w/ Construction Bucket (no edge) | 34.6 in (880 mm) | 34.6 in (880 mm) |
| H. Ground Clearance | 9.4 in (240 mm) | 9.4 in (240 mm) |
| I. Angle of Departure | 31° | 31° |
| J. Front Turn Radius w/ Foundry Bucket | 85.7 in (2180 mm) | 85.7 in (2180 mm) |
| K. Dump Angle (full lift height) | 48° | 48° |
| L. Bucket Rollback (ground level) | 35° | 35° |

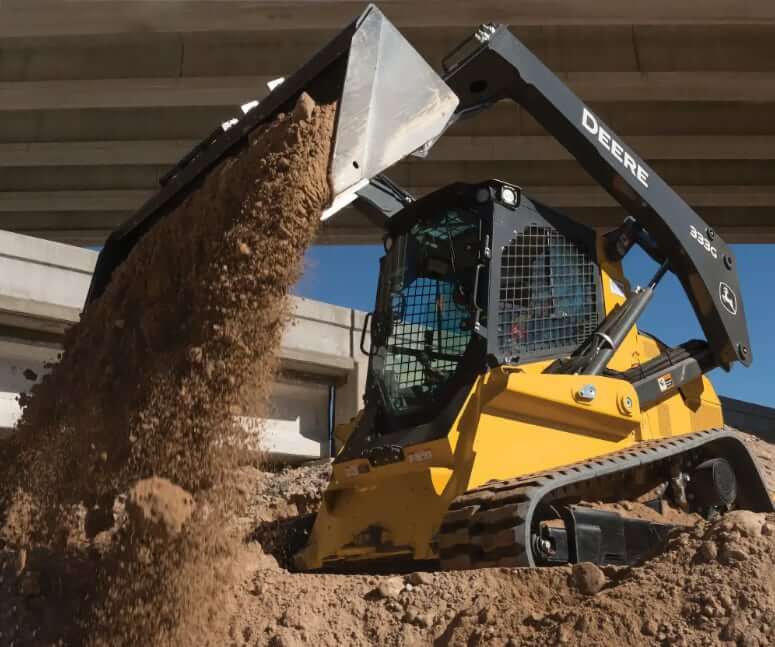

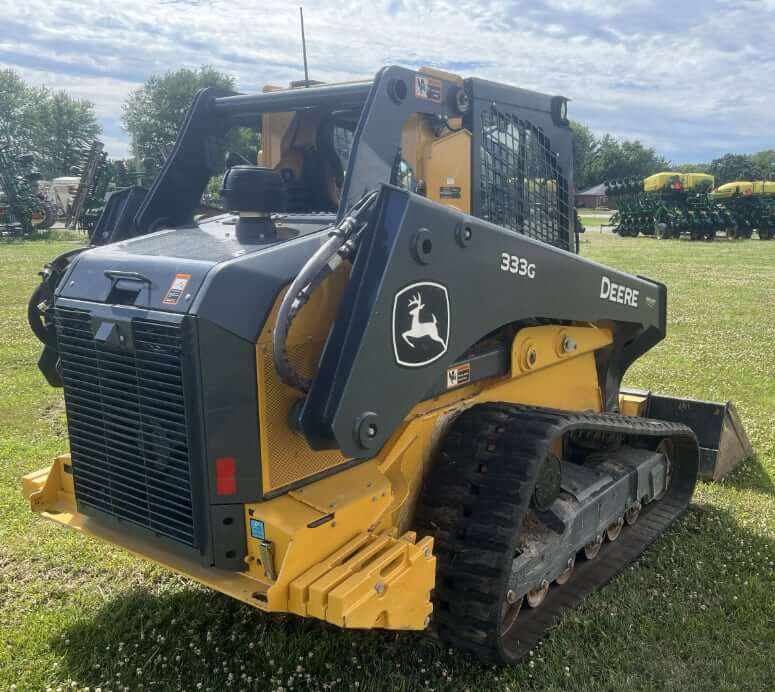

Loader Performance
| Model | Deere 333G | SmartGrade |
|---|---|---|
| Tipping Load w/ Foundry Bucket | 10570 lb (4799 kg) | 11630 lb (5280 kg) |
| Rated Operating Capacity at 35% Tipping Load (SAE) | 3700 lb (1680 kg) | 4071 lb (1848 kg) |
| Rated Operating Capacity at 50% Tipping Load (SAE) | 5285 lb (2399 kg) | 5815 lb (2640 kg) |
| Boom Breakout Force w/ Foundry Bucket | 8250 lbf (36.7 kN) | 8250 lbf (36.7 kN) |
| Boom Breakout Force w/ Construction Bucket | 7750 lbf (34.5 kN) | 7750 lbf (34.5 kN) |
| Bucket Breakout Force w/ Foundry Bucket | 13750 lbf (61.2 kN) | 13750 lbf (61.2 kN) |
| Bucket Breakout Force w/ Heavy-Duty Construction Bucket | 9250 lbf (41.1 kN) | 9250 lbf (41.1 kN) |

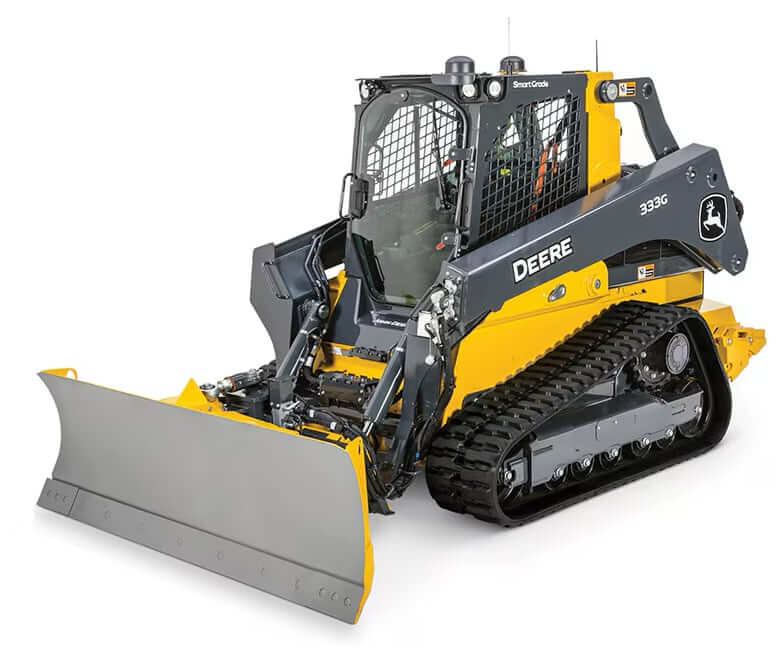

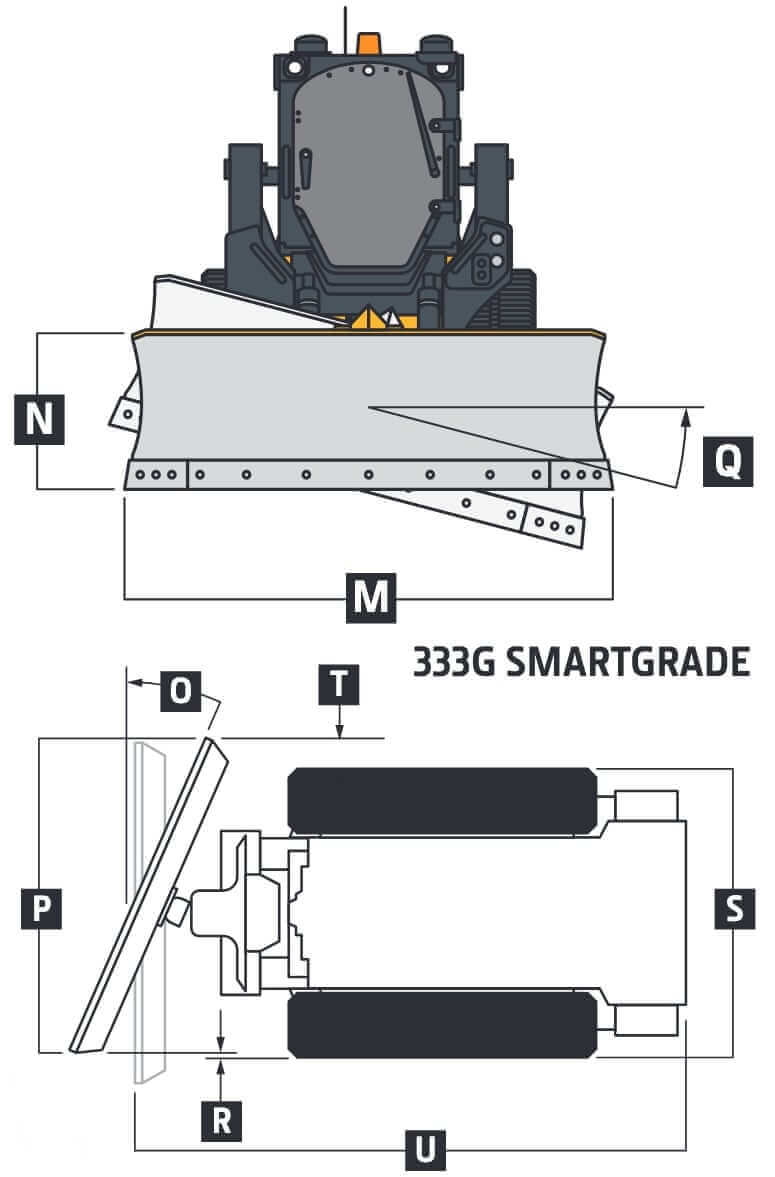

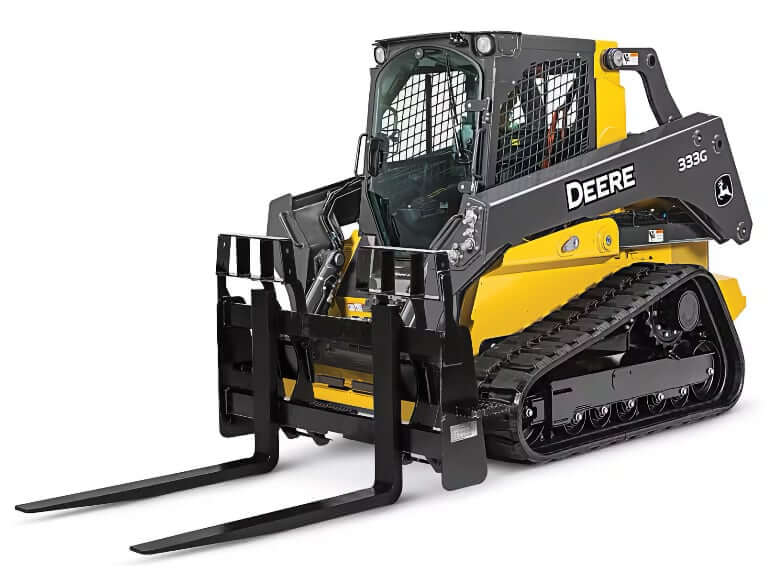

333G SmartGrade Dimensions
| Blade Type | PAT (Power-Angle-Tilt) |
| Blade Capacity (SAE) | 1.54 yd3 (1.18 m3) |
| Blade Weight | 1400 lb (640 kg) |
| M. Blade Width | 96 in (2440 mm) |
| N. Blade Height | 29 in (740 mm) |
| O. Blade Angle | ±24° |
| P. Overall Width w/ Blade Angled | 88 in (2258 mm) |
| Q. Blade Tilt | ±8° |
| R. Cut Reach, 15.8″ (400 mm) Shoe | 0.6 in (15.3 mm) |
| R. Cut Reach, 17.7″ (450 mm) Shoe | 0.8 in (22.2 mm) |
| S. Width Over Track, 15.8″ (400 mm) Shoe | 78.9 in (2000 mm) |
| S. Width Over Track, 17.7″ (450 mm) Shoe | 80.7 in (2047 mm) |
| T. Cast Reach, 15.8″ (400 mm) Shoe | 9.7 in (246 mm) |
| T. Cast Reach, 17.7″ (450 mm) Shoe | 8.8 in (223.8 mm) |
| U. Length w/ PAT Dozer Blade Installed | 155 in (3940 m) |
Weight
| Operating Weight, 15.8″ (400 mm) Shoe | 12000 lb (5448 kg) |
| Operating Weight, 17.7″ (450 mm) Shoe | 12110 lb (5493 kg) |
| Dozer Blade Weight | 1400 lb (640 kg) |
| Rear Counterweights (each set) | 172 lb (78 kg) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TNV94FHT |
| Displacement | 186.3 cu in (3.1 L) |
| Gross Power | 100 hp (74.6 kw) |
| Net Power | 96.6 hp (72 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 291.3 lb ft (395 Nm) |
| Torque Measured @ | 1700 rpm |
| Torque Rise | 39% |
| Air Cleaner | Dry dual element |
| Aspiration | Turbocharged, intercooled |
| Emission Standards | US EPA Tier 4 Final / EU Stage IV |
Electrical System
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, CCA 925 |
| Working Lights | Standard: 2 front and 1 rear halogen lights / Optional: 4 front and 1 rear LED lights |

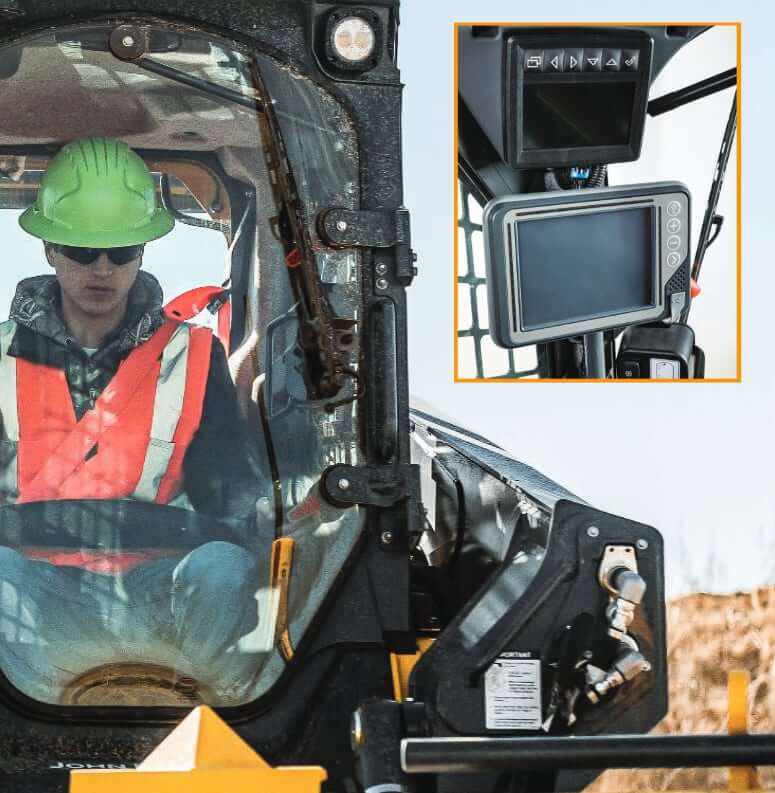

Operator Environment
| Cab | Quick-pivot ROPS with FOPS |
| Seat | Water-shedding deluxe vinyl suspension seat with retractable seat belt, 2 in (51 mm) |
| Keyless-start | Keyless-start sealed-switch module with integrated anti- theft system and operator memory preference settings |
| Joystick Controls | Electrohydraulic (EH) ISO-pattern joystick controls |
| Displays & Instrumentation | Deluxe instrumentation EMU with: Operator-selectable monitoring – Hour meter, engine rpm, battery voltage, diagnostics, EMU configuration, engine coolant temperature, hydraulic oil temperature / LED warning indicators – Glow plug, seat switch, seat belt, door open, auxiliary hydraulics, park brake engaged, 2-speed engaged, stop, low engine oil pressure, engine coolant over-temperature, battery not charging, air filter restriction, and hydraulic filter restriction |
Undercarriage
| Type of Tracks | New-Generation smooth-ride long-life rubber with steel inserts |
| Track Width (Standard / Optional) | 17.7 in (450 mm) / 15.8 in (400 mm) |
| Ground Pressure (Standard / Optional) | 5.0 psi (34.1 kPa) / 5.6 psi (38.4 kPa) |
| Track Rollers (per side) | 5 triple-flange smooth-ride all-steel rollers |
| Track Idlers (per side) | 2 double-flange smooth-ride all-steel rollers |
| Bearings/Seals (rollers/idlers) | Heavy-duty journal bearings and metal face seals |
| Tractive Effort | 11500 lbf (51.15 kN) |
Powertrain
| Powertrain Type | Axial-piston hydrostatic pump |
| Controls | Electrohydraulic |
| Number of Gears | 2 |
| Max Travel Speed, Low | 5.3 mph (8.5 km/h) |
| Max Travel Speed, High | 7.8 mph (12.6 km/h) |
| Final Drive | High-torque heavy-duty planetary-reduction final drive |
| Service Brakes | Integral, automatic, spring-applied, hydraulically released wet-disc brakes |
| Parking Brake | Automatic spring-applied hydraulically released wet disc park brake |
Hydraulic System
| Standard Pump Flow | 25.1 gal/min (95 L/min) |
| Pump Flow with High-Flow Option | 41.1 gal/min (156 L/min) |
| System Pressure at Couplers | 3450 psi (23787 kPa) |
| Hydraulic Power | 50 hp (38 kw) |
| Hydraulic Power with High-Flow Option | 83 hp (62 kw) |
| Type of Cylinders | Heat-treated, chrome-plated, polished cylinder rods, hardened steel pivot pins |
Service Refill Capacities
| Fuel Tank Capacity | 30 gal (114 L) |
| Engine Oil Capacity | 3.3 gal (12.6 L) |
| Cooling System Capacity | 3.9 gal (14.9 L) |
| Hydraulic and Hydrostatic Oil Capacity | 8.7 gal (33.1 L) |
| Final Drive Planetary Capacity (per side) | 0.22 gal (0.85 L) |
John Deere 333G Filters
| Cab Fresh Air Filter | AT441536 |
| Cab Recirculation Air Filter | AT359416 |
| Dust Unloader Valve | R48568 |
| Hydraulics Oil Filter Element | AT495722 |
| Hydrostatic Oil Filter Element | AT314164 |
| Hydraulic Oil Reservoir Breather | AT101565 |
| Engine Primary Air Filter | KV16429 |
| Engine Secondary Air Filter | AT171854 |
| Engine Oil Filter Element | MIU800650 |
| Engine Rocker Arm Cover Gasket | MIU802567 |
| Final Fuel Filter | MIU805005 |
| Auxiliary Fuel Tank Breather | H216169 |
| Diesel Particulate Filter (DPF) (Component of Exhaust Filter) | MIU804396 |
| Primary Fuel Filter | MIU802421 |
