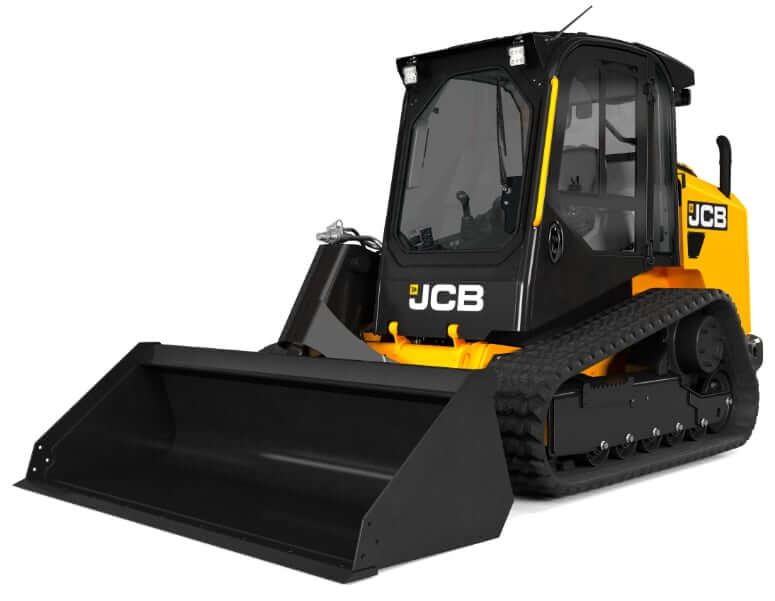

Loader Performance
| Tipping Load | 8627 lb (3913 kg) |
| Rated Operating Capacity (ROC) 35% | 3000 lb (1361 kg) |
| Rated Operating Capacity (ROC) 50% | 4314 lb (1957 kg) |
| Loader Lift Breakout Force | 5807 lbf (25.8 kN) |
| Bucket Tilt Breakout Force | 6543 lbf (29.1 kN) |
| Standard Bucket Capacity | 0.56 yd3 (0.43 m3) |
| Standard Bucket Width | 74.9 in (1900 mm) |
| Lift Path | Vertical |
Dimensions
| Overall Length w/ Bucket | 12.47 ft in (3800 mm) |
| Width Over Tracks | 6.24 ft in (1900 mm) |
| Height to Top of Cab | 6.83 ft in (2080 mm) |
| Max Dump Height | 89.77 in (2280 mm) |
| Dump Angle | 42° |
| Clearance at Max Lift and Dump | 7.85 ft in (2390 mm) |
| Reach at Max Lift and Dump | 2.96 ft in (900 mm) |
| Max Reach @ Full Height | 4.27 ft in (1300 mm) |
| Height to Hinge Pin Fully Raised | 10.44 ft in (3180 mm) |
| Reach @ Ground Level | 3.61 ft in (1110 mm) |
| Rollback Angle @ Ground | 30° |
| Loadover Height | 9.45 ft in (2880 mm) |
| Dig Depth | 0.4 in (10 mm) |
| Angle of Departure | 29° |
| Ground Clearance | 9.1 in (230 mm) |
Undercarriage
| Track Width | 17.7 in (450 mm) |
| Track Type | Wide traction lug |
| Length of Track on Ground | 82.7 in (2100 mm) |
| Ground Pressure | 4.8 psi (33.1 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | JCB |
| Engine Model | JCB EcoMAX TCAE-55 |
| Displacement | 268.5 cu in (4.4 L) |
| Bore | 4.06 in (103 mm) |
| Stroke | 5.20 in (132 mm) |
| Gross Power | 74 hp (55 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 295 lb ft (400 Nm) |
| Torque Measured @ | 1200 rpm |
| Cooling System | Liquid |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB |
Operational Specs
| Operating Weight | 11219 lb (5089 kg) |
| Operating Voltage | 12 V |
| Alternator | 95 amps |
| Battery | 12V |
| Starter Motor | 12 V, 5.6 hp (4.2 kw) |
| Cab Safety | ROPS + Level 1 FOPS (Level 2 FOPS optional) |
| Operator Seat | Fully-adjustable seat |
| Joystick | Electric over hydraulic controls with either standard (3-way) joysticks or optional JCB multi-function (7-way) joysticks |
Transmission
| Type | Hydrostatic transmission |
| Max Travel Speed (Single Speed) | 5.7 mph (9.2 km/h) |
| Max Travel Speed (Two Speed) | 7.8 mph (12.5 km/h) |
| Control | Full electro-hydraulic controlled transmission |
| Parking Brake | Hydraulic park brake |
Hydraulic System
| Relief Valve Pressure | 3335 psi (23000 kPa) |
| Standard Pump Flow | 24 gal/min (90 L/min) |
| Hydraulic Power | 46.7 hp (34.3 kw) |
| High Pump Flow (Optional) | 33 gal/min (125 L/min) |
| Hydraulic Power (High Flow) | 64.2 hp (47.2 kw) |
Service Refill Capacities
| Fuel Tank Capacity | 27.3 gal (103.3 L) |
| Engine Oil Capacity (w/ filter) | 4.0 gal (15 L) |
| Cooling System Capacity | 5.8 gal (22 L) |
| Hydraulic System Capacity (w/ tank) | 14.5 gal (55 L) |
