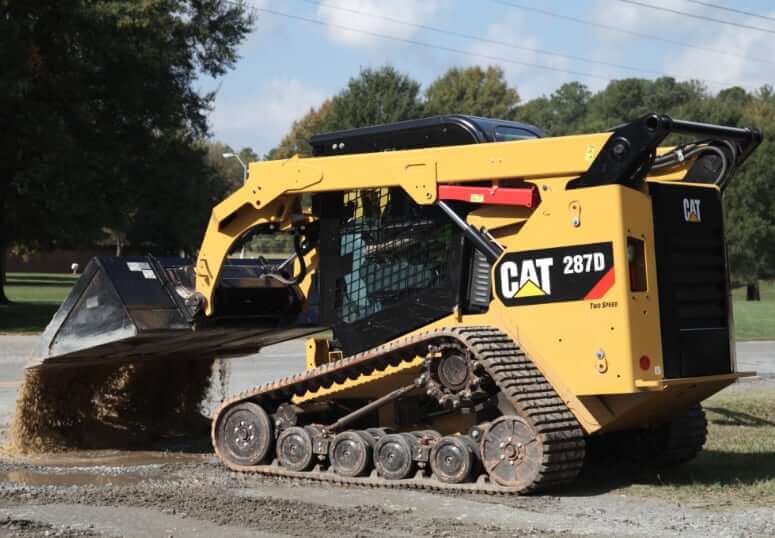

Loader Performance
| Tipping Load | 8000 lb (3629 kg) |
| Rated Operating Capacity (50% Tipping Load) | 4000 lb (1814 kg) |
| Rated Operating Capacity (35% Tipping Load) | 2800 lb (1270 kg) |
| Rated Operating Capacity (w/ optional counterweight) | 4250 lb (1927 kg) |
| Breakout Force – Tilt Cylinder | 7291 lbf (32.4 kN) |
| Bucket Width (dirt bucket) | 78 in (1981 mm) |

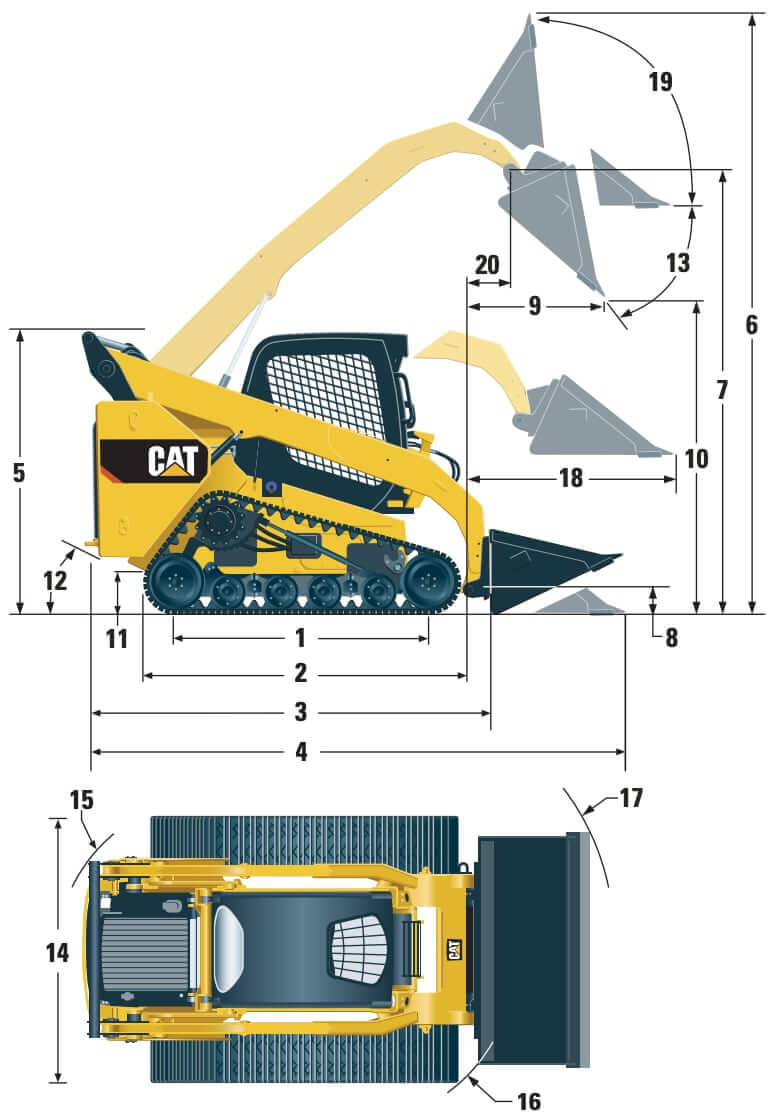

Dimensions
| 1. Length of Track on Ground | 71.1 in (1807 mm) |
| 2. Overall Length of Track | 90.0 in (2285 mm) |
| 3. Length without Bucket | 117.9 in (2995 mm) |
| 4. Length with Bucket on Ground | 146.2 in (3714 mm) |
| 5. Height to Top of Cab | 83.2 in (2113 mm) |
| 6. Maximum Overall Height | 158.1 in (4015 mm) |
| 7. Bucket Pin Height at Maximum Lift | 125.1 in (3178 mm) |
| 8. Bucket Pin Height at Carry Position | 7.5 in (190 mm) |
| 9. Reach at Maximum Lift and Dump | 30.8 in (783 mm) |
| 10. Clearance at Maximum Lift and Dump | 94.0 in (2387 mm) |
| 11. Ground Clearance | 8.9 in (226 mm) |
| 12. Departure Angle | 38° |
| 13. Maximum Dump Angle | 51° |
| 14. Vehicle Width | 78.0 in (1981 mm) |
| 15. Turning Radius from Center – Machine Rear | 67.4 in (1712 mm) |
| 16. Turning Radius from Center – Coupler | 58.8 in (1494 mm) |
| 17. Turning Radius from Center – Bucket | 92.0 in (2337 mm) |
| 18. Maximum Reach with Arms Parallel to Ground | 50.9 in (1292 mm) |
| 19. Rack Back Angle at Maximum Height | 84° |
| 20. Bucket Pin Reach at Maximum Lift | 15.4 in (391 mm) |
Undercarriage
| Rubber Track Width | 18 in (457 mm) |
| Length of Track on Ground | 71.1 in (1807 mm) |
| Overall Length of Track | 90 in (2285 mm) |
| Ground Contact Area | 2561 in2 (1.65 m2) |
| Ground Pressure | 3.9 psi (26.7 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat C3.3B DIT (turbo) |
| Displacement | 203 cu in (3.3 L) |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.7 in (120 mm) |
| Gross Power | 74.3 hp (55.5 kw) |
| Net Power | 72.9 hp (54.4 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 195 lb ft (264.4 Nm) |
| Torque Measured @ | 1500 rpm |
| Fuel Filter | Cartridge-type, fuel and water separator |
| Air Cleaner | Dual element, radial seal |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB |

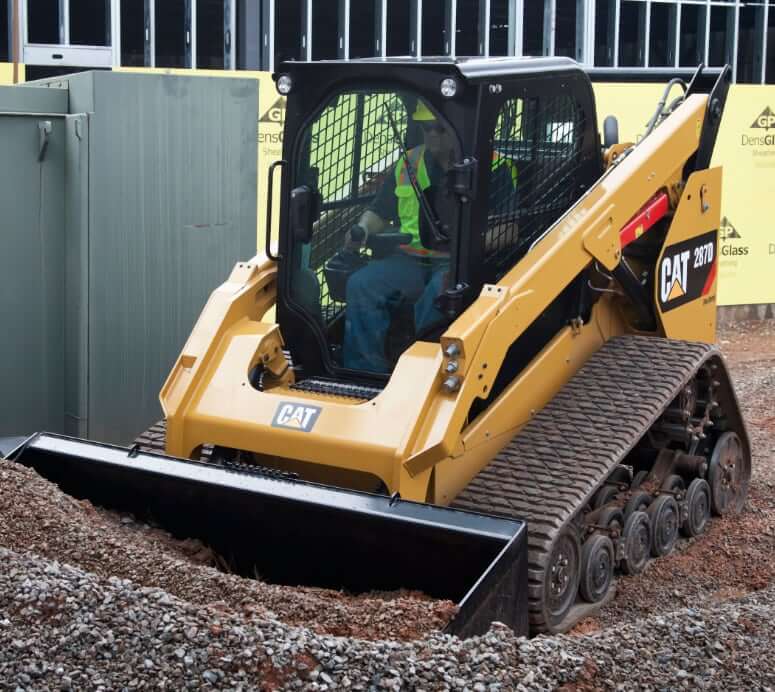

Operational Specs
| Operating Weight | 9929 lb (4504 kg) |
| Operating Voltage | 12 V |
| Alternator | 80 amps |
| Battery | 12 V, CCA 880, Heavy Duty |
| Suspension | Independent Torsion Axles (4) and Oscillating Bogie Wheels |
Operator Environment
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| FOPS Level Ii | ISO 3449:2005 Level II |
| Air Conditioning | Standard |
| Noise Level (interior) | 81 dB(A) |
| Noise Level (exterior) | 103 dB(A) |
Power Train
| Type | Hydrostatic Transmission, Two Speed Travel |
| Travel Forward Speed | 5.2 mph (8.3 km/h) |
| Travel Reverse Speed | 8 mph (12.9 km/h) |
| Parking Brake | Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes |
Hydraulic System
| Type | Standard Flow | High Flow XPS |
|---|---|---|
| Pump Flow | 23 gal/min (86 L/min) | 32 gal/min (121 L/min) |
| Max Hydraulic Pressure | 3335 psi (23000 kPa) | 4061 psi (28000 kPa) |
| Hydraulic Power (Calculated) | 44 hp (33 kw) | 76 hp (57 kw) |
Service Refill Capacities
| Fuel Tank Capacity | 24.8 gal (94 L) |
| Engine Oil Capacity (w/ filter) | 3 gal (11 L) |
| Cooling System Capacity | 3.7 gal (14 L) |
| Hydraulic System Capacity (w/ tank) | 13.7 gal (52 L) |
| Hydraulic Tank Capacity | 10.3 gal (39 L) |
