Loader
| Tipping Load | 1800 lb (816 kg) |
| Rated Operating Capacity (35% of tipping load) | 600 lb (272 kg) |
| Rated Operating Capacity (50% of tipping load) | 900 lb (408 kg) |
| Height to Bucket Hinge Pin | 70 in (1778 mm) |
| Max Dump Height | 56 in (1422 mm) |
| Dump Angle @ Maximum Height | 34° |
| Operating Height (Boom Raised) | 93 in (2362 mm) |
Dimensions
| Overall Length w/ Bucket | 90 in (2286 mm) |
| Length w/o Bucket | 70 in (1778 mm) |
| Width w/o Bucket | 43.5 in (1105 mm) |
| Height (Boom Lowered) | 50 in (1270 mm) |
| Operating Height (Boom Raised) | 93 in (2362 mm) |
| Track Width | 9 in (229 mm) |
| Ground Clearance | 7 in (180 mm) |
Engine Details
| Number of Cylinders | 2 |
| Engine Make | Kohler |
| Engine Model | Kohler Command Pro CH752 |
| Engine Type | V-Twin cylinder 4-cycle air cooled gasoline engine |
| Displacement | 45.6 cu in (0.747 L) |
| Bore | 3.3 in (83 mm) |
| Stroke | 2.7 in (69 mm) |
| Gross Horsepower | 27.0 hp (20.1 kw) |
| Power Measured @ | 3600 rpm |
| Peak Torque | 41.2 lb ft (55.9 Nm) |
| Torque Measured @ | 3000 rpm |
| Compression Ratio | 9.1 : 1 |
| Lubrication System | Full-pressure lubrication with full-flow filter |
| Engine Cooling Type | Forced Air Cooling |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA/CARB Tier 3 |
Operational Specs
| Weight w/o Attachments | 2250 lb (1021 kg) |
| Tipping Load | 1800 lb (816 kg) |
| Rated Operating Capacity (50% of tipping load) | 900 lb (408 kg) |
| Operator Platform | Stand‑on platform for operator |

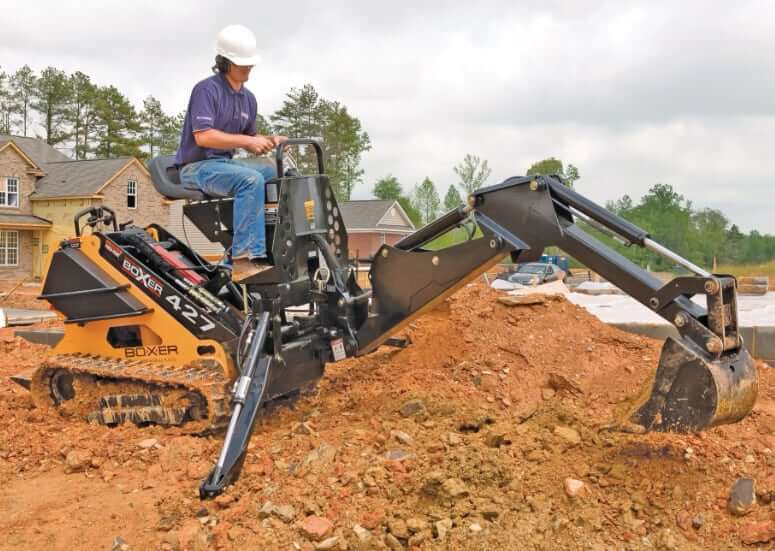

| Attach System | Universal compact utility loader mounting plate and quick‑attach system |
| Controls | Skid-steer style controls |

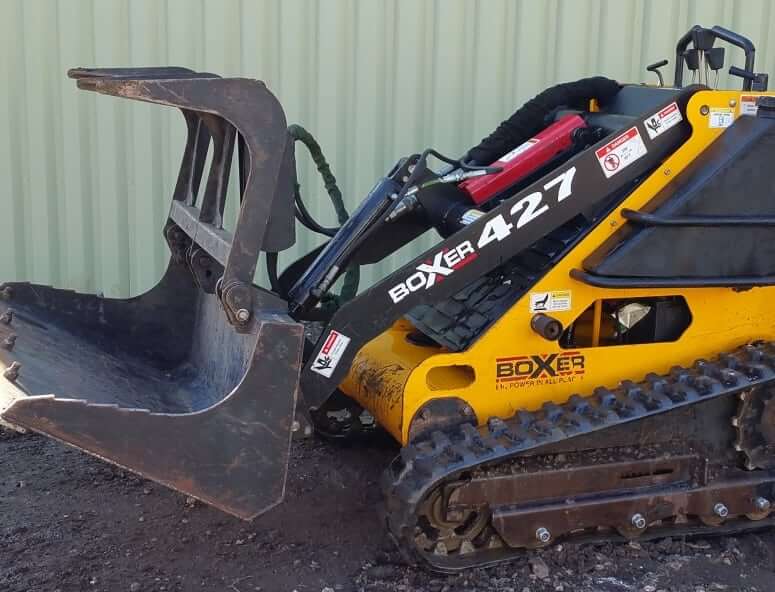

Powertrain
| Type | Hydrostatic transmission with independent track drive controls |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Undercarriage Type | Rubber |
| Track Width | 9 in (229 mm) |
| Ground Clearance | 7 in (180 mm) |
| Ground Pressure | 3.6 psi (24.8 kPa) |
Hydraulic System
| Type | Two‑pump hydraulic system |
| Pump Flow Capacity | 12.6 gal/min (47.7 L/min) |
| Relief Valve Pressure | 3000 psi (20684 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 10 gal (37.8 L) |
| Engine Oil Capacity (w/ Filter) | 0.48 gal (1.8 L) |
