Loader
| Bobcat T590 w/ | Kubota V2607 | Doosan D24 |
|---|---|---|
| Tipping Load | 6000 lb (2722 kg) | 6248 lb (2834 kg) |
| Rated Operating Capacity (35% of tipping load) | 2100 lb (953 kg) | 2187 lb (992 kg) |
| ROC w/ Counterweight, 200 lb (90 kg) optional | 2200 lb (998 kg) | 2240 lb (1016 kg) |
| Breakout Force (Lift) | 4554 lbf (20.3 kN) | 4804 lbf (21.4 kN) |
| Breakout Force (Tilt) | 4712 lbf (21.0 kN) | 5002 lbf (22.3 kN) |
| Bucket Width | 68 in (1727 mm) | 68 in (1727 mm) |
| Bucket Width (Optional) | 74 in (1880 mm) | 74 in (1880 mm) |

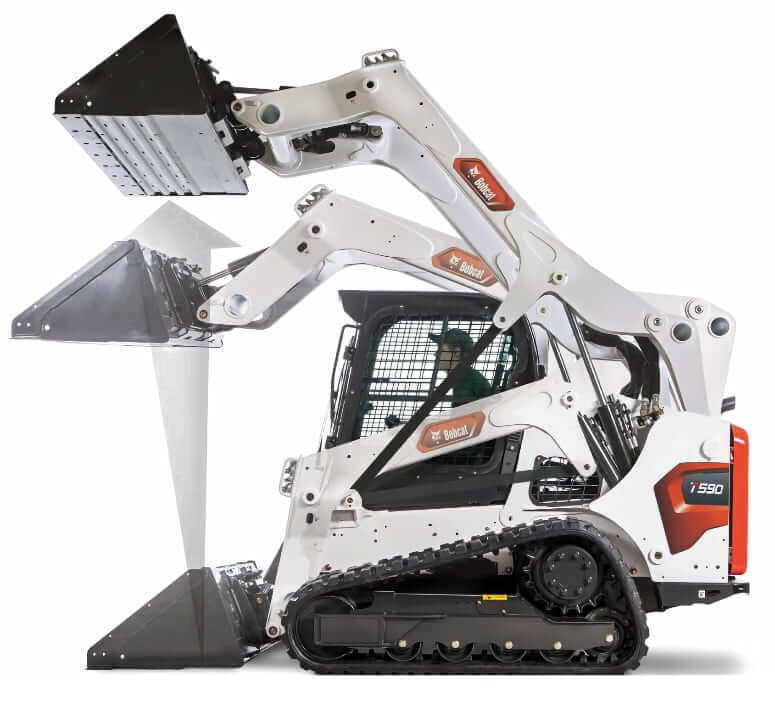

| Lift Arm Path | Vertical | Vertical |

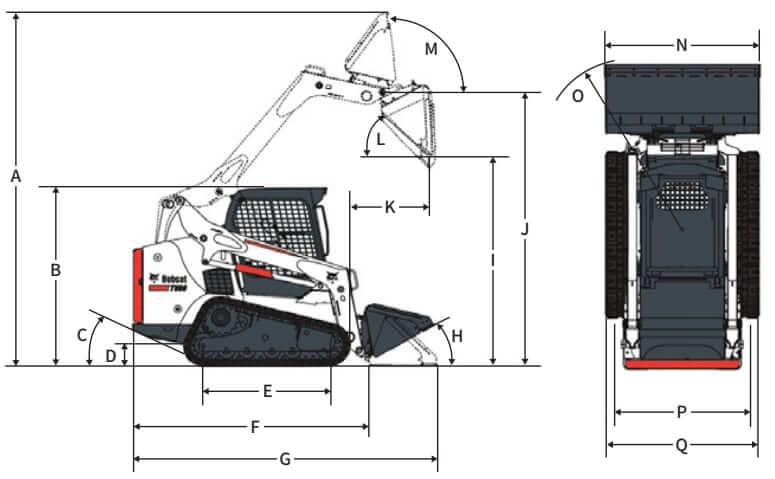

Dimensions
| A. Operating Height | 153.6 in (3901 mm) |
| B. Height with Operator Cab | 77.8 in (1972 mm) |
| C. Angle of Departure | 28.8° |
| D. Ground Clearance | 7.4 in (188 mm) / 9.4 in (240 mm) |
| E. Ground Contact Length | 55.2 in (1402 mm) |
| F. Length without Attachment | 104.6 in (2657 mm) |
| G. Length with Standard Bucket | 133 in (3378 mm) |
| H. Rollback @ Ground | 30.0° |
| I. Dump Height with Standard Bucket | 91.3 in (2319 mm) |
| J. Height to Bucket Hinge Pin | 119.0 in (3023 mm) |
| K. Dump Reach @ Maximum Height | 34.9 in (887 mm) |
| L. Dump Angle @ Maximum Height | 42° |
| M. Rollback Fully Raised @ Maximum Height | 97° |
| N. Width (over bucket) | 68 in (1727 mm) |
| O. Turning Radius with Standard Bucket | 80 in (2032 mm) |
| P. Track Tread | 54.5 in (1384 mm) |
| Q. Track (width over track) | 67.1 in (1704 mm) |

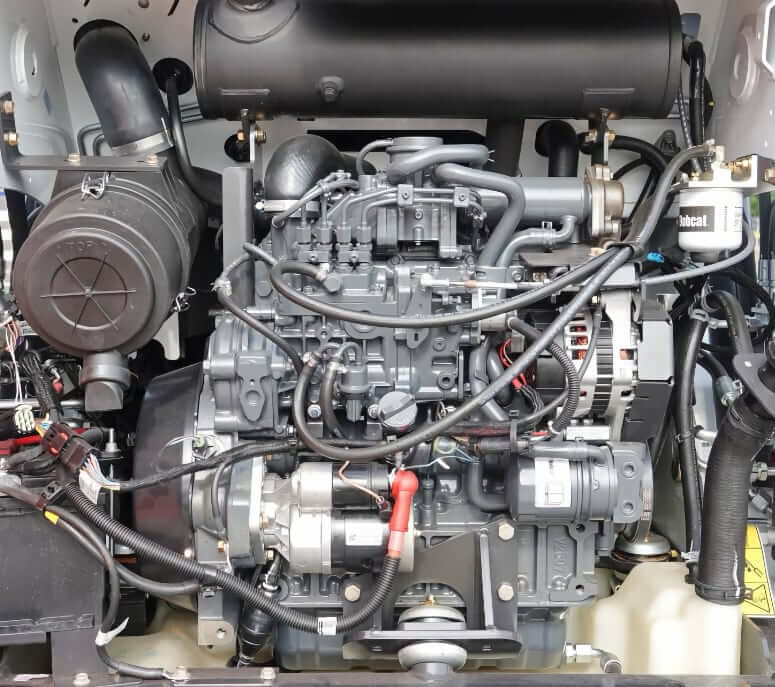

Engine Details
| Engine Make | Kubota | Doosan |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Engine Model | Kubota V2607-DI-T-E3B | Doosan D24 |
| Displacement | 159.6 cu in (2.615 L) | 146.0 cu in (2.392 L) |
| Bore | 3.43 in (87 mm) | 3.54 in (90 mm) |
| Stroke | 4.33 in (110 mm) | 3.70 in (94 mm) |
| Gross Horsepower | 65 hp (48.5 kw) | 74 hp (55 kw) |
| Net Horsepower | 61 hp (45.5 kw) | 66 hp (49.2 kw) |
| Power Measured @ | 2700 rpm | 2600 rpm |
| Peak Torque | 161 lb ft (218 Nm) | 180.7 lb ft (245 Nm) |
| Torque Measured @ | 1425 rpm | 1500 rpm |
| Fuel System | In-line pump | In-line pump |
| Combustion System | Direct injection | Direct injection |
| Lubrication System | Gear Pump Pressure System with Filter | Fully forced pressure feed type |
| Aspiration | Turbocharged | Turbocharged and intercooled |
| Emission Standards | US EPA/CARB interim Tier 4 + EU Stage IIIA | US EPA/CARB Tier 4 Final + EU Stage IIIB |
Operational Specs
| Engine Model | Kubota V2607 | Doosan D24 |
|---|---|---|
| Operating Weight | 7870 lb (3570 kg) | 7745 lb (3513 kg) |
| Tipping Load | 6000 lb (2722 kg) | 6248 lb (2834 kg) |
| Rated Operating Capacity (35% of tipping load) | 2100 lb (953 kg) | 2187 lb (992 kg) |
| ROC w/ Counterweight, 200 lb (90 kg) optional | 2200 lb (998 kg) | 2240 lb (1016 kg) |
| Operating Voltage | 12 V | 12 V |
| Alternator | 90 amps | 90 amps |
| Battery | 12 V, RC: 115 min, CCA 600 | 12 V, RC: 110 min, CCA 700 |
| Starter | 12 V, gear type, 3.6 hp (2.7 kw) | 12 V, gear type, 4.2 hp (3.2 kw) |
Power Train
| Type | Fully hydrostatic transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Travel Speed (Single Speed) | 7.1 mph (11.4 km/h) |
| Max Travel Speed (2-Speed, optional) | 10.4 mph (16.7 km/h) |
| Service Brakes | Two independent hydrostatic systems controlled by two hand operated steering levers or optional joystick(s) |
| Secondary Brake | One of the hydrostatic transmissions |
| Parking Brake | Spring applied pressure release multiple-disc brake activated by manually operated switch on left instrument panel |

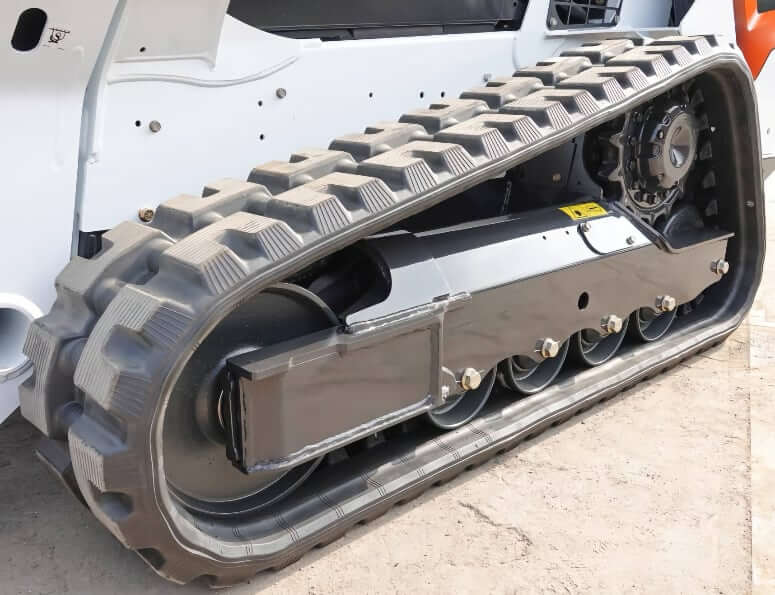

Undercarriage
| Length of Track on Ground | 55.2 in (1402 mm) |
| Track Width, Rubber (Standard) | 12.60 in (320 mm) |
| Track Width, Rubber (Optional) | 15.75 in (400 mm) |
| Ground Pressure, 320 mm Track w/ Kubota V2607 | 5.6 psi (38.6 kPa) |
| Ground Pressure, 400 mm Track w/ Kubota V2607 | 4.7 psi (32.4 kPa) |
| Ground Pressure, 320 mm Track w/ Doosan D24 | 5.3 psi (36.5 kPa) |
| Ground Pressure, 400 mm Track w/ Doosan D24 | 4.2 psi (29.0 kPa) |
| Lubrication | The track rollers and idlers have sealed bearings and do not require lubrication |
| Departure Angle | 28.8° |
Operator Environment
| Cab (Options) | Cab enclosure with heating / Cab enclosure with HVAC |
| ROPS | SAE-J1040 and ISO 3471 |
| FOPS | SAE-J1043 and ISO 3449, Level I |
| Operator Seat | Cushion suspension seat |
| Operator Seat (Optional) | Air ride seat with 3 point seat belt |
| Working Lights | 2x Front + 2 Rear working lights |
| Whole Body Vibration (ISO 2631–1) | 0.54 m/s2 |
| Hand-arm Vibration (ISO 5349–1) | 1.61 m/s2 |
| Noise Level Operator LpA | 85 dB(A) |
| Noise level LWA | 101 dB(A) |

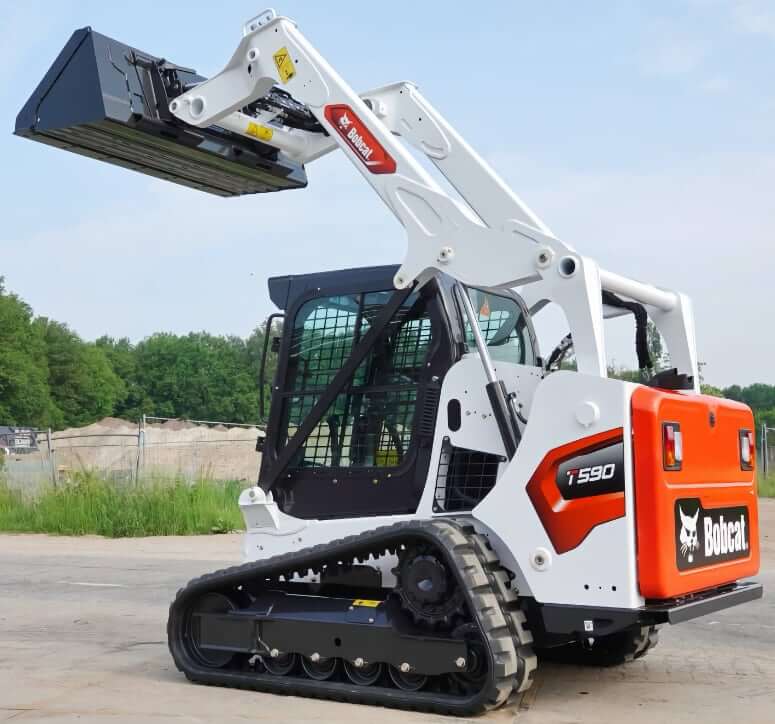

Hydraulic System
| Type | Open center hydraulic system |
| Hydraulic Pump Type | Engine driven, gear type |
| Standard Pump Flow | 17.1 gal/min (64.7 L/min) |
| High Flow Pump Flow (optional) | 26.7 gal/min (101.1 L/min) |

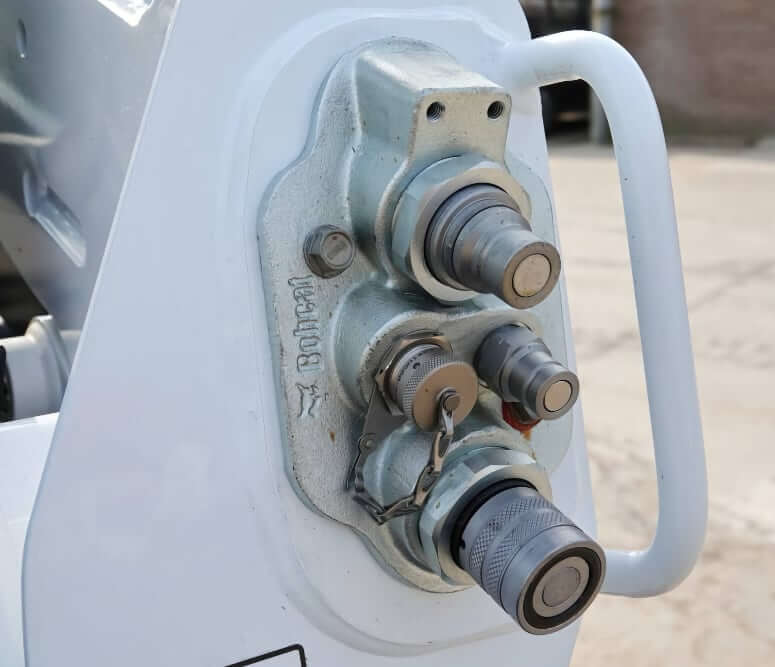

| Standard Relief Pressure at Quick Couplers | 3450 – 3550 psi (23800 – 24500 kPa) |
| Hydraulic Filter | Replaceable beta 10 micron = 200, drop in element |
| Fluid Lines | SAE Standard tubelines, hoses, and fittings |
Service Refill Capacities
| Engine Model | Kubota V2607 | Doosan D24 |
|---|---|---|
| Fuel Tank Capacity | 24.8 gal (93.7 L) | 36.5 gal (138.2 L) |
| Engine Oil Capacity (w/ Filter) | 3.0 gal (9.7 L) | 2.4 gal (9.2 L) |
| Cooling System Capacity (Cab w/o HVAC) | 3.0 gal (11.4 L) | 2.8 gal (10.6 L) |
| Cooling System Capacity (Cab w/ HVAC) | 3.1 gal (11.7 L) | 2.9 gal (10.9 L) |
| Hydraulic System Fluid Capacity | 9.5 gal (36 L) | 9.5 gal (36 L) |
| Hydraulic Tank Capacity | 2.0 gal (7.6 L) | 2.0 gal (7.6 L) |
| Travel Reduction Unit (each) | 0.02 gal (0.06 L) | 0.05 gal (0.18 L) |
Bobcat T590 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner), SN A3NR11001-; A3NS11001- | 6666376 |
| Air Filter (Inner), SN ALJU11001-; B37811001- | 7221934 |
| Air Filter (Outer), SN A3NR11001-; A3NS11001- | 6666375 |
| Air Filter (Outer), SN ALJU11001-; B37811001- | 7286322 |
| Engine Oil Filter, SN A3NR11001-; A3NS11001- | 6675517 |
| Engine Oil Filter, SN ALJU11001-; B37811001- | 7012303 |
| Fuel Filter, SN A3NR11001-; A3NS11001- | 6667352 |
| Fuel Filter, SN ALJU11001-; B37811001- | 7023589 |
| Hydraulic Filter, SN A3NR11001-; A3NS11001-; ALJU11001- | 7024037 |
| Hydraulic Filter, SN B37811001- | 7012314 w/ 7015308 |
| Hydraulic Fill/Breather Cap | 6727475 |
| Charge Filter, SN A3NR11001-; A3NS11001-; ALJU11001- | 6686926 – Spin-on 6692337 – Canister |
| Charge Filter, SN B37811001- | 6686926 |
| Heater Filter | 7176099 |
| Recirculating Air Filter | 7193354 |

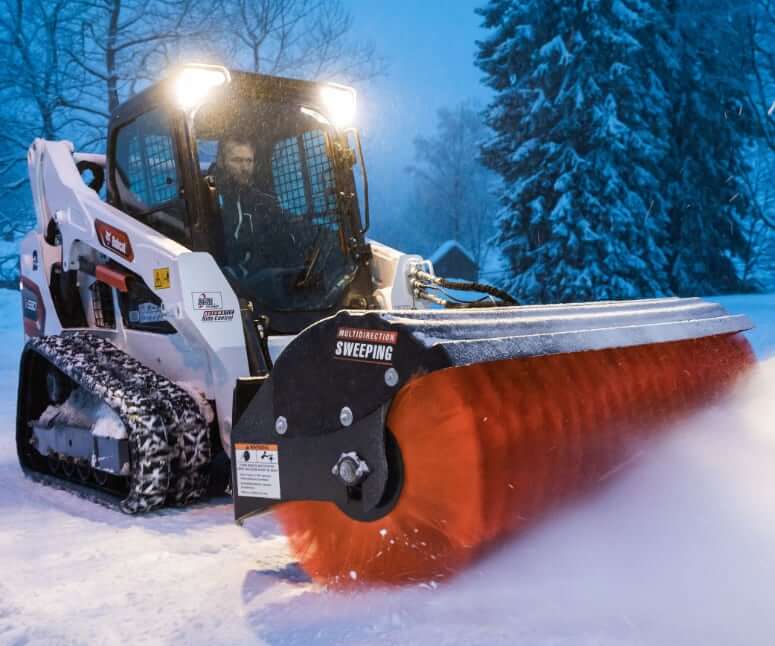

The Bobcat T590 Compact Track Loader is designed to handle a wide variety of jobs, and its versatility is enhanced by a robust selection of compatible attachments. From construction to landscaping, agriculture to snow removal, the T590 supports a full range of tools tailored to increase productivity and jobsite efficiency. Operators can equip the loader with brooms, augers, backhoes, box blades, breakers, planers, trenchers, soil conditioners, and snow management tools like blowers, pushers, and V-blades.
Additionally, landscape rakes, stump grinders, tree transplanters, and utility forks expand its capabilities further. Whether you’re tackling heavy-duty digging, grading, material handling, or cleanup, the T590 pairs with these attachments to deliver reliable performance across industries and seasons.
