Loader Performance
| Tipping Load | 5700 lb (2585 kg) |
| Rated Operating Capacity (35% of tipping load) | 1995 lb (905 kg) |
| Rated Operating Capacity (50% of tipping load) | 2850 lb (1293 kg) |
| ROC w/ Counterweight, 200 lb (90 kg) optional | 2095 lb (950 kg) |
| Breakout Force (Lift) | 4452 lbf (19.8 kN) |
| Breakout Force (Tilt) | 4625 lbf (20.6 kN) |
| Push Force | 7633 lbf (34.0 kN) |
| Bucket Width | 68 in (1727 mm) |
| Lift Arm Path | Radius |

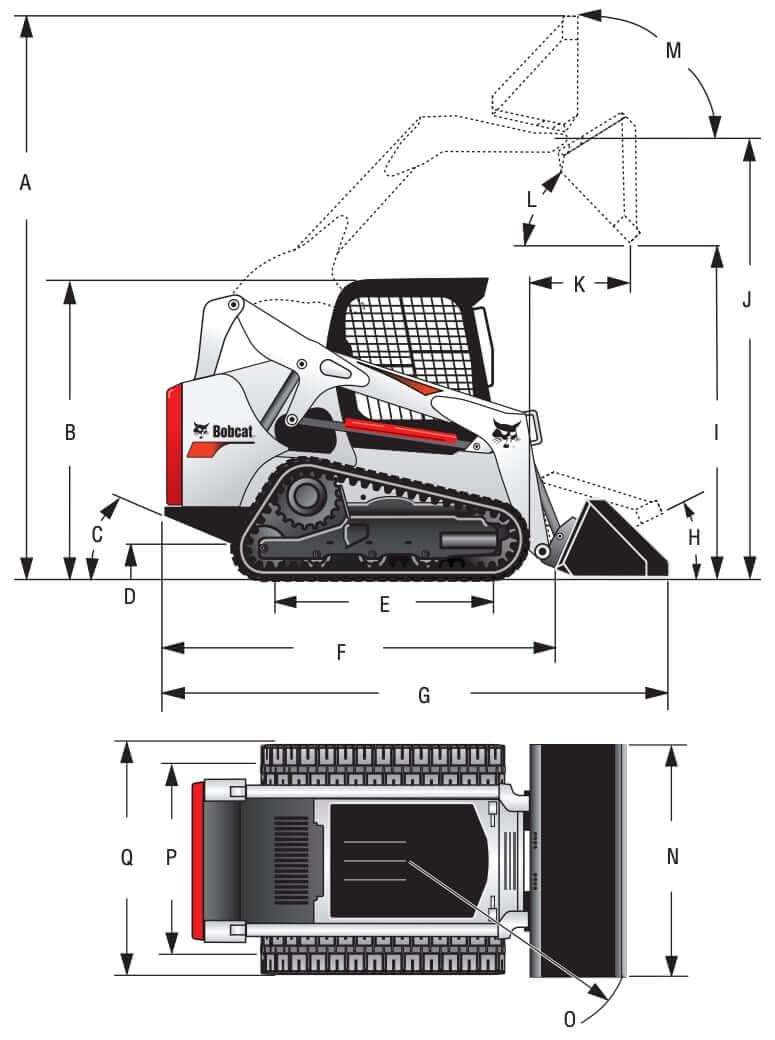

Dimensions
| A. Operating Height | 149.1 in (3787 mm) |
| B. Height with Operator Cab | 77.8 in (1972 mm) |
| C. Angle of Departure | 28.8° |
| D. Ground Clearance | 7.3 in (185 mm) |
| E. Ground Contact Length | 55.2 in (1402 mm) |
| F. Length without Attachment | 104.6 in (2657 mm) |
| G. Length with Standard Bucket | 133 in (3378 mm) |
| H. Rollback @ Ground | 30.0° |
| I. Dump Height with Standard Bucket | 86.8 in (2205 mm) |
| J. Height to Bucket Hinge Pin | 114.5 in (2908 mm) |
| K. Dump Reach @ Maximum Height | 19.3 in (490 mm) |
| L. Dump Angle @ Maximum Height | 42° |
| M. Rollback Fully Raised @ Maximum Height | 97° |
| N. Width (over bucket) | 68 in (1727 mm) |
| O. Turning Radius with Standard Bucket | 80 in (2032 mm) |
| P. Track Tread | 54.5 in (1384 mm) |
| Q. Track (width over track) | 67.1 in (1704 mm) |

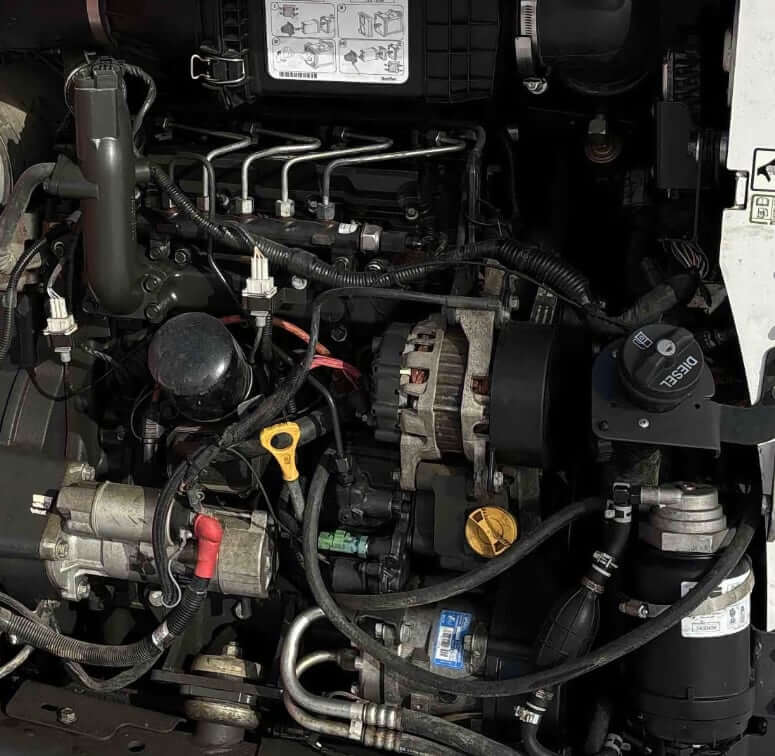

Engine Details
| Engine Make | Kubota | Doosan |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Engine Model | Kubota V2607-DI-T-E3B | Doosan D24 |
| Displacement | 159.6 cu in (2.615 L) | 146.0 cu in (2.392 L) |
| Bore | 3.43 in (87 mm) | 3.54 in (90 mm) |
| Stroke | 4.33 in (110 mm) | 3.70 in (94 mm) |
| Horsepower, SAE | 66 hp (49.2 kw) | 68 hp (50.7 kw) |
| Power Measured @ | 2700 rpm | 2600 rpm |
| Peak Torque | 161 lb ft (218 Nm) | 180.7 lb ft (245 Nm) |
| Torque Measured @ | 1425 rpm | 1500 rpm |
| Fuel System | In-line pump | Bosch Common-rail Pump |
| Combustion System | Direct injection | Direct injection |
| Lubrication System | Gear Pump Pressure System with Filter | Fully forced pressure feed type |
| Aspiration | Turbocharged | Turbocharged and intercooled |
| Emission Standards | US EPA Interim Tier 4 + EU Stage IIIA | US EPA Tier 4 Final + EU Stage IIIB |
Operational Specs
| Operating Weight (w/ Kubota V2607) | 7662 lb (3475 kg) |
| Operating Weight (w/ Doosan D24) | 7557 lb (3428 kg) |
| Max Lift Capacity (50% of tipping load) | 2850 lb (1293 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, RC: 115 min, CCA 600 |
| Starter | 12 V, gear type, 3.6 hp (2.7 kw) |
Power Train
| Type | Fully hydrostatic transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Speed (Kubota V2607) | 7.3 mph (11.8 km/h) |
| Max Speed (Doosan D24) | 7.1 mph (11.4 km/h) |
| Parking Brake | Spring applied pressure release multiple-disc brake activated by manually operated switch on left instrument panel |
| Service Brakes | Two independent hydrostatic systems controlled by two hand operated steering levers or optional joystick(s) |
| Secondary Brake | One of the hydrostatic transmissions |

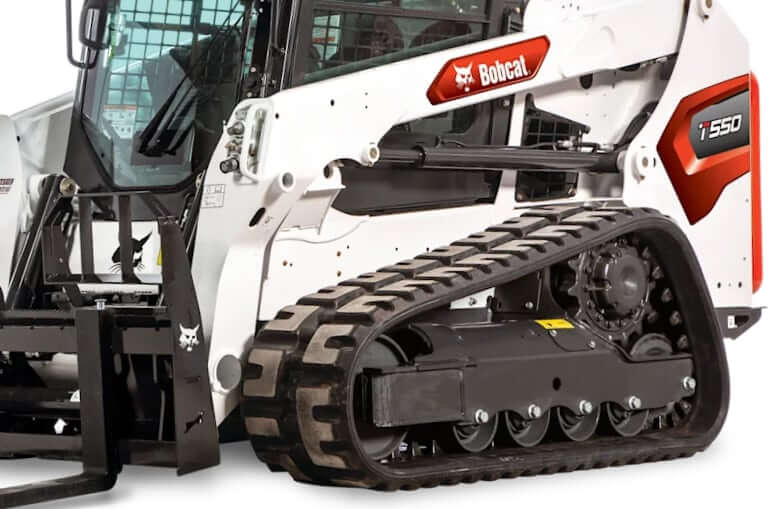

Undercarriage
| Length of Track on Ground | 55.2 in (1402 mm) |
| Track Width, Rubber (Standard) | 12.60 in (320 mm) |
| Track Width, Rubber (Optional) | 15.75 in (400 mm) |
| Ground Pressure, 320 mm Track (Roller Suspension / Solid-Mounted Undercarriage) | 5.8 psi (40 kPa) 5.8 psi (40 kPa) |
| Ground Pressure, 400 mm Track (Roller Suspension / Solid-Mounted Undercarriage) | 4.7 psi (32.4 kPa) 4.5 psi (30 kPa) |
| Lubrication | The track rollers and idlers have sealed bearings and do not require lubrication |
| Departure Angle | 28.8° |
Operator Environment
| Cab Type | Tip-Up Cab |
| Pressurized Enclosed Cab | Optional |
| Cab HVAC | Cab enclosure with heating / Cab enclosure with HVAC |
| ROPS | SAE-J1040 and ISO 3471 |
| FOPS | SAE-J1043 and ISO 3449, Level I |
| Operator Seat | Cushion suspension seat |
| Operator Seat (Optional) | Air ride seat with 3 point seat belt |
| Working Lights | 2x Front + 2 Rear working lights |
Hydraulic System
| Type | Open center hydraulic system |
| Main Pump Type | Engine driven, gear type |
| Standard Pump Flow | 17.1 gal/min (64.7 L/min) |
| Hydraulic System Pressure | 3500 psi (24100 kPa) |
| System Relief at Quick Couplers | 3500 psi (24100 kPa) |
| Hydraulic Filter | Replaceable beta 10 micron = 200, drop in element |
| Fluid Lines | SAE Standard tubelines, hoses, and fittings |
Service Refill Capacities
| Engine Model | Kubota V2607 | Doosan D24 |
|---|---|---|
| Fuel Tank Capacity | 24.8 gal (93.7 L) | 36.5 gal (138.2 L) |
| Engine Oil Capacity (w/ Filter) | 3.0 gal (9.7 L) | 2.4 gal (9.2 L) |
| Cooling System Capacity (Cab w/o HVAC) | 3.0 gal (11.4 L) | 2.8 gal (10.6 L) |
| Cooling System Capacity (Cab w/ HVAC) | 3.1 gal (11.7 L) | 2.9 gal (10.9 L) |
| Hydraulic System Capacity | 9.3 gal (35 L) | 9.5 gal (36 L) |
| Hydraulic Tank Capacity | 2.0 gal (7.6 L) | 2.0 gal (7.6 L) |
| Travel Reduction Unit (each) | 0.02 gal (0.06 L) | 0.05 gal (0.18 L) |
Bobcat T550 Filters
| Filter | T550 w/ SN A7UJ11001- | T550 w/ SN AJZV11001- |
|---|---|---|
| Air Filter (Inner) | 6666376 | 7221934 |
| Air Filter (Outer) | 6666375 | 7286322 |
| Engine Oil Filter | 6675517 | 7012303 |
| Fuel Filter | 6667352 | 7023589 |
| Hydraulic Filter | 7024037 | 7024037 |
| Hydraulic Fill / Breather Cap | 6727475 | 6727475 |
| Charge Filter (Spin-on) | 6686926 | 6686926 |
| Charge Filter (Canister) | 6692337 | 6692337 |
| Heater Filter | 7176099 | 7176099 |
| Recirculating Air Filter | 7193354 | 7193354 |
The Bobcat T550 Compact Track Loader is a powerful and versatile machine designed to handle a wide range of applications with precision and agility. To unlock its full potential, the T550 supports an extensive lineup of genuine Bobcat attachments that turn this compact track loader into a multi-functional jobsite solution. From digging, grading, and lifting to snow removal, landscaping, and demolition, the T550 is compatible with both standard and advanced hydraulic attachments. Whether you’re operating on construction sites, farms, or urban environments, Bobcat’s quick-change attachment system (Bob-Tach) ensures fast tool swaps to keep productivity high and downtime low.

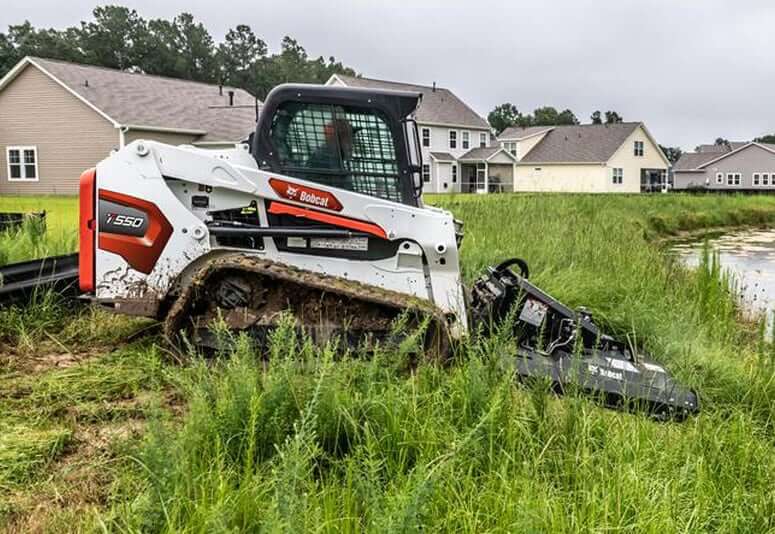

Popular attachments for the T550 include: augers and backhoes for earthmoving and digging tasks; buckets, grapples, and pallet forks for material handling; dozer blades and graders for surface preparation; brushcutters, tillers, and landscape rakes for vegetation management; sweepers, snow blades, and V-blades for year-round cleanup and snow control. With dozens of available tools – including high-performance options like hydraulic breakers, planers, and soil conditioners – the Bobcat T550 transforms into the all-season, all-purpose solution you need to conquer tough jobs efficiently.
