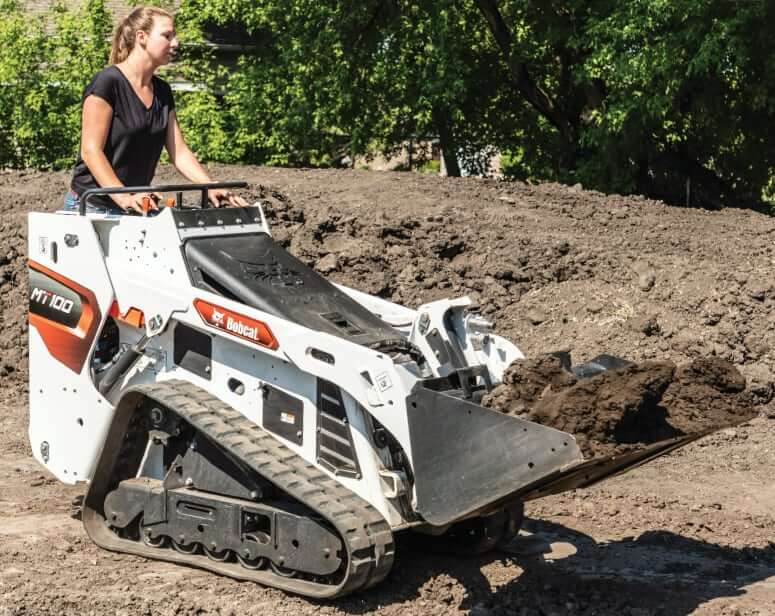

Loader Performance
| Tipping Load | 2898 lb (1314 kg) |
| Rated Operating Capacity – ROC (35% of tipping load) | 1000 lb (454 kg) |
| ROC (with counterweights located in rear position) | 1060 lb (480 kg) |
| Breakout Force (Lift) | 3330 lbf (14.8 kN) |
| Breakout Force (Tilt) | 2599 lbf (11.6 kN) |
| Bucket Width (Standard) | 36 in (914 mm) |
| Bucket Width (Optional) | 44 in (1118 mm) |
| Lift Arm Path | Radius |

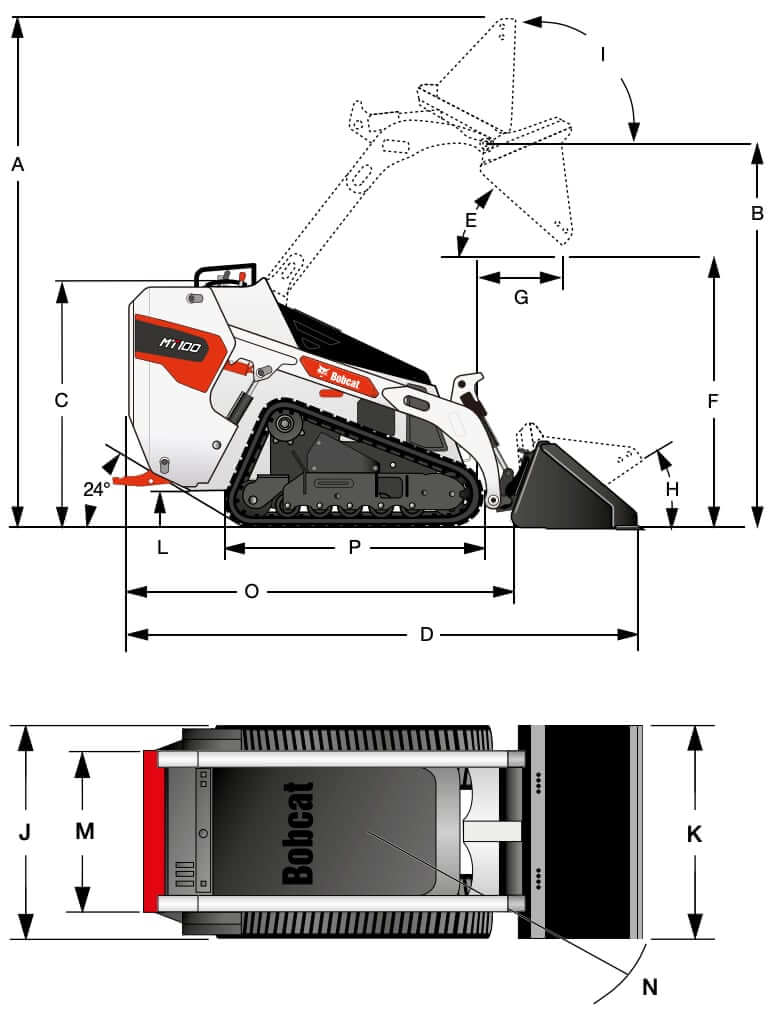

Dimensions
| A. Overall Operating Height – Fully Raised | 105.4 in (2677 mm) |
| B. Height to Hinge Pin – Fully Raised | 81 in (2057 mm) |
| C. Overall Height | 54.6 in (1387 mm) |
| D. Overall Length w/ Bucket | 106.2 in (2698 mm) |
| E. Dump Angle | 48° |
| F. Dump Height | 58.6 in (1488 mm) |
| G. Reach at 45° Dump Angle | 20.1 in (511 mm) |
| H. Maximum Rollback at Ground | 24° |
| I. Maximum Rollback – Fully Raised | 83° |
| J. Width Over Tracks (Narrow, Standard) | 35.6 in (904 mm) |
| J. Width Over Tracks (Wide, Optional) | 41.1 in (1045 mm) |
| J. Width Over Bucket (36″, Standard) | 36 in (914.4 mm) |
| J. Width Over Bucket (44″, Optional) | 44 in (1118 mm) |
| L. Ground Clearance | 8.1 in (205 mm) |
| M. Tread / Track Gauge | 31.5 in (800 mm) |
| N. Machine Clearance Radius | 57.3 in (1455 mm) |
| O. Length Without Attachment | 84.5 in (2145 mm) |
| P. Length of Track on Ground | 40.7 in (1033 mm) |

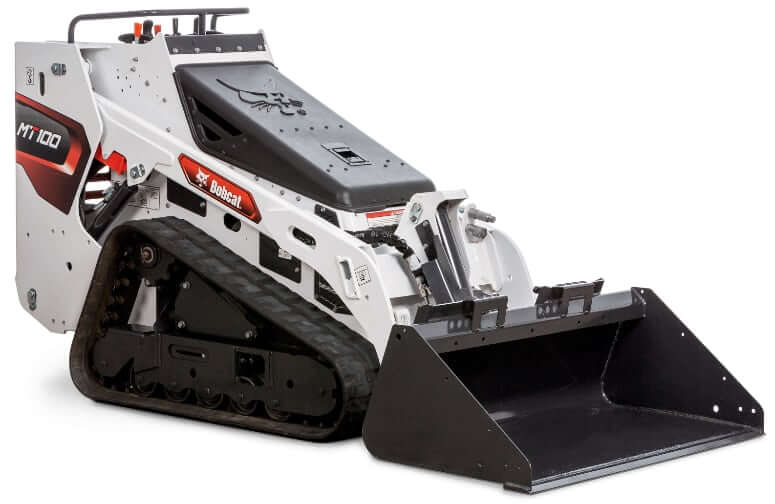

Weight
| Operating Weight (w/ standard narrow tracks) | 3390 lb (1538 kg) |
| Operating Weight (w/ optional wide tracks) | 3548 lb (1609 kg) |
| Shipping Weight | 3045 lb (1381 kg) |
| Counterweight Plate, 7399344 (each) | 28.8 lb (13 kg) |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D902-E4B-BC-1 |
| Displacement | 54.8 cu in (0.898 L) |
| Bore | 2.83 in (72.0 mm) |
| Stroke | 2.90 in (73.6 mm) |
| Gross Horsepower | 24.8 hp (18.5 kW) |
| Net Horsepower | 23.5 hp (17.5 kW) |
| Power Measured @ | 3600 rpm |
| Peak Torque (SAE J9249) | 41.4 lb ft (56.1 Nm) |
| Torque Measured @ | 2600 rpm |
| Low Idle | 1025 – 1125 грm |
| High Idle | 3770 – 3870 грm |
| Combustion System | Indirect injection |
| Fuel System | In-line pump |
| Fuel Consumption (average) | 1.1 gal/h (4.2 L/h) |
| Fuel Consumption (3600 rpm) | 0.419 lb/hph (255 g/kWh) |
| Fuel Consumption (2600 rpm) | 0.398 lb/hph (242 g/kWh) |
| Lubrication System | Gear pump pressure system with filter |
| Air Cleaner | Dual dry replaceable paper cartridges |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 + EU Stage V |
Operational Specs
| Max Operating Weight | 3548 lb (1609 kg) |

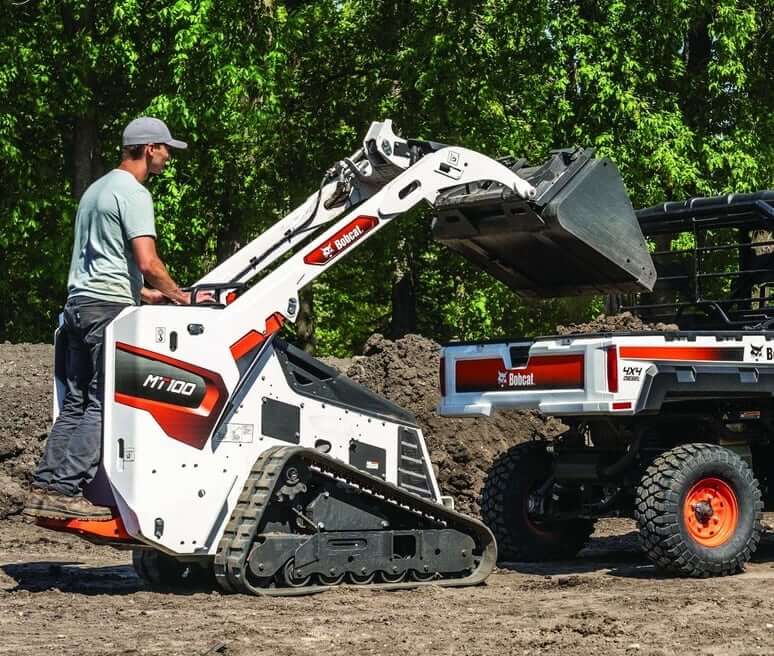

| Max Lift Capacity | 1060 lb (480 kg) |
| Tipping Load | 2898 lb (1314 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, CCA 540 (Bobcat 7269858) |
| Starter | 12 V, gear type, 3.62 hp (2.7 kw) |
| Working Lights | Front Light Kit (Optional) |
| Steering Control | Direction and speed controlled by one multifunction handle |
| Engine Control | Hand lever speed control; key-type starter switch |
Power Train
| Type | Hydrostatic transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Forward Speed | 4.1 mph (6.6 km/h) |
| Max Reverse Speed | 2.9 mph (4.7 km/h) |
| Service Brakes | Two independent hydrostatic circuits controlled by one multifunction handle |
| Secondary Brake | One of the hydrostatic transmissions |
| Parking Brake | Hand lever operation |

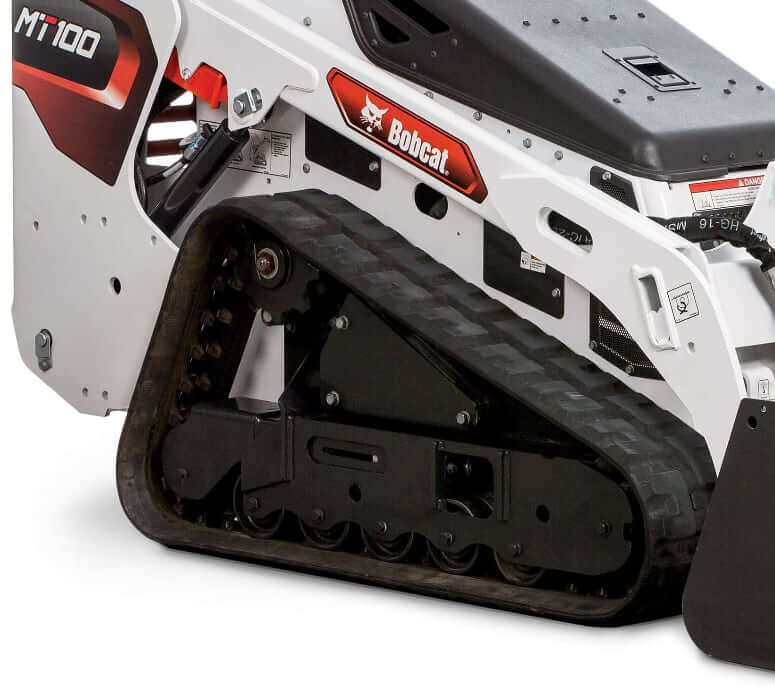

Undercarriage
| Undercarriage Width (Standard Tracks) | 41.1 in (904 mm) |
| Track Gauge | 31.5 in (800 mm) |
| Length of Track on Ground | 40.7 in (1033 mm) |
| Track Width, Rubber (Standard) | 7.1 in (180 mm) |
| Track Width, Rubber (Optional) | 9.8 in (250 mm) |
| Ground Pressure (Narrow Track + 36″ bucket) | 4.9 psi (34 kPa) |
| Ground Pressure (Wide Track + 44″ bucket) | 3.5 psi (24 kPa) |
| Departure Angle | 24° |

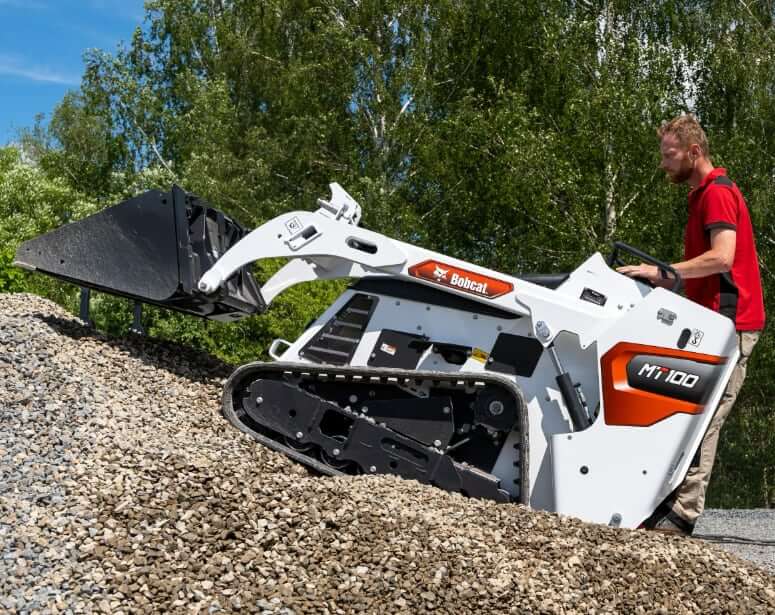

| Gradeability (approximately) | 30° (58%) |

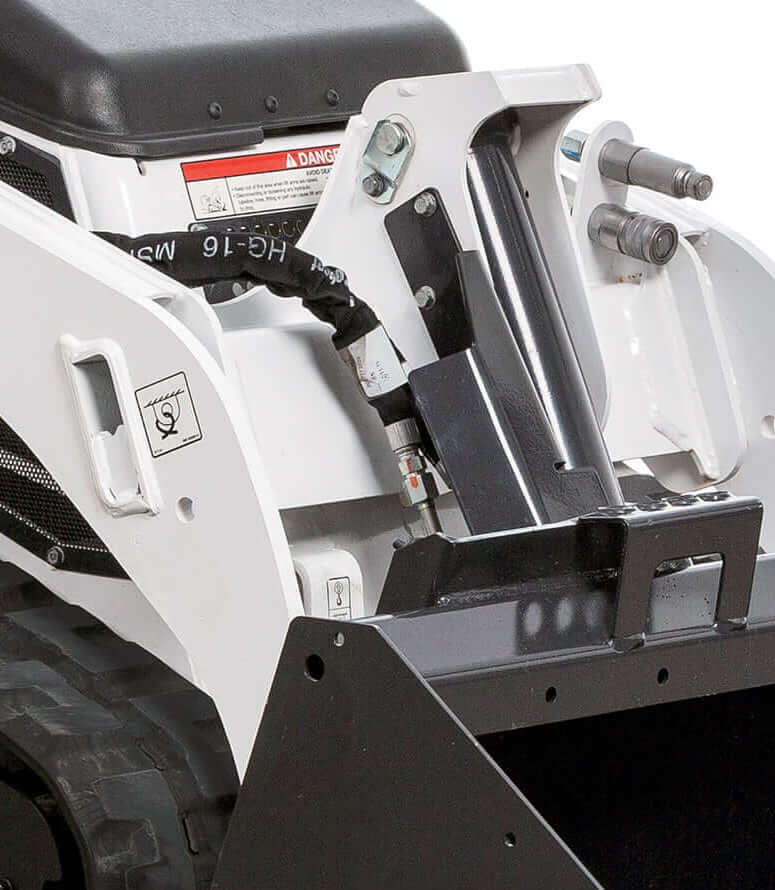

Hydraulic System
| Type | Open center hydraulic system |
| Hydraulic Pump Type | Engine driven, gear type pump |
| Pump Flow Capacity | 12.0 gal/min (45.4 L/min) |
| Auxiliary Flow Capacity | 11.0 gal/min (41.6 L/min) |
| Relief Pressure at Quick Couplers | 2900 psi (19900 kPa) |
| Control Valve | 3-spool, open-centre type with float detent on lift |
| Lift and Tilt Hydraulics | Controlled by joystick |
| Front Auxiliary Hydraulics | Controlled by fore and aft movement of hand lever |
| Auxiliary Pressure Release | Controlled by fore and aft movement of hand lever |
| Hydraulic Cylinders | Double-acting; tilt cylinders have cushioning feature on dump and rollback |
| Fluid Lines | SAE standard tubelines, hoses, and fittings |
| Hydraulic Oil Filtration | Full flow replaceable, 10-micron synthetic media element |
| Hydraulic Oil Level Check and Fill Location | The hydraulic fluid level and the reservoir filler neck are located in the rear compartment of the loader, behind the panel beneath the dashboard |
Hydraulic Function Time
| Raise Lift Arms | 3.2 sec |
| Lower Lift Arms | 2.1 sec |
| Bucket Dump | 1.7 sec |
| Bucket Rollback | 1.5 sec |

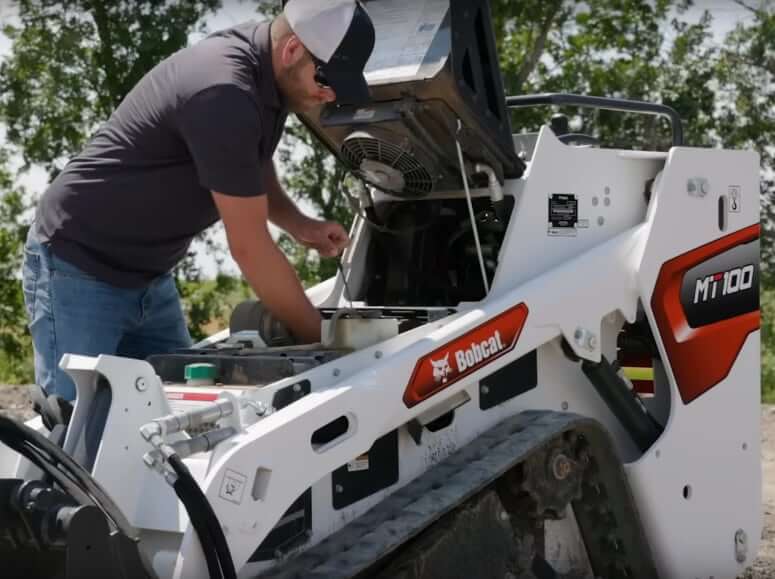

Service Refill Capacities
| Fuel Tank Capacity | 7 gal (26.5 L) |
| Engine Oil Capacity (w/ filter) | 0.95 gal (3.6 L) |
| Cooling System Capacity (w/ radiator) | 1.7 gal (6.6 L) |
| Hydraulic Tank Capacity | 2.5 gal (9.5 L) |
| Hydraulic System Fluid Capacity | 5.3 gal (20.5 L) |
Bobcat MT100 Filters
| Filter | Part Number |
|---|---|
| Inner Air Filter | 6687263 |
| Outer Air Filter | 6687262 |
| Fuel Filter with Water Separator | 6667352 |
| Engine Oil Filter | 6671057 |
| Hydrostatic / Hydraulic Oil Filter | 6677652 |
| Hydraulic Tank Breather Cap | 7025626 |
| 500 Hour Maintenance Kit | 7403972 |
| 1000/2000 Hour Maintenance Kit | 7403973 |

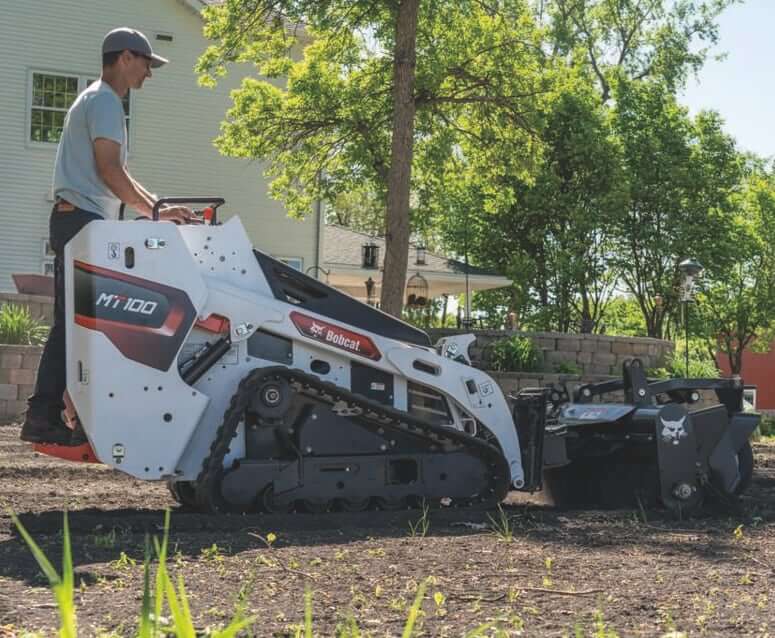

Bobcat MT100 Attachments
The Bobcat MT100 mini track loader is a compact and highly maneuverable machine designed to handle a wide range of tasks in tight workspaces. This versatile loader supports a comprehensive lineup of attachments tailored for landscaping, light construction, and property maintenance. Whether you need to dig, sweep, till, or move materials, the MT100 is compatible with a diverse selection of tools including augers, trenchers, buckets, soil conditioners, and snow removal equipment.
| Attachment | Model Description |
|---|---|
| Angle Broom | 48″, 52″ or 64″ angle brooms (driven by a hydraulic motor) |

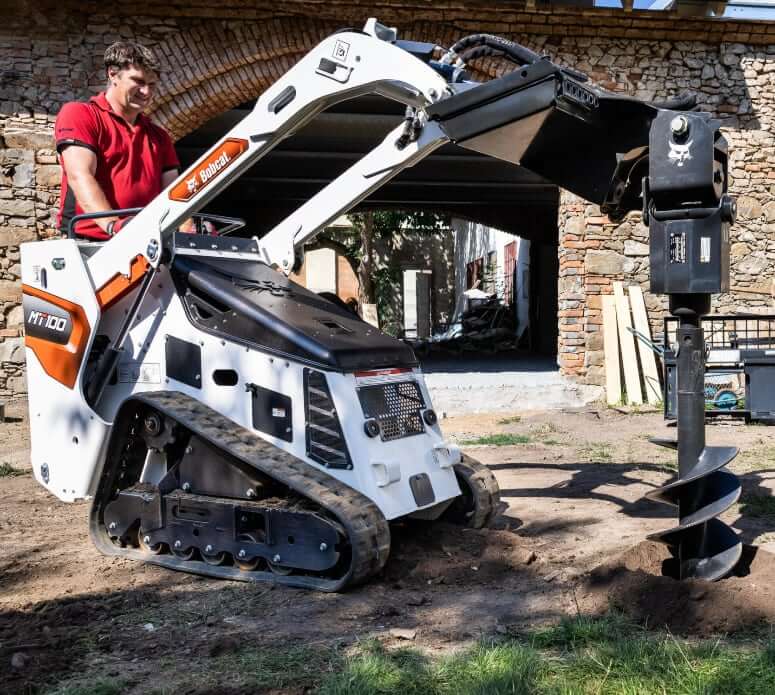

| Auger | 10 Auger Drive Unit (Dig Depth – 58″); Auger Drive Unit – 12PH or 14PH (Dig Depth – 56″) |
| Boring Unit | Maximum recommended boring distance 30 ft |
| Breaker | NB140 Nitrogen Breaker (Reduce concrete, rock and asphalt surfaces to removable rubble) |
| Buckets, Dirt | 36″ and 44″ NAGS Dirt Buckets |
| Buckets, GP | 36″; GPX 36″; GPX CII 36″; GPX CII 44″; 50″ General Purpose Buckets |
| Buckets, Industrial | 36″ Industrial Bucket (ISO Heaped Capacity – 4 ft3 / 0.1 m3) |
| Buckets, Light Material | 44″ or 54″ Light Material Buckets |
| Digger | 12S Digger (Dig Depth – 28″) |

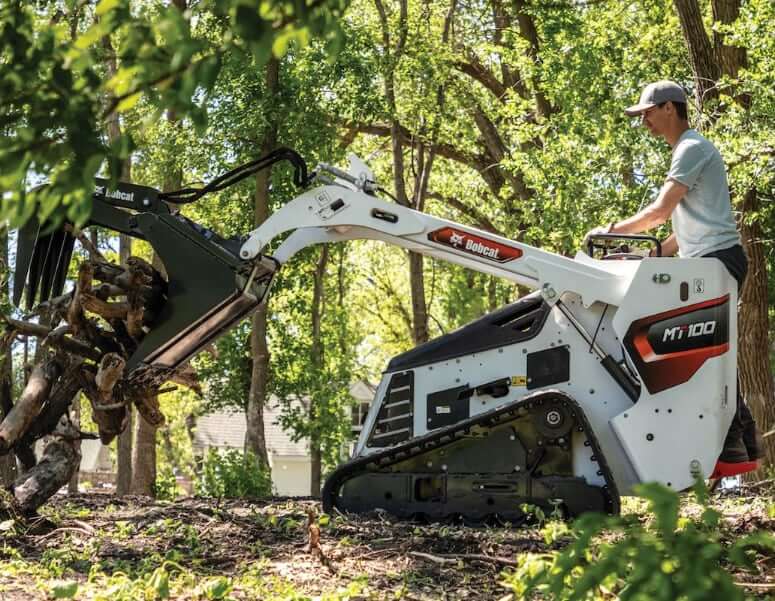

| Grapple | 32″ GP Grapple; 32″ Utility Grapple; Utility Hose Kit, Hose Extensions |
| Landplane | 48″ Landplane (Weight – 390 lb / 177 kg) |
| Log Grapple | 56″ Log Grapple Attachment |
| Pallet Fork | Pallet Fork Frame (Width 36.8″) |
| Rotary Cutter | 44″ Brushcat Rotary Cutter (30 cc), Cutting Height – 3″ |
| Snow Blade | 54″ Snow Blade (Degree of Angle Right or Left – 30°, Working Width @ Fully Angled – 46.8″) |

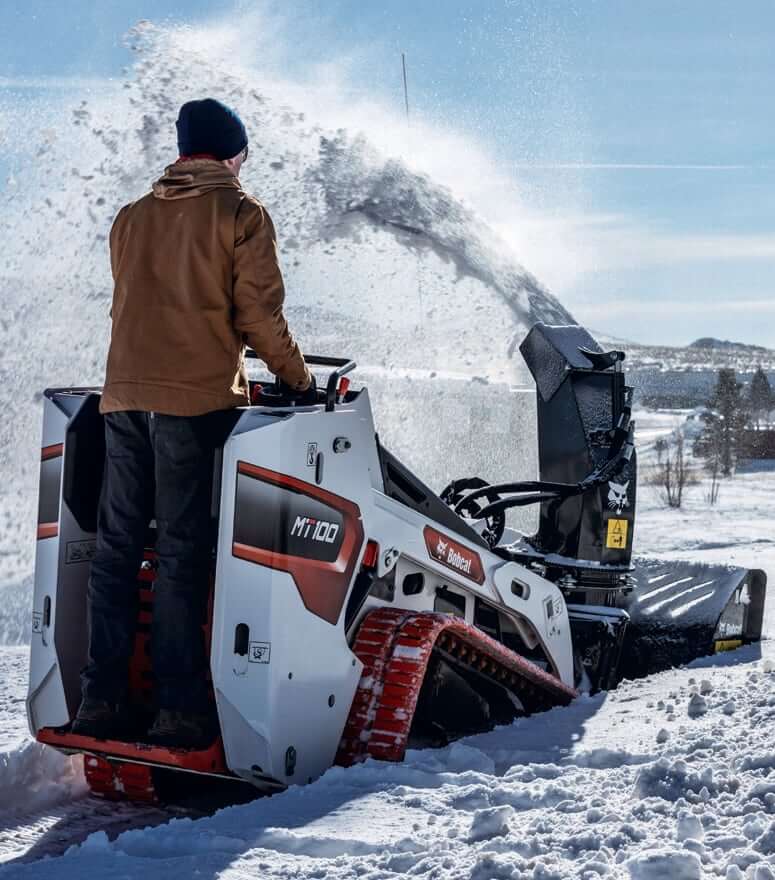

| Snowblower | 26X36; 26X48 or 26X56 Hydraulic Snowblowers (Throw Distance – Up to 25 ft) |
| Soil Conditioner | 48″ Manual Soil Conditioner (Weight – 636 lb / 289 kg) |
| Stump Grinder | SG, 30″ Stump Grinder, Tip Speed 3109-4691 ft/min (948-1430 m/min) |
| Sweeper | 44″ or 54″ Sweeper Buckets |
| Tiller | 40″ Rotary Tiller, Bi-rotational, Direct Drive |
| Trencher | LT112 or LT113 Trencher Attachment (Frame Width – 36″, Auger Diameter – 12″, Dig Depth – 2 ft / 3 ft) |
Popular attachment options range from 48 – 64 in angle brooms, 36 – 54 in buckets, and 30 in stump grinders to hydraulic snowblowers and rotary tillers, enabling the MT100 to take on seasonal jobs, surface prep, and site cleanup with ease. Designed with hydraulic efficiency and operator-friendly performance in mind, the MT100 paired with the right attachment becomes a powerful tool on any compact jobsite.
