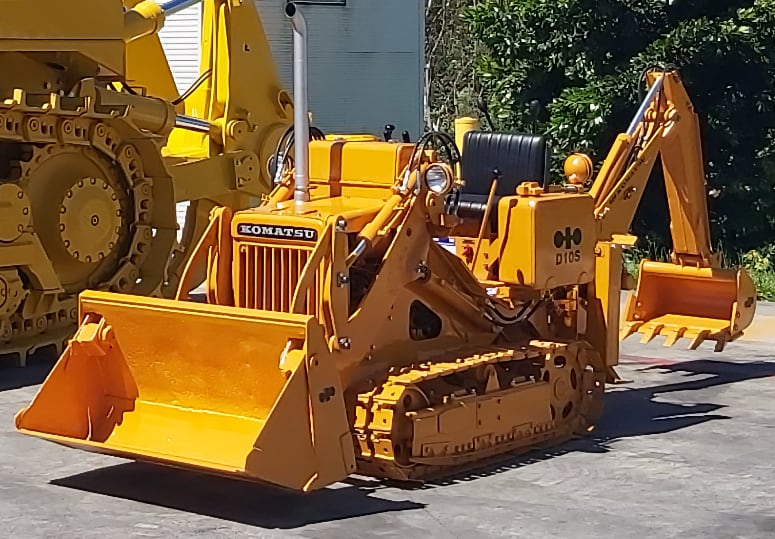

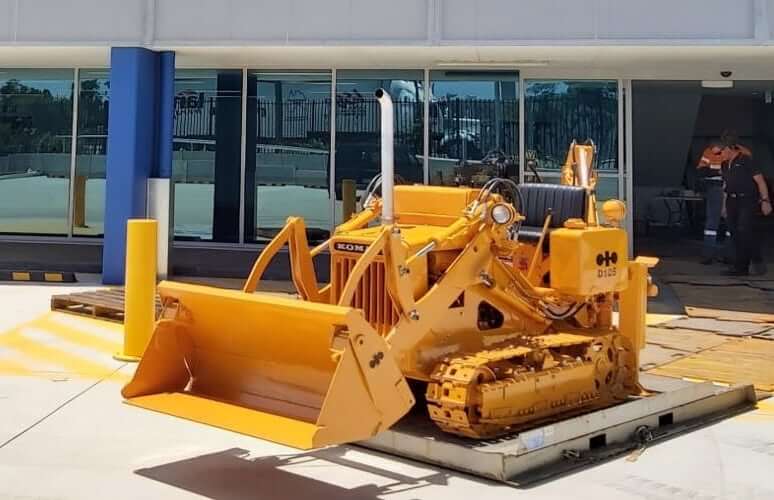

Komatsu D10S-1 Crawler Loader

Contents

Dimensions
Working Range
Undercarriage
Engine Details
Operational Specs
Service Refill Capacities

Dimensions

Length With Bucket On Ground	100.8 in (2560 mm)
Width To Outside Of Tracks	45.3 in (1150 mm)
Transport Width	51.6 in (1310 mm)
Transport Height	78 in (1980 mm)

Working Range

Bucket Breakout Force	4450 lbf (19.8 kN)
Bucket Capacity – Heaped	0.4 yd3 (0.3 m3)
Reach At Dump Height	24.4 in (620 mm)
Clearance At Full Height And Dump	65.4 in (1660 mm)

Undercarriage

Track Gauge	36.4 in (925 mm)
Length Of Track On Ground	46.1 in (1170 mm)
Number Of Track Rollers Per Side	3
Track Shoe Width	8.86 in (225 mm)
Ground Pressure	4.84 psi (33.38 kPa)

Engine Details

Number of Cylinders	2
Engine Make	Komatsu
Engine Model	Komatsu 2D92
Displacement	79.4 cu in (1.4 L)
Net Power	20 hp (15 kw)
Power Measured @	2100 rpm

Operational Specs

Operating Weight	3902 lb (1770 kg)
Static Tipping Load	3130 lb (1419.8 kg)
Max Speed	2.8 mph (4.5 km/h)

Service Refill Capacities

Fuel Tank Capacity	8 gal (30 L)
Cooling System Capacity	2 gal (7.3 L)
