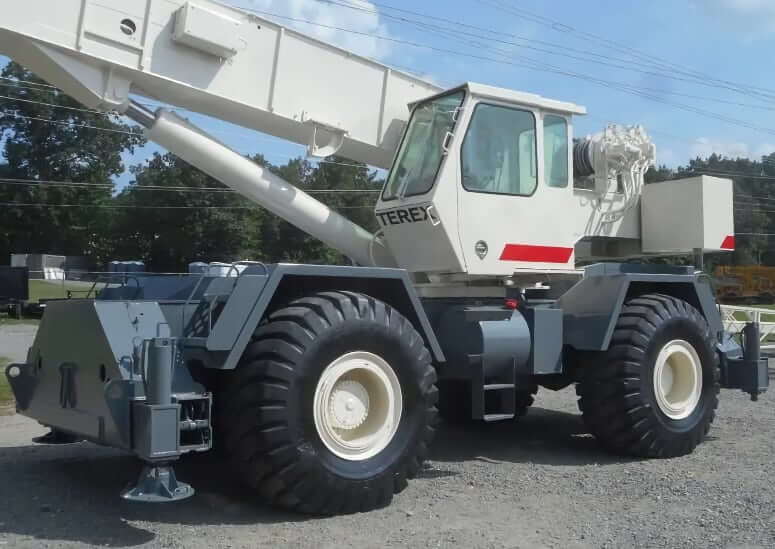

Boom
| Max Lift Capacity | 100000 lb (45359 kg) |
| Min Height @ Max Raise Angle | 33.0 ft in (10.06 m) |
| Max Height @ Max Raise Angle – No Jib | 105.0 ft in (32.0 m) |
| Max Elevating Angle | 90 degrees |
| Swing Speed | 2.5 rpm |
| Number Of Sections | 4 |

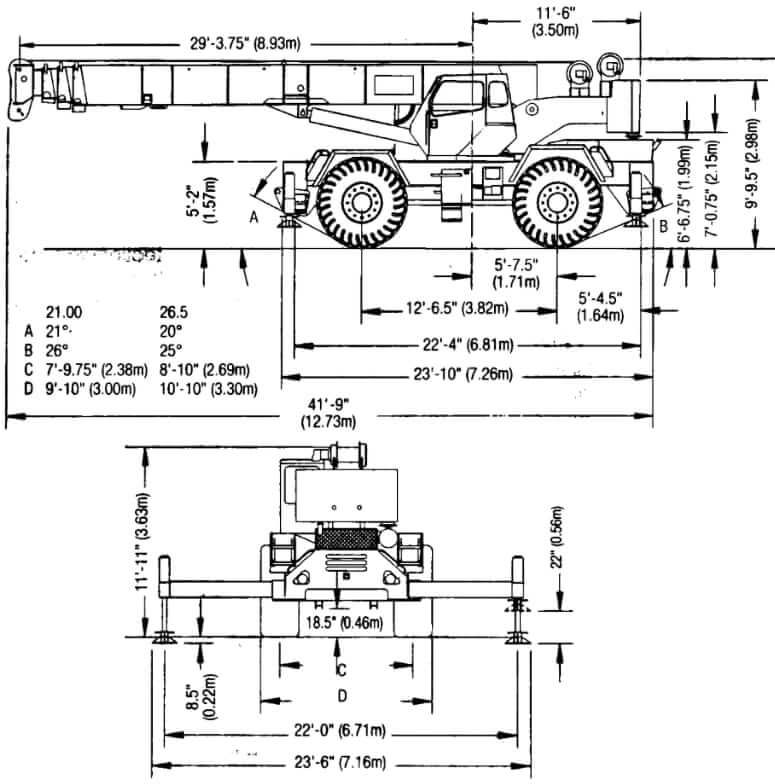

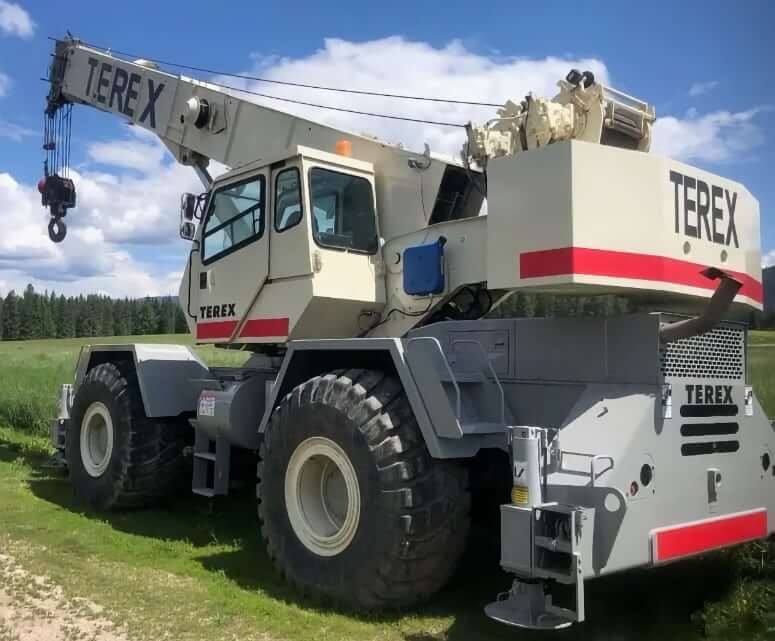

Dimensions
| Transport Length | 41.9 ft in (12730 mm) |
| Transport Height | 11.11 ft in (3630 mm) |
| Transport Width | 9.10 ft in (3000 mm) |
| Width w/ Outriggers Extended | 23.6 ft in (7160 mm) |
| Tail Swing Radius | 11.6 ft in (3500 mm) |
| Ground Clearance | 18.5 in (460 mm) |
| Approach Angle | 21 degrees |
| Departure Angle | 26 degrees |
| Carrier Length | 23.1 ft in (7260 mm) |
| Turning Radius to Center of Outside Tire (2 wheel) | 38.38 ft in (11700 mm) |
| Turning Radius to Center of Outside Tire (4 wheel) | 21.32 ft in (6500 mm) |
Engine Details
| Engine Make | Cummins | Caterpillar |
|---|---|---|
| Number of Cylinders | 6 | 6 |
| Engine Model | Cummins 6BTA5.9 | Cat 3116 DITA |
| Displacement | 359 cu in (5.9 L) | 402 cu in (6.6 L) |
| Bore | 4.02 in (102 mm) | 4.12 in (105 mm) |
| Stroke | 4.72 in (120 mm) | 5.0 in (127 mm) |
| Gross Power | 174 hp (130 kw) | 175 hp (130 kw) |
| Power Measured @ | 2500 rpm | 2400 rpm |
| Max Torque | 455 lb ft (617 Nm) | 490 lb ft (664 Nm) |
| Torque Measured @ | 1500 rpm | 1450 rpm |
| Air Filter | Dry element | Dry element |
| Aspiration | Turbocharged and aftercooled | Turbocharged and aftercooled |
Operational Specs
| Max Lift Capacity | 100000 lb (45359 kg) |
| Operating Weight | 76095 lb (34516 kg) |
| Counterweight | 14000 lb (6349 kg) |
| Max. Drum Storage | 899 ft (274 m) 7th layer not a working layer |
| Max. Drum Useable | 738 ft (225 m) Based on min. flange height above top layer to comply with ANSI B30.5 |
| Operating Voltage | 12 V |
| Alternator | 102 amps (115 amps) |
| Battery | 2x 12 V, CCA 1600 |
| Tire Size | 26.50×25, 26 P.R. (standard) / 21.00×25, 28 P.R. (optional) |
Transmission
| Type | Full power-shift transmission with integral torque converter has neutral safety system |
| Drive | 4WD (4×4) |
| Steering | Hydraulic steering 4x4x4 (4×2, 4×4, crab-steer) |
| Number of Gears | 6F / 3R |
| Max Travel Speed | 24.1 mph (38.8 km/h) |
| Service Brake | Air brakes on all four wheels. 20.25″ x 4″ (51.43 x 1010 cm) drum brakes |
| Parking Brake | Front and rear axles equipped with spring-set, air-released emergency/parking chambers |
Service Refill Capacities
| Engine Model | Cummins 6BTA5.9 | Caterpillar 3116 DITA |
|---|---|---|
| Fuel Tank Capacity | 50 gal (189 L) | 50 gal (189 L) |
| Engine Oil Capacity | 4 gal (15 L) | 6.6 gal (25 L) |
| Cooling System Capacity | 9.3 gal (35 L) | 7.4 gal (28 L) |
| Hydraulic Tank Capacity | 114 gal (432 L) | 114 gal (432 L) |
