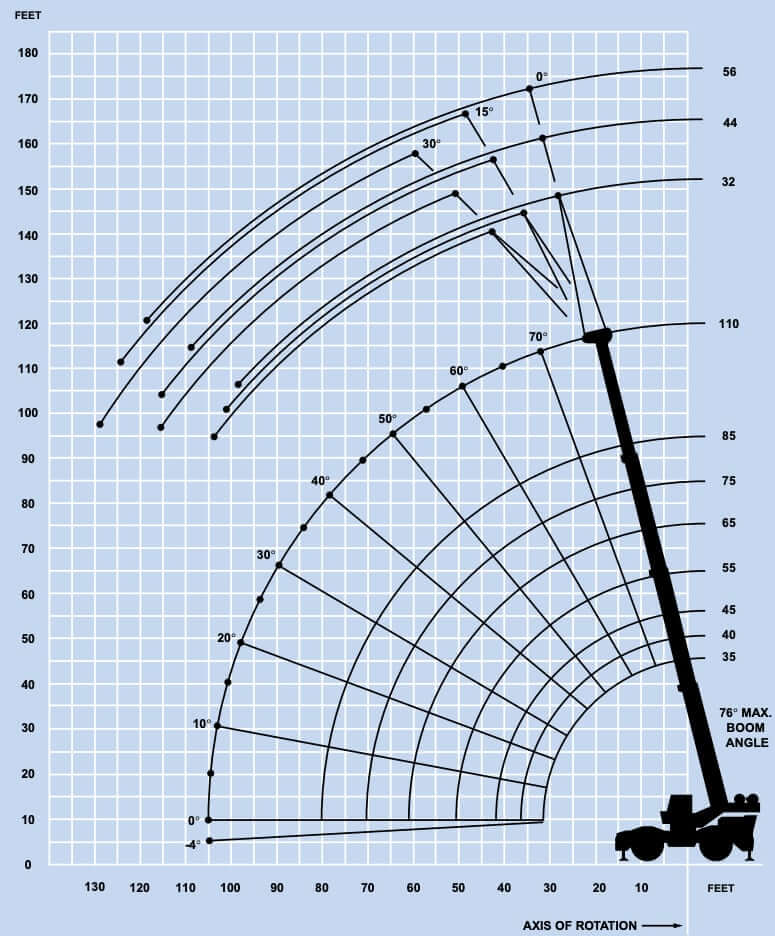

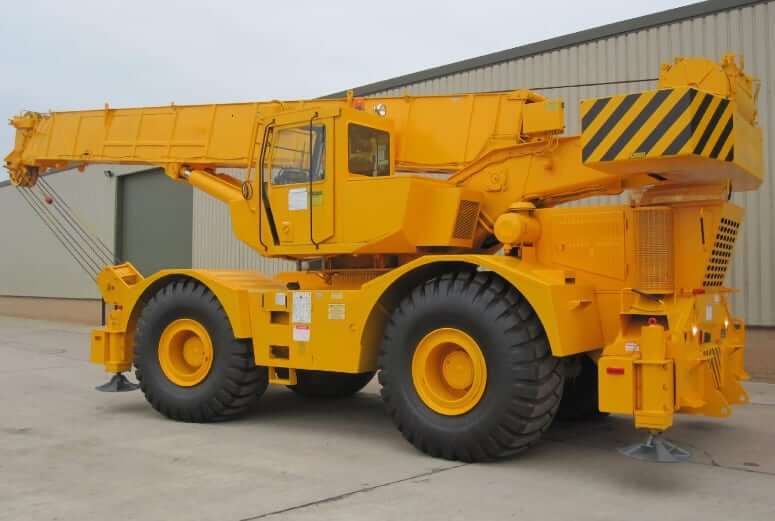

Boom
| Boom Length | 35-110 ft (10.7-33.5 m) |
| Max Tip Height | 117 ft (35.7 m) |
| Elevating Angle | +76° / -4° |
| Number of Sections | 4 |
| Type of Sections | 2 full power sections and 1 power pinned section |
| Boom Elevation | Dual double acting hydraulic cylinders with integral holding valves |
| Max Capacity (Outriggers), 3 m Radius (85% Rating) 360° Slew | 121254 lb (55000 kg) |
| Max Capacity (On Tires), 3 m Radius (85% Rating) over front | 64926 lb (29450 kg) |
Outrigger System
| Outrigger Pad Load | 85880 lb (39036 kg) |
| Outrigger Type | Four hydraulic telescoping single-stage, double box beam outriggers with inverted jacks and integral holding valves |
| Outrigger Size | All steel fabricated, quick release type outrigger floats, 24 in (610 mm) diameter. Three position setting |
| Outrigger Control | Independent control of each outrigger beam located in cab on front dash panel along with level indicator |

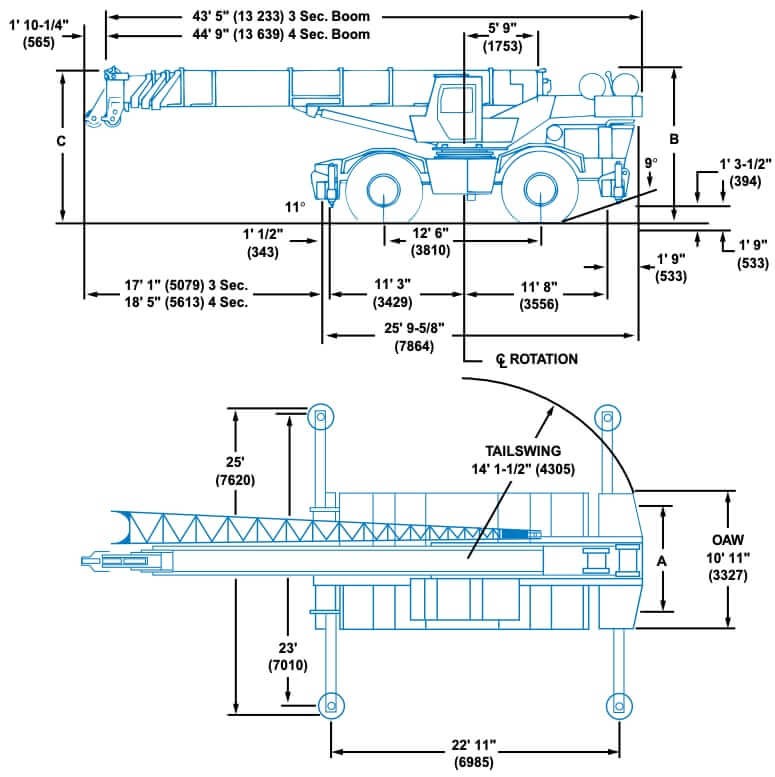

Dimensions
| Transport Length | 521 in (13233 mm) |
| Transport Width | 131 in (3327 mm) |
| Transport Height | 153 in (3886 mm) |
| Wheelbase | 150 in (3810 mm) |
| Ground Clearance | 18.5 in (470 mm) |
| Width w/ Outriggers Extended | 300 in (7620 mm) |
| Carrier / Base Length | 310 in (7864 m) |
| Upper Structure Tail Swing Radius | 170 in (4305 mm) |

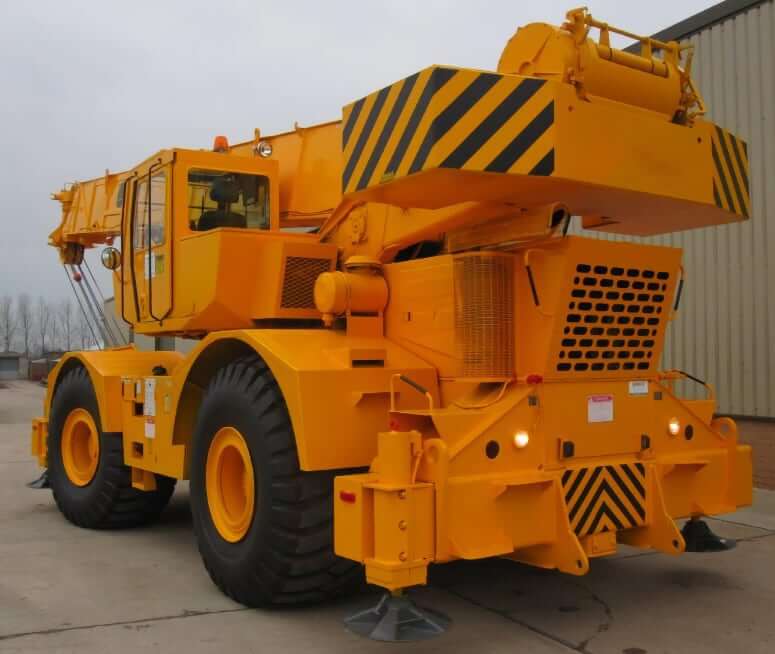

Weight
| Gross Vehicle Weight | 90885 lb (41225 kg) |
| Counterweight (Integral with turntable mast, w/ main hoist only) | 13900 lb (6305 kg) |
| Counterweight (Integral with turntable mast, w/ main and aux) | 12150 lb (5511 kg) |
| Front Axle Load | 45805 lb (20777 kg) |
| Rear Axle Load | 45080 lb (20448 kg) |
Engine Details
| Engine Make | Cummins | Caterpillar |
|---|---|---|
| Number of Cylinders | 6 | 6 |
| Engine Model | 6BTA 5.9 | CAT 3116TA |
| Displacement | 359 cu in (5.9 L) | 402 cu in (6.6 L) |
| Bore | 4.02 in (102 mm) | 4.13 in (105 mm) |
| Stroke | 4.72 in (120 mm) | 5.00 in (127 mm) |
| Gross Power | 200 hp (149 kw) | 190 hp (142 kw) |
| Power Measured @ | 2500 rpm | 2600 rpm |
| Peak Torque | 600 lb ft (814 Nm) | 490 lb ft (664 Nm) |
| Torque Measured @ | 1500 rpm | 1650 rpm |
| Aspiration | Turbocharged and aftercooled | Turbocharged and aftercooled |
Operational Specs
| Gross Vehicle Weight | 90885 lb (41225 kg) |
| Max Capacity (Outriggers), 3m Radius (85% Rating) 360° Slew | 121254 lb (55000 kg) |
| Max Capacity (On Tires), 3m Radius (85% Rating) over front | 64926 lb (29450 kg) |
| Operating Voltage | 12 V (24 V) |
| Alternator | 55 amps |
| Battery | 2x 12 V |
| Working Lights | 2 headlights, side, tail and stop lights and flashing direction indicators |
| Front Tire Size | 29.5 x 25 – 28PR earthmover type, tubeless or 29.5R25 Radial |
| Rear Tire Size | 29.5 x 25 – 28PR earthmover type, tubeless or 29.5R25 Radial |
Transmission
| Type | Full powershift transmission Clark 28000 |
| Number of Gears | 6F / 6R |
| Max Travel Speed | 20.3 mph (32.7 km/h) |
| Max Gradeability | 45% |
| Drive | 4×4 or 4×2 |
| Steer | 4x4x4 |
| Rear Axle | Rear axle disconnect for 4×2 travel |
| Steering | Fully independent power steering: front only, rear only, crab and coordinated |
| Service Brakes | Full air split circuit operating on all wheels |
| Parking Brake | Spring-applied, air released parking brake operating on front and rear axles |
Hydraulic System
| Pump Type | 4 main gear pumps |
| Pump Flow Capacity (combined) | 146 gal/min (553 L/min) |
| Max System Pressure | 2500 psi (17240 kPa) |
| Hydraulic Oil Filtration | Return line type filter with full flow by-pass protection and service indicator |
| Hydraulic Oil Cooling | Remote mounted oil cooler with thermostatically controlled electric motor driven fan/air to oil |
Service Refill Capacities
| Fuel Tank Capacity | 60 gal (227 L) |
| Engine Oil Capacity (Cummins) | 3.8 gal (14.2 L) |
| Engine Oil Capacity (CAT) | 6.6 gal (25.0 L) |
| Cooling System Capacity (Cummins) | 5.5 gal (20.7 L) |
| Cooling System Capacity (CAT) | 7.4 gal (28.0 L) |
| Transmission Oil Capacity (Clark 28000) | 6.6 gal (25 L) |
| Hydraulic Tank Capacity | 154 gal (583 L) |
