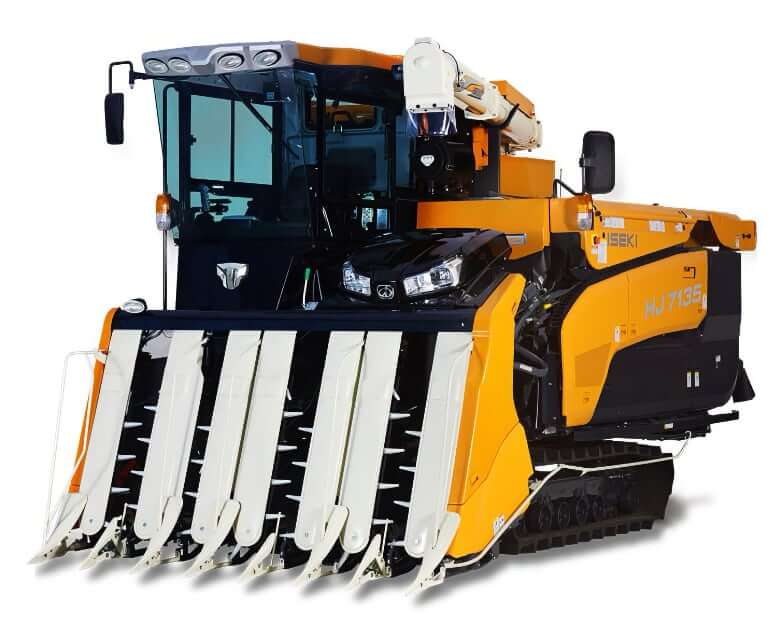

Iseki HJ7135 Combine

Contents

Dimensions
Operational Specs
Reaping
Threshing
Engine Details
Traveling System

Dimensions

Overall Length	199.2 in (5060 mm)
Overall Height	105.5 in (2680 mm)
Overall Width	98.0 in (2490 mm)

Operational Specs

Operating Weight	11817 lb (5360 kg)
Fuel Tank Capacity	27.7 gal (105 L)
Grain Tank Capacity	56.75 bu (2000 L)

Reaping

Reaping Row	7
Reaping Width	76.8 – 79.7 in (1950 – 2025 mm)
Cutter Bar Width	78.3 in (1990 mm)

Threshing

Threshing Method	Under feeding axial flow type
Drum Diameter	17.6 in (446 mm)
Drum Width (Rotor Length)	49.2 in (1250 mm)

Engine Details

Number Of Cylinders	4
Engine Make	Iseki
Engine Model	Iseki HJ7135 E16B
Power	130 hp (95.6 kw)
Power Measured @	2200 rpm
Displacement	221 cu in (3.62 L)
Aspiration	Turbocharged

Traveling System

Crawler Width	21.6 in (550 mm)
Crawler Grounding Length	71.8 in (1825 mm)
Working Speed	0-3.94 mph (0-6.3 km/h)
Travel Speed	0-7.2 mph (0-11.5 km/h)
