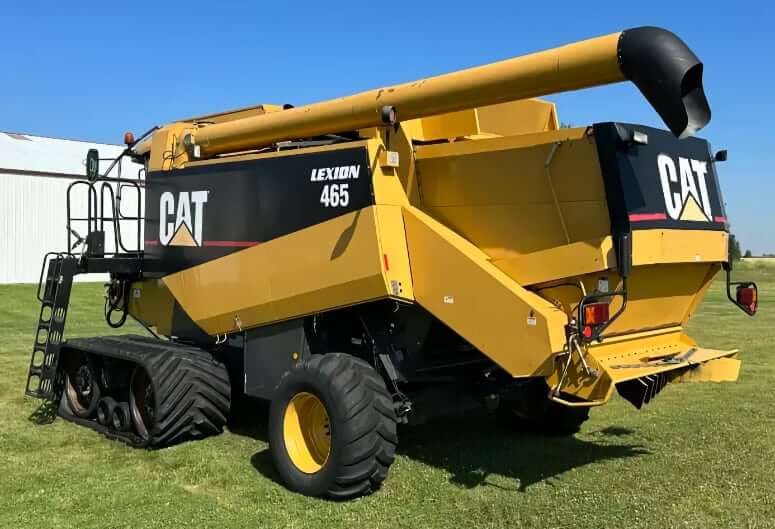

Dimensions
| Combine Height | 12′ 10″ (3909 mm) |
| Operating Length | 30′ (9136 mm) |
| Shipping Length | 29′ 2″ (8886 mm) |
| Outside Width | 13′ 11″ (4255 mm) |
| Width to Center of Tread | 11′ (3366 mm) |
Capacities
| Separation Area (straw walkers) | 11507 in2 (7.42 m2) |
| Separation Area (with intensive separation) | 15520 in2 (9.85 m2) |
| Grain Tank Capacity | 280 bu (9867 L) |
| Unloading Rate | 89 bu/sec |
Threshing
| Threshing System | APS |
| Cylinder Width | 67 in (1700 mm) |
| Cylinder Diameter | 23.5 in (600 mm) |
| Concave Grate Area | 1992 in2 (1.28 m2) |
| Total Grate Area | 3486 in2 (2.25 m2) |
Separating
| Separating Area | 11507 in2 (7.42 m2) |
| Separation System | Straw Walkers |
| Number Of Straw Walkers | Six |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | Cat 3176C ATAAC |
| Displacement | 629 cu in (10.3 L) |
| Gross Power | 365 hp (272 kw) |
| Power Measured @ | 2100 rpm |
| Aspiration | Turbocharged + aftercooled ATAAC |
| Emission Standards | EPA Tier 2 |
Transmission
| Type | Hydrostatic Variable 3-speed Transmission |
| Tracks Size | 35″ (893 mm) |
| Rear Tire Size | 28LR26; 16.5/85-24 8PR; 500/60-26.5 8PR; 600/55-26.5 8PR; 480/70 R28 |
Operating Specs
| Sound Level in Cab | 76 dB(A) |
| Corn Headers | 762 mm (30″) row spacing – 6, 8 and 12 row |
| Rigid Headers | 7600 mm (25’0″) and 9100 mm (30’0″) |
| Flexible Headers | 7600 mm (25’0″) and 9100 mm (30’0″) |
| Pickup Headers | 4000 m (13’0″) |
| Fuel Tank Capacity | 170 gal (650 L) |
| Transport Weight | 38000 lb (17237 kg) |
