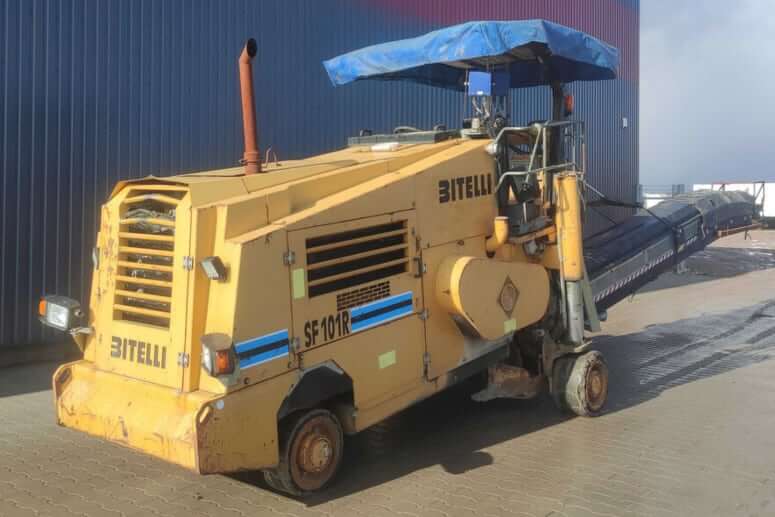

Bitelli SF101R Cold Planer

Contents

Rotary Cutter
Conveyor System
Dimensions
Engine Details
Operational Specs
Service Refill Capacities

Rotary Cutter

Cutting Width	39.4 in (1000 mm)
Cutting Depth	9.9 in (250 mm)

Conveyor System

Discharge Conveyor Width	19.7 in (500 mm)
Discharge Conveyor Swing (R/L)	21°

Dimensions

Operating Length	421.3 in (10700 mm)
Shipping Length	334.6 in (8500 mm)
Shipping Width	70.9 in (1800 mm)
Shipping Height	87.4 in (2220 mm)
Max Operating Height	169.3 in (4300 mm)

Engine Details

Number of Cylinders	6
Engine Make	Deutz
Engine Model	Deutz BF6M1013C
Displacement	439.4 cu in (7.2 L)
Bore	4.3 in (108 mm)
Stroke	5.1 in (130 mm)
Gross Power	198.5 hp (148 kw)
Power Measured @	2300 rpm
Peak Torque	630 lb ft (854 Nm)
Torque Measured @	1400 rpm
Aspiration	Turbocharged
Specific Fuel Consumption	0.337 lb/hph (205 g/kWh)

Operational Specs

Operating Weight (Full Load)	33069 lb (15000 kg)
Shipping Weight (Empty)	31967 lb (14500 kg)
Operating Speed	98.5 ft/min (30 m/min)
Travel Speed	3.8 mph (6 km/h)

Service Refill Capacities

Fuel Tank Capacity	79.3 gal (300 L)
Engine Oil Capacity	5.5 gal (21 L)
Cooling System Capacity	8.7 gal (33 L)
Water Spray System Fluid Capacity	185 gal (700 L)
