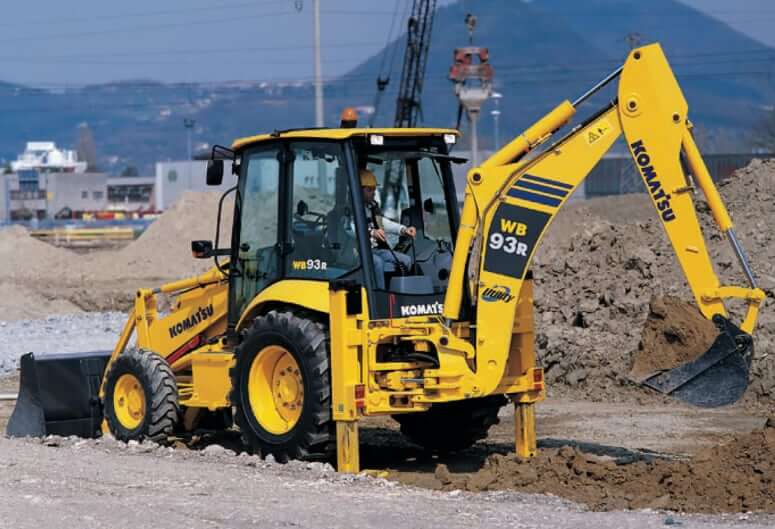

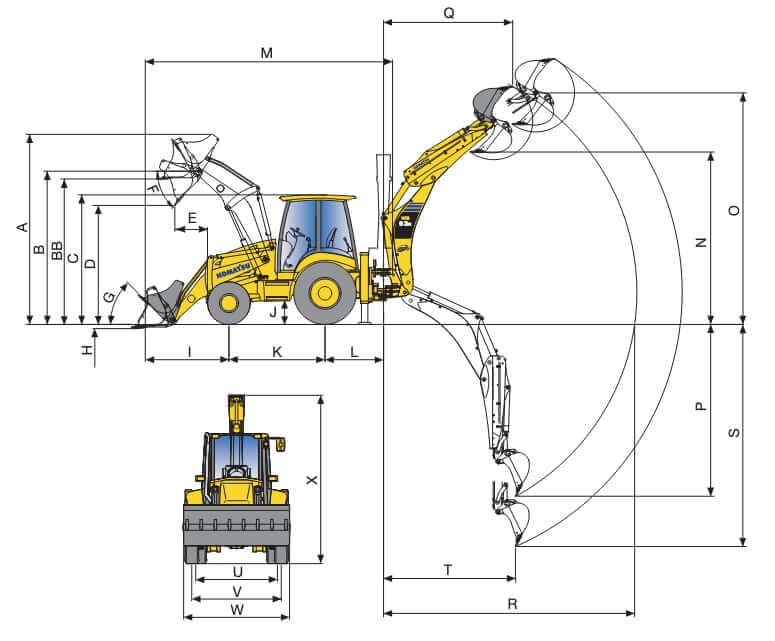

Dimensions
| A. Max Height | 169.2 in (4298 mm) |
| B. Pin Height | 134.9 in (3428 mm) |
| BB. Forks Loading Max Height | 125.3 in (3182 mm) |
| C. Cab Height | 114.2 in (2900 mm) |
| D. Max Dumping Height | 109.3 in (2778 mm) |
| E. Max Dumping Reach (45°) | 28.5 in (724 mm) |
| F. Dumping Angle | 43° |
| G. Rollback Angle | 45° |
| H. Digging Depth | 5.4 in (137 mm) |
| I. Bucket Reach (in Transport) | 79.4 in (2017 mm) |
| J. Ground Clearance | 16.4 in (416 mm) |
| K. Wheel Base | 85.6 in (2173 mm) |
| L. Backhoe Swing Centre Distance | 52.2 in (1325 mm) |
| M. Transport Length | 228.9 in (5817 mm) |
| N. Dumping Height (SAE) | 146.5 in (3720 mm) |
| N. Max Dumping Height | 164.2 in (4171 mm) |
| N. Dumping Height w/ Extended Telescopic (SAE) | 179.1 in (4550 mm) |
| N. Dumping Height w/ Extended Telescopic (Max) | 192.5 in (4891 mm) |
| O. Max Digging Height | 228.1 in (5792 mm) |
| O. Max Digging Height w/ Extended Telescopic | 255.8 in (6497 mm) |
| P. Digging Depth (SAE) | 167.6 in (4257 mm) |
| P. Digging Depth w/ Extended Telescopic | 211.4 in (5369 mm) |
| Q. Reach at Max Height | 100.6 in (2554 mm) |
| Q. Reach at Max Height w/ Extended Telescopic | 150.2 in (3816 mm) |
| R. Max Reach from Swing Centre | 226.6 in (5754 mm) |
| R. Max Reach from Swing Centre w/ Extended Telescopic | 266.5 in (6767 mm) |
| S. Max Digging Depth | 195.9 in (4977 mm) |
| S. Max Digging Depth w/ Telescopic | 237.1 in (6021 mm) |
| T. Digging Reach | 77.7 in (1973 mm) |
| U. Rear Tread | 70.9 in (1800 mm) |
| V. Front Tread | 75.2 in (1910 mm) |
| W. Overall Width (w/ Bucket) | 91.3 in (2320 mm) |
| X. Transport Hoe Height | 147.6 in (3750 mm) |
| X. Transport Hoe Height w/ Telescopic Arm | 150.0 in (3810 mm) |
| Side Shift | 23.8 in (605 mm) |
| Side Shift with Offset | 42.5 in (1080 mm) |
| Telescopic Stroke | 44.9 in (1140 mm) |
Backhoe Performance
| Bucket Breakout Force | 13444 lbf (59.8 kN) |
| Arm Breakout Force | 8813 lbf (39.2 kN) |
| Range of GP Buckets | 12 – 36 in (300 – 900 mm) |
| Ditch Cleaning Buckets | 40 in (1000); 55 in (1400 mm) |

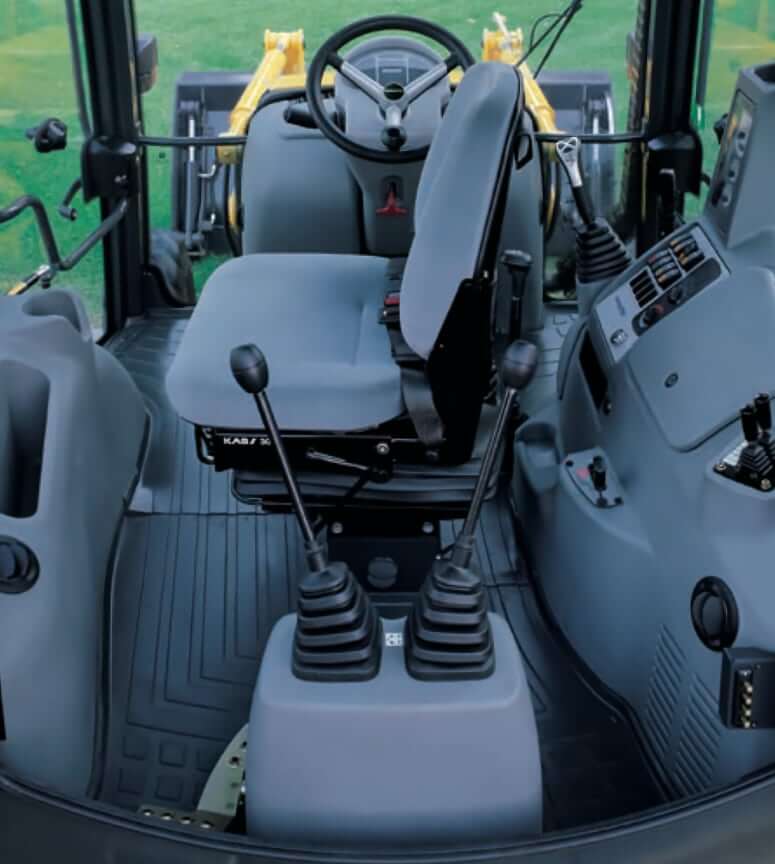

| Backhoe Control | Mechanical control levers |

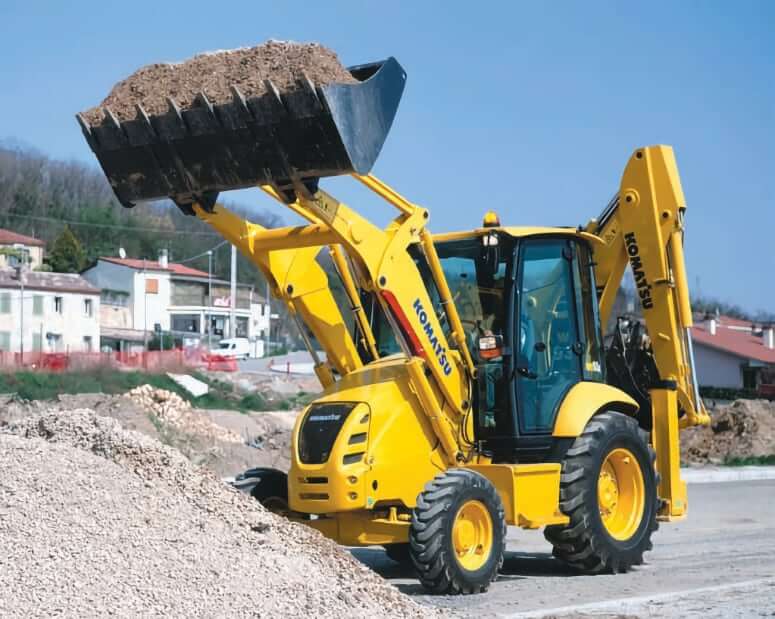

Loader Performance

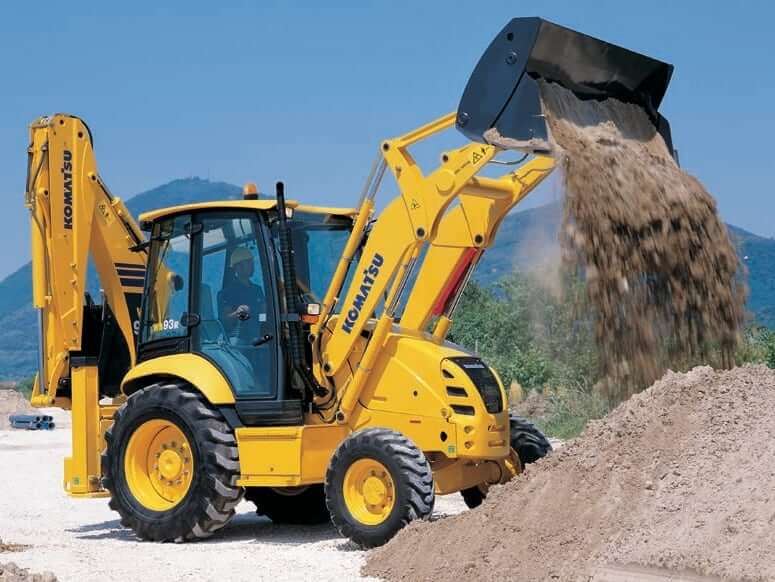

| Standard Bucket Capacity | 1.3 yd3 (1.0 m3) |
| Standard Bucket Width | 91.3 in (2320 mm) |
| 4-in-1 Bucket Capacity | 1.3 yd3 (1.0 m3) |
| 4-in-1 Bucket Width | 92.1 in (2340 mm) |
| Bucket Breakout Force | 14350 lbf (63.8 kN) |

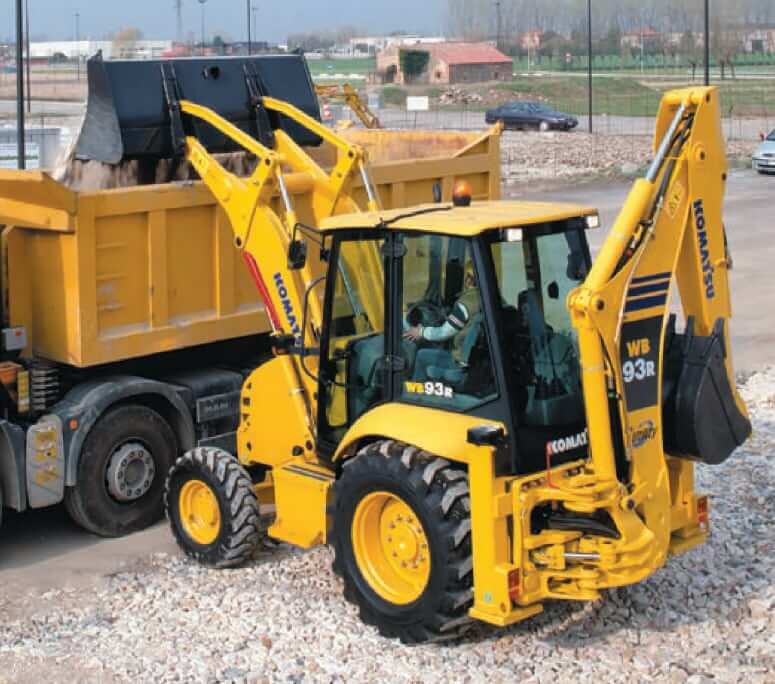

| Lift Capacity at Full Height | 8598 lb (3900 kg) |
| Lift Capacity at Ground Level | 11684 lb (5300 kg) |
Tires
| Standard Front Tire Size | 12.5/80 R18, 10 PR |
| Standard Rear Tire Size | 16.9×28, 12 PR |
| Optional Front Tire Size | 365/70 R18; 320/80 R18 IT 530; 12.5×20 MPT, 10 PR |
| Optional Rear Tire Size | 18.4×26, 12 PR; 440/80 R28 IT 530; 16.9×30 IND, 10 PR |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Komatsu |
| Engine Model | Komatsu SAA4D104E-1 |
| Displacement | 273.7 cu in (4.485 L) |
| Bore | 4.1 in (104 mm) |
| Stroke | 5.2 in (132 mm) |
| Net Power | 99.2 hp (74 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 309.8 lb ft (420 Nm) |
| Torque Measured @ | 1200 rpm |
| Air Cleaner | Dry filter with safety element |
| Starting System | Electric motor with per-heating air system for cold climate |
| Fuel System | Direct injection |
| Cooling System | Radiator |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA |
Operational Specs

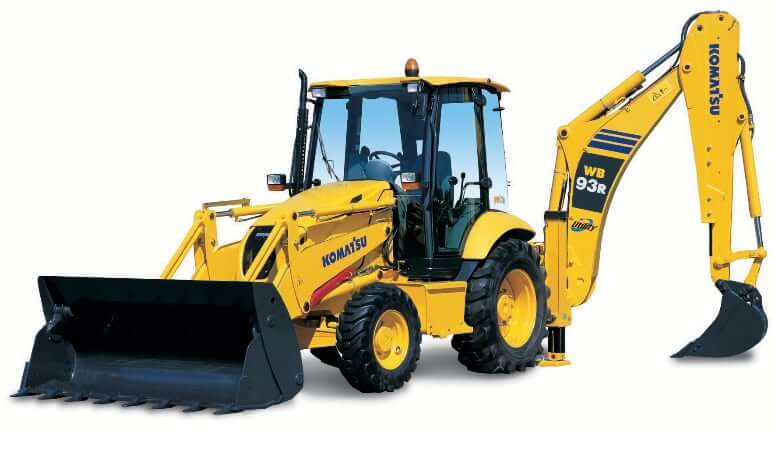

| Operating Weight | 17791 lb (8070 kg) |
| Max Operating Weight | 19842 lb (9000 kg) |
| Standard Loader Bucket Weight | 948 lb (430 kg) |
| Front Counterweight #1 | 331 lb (150 kg) |
| Front Counterweight #2 | 827 lb (375 kg) |
| Operating Voltage | 12 V |
| Alternator | 120 amps |
| Battery | 12 V, 155 Ah |
| Starter | 12 V, 4 hp (3 kw) |
| ROPS | ISO 3471, SAEJ1040 |
| FOPS | ISO 3449, SAEJ 231 |
| Hand/Arm Vibration Level | ≤ 2.5 m/s2 |
| Body Vibration Level | ≤ 0.5 m/s2 |
| Max Front Axle Load | 19109 lbf (85 kN) |
| Max Rear Axle Load | 17085 lbf (76 kN) |
Transmission
| Type | Power Shuttle transmission |
| Number of Gears | 4F / 4R |
| Max Forward Speed | 24.9 mph (40 km/h) |
| Max Reverse Speed | 24.9 mph (40 km/h) |
| Service Brakes | Oil immersed disc brakes are actuated by individual braking on each rear wheel with 2 separate pedals |
| Parking Brake | The calliper parking or safety brake is operated through a hand lever |
Steering System
| Type | Hydrostatic steering |
| Turning Radius w/o Brakes (at the corner of the bucket) | 171.3 in (4350 mm) |
| Turning Radius w/o Brakes (at outer edge of front tire) | 157.5 in (4000 mm) |
| Turning Radius w/ Brakes (at the corner of the bucket) | 185.0 in (4700 mm) |
| Turning Radius w/ Brakes (at outer edge of front tire) | 126.0 in (3200 mm) |
Hydraulic System
| Type | Komatsu SyncroSystem (Closed Load Sensing System, CLSS) |
| Pump Type | Variable displacement axial pistons |
| Pump Flow Capacity | 43.6 gal/min (165 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
| Pump Control System | Load Sensing |
| Main Valve | LIFD (Load Independent Flow Divider) modular type |
Service Refill Capacities
| Fuel Tank Capacity | 39.6 (150 L) |
| Engine Oil Capacity (w/ filter) | 3.4 gal (12.8 L) |
| Cooling System Capacity | 4.4 gal (16.5 L) |
| Hydraulic System Capacity (w/ tank) | 25.6 gal (97 L) |
| Hydraulic Tank Capacity | 10.8 gal (41 L) |
| Front Axle Fluid Capacity | 2.2 gal (8.5 L) |
| Rear Axle Fluid Capacity | 3.8 gal (14.5 L) |
| Transmission Oil Capacity | 4.2 gal (16 L) |
