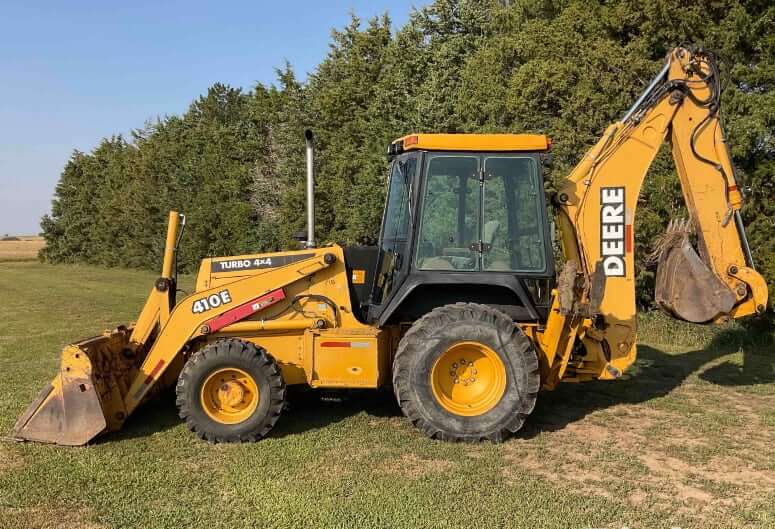

John Deere 410E Backhoe Loader Specs, Weight & Dimensions

Contents

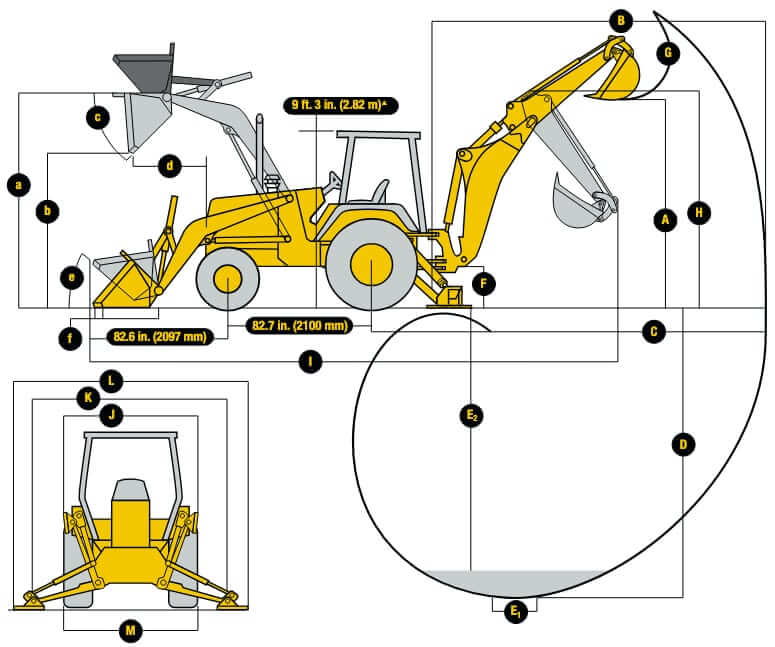

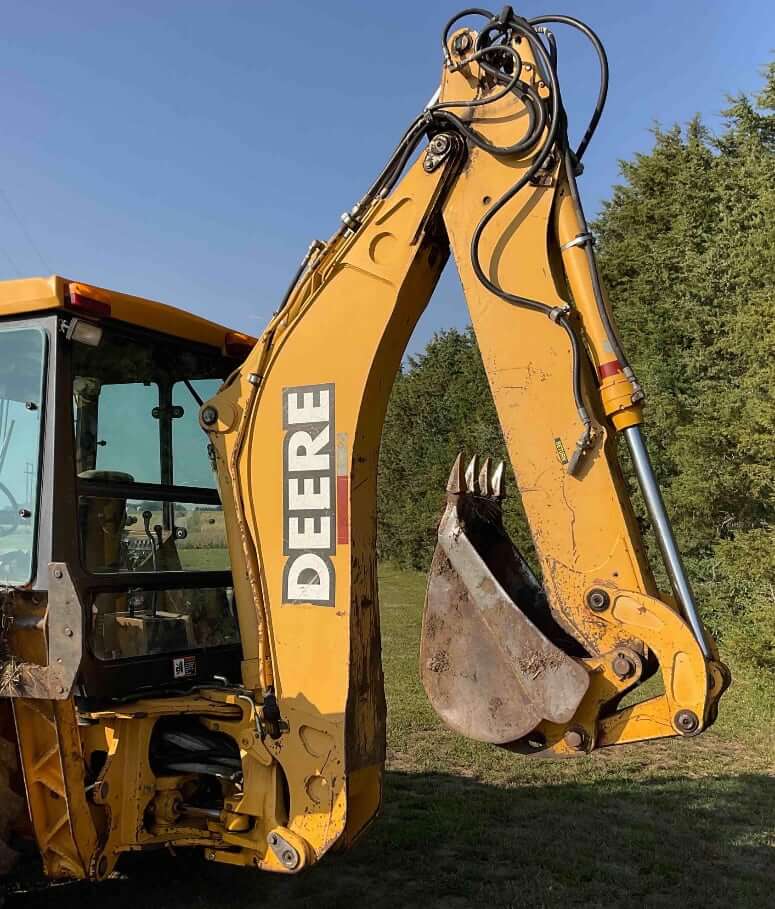

Dimensions

John Deere 410E	Standard	Extendable (Retracted)	Extendable (Extended)
A. Loading Height	150 in (3810 mm)	152 in (3860 mm)	186 in (4720 mm)
B. Reach from Center of Swing Mast	236 in (5990 mm)	239 in (6070 mm)	284 in (7210 mm)
C. Reach from Center of Rear Axle	280 in (7110 mm)	283 in (7190 mm)	328 in (8330 mm)
D. Max Digging Depth	190 in (4830 mm)	193 in (4900 mm)	240 in (6100 mm)
E1. Digging Depth (2-ft Flat Bottom)	188 in (4780 mm)	191 in (4850 mm)	239 in (6070 mm)
E2. Digging Depth (8-ft Flat Bottom)	175 in (4450 mm)	179 in (4550 mm)	229 in (5820 mm)
F. Ground Clearance	14 in (356 mm)	14 in (356 mm)	14 in (356 mm)
G. Bucket Rotation	190°	190°	190°
H. Transport Height	155 in (3940 mm)	154 in (3910 mm)	154 in (3910 mm)
I. Overall Length, Transport	287 in (7290 mm)	287 in (7290 mm)	287 in (7290 mm)
J. Stabilizer Width – Transport with ROPS	86 in (2180 mm)	86 in (2180 mm)	86 in (2180 mm)
K. Stabilizer Spread – Operating	122 in (3100 mm)	122 in (3100 mm)	122 in (3100 mm)
L. Stabilizer Overall Width – Operating	139 in (3530 mm)	139 in (3530 mm)	139 in (3530 mm)
M. Width Over Tires	86 in (2180 mm)	86 in (2180 mm)	86 in (2180 mm)
Digging Force, Bucket Cylinder	14801 lbf (65.8 kN)	15010 lbf (66.7 kN)	15010 lbf (66.7 kN)
Digging Force, Crowd Cylinder	8741 lbf (38.9 kN)	8446 lbf (37.6 kN)	5980 lbf (26.6 kN)
Swing Arc	180°	180°	180°
Operator Control	Two levers	Right foot treadle	Right foot treadle
Bucket Rotation	190°	190°	190°
Stabilizer Angle Rearward	18°	18°	18°
Leveling Angle	14°	14°	14°

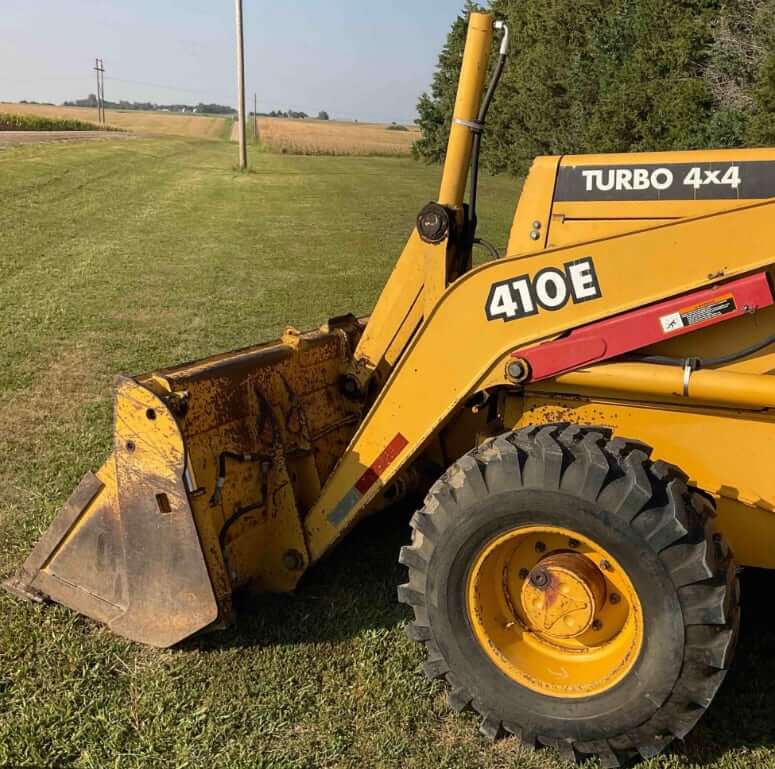

Bucket Type	HD Bucket	Long-Lip HD	Long-Lip Multi-purpose
Operator Control	Single Lever	Single Lever	Dual Lever
Bycket Capacity	1.25 yd3 (0.96 m3)	1.50 yd3 (1.15 m3)	1.25 yd3 (0.96 m3)
Lifting Capacity, Full Height	7340 lb (3332 kg)	7070 lb (3207 kg)	6700 lb (3039 kg)
Breakout Force	10210 lbf (45.4 kN)	10170 lbf (45.2 kN)	9700 lbf (43.1 kN)
a. Height to Bucket Hinge Pin, Max	132 in (3350 mm)	132 in (3350 mm)	132 in (3350 mm)
b. Dump Clearance, Bucket at 45°	100 in (2540 mm)	105 in (2670 mm)	104 in (2640 mm)
c. Bucket Dump Angle, Max	45°	45°	45°
d. Reach at Full Height, Bucket at 45°	35.5 in (902 mm)	31.0 in (787 mm)	32.2 in (818 mm)
e. Rollback Angle at Ground Level	40°	40°	40°
f. Digging Depth Below Ground	4.2 in (107 mm)	6.2 in (157 mm)	5.9 in (150 mm)
Raising Time to Full Height	4.8 sec	4.8 sec	4.8 sec
Bucket Dump Time	1.4 sec	1.4 sec	1.4 sec
Bucket Lowering Time (Power Down)	2.3 sec	2.3 sec	2.3 sec

Lift Capacity at Maximum Height	5038 lb (2287 kg)
Lift Capacity at Maximum Reach	7462 lb (3388 kg)
Lift Capacity at Ground Line	9853 lb (4473 kg)
D1. Below Ground Line (to bottom of tine)	4.4 in (113 mm)
D1. Below Ground Line (to top of tine)	2.7 in (68.3 mm)

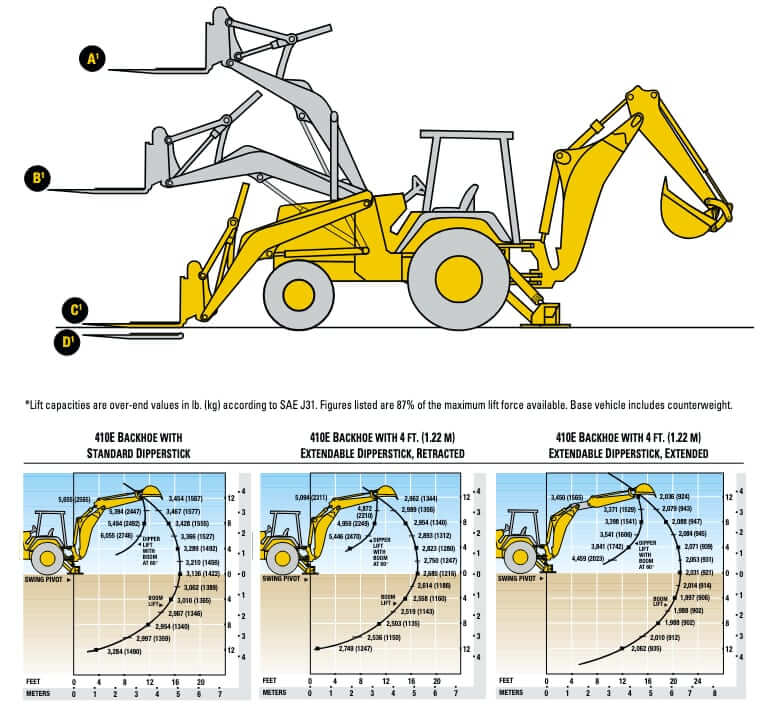

John Deere 410E backhoe loader lift capacity with quick coupler/forks

Number Of Cylinders	4
Engine Make	John Deere
Engine Model	John Deere 4045T
Displacement	276 cu in (4.524 L)
Bore	4.17 in (106 mm)
Stroke	5.00 in (127 mm)
Gross Power	98 hp (73 kw)
Net Power	90 hp (67 kw)
Power Measured @	2200 rpm
Max Torque	287 lb ft (389 Nm)
Torque Measured @	1400 rpm
Net Torque Rise	34 %
Fuel Consumption	1.5 to 2.5 gal/h (5.7 to 9.5 L/h)
Lubrication System	Pressure system with full-flow spin-on filter and cooler
Air Cleaner	Dual stage dry type with safety element and precleaner
Aspiration	Turbocharged
Emission Standards	US CARB / EPA Tier 2

Operating Weight	15000 lb (6804 kg)
Lifting Capacity, Full Height	7340 lb (3332 kg)
Operating Voltage	12 V
Alternator	65 amps
Battery (Standard)	12 V, RC: 150 min, CCA 750
Battery (Optional)	2x 12 V, RC: 300 min, CCA 1500
Front Counterweights, #1	400 lb (181 kg)
Front Counterweights, #2	650 lb (295 kg)
Front Counterweights, #3	900 lb (408 kg)
Front Counterweights, #4	1150 lb (522 kg)
Front Counterweights, #5	1400 lb (635 kg)
Turning Radius	11.7 ft in (3560 mm)
Front Tire Size (2WD/4WD)	11L-16 F3; 14.5/75-16.1 F3; 12.5/80-18 traction
Rear Tire Size (2WD/4WD)	19.5L-24,10 PR R4; 21L-24 R4

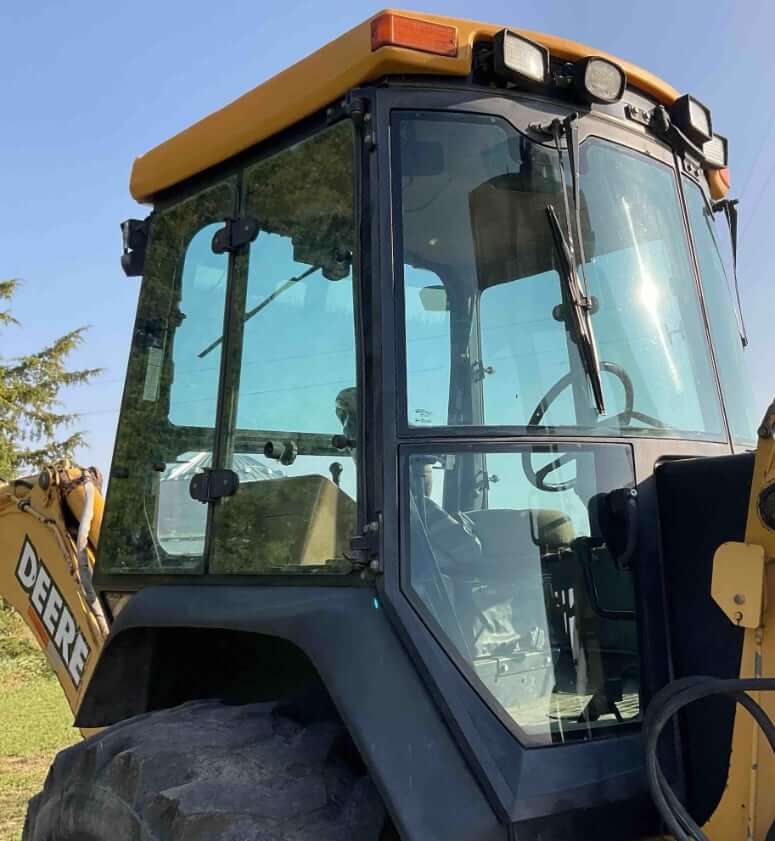

ROPS/FOPS	Canopy with molded roof Isolation mounted / Conforms to SAE J1040
Working Lights	2 (4) front halogen driving/work lights + 2 rear halogen work lights

Transmission Type	4-speed, helical cut gear, collar shift synchronized in all gears with hydraulic reverser
Number Of Gears	4F / 4R
Max Speed, Forward	24.4 mph (39.3 km/h)
Max Speed, Reverse	27.2 mph (43.8 km/h)
Final Drives	Heavy-duty, inboard planetary final drives evenly distribute shock loads over three gears
Service Brakes	Hydraulic wet disk, mounted inboard, self adjusting and self equalizing

Steering Type	Hydrostatic power steering conforms to SAE J1151
Emergency Steering	SAE J53
Curb Turning Radius w/ Brakes (2WD)	140 in (3560 mm)
Curb Turning Radius w/o Brakes (2WD)	159 in (4040 mm)
Bucket Clearance Circle w/ Brakes (2WD)	380 in (9650 mm)
Bucket Clearance Circle w/o Brakes (2WD)	417 in (10590 mm)
Steering Wheel Turns, Stop to Stop (2WD)	2.3 to 3.0
Curb Turning Radius with Brakes (MFWD)	137 in (3480 mm)
Curb Turning Radius without Brakes (MFWD)	162 in (4110 mm)
Bucket Clearance Circle with Brakes (MFWD)	355 in (9020 mm)
Bucket Clearance Circle without Brakes (MFWD)	404 in (10260 mm)
Steering Wheel Turns, Stop to Stop (MFWD)	2.5
Axle Oscillation, Both Axles	22°
Front Axle Rating	22360 lb (10140 kg)
Rear Axle Rating	15530 lb (7045 kg)

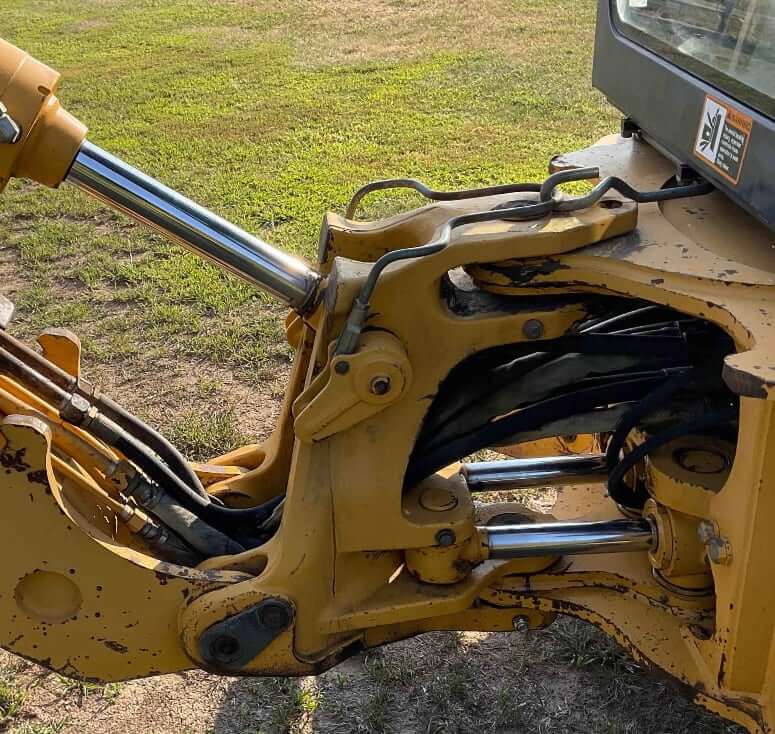

Type	Pressure compensated load sensing (PCLS)
Pump Type	Axial-piston
Pump Flow Capacity	42 gal/min (159 L/min)
Relief Valve Pressure	3625 psi (25000 kPa)
Hydraulic Filter	Spin-on vertical replaceable element, 10-micron

Fuel Tank Capacity	36 gal (136 L)
Engine Oil Capacity	3.5 gal (13 L)
Cooling System Capacity	4.3 gal (16 L)
Hydraulic System Fluid Capacity	25 gal (95 L)
Hydraulic Tank Capacity	25 gal (95 L)
Transmission Fluid Capacity	3.7 gal (14 L)
Mechanical Font Wheel-Drive Axle	2.3 gal (8.5 L)
Rear Axle Fluid Capacity	3.5 gal (13 L)
