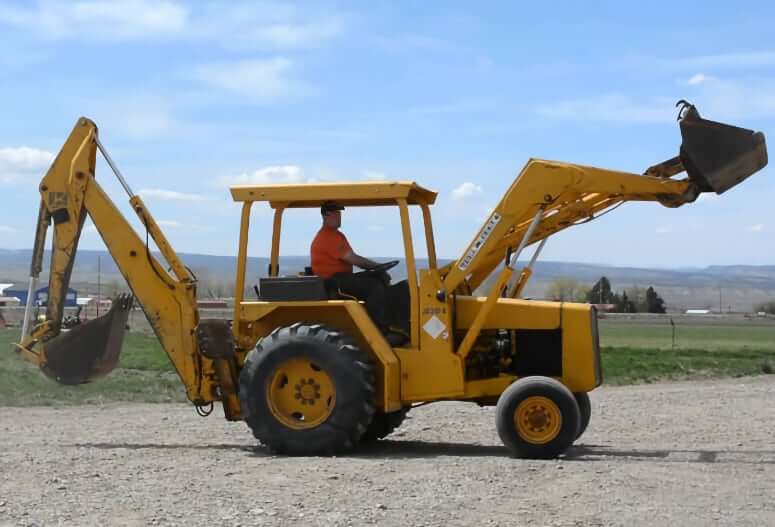

Dimensions
| Transport Length | 120 in (3050 mm) |
| Transport Width | 74.8 in (1900 mm) |
| Transport Height | 113.9 in (2893 mm) |
| Ground Clearance | 15.5 in (394 mm) |
| Wheelbase | 77 in (1950 mm) |
Backhoe
| Digging Depth | 181 in (4590 mm) |
| 2-Foot Flat Digging Depth | 169 in (4290 mm) |
| Reach from Pivot | 205 in (5200 mm) |
| Loading Height | 124 in (3140 mm) |
| Swing Arc | 180° |
| Bucket Force | 10500 lbf (46.7 kN) |
| Boom Lower Time (Full Height to Maximum Depth) | 4.1 sec |
| Boom Lower Time (Full Height to Ground) | 1.9 sec |
| Boom Raise Time (Ground to Full Height) | 2.1 sec |
| Boom Raise Time (Max Depth to Full Height) | 4.5 sec |
| Bucket Curl Time | 2.3 sec |
| Bucket Dump Time | 1.9 sec |
| Dipperstick In Time | 3.6 sec |
| Dipperstick Out Time | 3.3 sec |
| Swing (180°) Time | 3.5 sec |
Loader
| Lift Capacity (Full at Pin) | 4000 lb (1814 kg) |
| Breakout Force | 7100 lbf (31.58 kN) |
| Dump Angle | 50° |
| Rollback Angle (Ground Line) | 40° |
| Reach (Dumped) | 31.3 in (790 mm) |
| Height (at Pin) | 122 in (3090 mm) |
| Clearance (Dumped) | 99 in (2510 mm) |
| Bucket Width | 89.4 in (2270 mm) |
| Boom Down Time (Power) | 2.9 sec |
| Boom Down Time (Float) | 3.5 sec |
| Boom Raise Time | 4.1 sec |
| Bucket Dump (Boom at Full Height) | 1.8 sec |
| Bucket Rollback (Flat on Ground) | 0.8 sec |
| Bucket Rollback (From Maximum Dump Position and Boom at Full Height) | 1.5 sec |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | John Deere |
| Engine Model | John Deere 300 Series |
| Displacement | 164 cu in (2.7 L) |
| Bore | 4.02 in (102 mm) |
| Stroke | 4.33 in (110 mm) |
| Net Power | 50 hp (37.4 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 129 lb ft (175 Nm) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Naturally aspirataed |
Operational Specs
| Operating Weight | 12519 lb (5678 kg) |
| Operating Voltage | 12 V |
| Battery | 2x 6 V |
| Front Tire Size | 7.50-16 / 11L-15 |
| Rear Tire Size | 16.9-24 / 19.5L-24 |
Transmission
| Transmission Type | Collar Shift with hydraulic reverser |
| Number of Forward Gears | 8 |
| Number of Reverse Gears | 4 |
| Max Travel Speed | 14.0 mph (22.5 km/h) |
Hydraulic System
| Type | Load Sensing Hydraulics |
| Hydraulic Pump Type | Variable Displacement Piston Pump |
| Hydraulic Pump Size | 3.0 cu in. (0.05 L) |
| Pump Flow Capacity | 23 gal/min (87.1 L/min) |
| Standby Pressure | 2300 – 2400 psi (15860 – 16550 kPa) |
| Loader Circuit Relief Valve, Auxiliary | 2500 psi (17240 kPa) |
| Loader Circuit Relief Valve, Bucket Dump | 1500 psi (10305 kPa) |
| Loader Circuit Relief Valve, Bucket Rollback | 2750 psi (18960 kPa) |
| Backhoe Circuit Relief Valve, Boom Lower | 2375 psi (16375 kPa) |
| Backhoe Circuit Relief Valve, Boom Raise (Early Units) | 3000 psi (20685 kPa) |
| Backhoe Circuit Relief Valve, Boom Raise (Later Units) | 3500 psi (24135 kPa) |
| Backhoe Circuit Relief Valve, Crowd | 2375 psi (16375 kPa) |
| Backhoe Circuit Relief Valve, Swing Right and Left | 2375 psi (16375 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 19.5 gal (73.8 L) |
| Engine Oil Capacity | 3.0 gal (11.3 L) |
| Cooling System Capacity (Early Units) | 1.75 gal (6.62 L) |
| Cooling System Capacity (Later Units) | 2.25 gal (8.5 L) |
| Transmission / Hydraulic Oil Capacity | 20.5 gal (77.6 L) |
