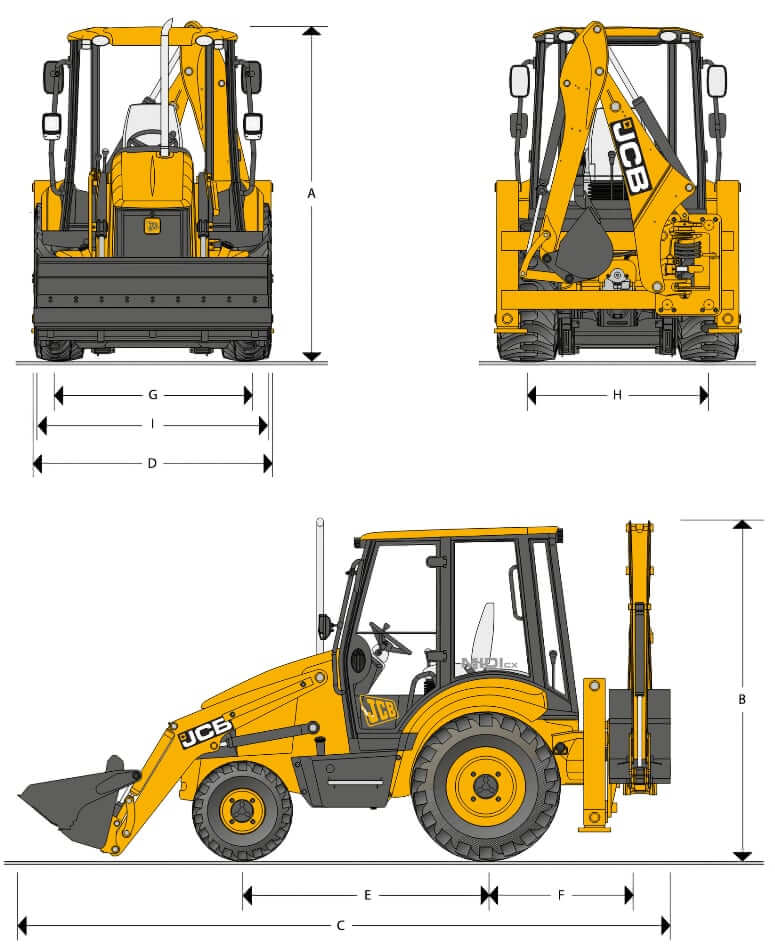

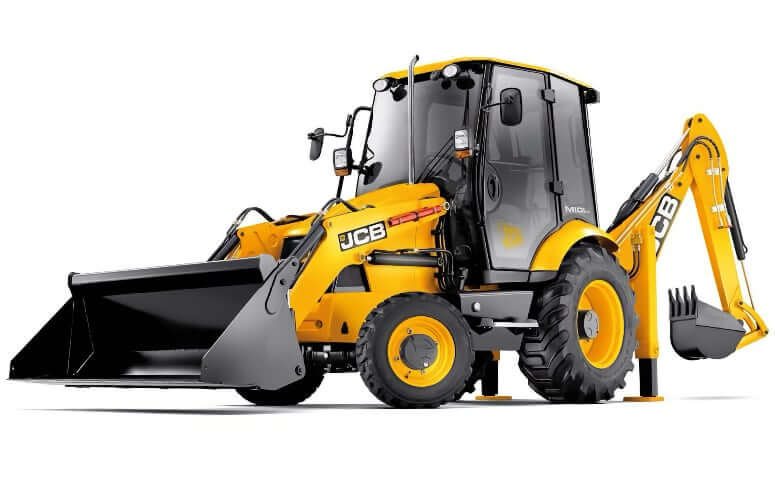

Dimensions
| A. Height to Top of Cab |
100 in (2550 mm) |
| B. Transport Height |
100 in (2550 mm) |
| C. Transport Length |
205 in (5220 mm) |
| D. Overall Width (over tyres) |
73 in (1845 mm) |
| E. Wheelbase |
73 in (1860 mm) |
| F. Slew Centre to Rear Axle Centre Distance |
47 in (1200 mm) |
| G. Front Wheel Track |
59 in (1510 mm) |
| H. Rear Wheel Track |
54 in (1370 mm) |
| I. Shovel Width |
73 in (1845 mm) |
| Departure Angle |
24° |
| Approach Angle |
80° |
| Interface Angle/Ramp to Ground Plane |
127° |
Weight
| Loader with no Loader Bucket and Backhoe |
8973 lb (4070 kg) |
| Loader with GP Bucket and Backhoe |
9310 lb (4223 kg) |
| No Back End, Fitted with GP Shovel, 3-Point Hich, PTO and Creep Speed (no links fitted) |
7083 lb (3213 kg) |
| Loader Rated Operating Capacity with GP Bucket |
3055 lb (1386 kg) |
| Loader Rated Operating Capacity with 6-in-1 Bucket |
2615 lb (1186 kg) |

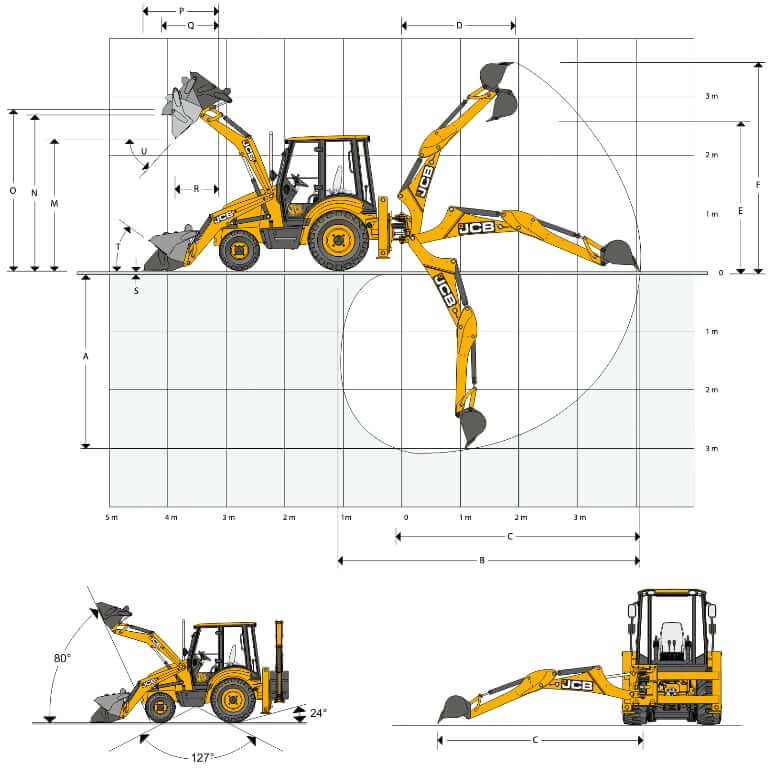

| A. Maximum Dig Depth, SAE |
120 in (3048 mm) |
| A. Maximum Dig Depth 2 ft Flat Bottom, SAE |
116 in (2958 mm) |
| B. Reach – Ground Level to Rear Wheel Centre, SAE |
197 in (5010 mm) |
| C. Reach at Ground Level to Slew Centre, SAE |
146 in (3720 mm) |
| D. Reach at Full Height to Slew Centre, SAE |
74 in (1875 mm) |
| E. Maximum Load Height, SAE |
106 in (2700 mm) |
| F. Maximum Working Height, SAE |
142 in (3600 mm) |
| Swing Arc |
180° |
| Bucket Tearout, SAE |
6025 lbf (26.80 kN) |
| Dipper Tearout, SAE |
4548 lbf (20.23 kg) |
| Slew Torque |
9470 lb ft (12840 Nm) |
| M. Dump Height |
83 in (2115 mm) |
| N. Load Height |
110 in (2790 mm) |
| O. Pin Height |
116 in (2940 mm) |
| P. Reach at Ground Level (Toe Plate Horizontal) |
56 in (1425 mm) |
| Q. Maximum Reach at Full Height |
45 in (1150 mm) |
| R. Reach at Full Height – Fully Dumped |
22 in (563 mm) |
| S. Dig Depth (Toe Plate Horizontal) Clearance |
3 in (76 mm) |
| T. Rollback at Ground Level |
40° |
| U. Dump Angle, SAE |
60° |
| GP Bucket Breakout, SAE |
5830 lb (25.95 kN) |
| Maximum Lift Capacity to Max Height, SAE |
3478 lb (1578 kg) |
| GP Bucket Capacity |
0.59 yd3 (0.45 m3) |
| Side Tip Shovel Capacity |
0.51 yd3 (0.39 m3) |
| Rated Operating Load with Forks @ 500mm |
1795 lb (814 kg) |
| Rated Operating Load with Forks @ 400mm |
1984 lb (900 kg) |
Engine Details
| Number Of Cylinders |
4 |
| Engine Make |
Perkins |
| Engine Model |
Perkins 404C22 |
| Displacement |
134.3 cu in (2.2 L) |
| Gross Power |
50 hp (37.3 kw) |
| Net Power |
48.5 hp (36.2 kw) |
| Power Measured @ |
2800 rpm |
| Peak Torque |
105 lb ft (143 Nm) |
| Torque Measured @ |
1800 rpm |
| Aspiration |
Naturally aspirated |
| Emission Standards |
US EPA Tier 3 + EU Stage IIIA |
Operational Specs
| Max Operating Weight |
9310 lb (4223 kg) |
| Basic Machine Weight |
8973 lb (4070 kg) |
| Operating Voltage |
12 V |
| Alternator |
65 amps |
| Battery |
12 V, CCA 680 |
| Operator Cab |
Full ROPS/FOPS cab (Category 1) |
| Operator Seat |
Turning mechanical suspension seat, 180° turn |
| Front Tire Size |
10 x 16.5 Galaxy Ind (Standard) / 10 x 16.5 Turf tyre (Optional) |
| Rear Tire Size |
12.4 17L24 Galaxy Ind lug (Standard) / 17.5 L24 Turf tyre (Optional) |
Transmission
| Type |
Hydrostatic Transmission |
| Max Forward Speed |
17.4 mph (28 km/h) |
| Max Reverse Speed |
17.4 mph (28 km/h) |
| Number of Gears |
2 |
| Drive |
4WD |
| Forward/Reverse Lever |
Located under the steering wheel |
Steering
| Steering Axle |
Front |
| Steering Turns (lock to lock) |
2.5 |
| Kerb-kerb Turning Circle |
141.3 in (3590 mm) |
| Kerb-kerb Loader Clearance Circle |
202.8 in (5150 mm) |
| Service Brakes |
Brake pedal applied, oil-immersed multi disc inboard brakes with split pedals and independent braking. There are 3 discs each side for the service brakes |
When the service brake is applied, the transmission will automatically slow down giving a more positive brake feel.

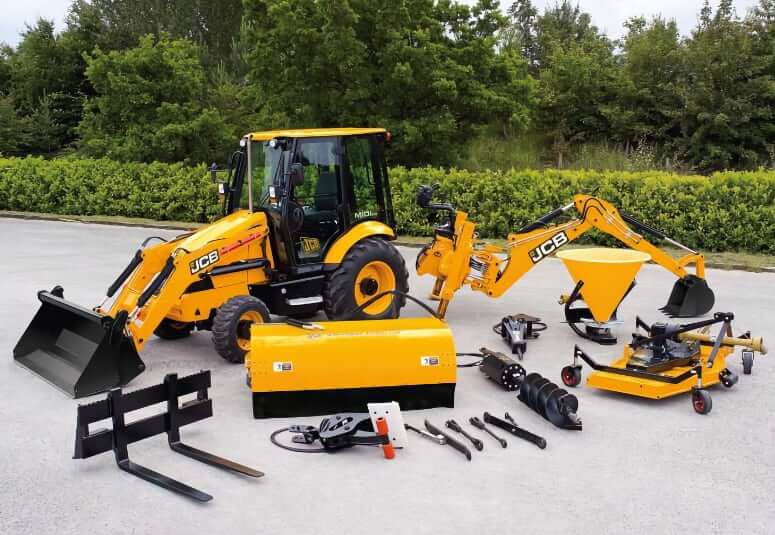

PTO (Power Take-Off)
| Rear PTO Speed |
540 rpm |
| Rear PTO Power |
25 hp (18.6 kw) |
| Power Take-Off Spline |
13/8 in (41.3 mm) shaft |
3-Point Hitch
| 3-Point Hitch Category |
1 standard |
| Control Type |
Position only |
| Lift Capacity @ Link Ends |
3130 lb (1420 kg) |
| Lift Capacity @ 24 in Behind Lift Point |
2500 lb (1135 kg) |
Hydraulic System
| Pump Type |
Fixed displacement pump |
| Pump Flow Capacity |
19.9 gal/min (75 L/min) |
| Relief Valve Pressure |
3451 psi (23800 kPa) |
Service Refill Capacities
| Fuel Tank Capacity |
15.8 gal (60 L) |
| Engine Oil Capacity |
2.4 gal (9.5 L) |
| Cooling System Capacity |
2.9 gal (11.9 L) |
| Hydraulic System Capacity |
23.8 gal (90 L) |
| Front Axle Fluid Capacity |
1.3 gal (5.3 L) |
| Rear Axle Fluid Capacity |
1.8 gal (7 L) |
| Front Axle Hub Capacity (each) |
0.16 gal (0.6 L) |
| Rear Axle Hub Capacity (each) |
0.16 gal (0.6 L) |
