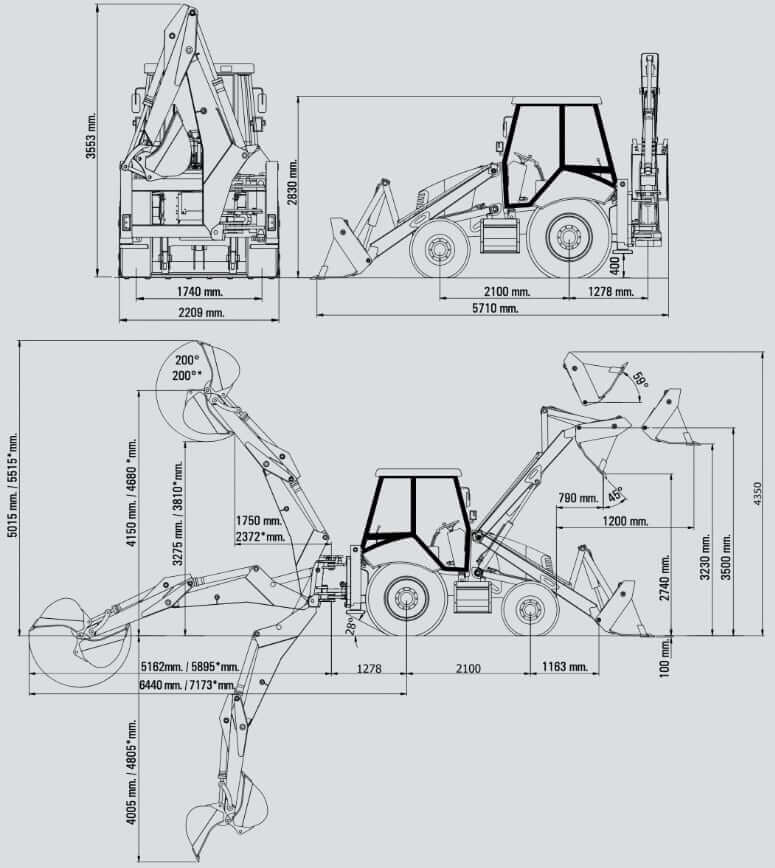

Dimensions
| Transport Length | 224.8 in (5710 mm) |
| Transport Width | 87 in (2209 mm) |
| Transport Height | 139.9 in (3553 mm) |
| Height to Top of Cab | 111.4 in (2830 mm) |
| Ground Clearance | 15.7 in (400 mm) |
| Wheel Track | 68.5 in (1740 mm) |
| Wheelbase | 82.7 in (2100 mm) |
Weight
| Operating Weight (2WD) | 15653 lb (7100 kg) |
| Operating Weight (4WD) | 18739 lb (8500 kg) |
Backhoe
| Cukurova 880 | Retracted | Extended |
|---|---|---|
| Bucket Width | 23.6 in (600 mm) | 23.6 in (600 mm) |
| Bucket Capacity | 0.26 yd3 (0.2 m3) | 0.26 yd3 (0.2 m3) |
| Bucket Tearout | 9892 lbf (44 kN) | 9892 lbf (44 kN) |
| Dipper Tearout | 6744 lbf (30 kN) | 6744 lbf (30 kN) |
| Max. Digging Depth | 157.7 in (4005 mm) | 189.2 in (4805 mm) |
| Max. Reach From Rear Axle Center | 253.5 in (6440 mm) | 282.4 in (7173 mm) |
| Max. Reach From Swing Center | 203.2 in (5162 mm) | 232.1 in (5895 mm) |
| Max. Digging Height | 97.4 in (5015 mm) | 217.1 in (5515 mm) |
| Max. Dumping Height | 128.9 in (3275 mm) | 150.0 in (3810 mm) |
| Loading Reach | 68.9 in (1750 mm) | 93.4 in (2372 mm) |
| Bucket Rotation Angle | 200° | 200° |
| Max. Bucket Hinge pin Height | 163.4 in (4150 mm) | 184.2 in (4678 mm) |
Loader
| Bucket Width | 87.8 in (2230 mm) |
| Bucket Capacity | 1.31 yd3 (1.0 m3) |
| Lift Capacity At Full Height | 6647 lb (3015 kg) |
| Bucket Breakout Force | 10566 lbf (47 kN) |
| Bucket Breakout Force | 9892 lbf (44 kN) |
| Clearance At Max Dump Height | 107.9 in (2740 mm) |
| Reach At Max Dump Height | 31.1 in (790 mm) |
| Dig Depth | 3.94 in (100 mm) |
Engine Details
| Emission Standards | Stage IIIA | Stage IV |
|---|---|---|
| Number Of Cylinders | 4 | 4 |
| Engine Model | Perkins 1104D – 44T | Perkins 854E-E34TA |
| Displacement | 268.5 cu in (4.4 L) | 207.48 cu in (3.4 L) |
| Gross Power | 94 hp (70 kw) | 94 hp (70 kw) |
| Power Measured @ | 2300 rpm | 2200 rpm |
| Net Max Torque | 289 lb ft (392 Nm) | 291 lb ft (395 Nm) |
| Aspiration | Turbocharged | Turbocharged and aftercooled |
Operational Specs
| Min Operating Weight | 15653 lb (7100 kg) |
| Max Operating Weight | 18739 lb (8500 kg) |
| Operating Voltage | 12 V |
| Starter | 4.3 hp (3.2 kw) 12 V |
| Battery | 12 V, 105 Ah |
| Front Tire Size (2WD / 4WD) | 9,0 x 16-12 / 12,5/80-18 |
| Rear Tire Size (2WD / 4WD) | 16,9 – 28 / 16,9 – 28 |
| Turning Radius, Outer Front Tire Clearance (w/o brakes) | 311 in (7900 mm) |
| Turning Radius, Outer Loader Bucket Clearance (w/o brakes) | 449 in (11400 mm) |
Transmission
| Transmission Type | Carraro Powershuttle transmission |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Forward Speed | 24.9 mph (40 km/h) |
| Max Reverse Speed | 24.9 mph (40 km/h) |
| Axle Oscillations | 16° total oscillation on front axle |
| Rear Axle | Carraro electro-hydraulic operated differential lock |
| Service Brake | Hydraulic wet multi-disc foot operated service brake 2 pedals acted on 4 wheels |
| Parking Brake | Mechanical control on rear axle |
Hydraulic System
| Type | Open cennter hydraulic system |
| Pump Type | Tandem pump |
| Pump Flow Capacity | 14.8 + 20.9 gal/min (56 + 79 L/min) |
| Relief Valve Pressure | 3191 psi (22000 kPa) |
| Backhoe Hydraulic Controls | Mechanical control levers |
| Loader Hydraulic Control | Mechanical control lever |
Service Refill Capacities
| Fuel Tank Capacity | 31.8 gal (120 L) |
| Engine Oil Capacity | 2.3 gal (8.4 L) |
| Cooling System Capacity | 6.1 gal (23 L) |
| Hydraulic System Capacity | 33.1 gal (125 L) |
| Front Axle Oil Capacity | 2.2 gal (8.3 L) |
| Rear Axle OIl Capacity | 4.1 gal (15.5 L) |
| Brake Oil Capacity | 0.1 gal (0.4 L) |
