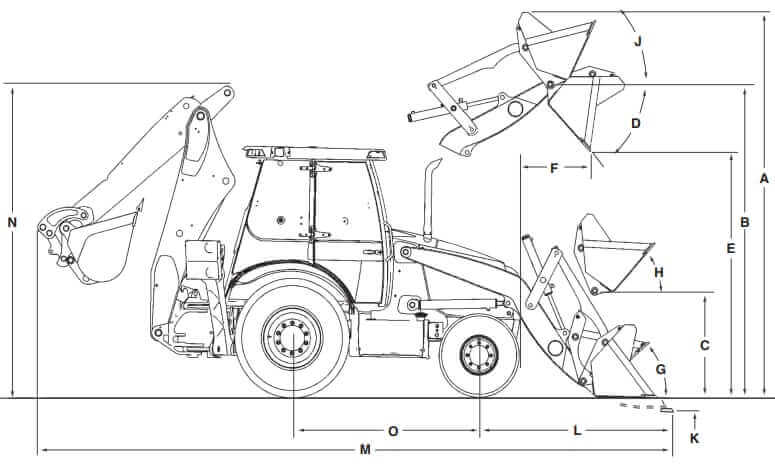

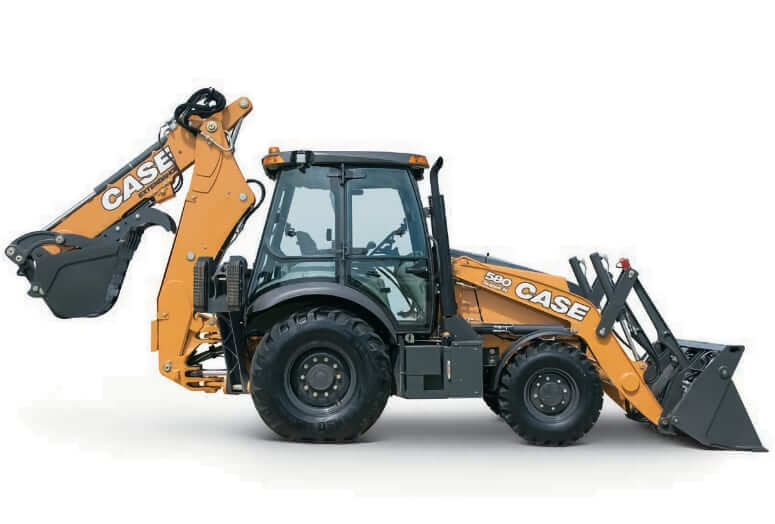

Dimensions
| Case 580 SN | 2WD w/ 17.5L x 24 Rear Tires | 4WD w/ 19.5L x 24 Rear Tires |
|---|---|---|
| M. Overall Transport Length – Long Lip Bucket w/ Quick Coupler | 281.1 in (7140 mm) | 279.5 in (7100 mm) |
| M. Overall Transport Length – 4 in 1 Bucket w/ Quick Coupler | 278.5 in (7070 mm) | 277.3 in (7040 mm) |
| M. Overall Transport Length – Long Lip Bucket w/Straight Links | 281.7 in (7150 mm) | 280.3 in (7120 mm) |
| M. Overall Transport Length – 4 in 1 Bucket w/ Straight Links | 279.1 in (7090 mm) | 277.9 in (7060 mm) |
| Overall Transport Width | 85.5 in (2170 mm) | 85.5 in (2170 mm) |
| Height to Top of Canopy | 104.1 in (2640 mm) | 104.8 in (2660 mm) |
| Height to Top of Cab | 105.4 in (2680 mm) | 107.0 in (2720 mm) |
| Height to Top of Exhaust Stack | 101.4 in (2580 mm) | 102.9 in (2620 mm) |
| N. Transport Height | 129.9 in (3290 mm) | 132.5 in (3370 mm) |
| Ground Clearance at Backhoe Frame | 12.0 in (304 mm) | 15.0 in (381 mm) |
| Angle of Departure | 15.3° | 19° |
| Front Wheel Tread (11.0 L x 16.0) | 67.5 in (1714 mm) | |
| Front Wheel Tread (12.0 L x 16.5) | 67.7 in (1720 mm) | |
| Front Wheel Tread (12.5/80 x 18.0) | 70.3 in (1786 mm) | |
| Front Wheel Tread (19.5 L x 24.0) | 61.2 in (1554 mm) | |
| Front Wheel Tread (17.5 L x 24.0) | 63.1 in (1600 mm) | |
| Width Across Tires (11.0 L x 16.0) | 79.3 in (2014 mm) | |
| Width Across Tires (12.0 L x 16.5) | 81.1 in (2060 mm) | |
| Width Across Tires (12.5/80 x 18.0) | 82.9 in (2106 m) | |
| Width Across Tires (19.5 L x 24.0) | 81.4 in (2068 m) | |
| Width Across Tires (17.5 L x 24.0) | 81.7 in (2070 mm) | |
| O. Wheelbase | 84.0 in (2130 mm) | 84.5 in (2150 mm) |
Loader Dimensions
| Case 580 SN | Long Lip Bucket | 4 in 1 Bucket |
|---|---|---|
| A. Overall Operating Height – Fully Raised | 164.6 in (4180 mm) | 163.8 in (4160 mm) |
| B. Bucket Hinge Pin Fully Raised | 134.5 in (3420 mm) | 134.5 in (3420 mm) |
| C. Bucket Hinge Pin @ SAE Carry | 13.6 in (345 mm) | 13.6 in (345 mm) |
| D. Dump Angle @ Full Height | 47° | 47° |
| E. Dump Clearance @ Full Height, 45° Dump – Bucket | 105.9 in (2690 mm) | 106.9 in (2710 mm) |
| E. Dump Clearance @ Full Height, 45° Dump – Clam Open | NA | 116.3 in (2960 mm) |
| F. Dump Reach @ Full Height, 45° Dump – Bucket | 31.5 in (801 mm) | 29.1 in (738 mm) |
| F. Dump Reach @ Full Height, 45° Dump – Clam Open | NA | 15.3 in (388 mm) |
| G. Bucket Rollback @ Groundline | 42° | 42° |
| H. Bucket Rollback @ SAE Carry | 42° | 42° |
| J. Bucket Rollback @ Full Height | Adjustable | Adjustable |
| K. Digging Depth Below Grade – Bucket Flat | 6.1 in (155 mm) | 4.8 in (122 mm) |
| K. Digging Depth Below Grade – Clam Open | NA | 4.1 in (103 mm) |
| L. Reach from Front Axle Centerline – Bucket on Ground | 81.5 in (2070 mm) | 72.7 in (2030 mm) |
| Lift Capacity to Full Height (Calculated) | 7044 lb (3195 kg) | 6703 lb (3040 kg) |
| Breakout Force – Lift Cylinders | 9833 lbf (43.73 kN) | 9610 lbf (42.79 kN) |
| Breakout Force – Dump Cylinders | 10947 lbf (48.70 kN) | 11658 lbf (51.89 kN) |
| Bucket Cutting Edge Width | 82.5 in (2090 mm) | 82 in (2080 mm) |
| Maximum Grading Angle | 114° | 114° |
| Maximum Clam Opening | NA | 38.3 in (972 mm) |
| Moldboard Height | NA | 36.8 in (934 mm) |
| Raising Time to Full Height – Manual/Pilot | 2.6/3.2 sec | 2.6/3.2 sec |
| Bucket Dumping Time | 0.8/1.2 sec | 0.8/1.2 sec |
| Lowering Time – Power Down | 1.9/2.1 sec | 1.9/2.1 sec |
| Lowering Time – Return-to-Dig | 2.5/2.2 sec | 2.5/2.2 sec |
| Clam – Open Time | NA | 1.1 sec |
| Clam – Close Time | NA | 1.1 sec |

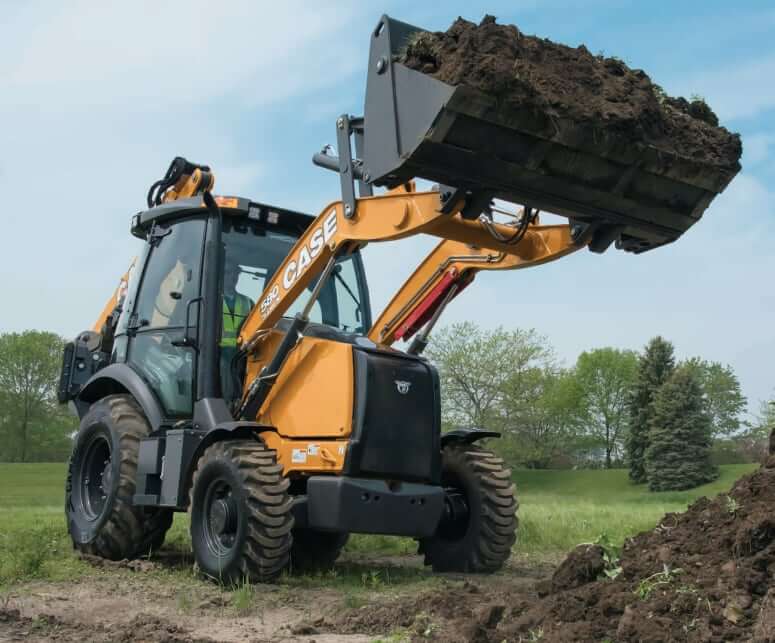

Loader Buckets
| Buckets | GP Bucket, 82″ | GP Bucket, 93″ | 4 in 1, 82″ |
|---|---|---|---|
| Type | Long Lip Bucket 82 in w/o bolt-on edge | Long Lip Bucket 93 in w/ bolt-on edge | 4 in 1 Bucket w/ bolt-on edge |
| Bucket Width | 82 in (2083 mm) | 93 in (2362 mm) | 82 in (2083 mm) |
| Bucket Weight | 864 lb (392 kg) | 1188 lb (539 kg) | 1572 lb (713 kg) |
| Bucket Capacity, Struck | 0.88 yd3 (0.67 m3) | 1.10 yd3 (0.89 m3) | 0.85 yd3 (0.65 m3) |
| Bucket Capacity, Heaped | 1.01 yd3 (0.77 m3) | 1.30 yd3 (0.99 m3) | 1.04 yd3 (0.80 m3) |

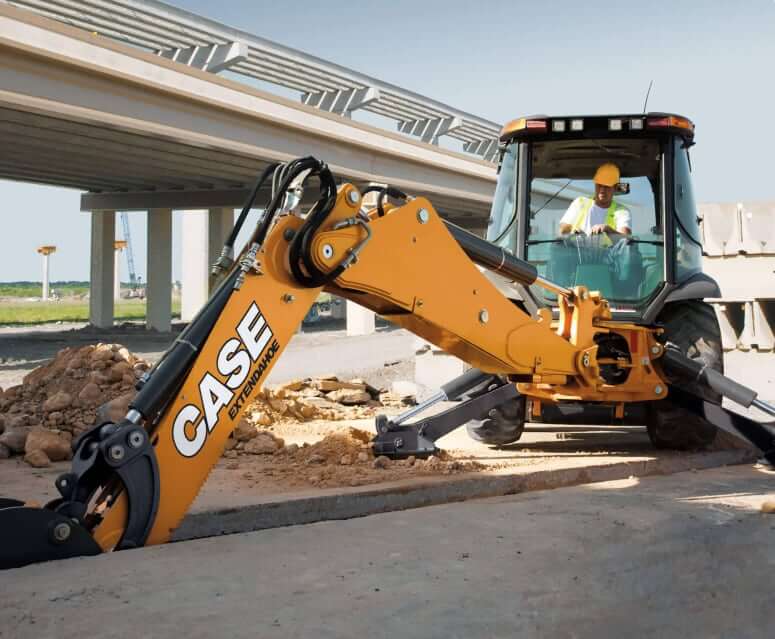

Backhoe Performance
| Case 580 SN | Standard Backhoe | Extendahoe | |
|---|---|---|---|
| Retracted | Extended | ||
| Digging Depth – Maximum | 173.6 in (4410 mm) | 173.6 in (4410 mm) | 215.4 in (5470 mm) |
| Digging Depth – Max w/ Hi-Capacity Bucket | 179.9 in (4510 mm) | 179.9 in (4510 mm) | 221.5 in (5630 mm) |
| Digging Depth – 2 ft (610 mm) Flat Bottom | 172.1 in (4370 mm) | 172.1 in (4370 mm) | 213.8 in (5430 mm) |
| Digging Depth – 8 ft (2.44 m) Flat Bottom | 160.0 in (4060 mm) | 160.0 in (4060 mm) | 204.5 in (5190 mm) |
| Overall Reach – From Rear Axle Centerline | 262.3 in (6660 mm) | 262.3 in (6660 mm) | 302.9 in (7690 mm) |
| Overall Reach – From Swing Pivot | 218.4 in (5550 mm) | 218.4 in (5550 mm) | 259.0 in (6580 mm) |
| Loading Height | 144.5 in (3670 mm) | 144.5 in (3670 mm) | 172.5 in (4380 mm) |
| Loading Reach | 55.4 in (1410 mm) | 55.4 in (1410 mm) | 86.7 in (2200 mm) |
| Swing Arc | 180° | 180° | 180° |
| Bucket Rotation – Straight Links | 175.6° | 175.6° | 175.6° |
| Bucket Rotation – Mechanical Coupler | 198° | 198° | 198° |
| Bucket Rotation – Hydraulic Coupler (Extendahoe Dipper) | 194.8° | 194.8° | 194.8° |
| Bucket Rotation – Hydraulic Coupler (Standard Dipper) | 180° | 180° | 180° |
| Stabilizer Spread – Operating (Flip Pad) | 111.0 in (2820 mm) | 111.0 in (2820 mm) | 111.0 in (2820 mm) |
| Stabilizer Spread – Operating (Cast Pad) | 115.2 in (2930 mm) | 115.2 in (2930 mm) | 115.2 in (2930 mm) |
| Digging Force – Bucket Cylinder (SAE Rated) | 13975 lbf (61.4 kN) | 13975 lbf (61.4 kN) | 13975 lbf (61.4 kN) |
| Digging Force – Bucket Cylinder (Power Lift) | 14452 lbf (64.2 kN) | 14452 lbf (64.2 kN) | 14452 lbf (64.2 kN) |
| Digging Force – Dipper Cylinder (SAE Rated) | 8657 lbf (38.5 kN) | 8657 lbf (38.5 kN) | 6305 lbf (28.0 kN) |
| Digging Force – Dipper Cylinder (Power Lift) | 9070 lbf (40.3 kN) | 9070 lbf (40.3 kN) | 6606 lbf (29.4 kN) |
| Leveling Angle – Flip Pad | 11.8° | 11.8° | 11.8° |
| Leveling Angle – Cast Pad | 12.8° | 12.8° | 12.8° |

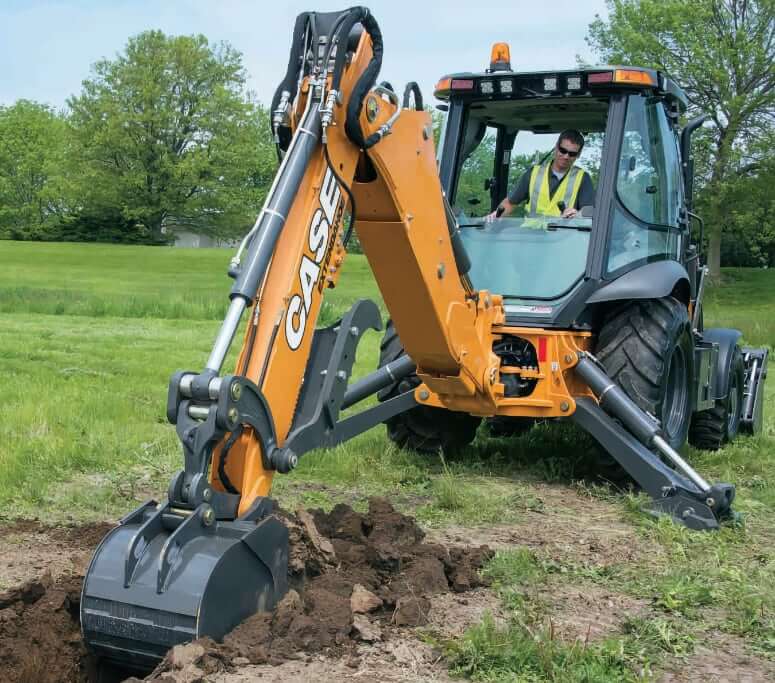

Backhoe Buckets
| Bucket Width | Bucket Weight | Capacity, Heaped |
|---|---|---|
| 12 in (305 mm) | 295 lb (134 kg) | 3.40 ft3 (0.10 m3) |
| 18 in (457 mm) | 356 lb (162 kg) | 5.30 ft3 (0.15 m3) |
| 24 in (610 mm) | 427 lb (194 kg) | 7.70 ft3 (0.22 m3) |
| 30 in (762 mm) | 489 lb (222 kg) | 10.20 ft3 (0.29 m3) |
| 36 in (914 mm) | 552 lb (251 kg) | 12.70 ft3 (0.36 m3) |
| 24 in (610 mm) High Capacity | 447 lb (203 kg) | 8.50 ft3 (0.24 m3) |
| 30 in (762 mm) High Capacity | 502 lb (228 kg) | 10.60 ft3 (0.30 m3) |
Engine Details
| Engine Make | FPT Industrial (Tier 3) | FPT Industrial (Tier 4F) |
|---|---|---|
| Engine Model | FPT F4HE0484G | FPT F5BFL413B |
| Number of Cylinders | 4 | 4 |
| Displacement | 274 cu in (4.5 L) | 207 cu in (3.4 L) |
| Bore | 4.09 in (104 mm) | 3.90 in (99 mm) |
| Stroke | 5.19 in (132 mm) | 4.33 in (110 mm) |
| Gross Power | 97 hp (72 kw) | 97 hp (72 kw) |
| Net Power | 95 hp (71 kw) | 95 hp (71 kw) |
| Power Measured @ | 2200 rpm | 2200 rpm |
| Peak Torque | 333 lb ft (452 Nm) | 334 lb ft (453 Nm) |
| Torque Measured @ | 1400 rpm | 1400 rpm |
| Torque Rise | 45% | 45% |
| Low Idle | 900 – 1000 rpm | 900 – 1000 rpm |
| High Idle (no load) | 2330 – 2430 rpm | 2330 – 2430 rpm |
| Fuel System | Direct high pressure common rail (HPCR) | Direct high pressure common rail (HPCR) |
| Oil Filtration | Replaceable, full flow cartridge | Replaceable, full flow cartridge |
| Aspiration | Turbocharged | Turbocharged |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA | US EPA Tier 4 Final + EU Stage V |
Operational Specs

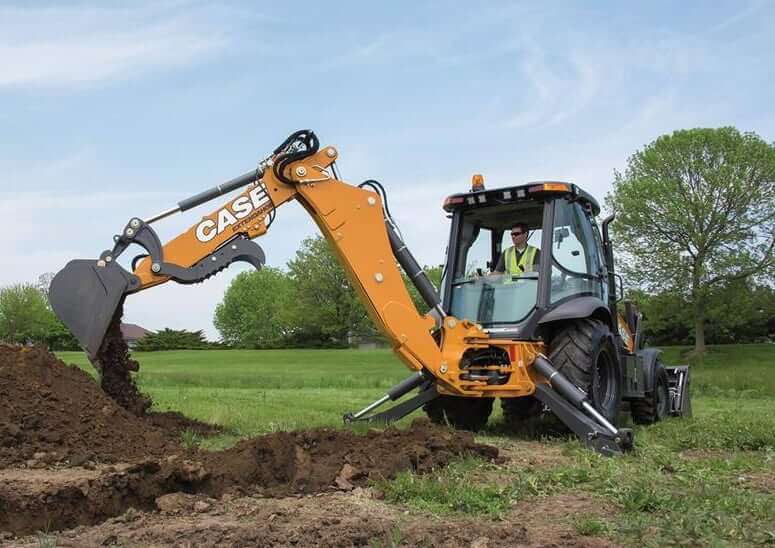

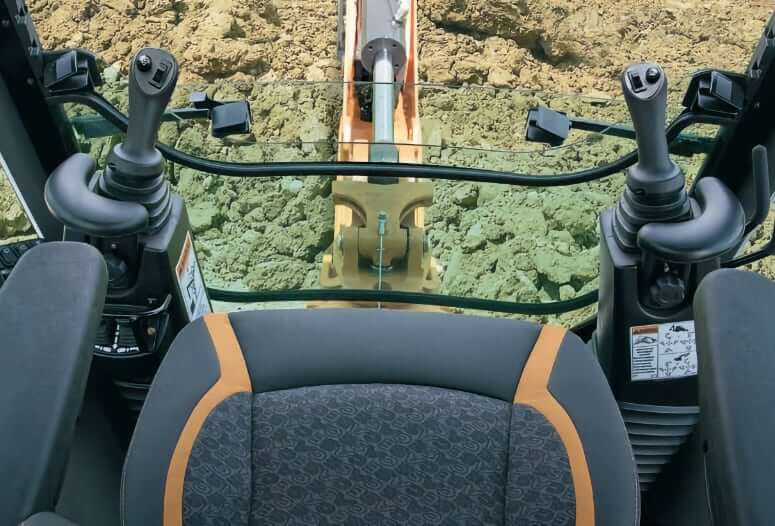

| Operating Weight, 2WD | 17810 lb (8078 kg) |
| Operating Weight, 4WD | 19750 lb (8958 kg) |
| Front Counterweight (Optional) | 1100 lb (500 kg) |
| Extendahoe Dipper Weight | 286 lb (130 kg) |
| Operating Voltage | 12 V |
| Alternator | 160 amps |
| Battery | 2x 12 V, CCA 850 |
| Power Plugs | 2x 30 amps total |
| Operator Station | ROPS/FOPS canopy |
| Operator Station (Optional) | ROPS/FOPS 2 door cab w/ heat, A/C, defroster |
| Noise Level (w/ optional Sound Reduction Package) | 72 dB(A) |
| Operator Seat | Mechanical suspension seat, vinyl, 180° swivel |
| Operator Seat (Optional) | Air Ride suspension seat with flip-up arm rests, 180° swivel |
| Seat Belt | 3 in (76 mm) retractable seat belt |
| Working Lights (Cab and Canopy) | 4x front + 2x side (one left, one right) + 4x rear adjustable halogen work lights (55 W) |
| Signal Lights (Cab and Canopy) | 2x rear tail/stop + 2x front flashers / turn + 2x rear flashers / turn |
Transmission
| Type | Power Shuttle | PowerDrive H-Type |
|---|---|---|
| Number of Gears | 4F / 4R | 4F / 4R |
| Max Forward Speed | 24.6 mph (39.6 km/h) | 25.0 mph (40.2 km/h) |
| Max Reverse Speed | 29.5 mph (47.5 km/h) | 29.8 mph (48.0 km/h) |
| Torque Converter Ratio | 2.2 | 2.2 |
Tires
| Front Tire Size, 2WD | 11.0 L x 16.0, 10-ply rating |
| Front Tire Size, 4WD | 12.0 L x 16.5, 10-ply rating 12.5/80 x 18.0 10-ply rating |
| Rear Tire Size, 2/4WD | 19.5 L x 24.0, 10-ply rating |
| Rear Tire Size, 2/4WD | 500/70 R24, 10-ply rating |
| Turning Diameter (curb to curb), 2WD w/ brakes | 10 ft 7.6 in (3.24 m) |
| Turning Diameter (curb to curb), 2WD w/o brakes | 12 ft 4 in (3.76 m) |
| Turning Diameter (curb to curb), 4WD engaged w/ brakes | 11 ft 4 in (3.45 m) |
| Turning Diameter (curb to curb), 4WD engaged w/o brakes | 13 ft 10 in (4.21 m) |
| Turning Diameter (curb to curb), 4WD disengaged w/ brakes | 11 ft 0 in (3.36 m) |
| Turning Diameter (curb to curb), 4WD disengaged w/o brakes | 12 ft 3 in (3.72 m) |
Axles and Brakes
| Front Axle, 2WD | Heavy-duty front axle w/ 11.0 L x 16.0 tires |
| Front Axle, 4WD | Heavy-duty mechanically driven front axle w/ 12.0 L x 16.5 tires and drive shaft guard |
| Rear Axle, 2/4WD | Heavy-duty outboard planetary drive w/ 19.5 L x 24.0 tires |
| Torque Converter | 11.8 in (300 mm) |
| Differential Lock | On-the-go |
| Differential Lock Control | Electric differential lock control, push button |
| 4WD Front / Rear Axle Differential Ratio | 2.0 / 2.5 |
| 4WD Front / Rear Axle Planetary Hub Ratio | 6.0 / 6.4 |
| 4WD Front / Rear Axle Total Reduction Ratio | 12.0 / 16.0 |
| Service Brakes | Individually applied, power assisted, hydraulically actuated, maintenance-free, self-adjusting, outboard mounted, wet disc, 2 per side |
| Brake Disc Area | 384 in2 (0.25 m2) |
| Parking Brake | Transmission mounted spring applied hydraulic release (SAHR) |
Axle Ratings
| Case 580 SN | Front Axle, 2WD | Front Axle, 4WD | Rear Axle |
|---|---|---|---|
| Maximum Static | 70821 lb (32124 kg) | 64613 lb (29308 kg) | 90145 lb (40889 kg) |
| Dynamic Operating | 44261 lb (20076 kg) | 39328 lb (17839 kg) | 56200 lb (25492 kg) |
| Static Operating | 17704 lb (8030 kg) | 15732 lb (7136 kg) | 22480 lb (10197 kg) |
| Axle Oscillation | 22° total – 11° side to side | 22° total – 11° side to side | – |
Hydraulic System
| Pump Type | Variable Displacement Axial Piston Pump (Bosch Rexroth Series 31) |
| Main Relief Pressure (Standard) | 3450 psi (23787 kPa) |
| Main Relief Pressure (Power Lift) | 3625 psi (24993 kPa) |
| +Hydraulic Filtration | 7-micron, full flow replaceable cartridge on return line, condition indicator light for filter |
| Loader Flow Capacity | 41 gal/min (156.2 L/min) |
| Loader AUX Flow Capacity | 41 gal/min (156.2 L/min) |
| Backhoe Flow Capacity | 41 gal/min (156.2 L/min) |
| 1-Way AUX Hydraulics | 1-way flow hydraulic valve is equipped w/ an adjustable LS relief valve to control attachment pressure and a 6 position flow control selector for 6 detented, distinct flow settings |
| Manual Backhoe Controls | Cab floor pedal |
| Pilot Controls | Left hand joystick |

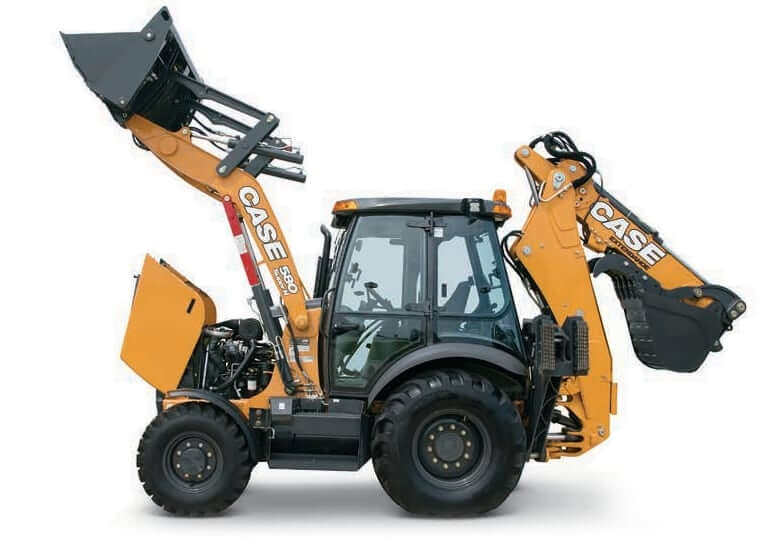

Service Refill Capacities
| Engine Model | FPT F4 4.5L Tier 3 | FPT F5 3.4L Tier 4F |
|---|---|---|
| Fuel Tank Capacity | 42 gal (159 L) | 35 gal (132 L) |
| DEF Tank Capacity (Tier 4F only) | – | 3.6 gal (13.5 L) |
| Engine Oil Capacity (w/ filter) | 3.6 gal (13.6 L) | 2.1 gal (8 L) |
| Cooling System Capacity (w/ heater) | 4.8 gal (18 L) | 4.8 gal (18 L) |
| Cooling System Capacity (w/o heater) | 4.6 gal (17.3 L) | 4.6 gal (17.3 L) |
| Transmission Oil Capacity, 2WD Standard | 4.5 gal (17 L) | 4.5 gal (17 L) |
| Transmission Oil Capacity, 2WD Powershift S-Type | 5.7 gal (21.7 L) | – |
| Transmission Oil Capacity, 4WD Standard | 5.1 gal (19.4 L) | 5.1 gal (19.4 L) |
| Transmission Oil Capacity, 4WD Powershift S-Type | 5.5 gal (20.7 L) | – |
| Transmission Oil Capacity, 4WD Powershift H-Type | 4.8 gal (18 L) | 4.8 gal (18 L) |
| Front Axle Capacity, Differential | 2 gal (7.7 L) | 2 gal (7.7 L) |
| Front Axle Capacity, Planetaries (each) | 0.13 gal (0.5 L) | 0.13 gal (0.5 L) |
| Rear Axle Capacity (Differential & Planetaries) | 3.6 gal (13.6 L) | 3.6 gal (13.6 L) |
| Hydraulic System Capacity (w/ tank) | 31.5 gal (119.2 L) | 31.2 gal (118 L) |
| Hydraulic System Capacity (w/ tank and w/ Extendahoe) | 33 gal (124.9 L) | 32.7 gal (123.6 L) |
| Hydraulic Tank Capacity (w/ filter) | 14.4 gal (54.5 L) | 13.8 gal (52.4 L) |
| Hydraulic Tank Capacity (w/o filter) | 13.9 gal (52.6 L) | 13.3 gal (50.5 L) |
| Window Washer Tank Capacity | 0.74 gal (2.8 L) | 0.74 gal (2.8 L) |
I have a 2013 case 580 sn, and there’s a yellow exclamation mark on right hand dash. What’s that mean?
Thanks!
Jeff
Hi, Jeff. The yellow exclamation mark (!) warning light on the right-hand dash of your 2013 Case 580 Super SN backhoe loader is a general warning indicator. It signals that the machine has detected a fault or abnormal condition that needs attention – but it’s not necessarily critical (unlike a red stop light).
Common causes include:
– Low fluid levels (engine oil, coolant, hydraulic fluid)
– Electrical system faults
– Transmission or hydraulic system alerts
– Sensor malfunctions (e.g., temperature, pressure)
– DTC (Diagnostic Trouble Code) present – not always visible without diagnostics.
What you should do:
1) Check for additional warning or fault codes on the display or diagnostic system if equipped. The exclamation mark often accompanies a fault code.
2) Inspect fluid levels (engine oil, hydraulic fluid, coolant) and condition.
3) Make sure the parking brake is properly set or released (some machines show the symbol if it detects inconsistent parking brake signals).
Check the operator’s manual for specific indicator explanations and steps. If available, connect a diagnostic tool to retrieve any stored fault codes to identify the exact problem.
