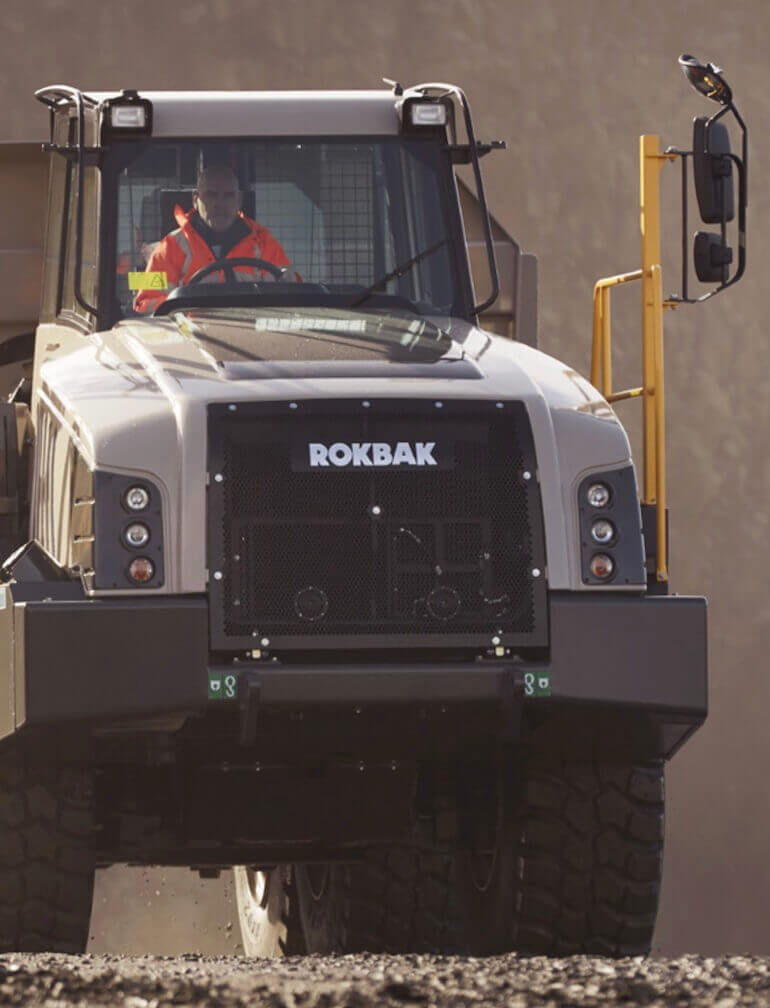

Dimensions
| Overall Length | 390.9 in (9930 mm) |
| Overall Width | 127.6 in (3240 mm) |
| Overall Height | 140.2 in (3560 mm) |
| Ground Clearance | 20 in (510 mm) |
Dump System
| Payload Capacity | 61729 lb (28000 kg) |
| Body Capacity (Heaped) | 22.9 yd3 (17.5 m3) |
| Body Capacity (Struck) | 18.0 yd3 (13.8 m3) |
| Plate Thickness (Floor and Tailchute) | 0.55 in (14 mm) |
| Plate Thickness (Sides) | 0.47 in (12 mm) |
| Plate Thickness (Front) | 0.31 in (8 mm) |
| Raise (loaded) Time | 12 sec |
| Lower Time | 7.5 sec |
| Material | High hardness yield strength steel (min 360 BHN) 1000 Mpa (145000 lbf/in2) |

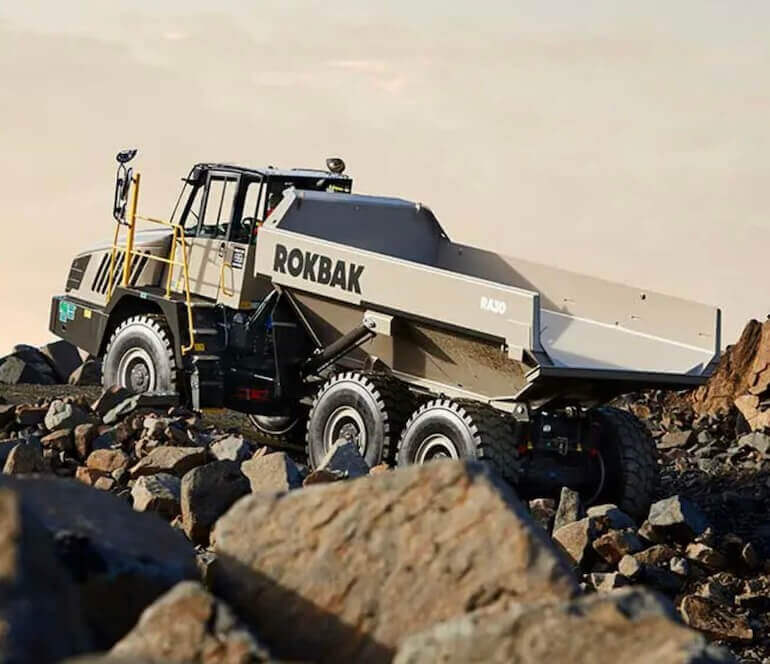

Weight
| Rokbak RA30 | EU Stage V Models | Tier 4 Final Models | Tier 2 Models |
|---|---|---|---|
| Net Distribution | |||
| Front Axle | 29129 lb (13213 kg) | 29851 lb (13540 kg) | 29247 lb (13266 kg) |
| Centre Axle | 12945 lb (5872 kg) | 12095 lb (5486 kg) | 12037 lb (5460 kg) |
| Rear Axle | 12844 lb (5826 kg) | 12315 lb (5586 kg) | 12110 lb (5493 kg) |
| Vehicle, Net | 54919 lb (24911 kg) | 54260 lb (24612 kg) | 53394 lb (24219 kg) |
| Payload | 61729 lb (28000 kg) | 61729 lb (28000 kg) | 61729 lb (28000 kg) |
| Gross Distribution | |||
| Front Axle | 35300 lb (15980 kg) | 34948 lb (15852 kg) | 33283 lb (15097 kg) |
| Centre Axle | 40386 lb (18319 kg) | 40179 lb (18225 kg) | 40248 lb (18256 kg) |
| Rear Axle | 40431 lb (18339 kg) | 40863 lb (18535 kg) | 41592 lb (18866 kg) |
| Vehicle Gross | 116047 lb (52638 kg) | 115990 lb (52612 kg) | 115123 lb (52219 kg) |
| Ancillary Weights | |||
| Frame | 8217 lb (3727 kg) | 8217 lb (3727 kg) | 8217 lb (3727 kg) |
| Body | 8325 lb (3776 kg) | 8325 lb (3776 kg) | 8325 lb (3776 kg) |
| Hoist, Pair | 1170 lb (530 kg) | 1170 lb (530 kg) | 1170 lb (530 kg) |
Engine Details
| Number of Cylinders | 5 |
| Engine Make | Scania |
| Engine Model | Scania DC9 |
| Displacement | 568 cu in (9.3 L) |
| Bore | 5.12 in (130 mm) |
| Stroke | 5.51 in (140 mm) |
| Net Power | 345 hp (257 kW) |
| Power Measured @ | 2100 rpm |
| Peak Torque | 1387 lb ft (1880 Nm) |
| Torque Measured @ | 1400 rpm |
| Air Cleaner | Dry-type 3-stage, aspirated air cleaner with safety element, automatic dust ejector and restriction indicator |
| Fan | Modulating fan reduces noise level and consumes engine power as required. Note: Net hp with fan clutch disengaged |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage V, EPA Tier 2 derivatives |

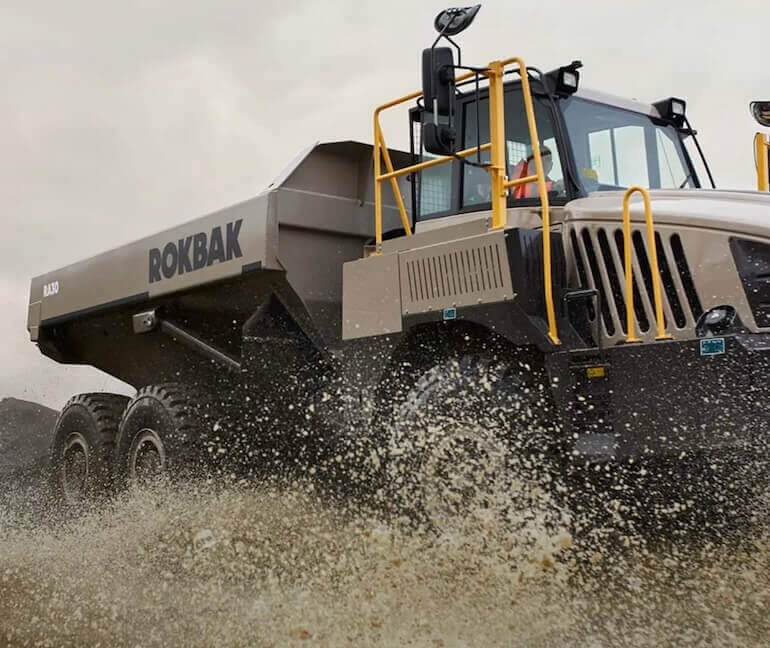

Operational Specs
| Max Operating Weight | 116047 lb (52638 kg) |
| Maximum Payload | 61729 lb (28000 kg) |
| Operating Voltage | 24 V |
| Alternator | 100 amps |
| Battery | 2x 12 V, 180 Ah |
| Sound Level in Cab, LpA (ISO 6396:2008) | 72.7 dB(A) |
| Sound Level in Cab, LpA (ISO 6395:2008) | 109 dB(A) |
| Tire Size | 23.5 R25 (750/65 Optional) |
| Rim Size | 25×19.50 (25×22.00 Optional) |
Transmission
| Transmission Type | Fully automatic transmission with manual over-ride and retarder |
| Transmission Model | ZF 8EP320 |
| Number of Gears | 8F / 4R |
| Max Forward Speed | 34.1 mph (55 km/h) |
| Max Reverse Speed | 9.3 mph (15 km/h) |
| Drivetrain | 6×6 |
| Service Brakes | Multiplate sealed and oil cooled brake packs at each wheel. Independent circuits for front and rear brake systems |
| Secondary Brakes | Secondary brake control actuates service and parking brakes |
| Parking Brake | Spring-applied, hydraulic-released disc on rear driveline |
| Retarder | Exhaust brake and transmission retarder |
Steering
| Type | Hydrostatic power steering |
| Steering Cylinders | 2x double-acting cushioned steering cylinders |
| Steering Pump Type | Variable displacement/load sensing piston pump |
| Steering System Pressure | 3495 psi (24100 kPa) |
| Secondary Steering | Secondary steering pressure provided by a ground driven pump |
| Steering Angle | ±45° |
| Lock to Lock Turns, Steering Wheel | 4 |
| Turning Radius, SAE | 334 in (8470 mm) |
| Clearing Radius | 353 in (8950 mm) |
Hydraulic System
| Hoist Cylinders | 2x single-stage, double-acting hoist cylinders, cushioned at the base end |
| Pump Type | Variable displacement/load sensing piston pump driven from power take-off on transmission |
| Hydraulic Oil Filtration | Full flow return line filtration |
| Hoist Control | Full electro-hydraulic hoist control, with electronic detent in power down |
| Pump Flow Capacity | 77.5 gal/min (294 L/min) |
| System Pressure | 3191 psi (22000 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 98 gal (370 L) |
| DEF Tank Capacity | 10 gal (38 L) |
| Engine Oil Capacity | 9 gal (34 L) |
| Cooling System Capacity | 12.9 gal (48.8 L) |
| Hydraulic System Capacity (steering and body) | 43.3 gal (164 L) |
| Transmission Oil Capacity (w/ filters and cooler) | 13.3 gal (50.2 L) |
| Front Differential Fluid Capacity | 7.6 gal (28.8 L) |
| Centre Differential Fluid Capacity | 8.2 gal (31 L) |
| Rear Differential Fluid Capacity | 7.6 gal (28.8 L) |
| Planetaries Capacity (each) | 2.2 gal (8.5 L) |
