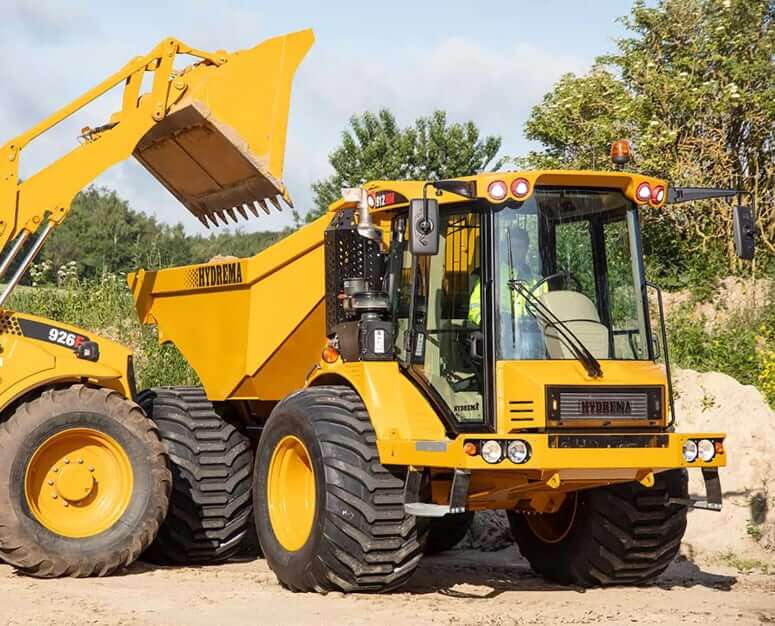

Chassis
| Type | Articulated chassis in a heavy-duty robot-welded construction |
| Chassis Variants 1 | Hydrema 912HM Stdandart tip (rear tip) with 800/45×30.5 |
| Chassis Variants 2 | Hydrema 912HM Stdandart tip (rear tip) with 600/60×30.5 |
| Chassis Variants 3 | Hydrema 912HM 180° MultiTip |
| Chassis Variants 4 | Hydrema 912HM MultiChassis |
| Chassis Variants 5 | Hydrema 912HM MultiChassis with 180° MultiTip |
| Front Axle | Suspended Front Axle |
| Rear Axle | Fixed, rigid integral axle |
| Differential Lock | Electro-hydraulically activated 100% differential lock |
| Oscillation | ±12° |
| Max Steering Angle | ±35° |
| Service Brakes | Dual-circuit hydraulic servo system with wet brake discs on each wheel (maintenance-free, self-adjusting) |
| Parking Brakes | Fail-safe parking wet brake with electro-hydraulic activation on the front axle (maintenance-free) |
Dump Capacity
| Capacity | 7.32 yd3 (5.6 m3) |
| Load Capacity | 22046 lb (10000 kg) |
| Load Capacity (MultiChassis) | 24471 lb (11100 kg) |
Dimensions
| Hydrema 912HM | Stdandart Tip | MultiTip | Multi Chassis |
|---|---|---|---|
| Tire Size | 800/45×30.5 600/60×30.5 |
800 / 45×30.5 | 800 / 45×30.5 |
| Turning Radius | 248 in (6300 mm) 240 in (6100 mm) |
248 in (6300 mm) | 248 in (6300 mm) |
| A. Track | 81.1 in (2060 mm) 74.8 in (1900 mm) |
81.1 in (2060 mm) | 81.1 in (2060 mm) |
| B. Overall Width | 113 in (2870 mm) 100 in (2540 mm) |
113 in (2870 mm) | 113 in (2870 mm) |
| C. Ground Clearance | 20.5 in (520 mm) | ||
| D. Width of Truck Body | 87.0 in (2210 mm) | – | |
| E. Overall Height | 112.8 in (2865 mm) | 112.9 in (2868 mm) | |
| F. Loading Height | 87.6 in (2225 mm) | 94.1 in (2390 mm) | – |
| G. Height with Raised Body | 172.6 in (4385 mm) | 179.1 in (4550 mm) | – |
| H. Tipping clearance | 43.7 in (1110 mm) | 50.4 in (1280 mm) | – |
| I. Overhang, Rear | 39.0 in (990 mm) | 35.8 in (910 mm) | – |
| J. Wheelbase | 121.3 in (3080 mm) | ||
| K. Overall Length | 233.9 in (5940 mm) | 230.7 in (5860 mm) | 222.4 in (5650 mm) |
| L. Approach Angle, Front | 27° | ||
| M. Approach Angle, Rear | 75° | 80° | – |
| N. Tipping Angle | 75° | 75° | – |
| R. Overhang, Front | 73.6 in (1870 mm) | 73.6 in (1870 mm) | – |
Driving on Inclines
| Hydrema 912HM | Empty | Loaded |
|---|---|---|
| Going Straight | 39° | 38° |
| Turning up-hill | 31° | 28° |
Slope angle where the machine overturns
Weights
| Hydrema 912HM | Stdandart Tip | 180° MultiTip | Multi Chassis |
|---|---|---|---|
| Max Operating Weight | 40256 lb (18260 kg)** 39617 lb (17970 kg)*** |
41270 lb (18720 kg)** | 39683 lb (18000 kg)** |
| Operating Weight (Empty) | 18210 lb (8260 kg)** 17571 lb (7970 kg)*** |
19224 lb (8720 kg)** | 15212 lb (6900 kg)** |
| Load Capacity | 22046 lb (10000 kg)** 22046 lb (10000 kg)*** |
22046 lb (10000 kg)** | 24471 lb (11100 kg)** |
**800/45×30.5 tire size
***600/60×30.5 tire size
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Cummins |
| Engine Model | Cummins B4.5 (Stage V) |
| Displacement | 274.6 cu in (4.5 L) |
| Bore | 4.2. in (107 mm) |
| Stroke | 4.9 in (124 mm) |
| Max Power | 147 hp (108 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 442.5 lb ft (600 Nm) |
| Torque Measured @ | 1500 rpm |
| Fuel System | High Pressure Common Rail (HPCR) |
| Aspiration | Turbocharged and intercooled |
| Emission Standards | Stage V / Tier 4 Final |
Transmission
| Type | Hydrostatic automatic transmission |
| Transmission Model | ZF ErgoPower WG115 6-speed Soft-Shift transmission |
| Number Of Gears | 6F / 3R |
| Max Travel Speed | 24.9 mph (40 km/h) |
Electrical System
| Voltage | 24 V |
| Battery | 2x 12 V, 95 Ah with automatic battery isolator |
| Alternator | 70 amps |
| Working Lights | LED |
Hydraulic System
| Hydraulic System Type | Separate hydraulic pump for brakes / pivot stabilizers |
| Hydraulic Pump Flow | 22.2 gpm (84 L/min) for tipping function and with priority valve for steering |
Operator Environment
| Cab | ROPS / FOPS with cab suspension |
| Operator Seat | Mechanical or air-suspended seat |
| Steering Wheel | Adjustable steering wheel |
| Sound level LpA in Cab | 72 dB(A) |
| Sound level LpA outside Cab | 102 dB(A) |
| Joystick | Multi-joystick control is an integrated part of the right armrest: tipping, gear selection, and differential lock |
| HVAC | The air-conditioning system has 8 air nozzles for optimal indoor climate |
Service Refill Capacities
| Fuel Tank Capacity | 40 gal (140 L) |
| Engine Oil Capacity | 2.9 gal (10.9 L) |
| Transmission Oil Capacity | 4.8 gal (18 L) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| DEF Tank Capacity | 3.7 gal (14 L) |
