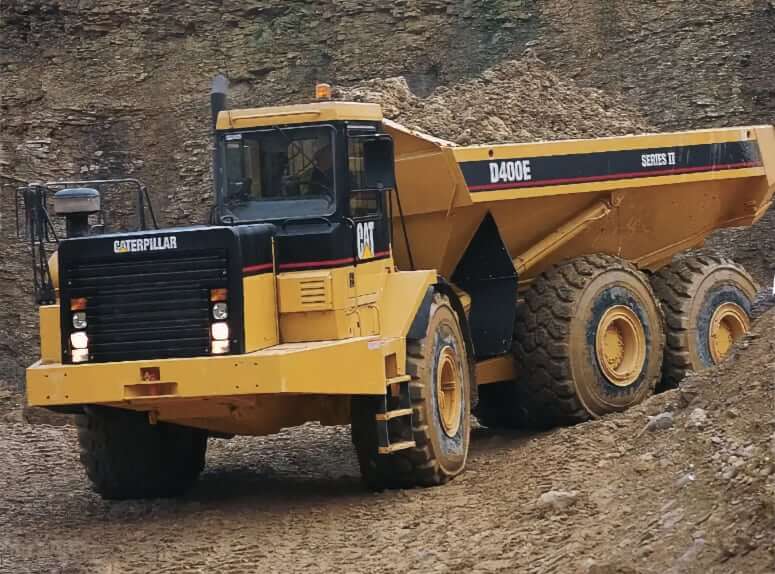

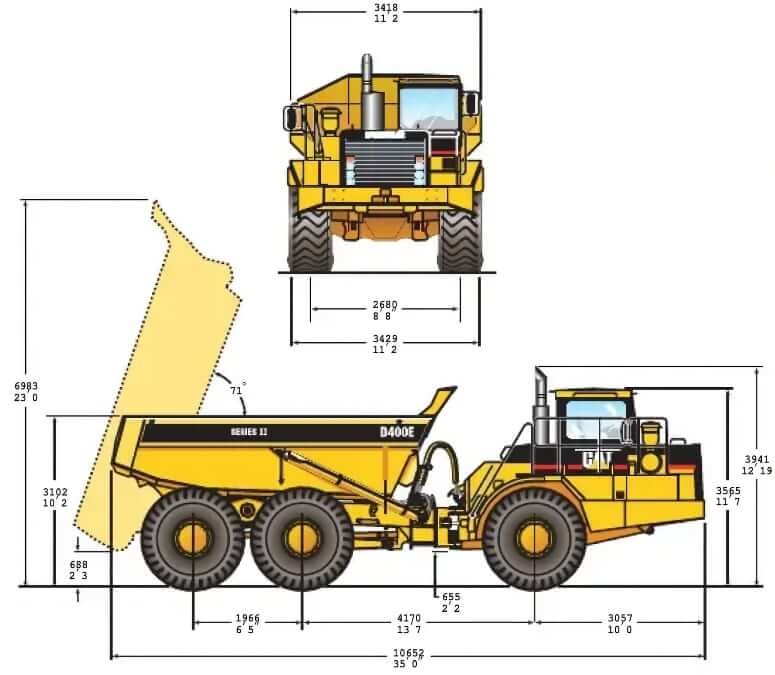

Dimensions
| Overall Length |
420 in (10652 mm) |
| Wheelbase (Front – Center of Bogie) |
203 in (5156 mm) |
| Height to Top of Cab |
139 in (3565 mm) |
| Height to Top of Exhaust |
155 in (3941 mm) |
| Overall Width |
135 in (3429 mm) |
| Body Width |
134 in (3418 mm) |
| Body Length |
250 in (6350 mm) |
| Loading Height (Empty) |
122 in (3102 mm) |
| Height at Full Dump |
275 in (6983 mm) |
| Dump Clearance |
27.1 in (688 mm) |
| Ground Clearance |
25.8 in (655 mm) |
| Front Tire Tread |
104 in (2680 mm) |
| Turning Radius (SAE) |
316 in (8040 mm) |
| Circle Clearance Diameter |
664 in (16866 mm) |

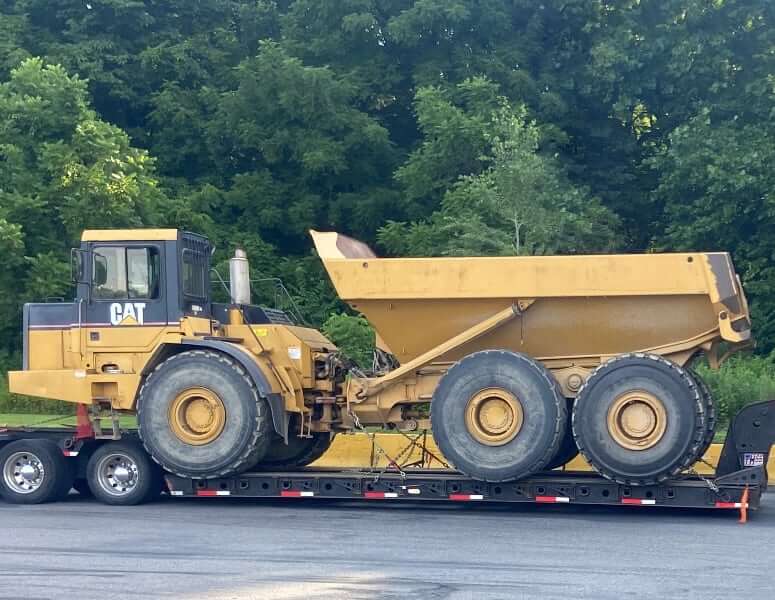

Weight Distribution
| CAT D400E Series II |
Empty |
Loaded |
| Front Axle |
40020 lb (18150 kg) / 57% |
49899 lb (22630 kg) / 33% |
| Center Axle |
15282 lb (6930 kg) / 22% |
50362 lb (22840 kg) / 34% |
| Rear Axle |
14488 lb (6570 kg) / 21% |
49568 lb (22480 kg) / 33% |
| Total |
69790 lb (31650 kg) |
149830 lb (67950 kg) |
Body Capacities
| Rated Payload |
80040 lb (36300 kg) |
| Capacity, Struck |
21.6 yd3 (16.5 m3) |
| Capacity, Heaped SAE 2:1 |
28.6 yd3 (21.9 m3) |
| Body Plate Thickness, Front |
0.31 in (8 mm) |
| Body Plate Thickness, Scow |
0.63 in (16 mm) |
| Body Plate Thickness, Side |
0.47 in (12 mm) |
| Body Plate Thickness, Base |
0.63 in (16 mm) |

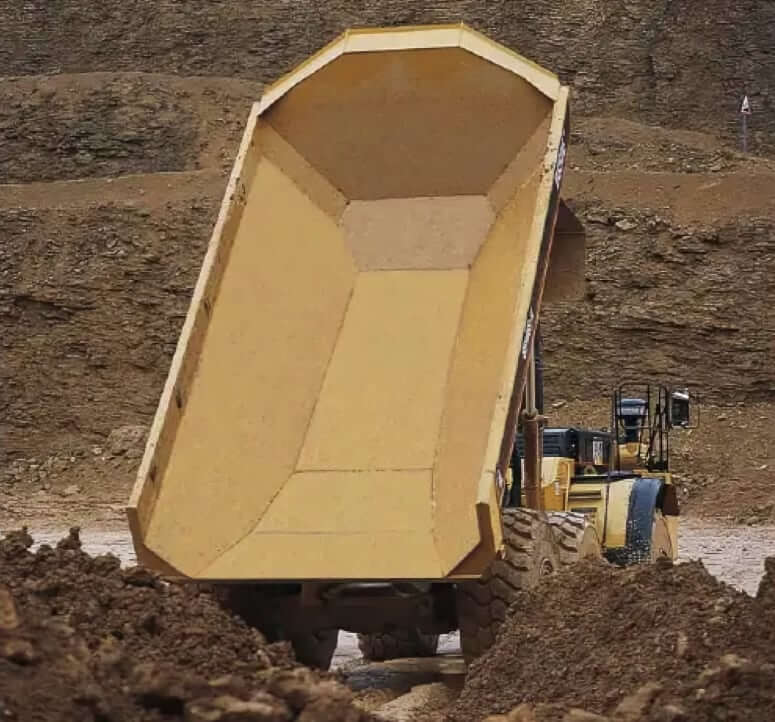

Dump System
| Type |
Two flex-free, single-stage, double-acting hoist cylinders |
| Cylinders |
Cylinders positioned within body profile for maximum protection |
| Dump Angle |
71° |
| Power Up |
12 sec |
| Power Down |
7 sec |
Engine Details
| Number of Cylinders |
6 |
| Engine Make |
Caterpillar |
| Engine Model |
Cat 3406E DITA |
| Displacement |
893 cu in (14.6 L) |
| Bore |
5.4 in (137 mm) |
| Stroke |
6.5 in (165 mm) |
| Gross Power |
427 hp (318 kw) |
| Net Power |
405 hp (302 kw) |
| Power Measured @ |
2000 rpm |
| Peak Torque |
1602 lb ft (2172 Nm) |
| Torque Measured @ |
1350 rpm |
| Fuel System |
Direct injection with individual adjustment free injection pumps and valves |
| Lubrication System |
Pressure lubricated with full-flow filtered, cooled oil |
| Air Cleaner |
Dry-type air filter with primary and secondary elements, automatic dust ejector and service indicator |
| Aspiration |
Turbocharged Aftercooled |
| Emission Standards |
Non-Certified Emissions |
Operational Specs
| Operating Weight (Empty) |
69790 lb (31650 kg) |
| Operating Weight (GMW) |
149830 lb (67950 kg) |
| Load Capacity |
80040 lb (36300 kg) |
| Operating Voltage |
24 V |
| Alternator |
50 amps |
| Battery |
2x 12 V, 140 Ah |
| Tire Size (Standard) |
29.5R25, radial, Goodyear GP2B or Michelin XADN |
| Tire Size (Optional) |
810/65R25 Michelin XAD-65-1 |
Operator Environment
| Cab Type |
Cab with Electronic Monitoring System panel |
| ROPS |
SAE J1040 APR88, ISO 3471-1: 1986, ISO 3471: 1994 |
| FOPS |
SAE J231 JAN81, ISO 3449: 1992 LEVEL II |
| Sound Level (interior) |
81 dB(A) |
| Operator Seat |
Air suspension seat (Caterpillar Contour Series) |
| Seat Belt |
Retractable seat belt |
| HVAC |
Air vents, 10, adjustable. Heater/defroster with 3-speed fan |
| Lighting System |
4x headlights with dimmer switch + cab interior + front, side + rear, working + 2x reversing + 2x stop/tail lights |

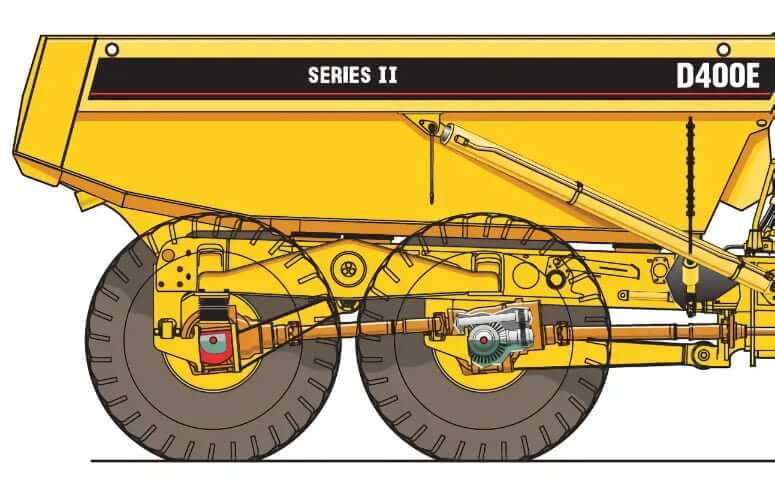

Transmission
| Drive |
6×6 |
| Type |
Planetary autoshift transmission |
| Number of Gears |
7F / 1R |
| Max Forward Speed |
36.43 mph (58.62 km/h) |
| Max Reverse Speed |
7.73 mph (12.44 km/h) |
| Torque Converter |
Single-stage torque converter with free-wheeling stator |
| Drop Box |
Integral drop box with lockable planetary inter-axle differential |
| Final Drives |
Outboard-mounted, planetary design to lessen torque loads on other drive train components |
| Service Brakes |
Multiple oil-immersed brakes are hydraulically actuated and self-cleaning with independent front and rear circuits and accumulators |
| Parking Brake |
The push-button operated, disc parking brake is spring applied and pressure released |
Hydraulic System
| Pump Flow Capacity |
46.6 gal/min (177 L/min) |
| Hoist Cylinders |
Two flex-free, single-stage, double-acting hoist cylinders |
| Steering System |
Articulated-frame, hydraulic steering. Standard supplemental steering system, electronically driven |
| Steering Cylinders |
Double-acting, cushioned steering cylinders articulate machine 45° left or right |

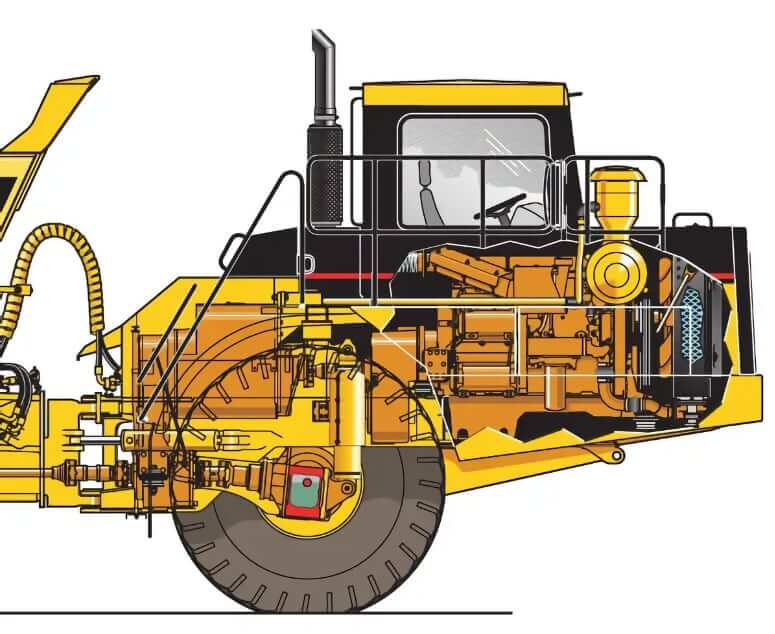

Service Refill Capacities
| Fuel Tank Capacity |
154 gal (570 L) |
| Engine Oil Capacity |
9.2 gal (34 L) |
| Cooling System Capacity |
13.5 gal (50 L) |
| Transmission Oil Capacity |
14.8 gal (55 L) |
| Transfer Drive Capacity |
0.7 gal (2.5 L) |
| Front Axle Capacity |
15.6 gal (58 L) |
| Center Axle Capacity |
15.6 gal (58 L) |
| Rear Axle Capacity |
20.8 gal (77 L) |
| Hydraulic System Capacity |
71.5 gal (265 L) |

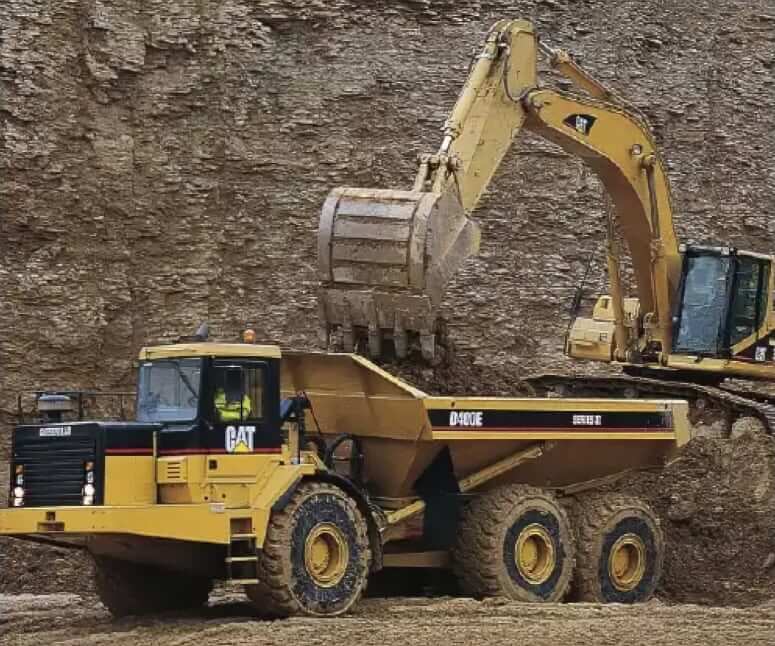

Loader Pass Matching
| Wheel Loaders |
Passes |
| 375 L ME |
4 |
| 365B L ME |
5 |
| 345B L ME |
6 |
| Hydraulic Excavators |
Passes |
| 988F Series II |
3-4 |
| 980G |
4 |
| 972G |
5 |
| 966G |
5-6 |
Optimizing pass match with CAT D400E Series II ADT and loaders / excavators is key to driving production and lowering cost per ton!
