Bucket
| Bucket Capacity (SAE, Heaped) | 2.5 yd3 (1.91 m3) |
| Bucket Capacity (SAE, Struck) | 2.05 yd3 (1.57 m3) |
| Breakout Force | 24120 lbf (108.11 kN) |
| Tipping Load, Straight (SAE) | 22905 lb (10390 kg) |
| Tipping Load, 40° Turn | 19610 lb (8895 kg) |
| Bucket Width | 104.75 in (2660 mm) |
| Dump Clearance at Max Raise | 112 in (2845 mm) |
| Hinge Pin at Max Height | 144 in (3658 mm) |
| Reach at Max Lift and Dump | 34.6 in (879 mm) |
| Dump Angle | 45° |
| Rollback Angle at Ground Level | 40° |

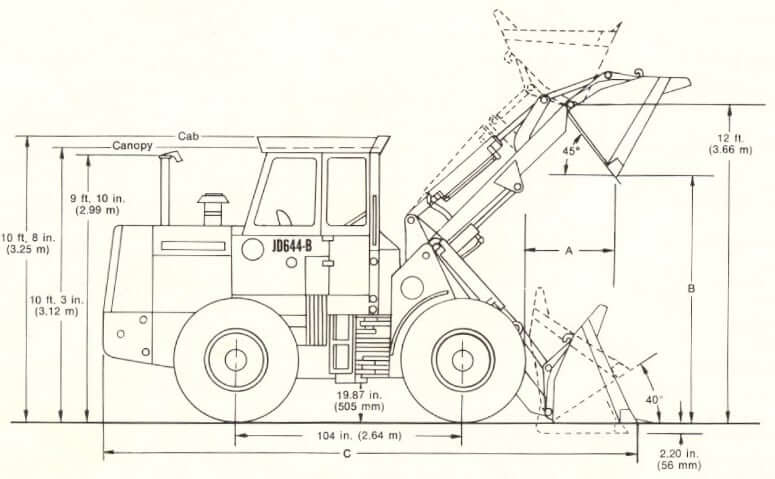

Dimensions
| Length w/ Bucket on Ground | 252.6 in (6416 mm) |
| Wheelbase | 104 in (2640 mm) |
| Height to Top of Cab | 128 in (3251 mm) |
| Height to Top of Canopy | 123 in (3124 mm) |
| Height to Top of Exhaust | 118 in (2997 mm) |
| Ground Clearance | 19.9 in (505 mm) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 6466A |
| Displacement | 531 cu in (8.7 L) |
| Bore | 4.75 in (120.5 mm) |
| Bore | 5.00 in (127 mm) |
| Net Power | 145 hp (108.1 kw) |
| Gross Power | 160 hp (119.3 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 432 lb ft (586 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged |
Operational Specs

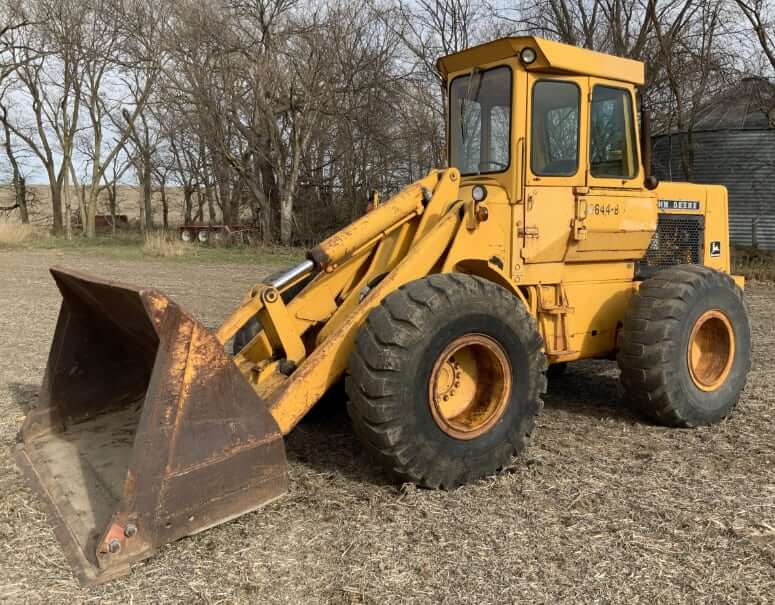

| Operating Weight | 28100 lb (12746 kg) |
| Operating Voltage | 12 V |
| Alternator | 42 amps |
| Battery | 2x 12 V, RC: 310 min |
Transmission
| Transmission Type | Power Shift Planetary |
| Number of Gears | 4F / 2R |
| Torque Converter | Twin-turbine (5.03 : 1) |
| Max Forward Speed | 25.8 mph (41.5 km/h) |
| Max Reverse Speed | 10.2 mph (16.4 km/h) |
| Service Brakes | Power actuated, 4-wheel, inboard-mounted wet disk. Foot-operated by either right or left pedal |
| Parking Brake | Expanding shoe on transmission output shaft. Adjustable, hand-operated with warning light and buzzer |
| Rear Axle Oscillation | 22° |
| Tire Size | 20.5-25 (17.5-25 optional) |
| Turning Radius | 185 in (4700 mm) |
Hydraulic System
| Loader Pump Type | Independent engine-driven gear pump |
| Loader Pump Flow | 58.2 gal/min (220 L/min) |
| Relief Valve Setting | 2250 psi (15513 kPa) |
| Steering Pump Type | Engine-driven, eight-piston, variable-displacement pump |
| Steering Pump Flow | 26 gal/min (98.4 L/min) |
| Relief Valve Setting | 2000 psi (13790 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 56 gal (211.9 L) |
| Engine Oil Capacity (w/ Filter) | 5 gal (18.9 L) |
| Cooling System Capacity | 12.3 gal (46.4 L) |
| Hydraulic System Capacity | 17.5 gal (66.2 L) |
| Transmission Oil Capacity | 9.75 gal (36.9 L) |
| Rear Axle/Diff Fluid Capacity | 6.3 gal (23.7 L) |
| Front Axle/Diff Fluid Capacity | 6 gal (22.7 L) |
