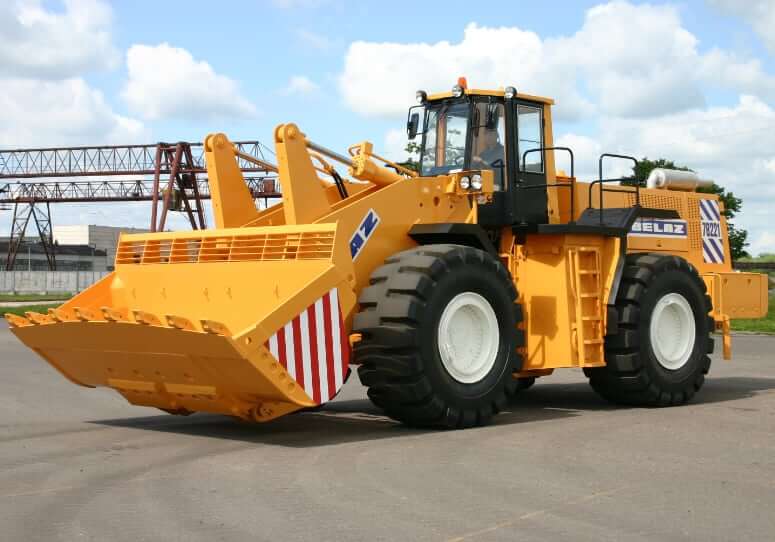

Loader Performance
| Static Tipping Load (Straight) | 69466 lb (31509 kg) |
| Static Tipping Load (Articulated at 40°) | 61148 lb (27736 kg) |
| Rated Lift Capacity | 22046 lb (10000 kg) |
| Breakout Force | 74187 lbf (330 kN) |
| Bucket Capacity (Heaped) | 7.85 yd3 (6 m3) |
| Bucket Width | 153.5 in (3900 mm) |
| Dump Clearance At Max Raise | 159.4 in (4050 mm) |
| Reach at Max Lift and Dump | 87.2 in (2215 mm) |
| Max Dump Angle | 44° |
| Digging Depth | 9.8 in (250 mm) |

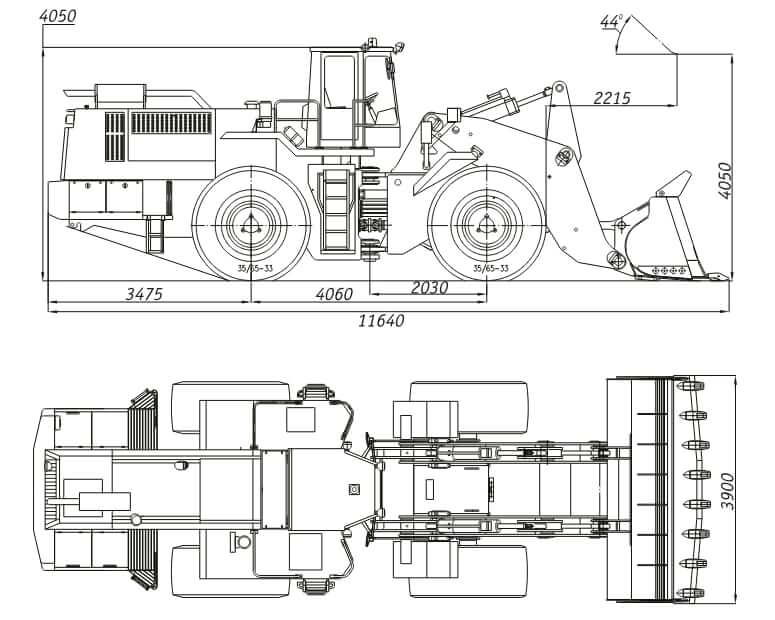

Dimensions
| Overall Length w/ Bucket on Ground | 458.3 in (11640 mm) |
| Wheelbase | 159.8 in (4060 mm) |
| Overall Width | 153.5 in (3900 mm) |
| Height to Top of Cab w/ ROPS | 159.4 in (4050 mm) |
| Ground Clearance | 13.8 in (350 mm) |
| Angle of Departure | 19° |
Weight
| Operating Weight (empty) | 119050 lb (54000 kg) |
| Operating Weight (loaded) | 141096 lb (64000 kg) |
| Payload Capacity | 22046 lb (10000 kg) |
| Front Axle Load | 94799 lb (43000 kg) |
| Rear Axle Load | 46297 lb (21000 kg) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | Cummins KTA19-C |
| Displacement | 1153 cu in (18.9 L) |
| Bore | 6.25 in (159 mm) |
| Stroke | 6.25 in (159 mm) |
| Gross Power | 490 hp (360 kw) |
| Power Measured @ | 2100 rpm |
| Peak Torque | 1575 lb ft (2136 Nm) |
| Torque Measured @ | 1500 rpm |
| Compression Ratio | 18.9 : 1 |
| Fuel System | Direct Injection |
| Fuel Consumption | 0.34 lb/hph (204 g/kWh) |
| Air Cleaner | 3-stage dry type air filter |
| Aspiration | Turbochager and Intercooled |
| Emission Standards | US EPA Tier 2 + EU stage II |
Operational Specs
| Operating Weight (empty) | 119050 lb (54000 kg) |
| Max Operating Weight | 141096 lb (64000 kg) |
| Rated Payload Capacity | 22046 lb (10000 kg) |
| Operating Voltage | 24 V |
| Battery | 2x 12 V, 190 Ah |
| Operator Cab Safety | ROPS + FOPS |
| Front Tire Size | 35/65-33 |
| Rear Tire Size | 35/65-33 |
| Turning Radius | 748 in (19000 mm) |
Transmission
| Type | Hydromechanical transmission with single-stage torque converter |
| Number of Gears | 4F / 3R |
| Max Forward Speed | 23.6 mph (38 km/h) |
| Max Reverse Speed | 15.5 mph (25 km/h) |
| Service Brakes | Dry disc, with a hydraulic accumulator |
| Parking Brake | Drum-shoe type park brake |
| Max Traction Force | 78683 lbf (350 kN) |
Hydraulic System
| Relief Valve Setting (Steering) | 2611 psi (18000 kPa) |
| Relief Valve Setting (Implement) | 3336 psi (23000 kPa) |
| Raising Time (loaded) | 8.5 sec |
| Dump Time (loaded) | 3.0 sec |
| Lowering Time (empty) | 5.5 sec |
| Total Hydraulic Circle Time | 17 sec |
Service Refill Capacities
| Fuel Tank Capacity | 188.9 gal (715 L) |
| Engine Oil Capacity (w/ filter) | 15.1 gal (57 L) |
| Cooling System Capacity | 35.7 gal (135 L) |
| Transmission Oil Capacity | 23.8 gal (90 L) |
| Final Drives Fluid Capacity (each) | 8.5 gal (32 L) |
| Front Hub Reductions Capacity (each) | 4 gal (15 L) |
| Rear Hub Reductions Capacity (each) | 4 gal (15 L) |
| Hydraulic System Capacity (w/ tank) | 182.3 gal (690 L) |
