Dimensions
| Overall Length | 72.3 in (1836 mm) |
| Overall Width (w/o mower) | 39.4 in (1000 mm) |
| Overall Width (w/ 48 mower) | 62.6 in (1590 mm) |
| Overall Width (w/ 48 mower, deflector raised for storage) | 52.6 in (1335 mm) |
| Overall Height | 49 in (1244 mm) |
| Wheelbase | 49.4 in (1255 mm) |
| Ground Clearance (Approx) | 5.62 in (143 mm) |
| Turning Radius | 16 in (406 mm) |
| Uncut Circle Radius (w/ 48 mower) | 21 in (533 mm) |
| Uncut Circle Radius (w/ 54 mower) | 18 in (457 mm) |

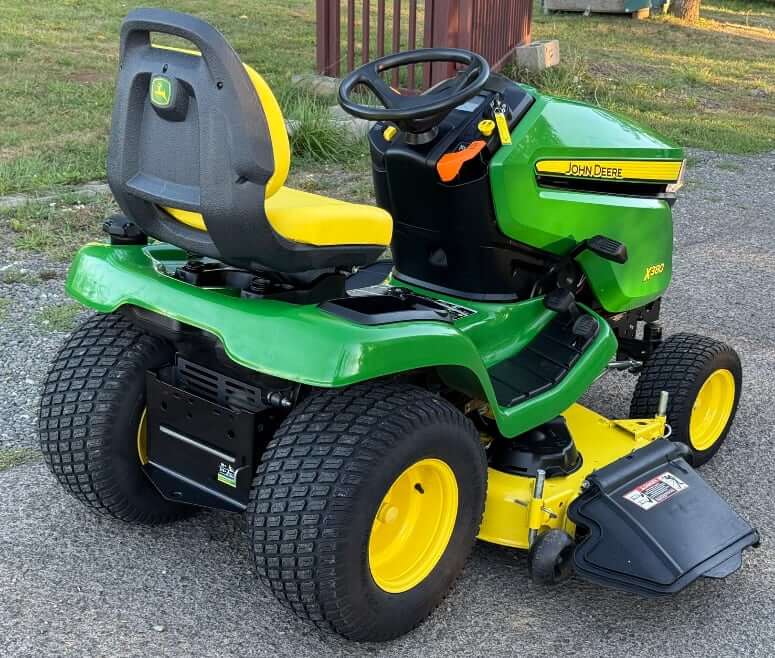

Tires
| Tire Type | Tire Size | Inflation Pressure |
|---|---|---|
| Front Tire Size, Lawn / Turf | 15×6.00-6 | 14 psi (97 kPa) |
| Rear Tire Size, Lawn / Turf | 22×11.00-10 | 10 psi (69 kPa) |
Weight
| Operating Weight (w/o mower) | 508 lb (230 kg) |
| Operating Weight (w/ 48-in mower) | 651 lb (295 kg) |
| Operating Weight (w/ 54-in mower) | 659 lb (299 kg) |
Engine Details
| John Deere X380 w/ | Kawasaki FS651V (2016-2020) | Kawasaki FR691V (2021-2025) |
|---|---|---|
| Fuel | Gasoline | Gasoline |
| Number of Cylinders | 2 | 2 |
| Displacement | 44.3 cu in (0.726 L) | 44.3 cu in (0.726 L) |
| Bore | 3.07 in (78 mm) | 3.07 in (78 mm) |
| Stroke | 2.99 in (76 mm) | 2.99 in (76 mm) |
| Horsepower | 22 hp (16.4 kw) | 23 hp (17.2 kw) |
| Power Measured @ | 3600 rpm | 3600 rpm |
| Peak Torque | 39.3 lb ft (53.3 Nm) | 39.2 lb ft (53.2 Nm) |
| Torque Measured @ | 2000 rpm | 2200 rpm |
| Compression Ratio | 8.2:1 | 8.2:1 |
| Slow Idle Speed | 1550 rpm | 1550 rpm |
| Fast Idle Speed | 3600 rpm | 3600 rpm |
| Fuel System | Pulse pump, carburetor | Pulse pump, carburetor |
| Lubrication | Pressurized lubrication system | Pressurized lubrication system |
| Cooling System | Air-cooled vertical-shaft V-Twin | Air-cooled vertical-shaft V-Twin |
| Intake Valve Clearance | 0.004 ∼ 0.006 in (0.10 ∼ 0.15 mm) | 0.004 ∼ 0.006 in (0.10 ∼ 0.15 mm) |
| Exhaust Valve Clearance | 0.004 ∼ 0.006 in (0.10 ∼ 0.15 mm) | 0.004 ∼ 0.006 in (0.10 ∼ 0.15 mm) |
| Spark Plugs Gap | 0.030 in (0.762 mm) | 0.030 in (0.762 mm) |
| Air Cleaner | Dry air filter with foam precleaner | Dry air filter with foam precleaner |
| Aspiration | Naturally aspirated | Naturally aspirated |
Operational Specs
| Operating Weight | 508 lb (230 kg) |
| Operating Voltage | 12 V |
| Alternator | 12 amps |
| Battery | 12 V, 30 Ah, CCA 350, U1 BCI (TY25221B) |
| Ground | Negative |
| Starter | 12 V, Deere MIA12926 |
| Operator Station | Open operator station |
| Operator Seat | High-back cut-and-sewn seat, 18 in (457 mm) |
| Seat Suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
| Backup Protection | Reverse Implement Option (RIO) |
| Steering System | Manual, Low effort, 2-wheel steer |
| Steering Wheel | 14 in (356 mm) |
| Drive | 2WD |
Lift System
| Type | Foot pedal with adjustable spring assist |
| Hydraulic Outlets | No |
| Preset Cut Height | Yes |
| Mower Cut Height | 1 – 4 in (25 – 102 mm), 13 positions |
| Cut Height Increments | 0.25 in (6.4 mm) |
PTO (Power Take-Off)
| Mid PTO Type | Independent |
| Mid PTO Clutch | Electric power take-off clutch, in-line belt |
Transmission
| Type | Belt-driven hydrostatic transmission |
| Model | Tuff Torq K58 Transaxle |
| Number of Gears | Infinite forward and reverse |
| Max Forward Speed | 6.2 mph (10 km/h) |
| Max Reverse Speed | 3.5 mph (5.6 km/h) |
| Control | Twin Touch foot pedals |
| Cruise Control | Standard, button on dash |
| Service Brakes | Internal wet disc brakes |
| Differential Lock | No |

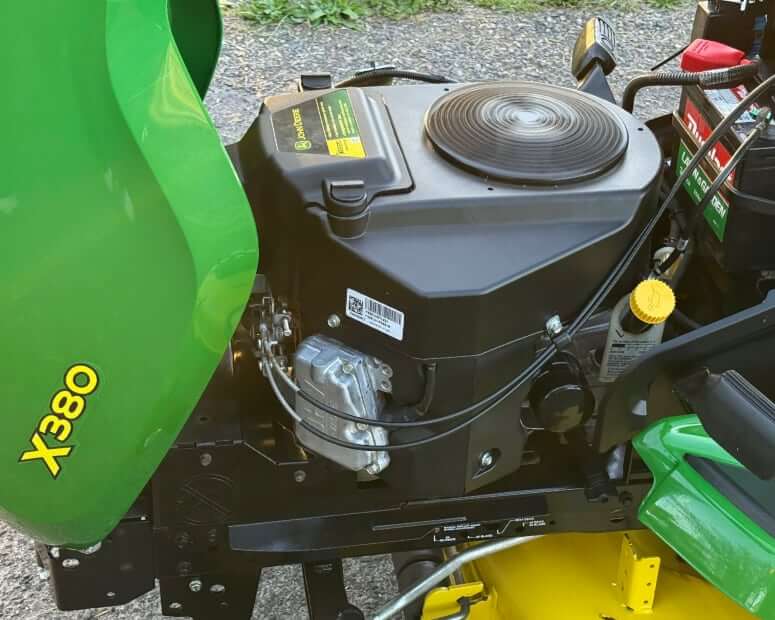

Service Refill Capacities
| Fuel Tank Capacity | 3.3 gal (12.5 L) |
| Engine Oil Capacity (w/ filter) | 0.55 gal (2.1 L) |
| Cooling System Capacity | Air-cooled |

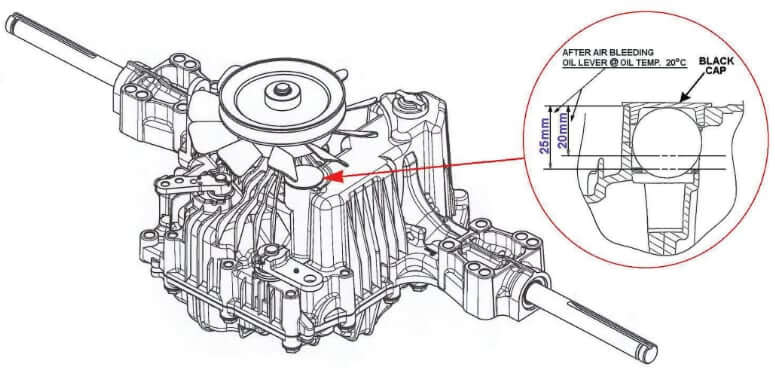

| Transaxle Oil Capacity, Tuff Torq K58 | 0.7 gal (2.5 L) |
John Deere X380 Filters
| Primary Air Filter Element | MIU12554 |
| Secondary Air Filter Element | MIU12555 |
| Engine Oil Filter | AM125424 |
| Inline Fuel Filter | AM116304 |
| Transaxle Oil Filter | Internal, not replaceable |
Serial Numbers & PIN Location
The John Deere X380 serial number plate is located on the right side of the frame, above the front axle.
| Year | Serial Number | Year | Serial Number |
|---|---|---|---|
| 2016 | 10001 | 2020 | 90001 |
| 2017 | 30001 | 2021 | 110001 |
| 2018 | 50001 | 2022 | 130001 |
| 2019 | 70001 |

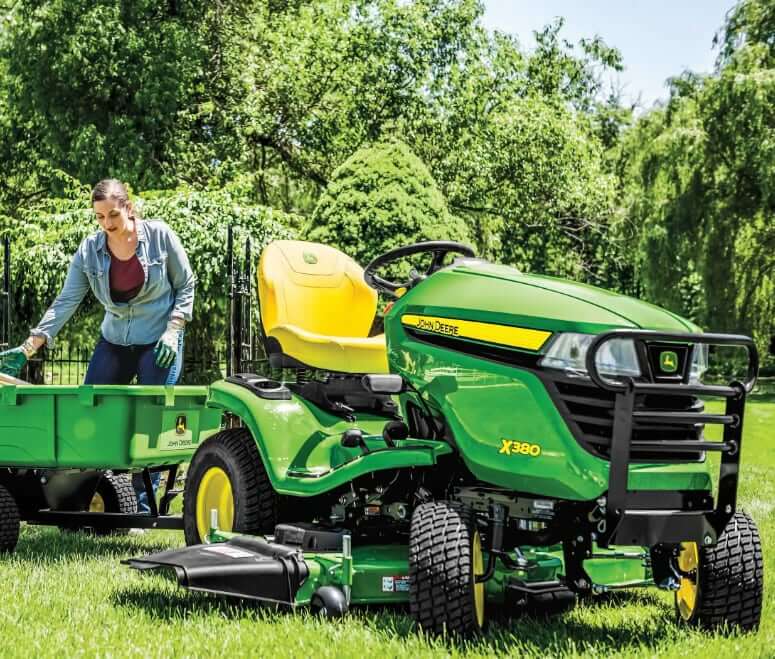

John Deere X380 Attachments
The John Deere X380 lawn tractor is built to be far more than just a mower – it’s a versatile, all-season workhorse when paired with the right attachments. Its Accel Deep mower decks, available in 48-inch and 54-inch widths, deliver the clean, even cut Deere is known for, using a deep-stamped design that lifts and discharges grass efficiently. Whether you’re mowing small residential lawns or open acreage, these decks handle the job with precision and reduced clumping, even in damp grass.

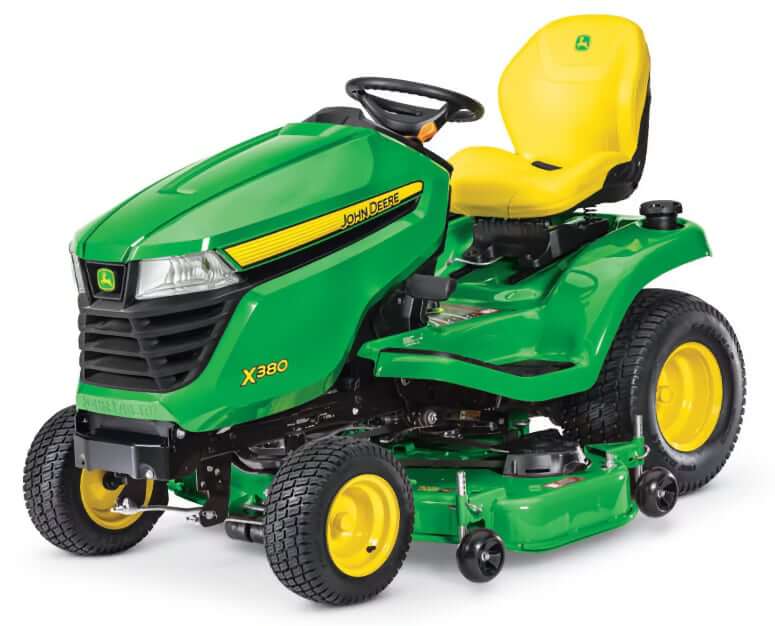

Mid-Mount Mowers for JD X380
| Model | Accel Deep 48 Mower Deck, 48A | Accel Deep 54 Mower Deck, 54A |
|---|---|---|
| Type | Mid-mount | Mid-mount |
| Number of Blades | 3 (UC22009) | 3 (UC22010) |
| Cutting Width | 48 in (1219 mm) | 54 in (1372 mm) |
| Cut Height | 1 – 4 in (25 – 102 mm) | 1 – 4 in (25 – 102 mm) |
| Cut Adjust | 13 | 13 |
| Total Width | 62.5 in (1588 mm) | 68.4 in (1737 mm) |
| Discharge Type | Right-side discharge | Right-side discharge |
| Lift System | Yes | Yes |
| Front Draft Arms | Attached with spring pins at two points | Attached with spring pins at two points |
| Rear Draft Arms | Quick-pull pins | Quick-pull pins |
| Mower Wheels Rotate | Yes, 90° for easy mower removal | Yes, 90° for easy mower removal |
| Drive System | Dual belt | Dual belt |
| V-Belt (Primary) | M169485 (1900 x 11 x 16.6 mm) | M169485 (1900 x 11 x 16.6 mm) |
| V-Belt (Secondary) | M169500 (2629 x 11 x 16.6 mm) | M169486 (2810 x 11 x 16.6 mm) |
| Gage Wheel | M111489 | M111489 |
| Roller | M113955 | M113955 |
| Weight | 133 lb (60 kg) | 153 lb (69 kg) |

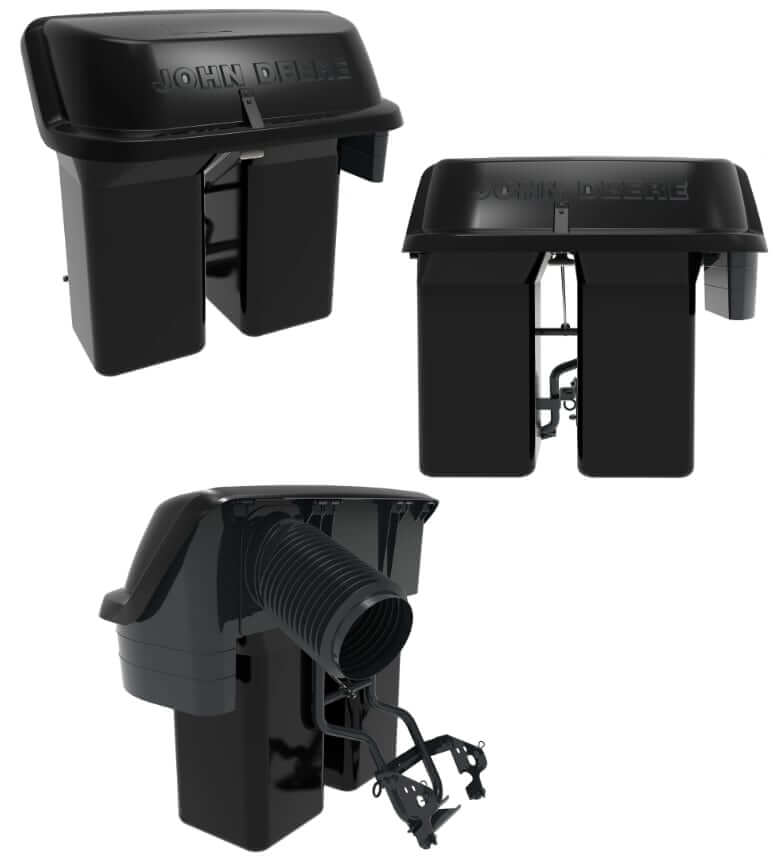

The BUC11233 7-bushel two-bag hopper assembly enhances the efficiency of grass collection, providing a convenient solution for collecting grass clippings and leaves using either the cut-and-throw rear bagger or the Power Flow material collection system (MCS).
When winter sets in, the X380 easily transitions into a snow-clearing machine. The 44-inch two-stage snow blower mounts up front and makes quick work of driveways and paths, while the 44-inch front blade gives you another solid option for plowing lighter snowfalls or pushing material.
44-in Snow Blower for JD X380
| Model | 44-in. Snow Blower for X300 Series |
|---|---|
| Type | Front-mount |
| Clearing Width | 44 in (1118 mm) |
| Overall Width | 44 in (1118 mm) |
| Lift Height | 4 in (102 mm) |
| Stage | Two-Stage |
| Auger Diameter | 12 in (305 mm) |
| Auger Drive | In-line V-belt |
| Auger Drive Gearbox | Cast-iron worm-drive gearbox |
| Blower Fan Drive | Cast-iron right-angle gearbox |
| Blower Fan Size | 4.75 x 14 in (121 x 356 mm) |
| Spout Diameter | 6 in (152 mm) |
| Spout Rotation Angle | ±100° |
| Spout Rotation Control | Manual remote handle |
| Weight | 180 lb (81.6 kg) |

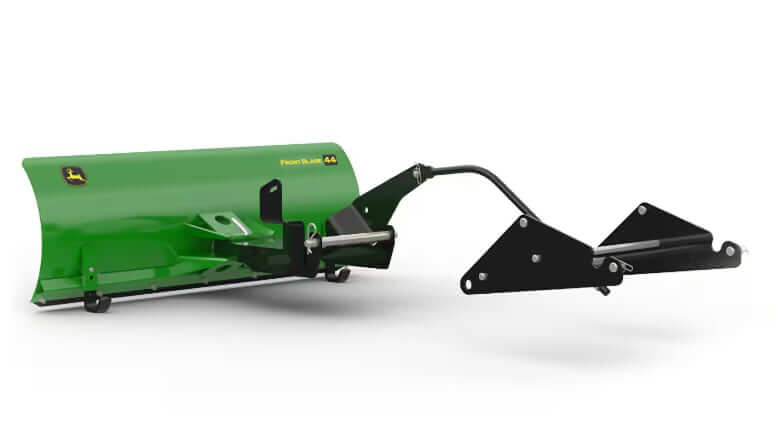

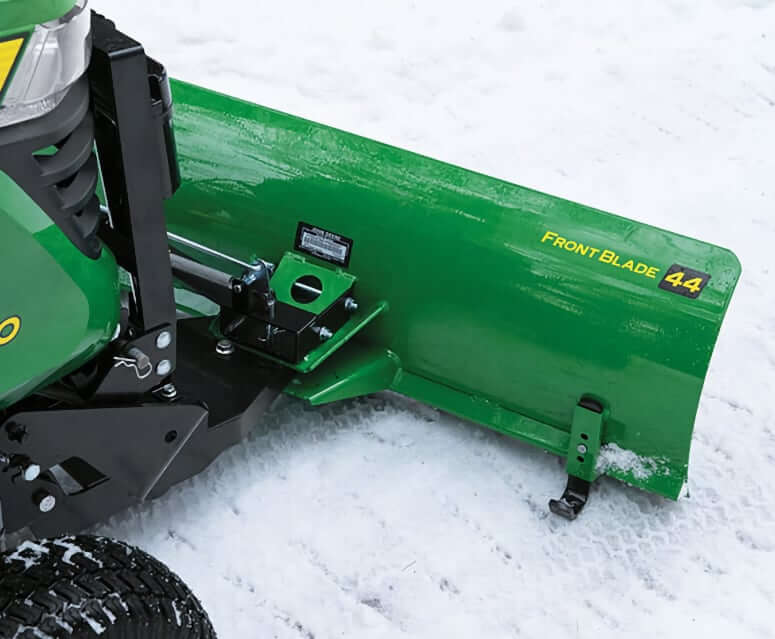

44-in Front Blade for JD X300
| Model | 44-in. Front Blade for X300 Series |
|---|---|
| Cutting Width (Blade straight) | 44 in (1118 mm) |
| Cutting Width (Blade angled) | 40 in (1016 mm) |
| Overall Height | 15 in (381 mm) |
| Number of Positions | Three |
| Angling Positions | ±25° (Right and leff) |
| Lift Above Ground Level | 5 in (127 mm) |
| Lift Below Ground Level | 1 in (25.4 mm) |
| Blade Thickness | 0.12 in (3.05 mm) |
| Replaceable Scraper Edge | 0.188 in (4.76 mm) |
| Blade Weight | 74 lb (34 kg) |
Beyond mowing and snow removal, the X380’s attachment lineup supports nearly every yard and garden task. You can equip it with front thatchers, sprayers, spreaders, and even a tractor shovel for light digging or material movement. Comfort and convenience options like the front bumper, brush guard, weather enclosure, sun canopy, and lawn striping kit turn it into a machine ready for any condition.
