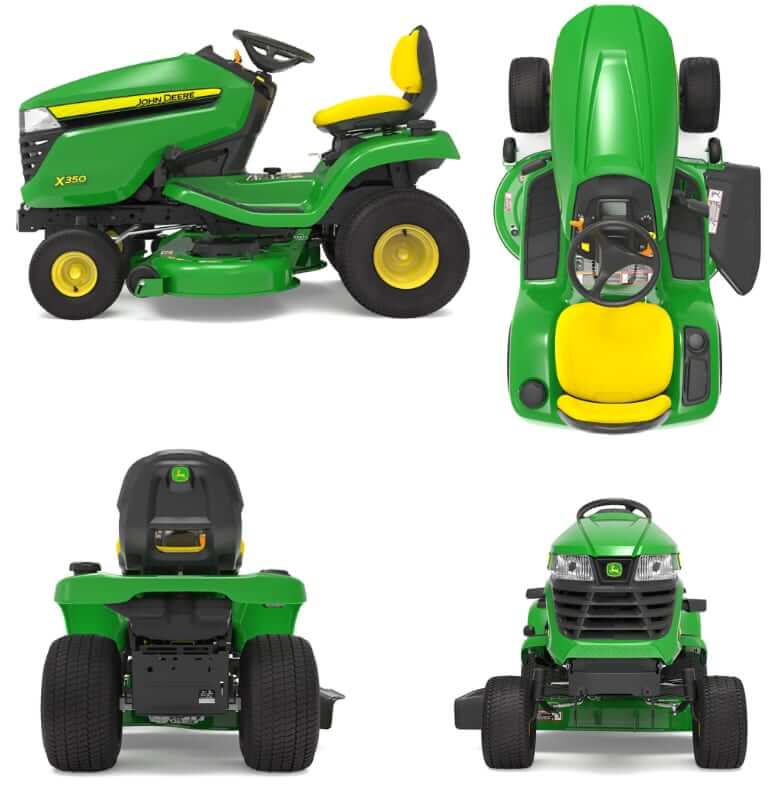

Dimensions
| Overall Length | 72 in (1829 mm) |
| Overall Width (w/o mower) | 38 in (964 mm) |
| Width w/ 48 mower | 62.6 in (1590 mm) |
| Width w/ 48 mower (deflector raised for storage) | 52.6 in (1335 mm) |
| Width w/ 42 mower | 50.5 in (1283 mm) |
| Width w/ 42 mower (deflector raised for storage) | 51.2 in (1300 mm) |
| Overall Height | 46.1 in (1171 mm) |
| Wheelbase | 49.4 in (1255 mm) |
| Ground Clearance (Approx) | 5.62 in (143 mm) |
| Turning Radius | 16 in (406 mm) |
| Uncut Circle Radius (w/ 48 mower) | 21 in (533 mm) |
| Uncut Circle Radius (w/ 42 mower) | 26 in (660 mm) |
Tires
| Tire Type | Tire Size | Inflation Pressure |
|---|---|---|
| Front Tire Size, Lawn / Turf | 15×6.00-6 | 14 psi (97 kPa) |
| Rear Tire Size, Lawn / Turf | 20×10-8 | 10 psi (69 kPa) |
Weight
| Model | 2016-2020 John Deere X350 | 2021-2025 John Deere X350 |
|---|---|---|
| Operating Weight, (w/o mower) | 464 lb (210 kg) | 468 lb (212 kg) |
| Operating Weight (w/ Accel Deep 42-in mower) | 536 lb (243 kg) | 542 lb (246 kg) |
| Operating Weight (w/ Accel Deep 48-in mower) | 595 lb (270 kg) | 604 lb (274 kg) |
Engine Details
| John Deere X350 w/ | Kawasaki FS600V (2016-2020) | Kawasaki FS651V (2021-2025) |
|---|---|---|
| Fuel | Gasoline | Gasoline |
| Number of Cylinders | 2 | 2 |
| Displacement | 36.8 cu in (0.603 L) | 44.3 cu in (0.726 L) |
| Bore | 2.87 in (73 mm) | 3.07 in (78 mm) |
| Stroke | 2.83 in (72 mm) | 2.99 in (76 mm) |
| Horsepower | 18.5 hp (13.8 kw) | 23 hp (17.2 kw) |
| Power Measured @ | 3600 rpm | 3600 rpm |
| Peak Torque | 32.3 lb ft (43.8 Nm) | 39.3 lb ft (53.3 Nm) |
| Torque Measured @ | 2200 rpm | 2000 rpm |
| Compression Ratio | 8.1:1 | 8.2:1 |
| Slow Idle Speed | 1550 rpm | 1550 rpm |
| Fast Idle Speed | 3600 rpm | 3600 rpm |
| Fuel System | Internally vented carburetor | Internally vented carburetor w/ fuel shut-off solenoid |
| Lubrication | Pressurized lubrication system | Pressurized lubrication system |
| Cooling System | Air-cooled vertical-shaft V-Twin | Air-cooled vertical-shaft V-Twin |
| Intake Valve Clearance | 0.003 ∼ 0.005 in (0.075 ∼ 0.125 mm) | 0.004 ∼ 0.006 in (0.10 ∼ 0.15 mm) |
| Exhaust Valve Clearance | 0.003 ∼ 0.005 in (0.075 ∼ 0.125 mm) | 0.004 ∼ 0.006 in (0.10 ∼ 0.15 mm) |
| Spark Plugs Gap | 0.030 in (0.762 mm) | 0.030 in (0.762 mm) |
| Air Cleaner | Dry air filter with foam precleaner | Dry air filter with foam precleaner |
| Aspiration | Naturally aspirated | Naturally aspirated |
Operational Specs
| Operating Weight | 210 – 274 kg (464 – 604 lb) |
| Operating Voltage | 12 V |
| Alternator | 12 amps |
| Battery | 12 V, 30 Ah, CCA 350, U1 BCI (TY25221B) |
| Ground | Negative |
| Starter | 12 V, Deere MIA12926 |
| Operator Station | Open operator station |
| Operator Seat | High-back cut-and-sewn seat, 18 in (457 mm) |
| Seat Suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
| Backup Protection | Reverse Implement Option (RIO) |
| Steering System | Manual, Low effort, 2-wheel steer |
| Steering Wheel | 14 in (356 mm) |
| Drive | 2WD |
Lift System
| Type | Foot pedal with adjustable spring assist |
| Hydraulic Outlets | No |
| Preset Cut Height | Yes |
| Mower Cut Height | 1 – 4 in (25 – 102 mm), 13 positions |
| Cut Height Increments | 0.25 in (6.4 mm) |
PTO (Power Take-Off)
| Mid PTO Type | Independent |
| Mid PTO Clutch | Electric power take-off clutch, in-line belt |
Transmission
| Type | Belt-driven hydrostatic transmission |
| Model | Tuff Torq K46 Transaxle |
| Number of Gears | Infinite forward and reverse |
| Max Forward Speed | 5.5 mph (8.9 km/h) |
| Max Reverse Speed | 4.0 mph (6.4 km/h) |
| Control | Twin Touch pedals |
| Cruise Control | Standard, button on dash |
| Service Brakes | Internal wet disc brakes |
| Differential Lock | No |

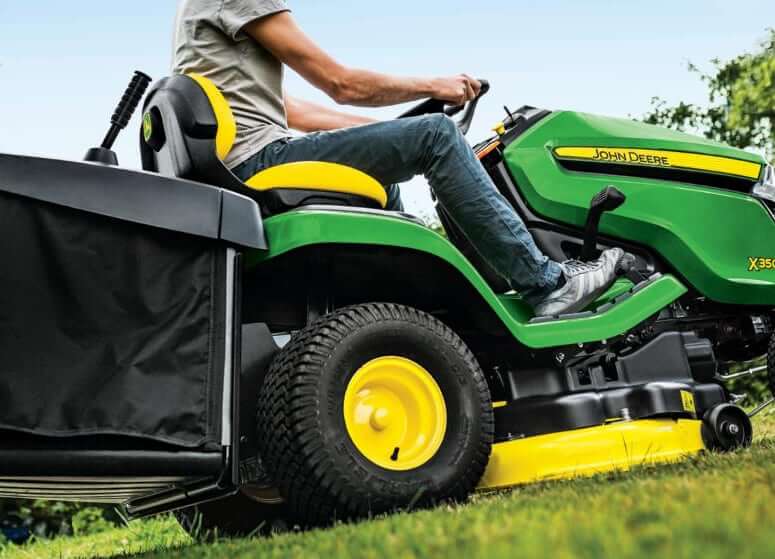

Service Refill Capacities
| Fuel Tank Capacity | 3.3 gal (12.5 L) |
| Engine Oil Capacity, Kawasaki FS600V (w/ filter) | 0.45 gal (1.7 L) |
| Engine Oil Capacity, Kawasaki FS651V (w/ filter) | 0.55 gal (2.1 L) |
| Cooling System Capacity | Air-cooled |
| Engine Oil Change (John Deere Turf-Gard / Plus-4 / Plus-50 II) | 100 h |

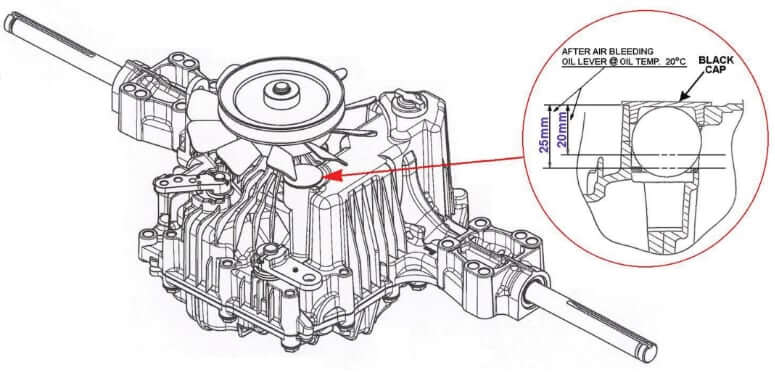

| Transaxle Oil Capacity, Tuff Torq K46 (10W30 API Class Motor Oil) | 0.6 gal (2.3 L) |
John Deere X350 Filters
| Primary Air Filter Element | MIU12554 |
| Secondary Air Filter Element | MIU12555 |
| Engine Oil Filter | AM107423 (AM125424) |
| Inline Fuel Filter | AM116304 |
| Transaxle Oil Filter | Internal, not replaceable |
Serial Numbers & PIN Location
The John Deere X350 serial number (SN / PIN) is located on the right side of the frame, above the front axle.
| Year | Serial Number | Year | Serial Number |
|---|---|---|---|
| 2016 | 10001 | 2020 | 90001 |
| 2017 | 30001 | 2021 | 110001 |
| 2018 | 50001 | 2022 | 130001 |
| 2019 | 70001 |

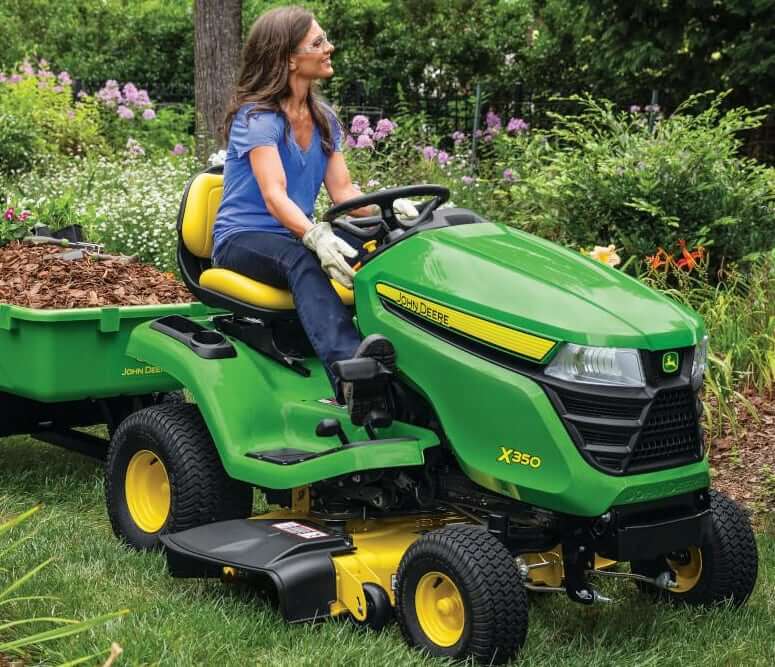

John Deere X350 Attachments
The John Deere X350 may be a lawn tractor at heart, but with the right attachments it becomes a year-round property-care machine. Its Accel Deep mower decks, available in 42-inch and 48-inch options, give it a clean, even cut with excellent airflow, making it reliable in everything from weekly mowing to tackling overgrown patches.

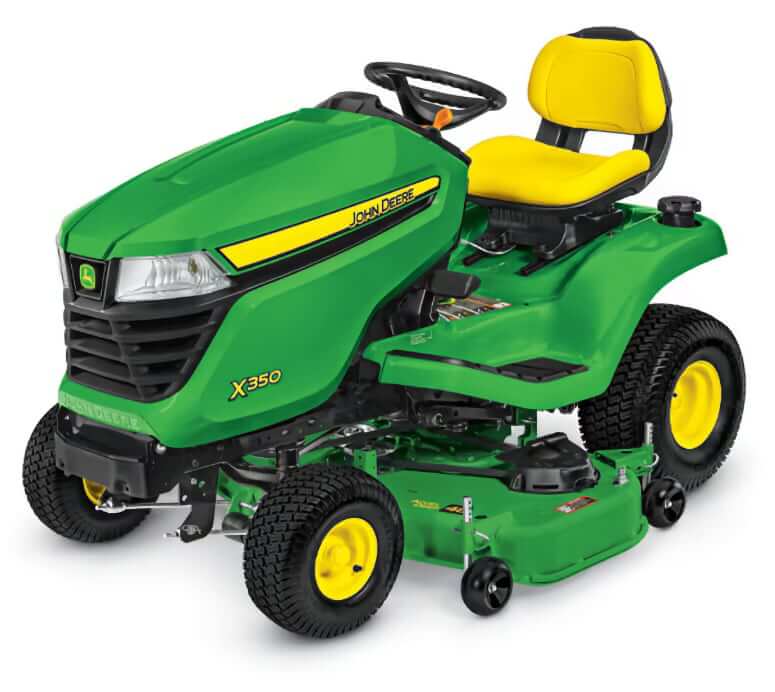

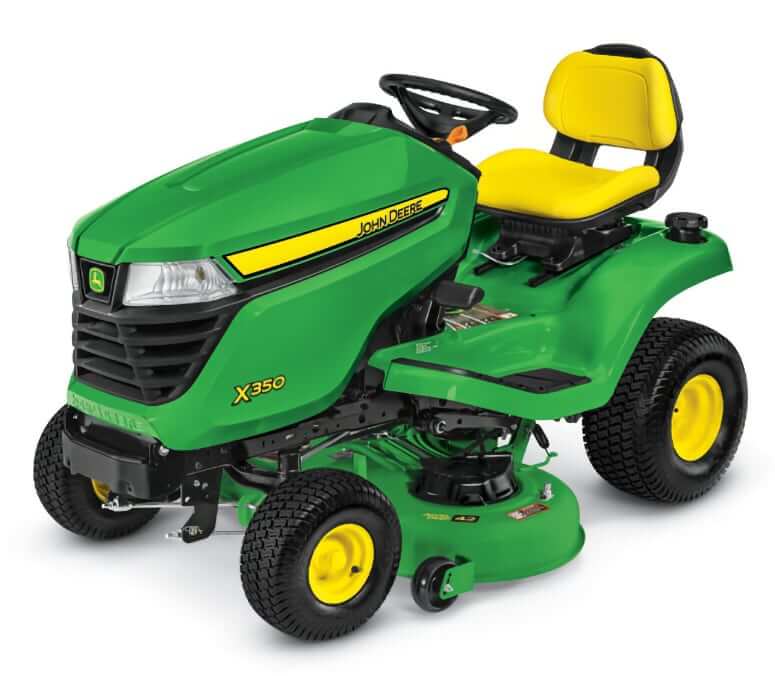

Mid-Mount Mowers for JD X350
| Model | Accel Deep 42 Mower Deck (42A) | Accel Deep 48 Mower Deck (48A) |
|---|---|---|
| Type | Mid-mount | Mid-mount |
| Number of Blades | 2 High Lift (AM140973) or 2 Low Lift (AM140332) | 3 (UC22009) |
| Cutting Width | 42 in (1067 mm) | 48 in (1219 mm) |
| Cut Height | 1 – 4 in (25 – 102 mm) | 1 – 4 in (25 – 102 mm) |
| Cut Adjust | 13 | 13 |
| Total Width | 50.5 in (1283 mm) | 62.6 in (1590 mm) |
| Discharge Type | Right-side discharge | Right-side discharge |
| Lift System | Yes | Yes |
| Front Draft Arms | Attached with spring pins at two points | Attached with spring pins at two points |
| Rear Draft Arms | Two pins and spring clips | Quick-pull pins |
| Mower Wheels | 2x (M111489) | 4x (M111489) |
| Mower Wheels Rotate | No | Yes, 90° for easy mower removal |
| Drive System | Electric power take-off (PTO) clutch, in-line belt | Electric power take-off (PTO) clutch, in-line belt |
| V-Belt (Primary) | M169485 (1900 x 11 x 16.6 mm) | M169485 (1900 x 11 x 16.6 mm) |
| V-Belt (Secondary) | M174313 (2759 x 16 x 13.5 mm) | M169500 (2629 x 11 x 16.6 mm) |
| Mulch Kit | AM140329 | |
| Roller | M113955 | |
| Weight | 75 lb (34 kg) | 128 lb (62 kg) |

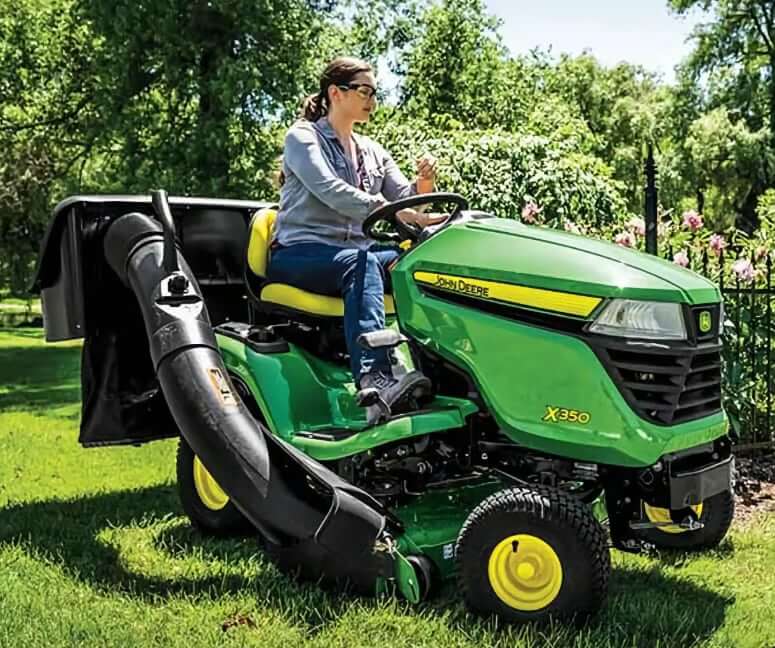

Paired with the 2-bag rear bagger and the MulchControl system, you can switch between bagging, mulching, or side discharge depending on the job and the season.
For lawn renovation and cleanup, front thatchers in multiple widths let you remove debris and revive turf efficiently. The tractor also supports a wide selection of tow-behind sprayers and spreaders – ideal for fertilizing, weed treatment, or larger acreage maintenance and the mounted options give you added convenience when you need more precise application.

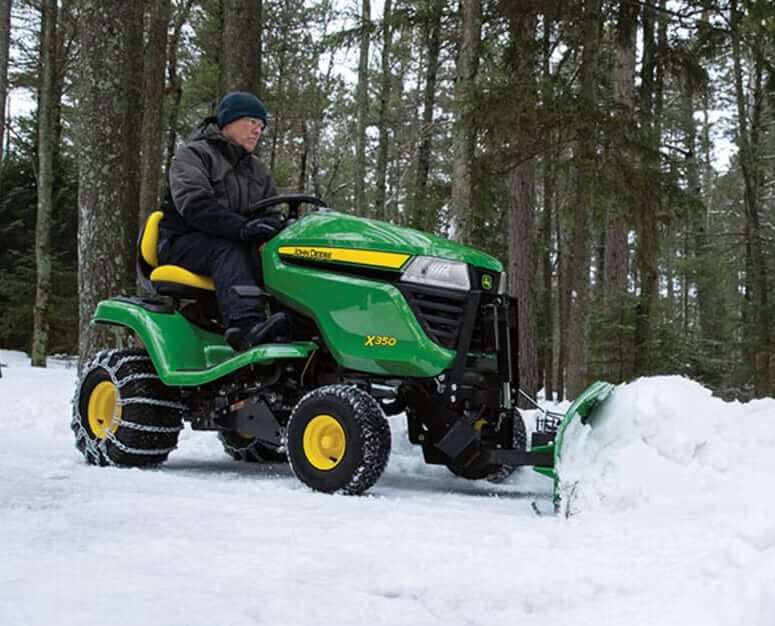

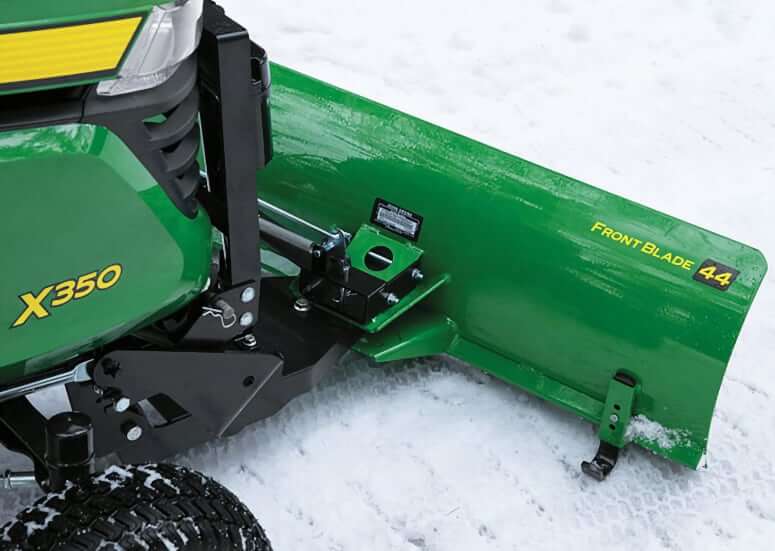

44-in Front Blade for JD X350
| Model | 44-in. Front Blade for X300 Series |
|---|---|
| Cutting Width (Blade straight) | 44 in (1118 mm) |
| Cutting Width (Blade angled) | 40 in (1016 mm) |
| Overall Height | 15 in (381 mm) |
| Number of Positions | Three |
| Angling Positions | ±25° (Right and leff) |
| Lift Above Ground Level | 5 in (127 mm) |
| Lift Below Ground Level | 1 in (25.4 mm) |
| Blade Thickness | 0.12 in (3.05 mm) |
| Replaceable Scraper Edge | 0.188 in (4.76 mm) |
| Blade Weight | 74 lb (34 kg) |
When winter rolls in, the X350 adapts quickly. The 44-inch front blade and the 44-inch two-stage snow blower turn it into a capable snow-handling unit that can clear driveways, paths, and small lots without strain.

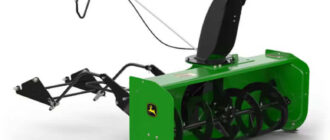

44-in Snow Blower for JD X350
| Model | 44-in. Snow Blower for X300 Series |
|---|---|
| Type | Front-mount |
| Clearing Width | 44 in (1118 mm) |
| Overall Length | 30.5 in (775 mm) |
| Lift Height | 4 in (102 mm) |
| Lift Height (below ground level) | 2 in (51 mm) |
| Stage | Two-Stage |
| Auger Diameter | 12 in (305 mm) |
| Auger Speed | 110 rpm |
| Auger Drive | In-line V-belt |
| Auger Drive Gearbox | Cast-iron worm-drive gearbox |
| Blower Fan drive | Cast-iron right-angle gearbox |
| Blower Fan Size | 4.75 x 14 in (121 x 356 mm) |
| Spout Diameter | 6 in (152 mm) |
| Spout Rotation Angle | ±100° |
| Spout Rotation Control | Manual remote handle |
| Snowblower Weight | 180 lb (82 kg) |
To round out the machine, comfort and utility attachments like the front bumper, brush guard, weather enclosure, sun canopy, bucket holder, striping kit, and even a 40-inch tractor shovel help tailor the X350 to the way you work. With its strong frame, reliable PTO setup, and user-friendly mounting systems, the X350 handles these implements with ease. For homeowners who want one machine to mow, clear snow, spread, spray, haul, and maintain their property all year long, the X350’s attachment lineup gives it a level of versatility that’s hard to beat.
