Contents

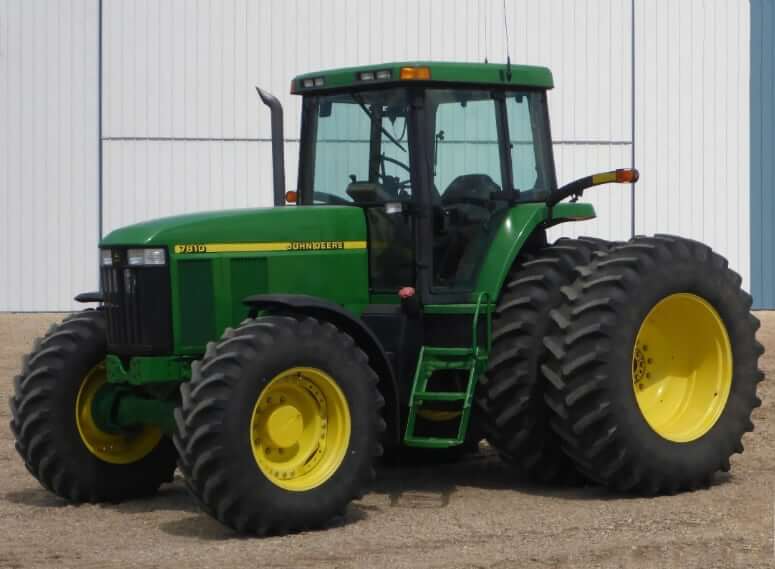

Dimensions
| Length | 187.2 in (4755 mm) |
| Length w/ Front Ballast | 204.9 in (5205 mm) |
| Wheelbase | 110.2 in (2800 mm) |
| Width (Single Tires) | 118.6 in (3012 mm) |

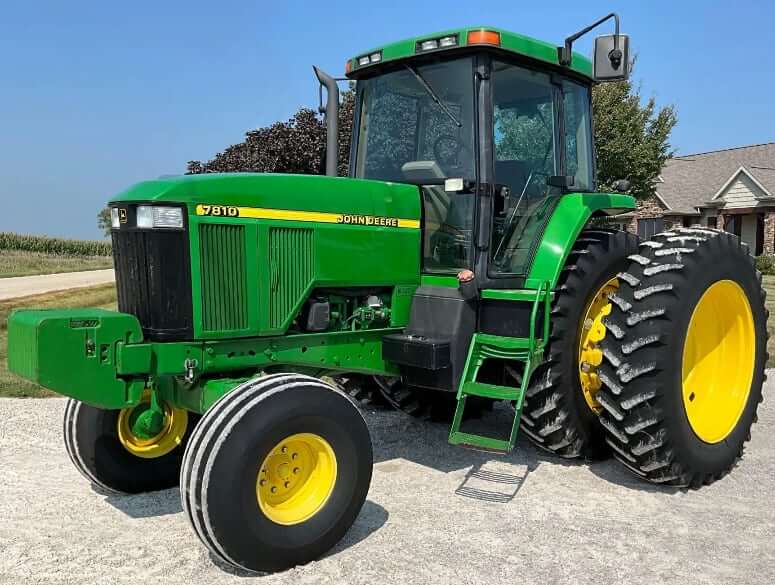

| Width (Dual Tires) | 143.1 in (3635 mm) |
| Height to Top of Cab | 119 in (3023 mm) |
| Height to Top of Exhaust | 116.5 in (2958 mm) |
| Ground Clearance | 20.3 in (515 mm) |
| Rear Tread (2.5 m axle) | 60 to 85.7 in (1520 to 2170 mm) |
| Front Tread (2.8 m axle) | 60 to 100.3 in (1520 to 2540 mm) |
| Rear Tread (3.0 m axle) | 60 to 108.3 in (1520 to 2750 mm) |
| Front Tire Size (2WD) | 11.00-16 |
| Front Tire Size (4WD) | 14.9R28 / 14.9R30 |
| Rear Tire Size (2WD / 4WD) | 18.4R38 / 18.4R42 |

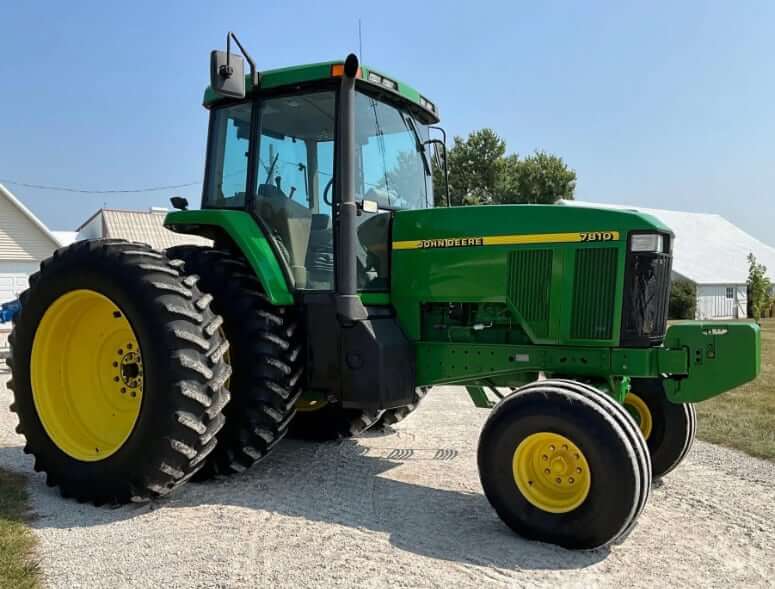

Weight
| Operating Weight (4WD, IVT, 18.4R42) | 16365 lb (7423 kg) |
| Shipping Weight, 2WD | 12352 lb (5602 kg) |
| Shipping Weight, 4WD | 14142 lb (6414 kg) |
| Ballasted Weight (4WD, IVT, 18.4R42) | 19770 lb (8967 kg) |
| Max Drawbar (extended) | 3150 lb (1428 kg) |
| Max Drawbar (short) | 6280 lb (2848 kg) |
| Max Front Axle Load | 10582 lb (4800 kg) |
| Max Rear Axle Load | 22046 lb (10000 kg) |

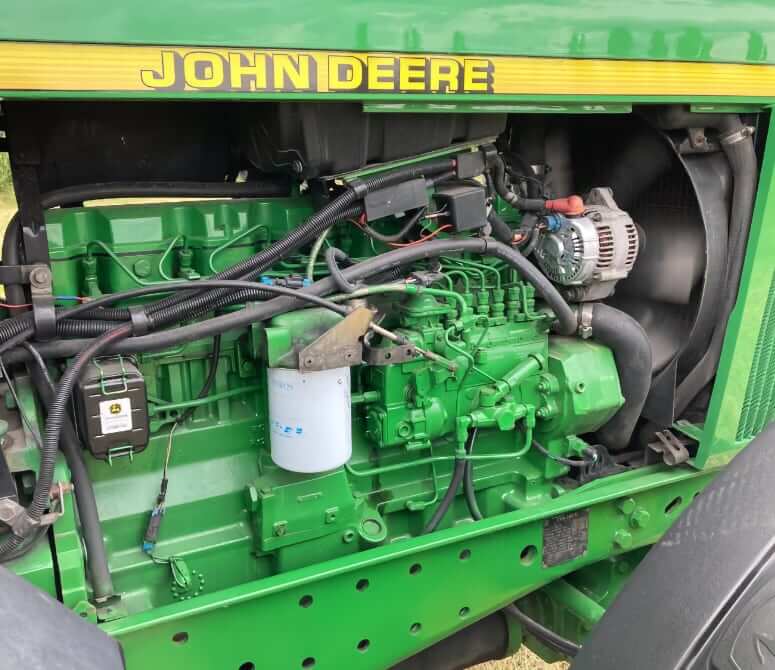

Engine Details
| Number Of Cylinders | 6 |
| Engine Model | John Deere |
| Engine Model | John Deere 6081TRW02 |
| Displacement | 496 cu in (8.13 L) |
| Bore | 4.56 in (116 mm) |
| Stroke | 5.06 in (129 mm) |
| Horsepower | 175 hp (130.5 kw) |
| PTO Horsepower | 167.58 hp (125.0 kw) |
| Drawbar Horsepower | 139.47 hp (104.0 kw) |
| Power Measured @ | 2100 rpm |
| Peak Torque | 579 lb ft (785.1 Nm) |
| Torque Measured @ | 1400 rpm |
| Fuel Injection | Direct injection |
| Cooling System | Centrifugal belt driven pump |
| Lubrication System | Pressure lubrication |
| Air Cleaner | Dual dry element |
| Aspiration | Turbocharged aftercooled |
Transmission
| Model | Description |
|---|---|
| John Deere PowerShift | Full power shift transmission, 19F/7R. Max Travel Speed 23.4 mph (37.7 km/h) |
| John Deere PowrQuad | Partial power shift transmission, 16F/16R, four speeds and 4 ranges with a reverser lever. Max Travel Speed 17.9 mph (28.8 km/h) |
| John Deere AutoQuad | Partial power shift transmission, 20F/20R, four speeds in five ranges with reverser lever. Max Travel Speed 23.6 mph (38.0 km/h) |
| John Deere IVT | Infinitely Variable Transmission (IVT). Max Travel Speed 26.0 mph (41.8 km/h) |
Operational Specs
| Max Operating Weight (18.4R42, 4WD, IVT, Ballasted) | 19775 lb (8970 kg) |
| Operating Voltage | 12 V |
| Alternator | 140 amps |
| Battery | 12 V, 175 Ah, CCA 925 |
| Chassis | 4×2 2WD / 4×4 MFWD 4WD |
| Max Travel Speed | 26 mph (41.8 km/h) |
| Steering | Hydrostatic power |
| Service Brakes | Hydraulic wet discs |
| Parking Brake | Transmission lock. Gear selector lever |
| Cab | Cab (Sound Gard SG-060) |

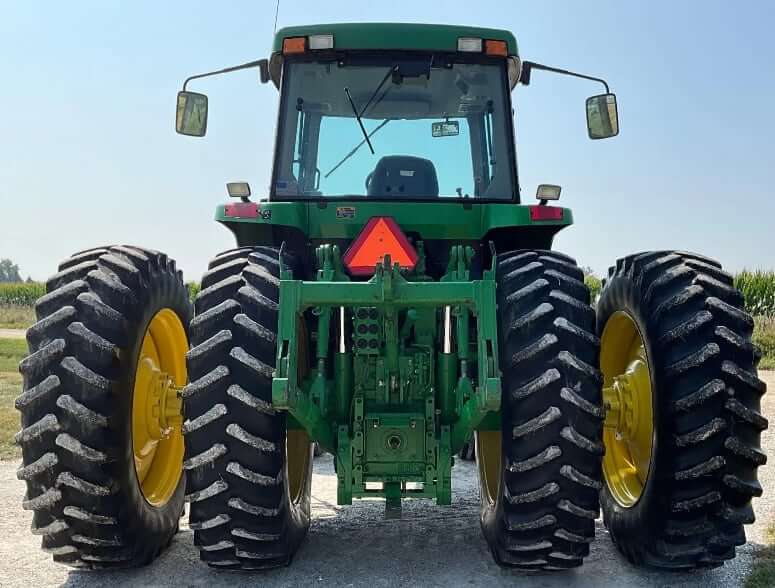

Power Take-off (PTO)
| Rear PTO Type | Independent |
| Rear PTO Speed | 540/1000 rpm |
| Rear PTO / Engine RPM | 540@2100 / 1000@2100 |
| PTO Horsepower (claimed) | 150 hp (111.9 kw) |
| PTO Horsepower (tested) | 167.58 hp (125.0 kw) |
Hydraulic System
| Type | Closed center pressure flow compensated (PFC) |
| Pump Flow | 26 gal/min (98.4 L/min) |
| Relief Valve Setting | 2900 psi (20000 kPa) |
| 3 Point Hitch Category | Cat IIIN/II |
| 3 Point Hitch Lift Capacity @ 24″ | 8925 lb (4048 kg) / 10050 lb (4558 kg) |
| Number of Remote Valves | 2-5 |
| Front Hitch Category (Optional) | Cat IIIN/II |
| Front Hitch Lift Capacity (Optional) | 7700 lb (3492 kg) |

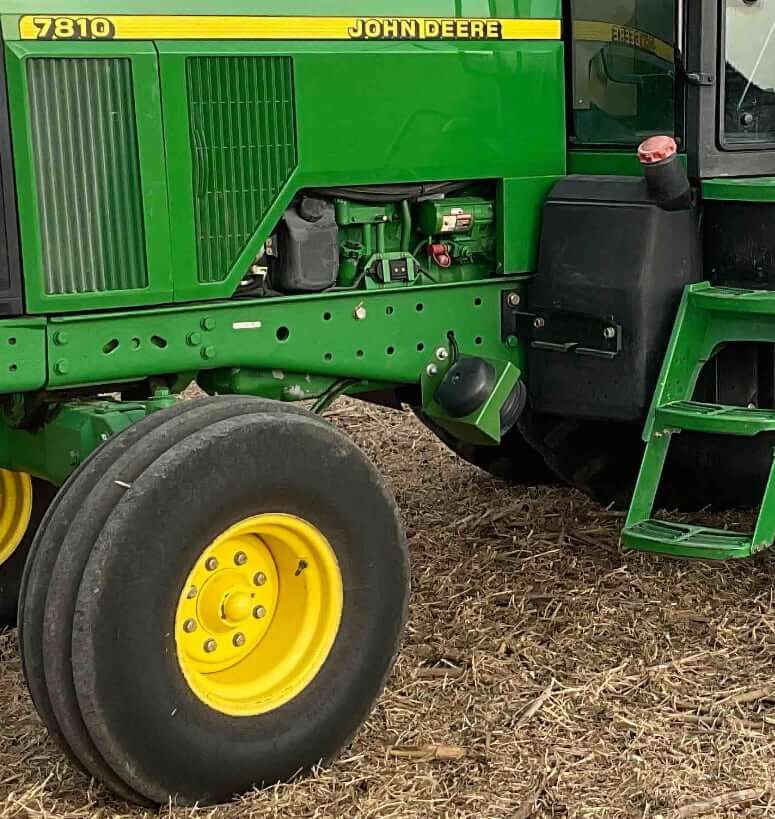

Service Refill Capacities
| Fuel Tank Capacity (Standard) | 91 gal (344 L) |
| Fuel Tank Capacity (Open Station) | 71.5 gal (270 L) |
| Engine Oil Capacity | 6.3 gal (24 L) |
| Cooling System Capacity (S/N -089999) | 6.9 gal (26 L) |
| Cooling System Capacity (S/N 090000-) | 8.7 gal (33 L) |
| Hydraulic / Transmission (PowerShift) | 24 gal (91 L) |
| Hydraulic / Transmission (PowerShift w/ MFWD) | 27 gal (102.3 L) |
| Hydraulic / Transmission (PowrQuad / AutoQuad) | 22.9 gal (87 L) |
| Hydraulic / Transmission (PowrQuad / AutoQuad w/ MFWD) | 25.9 gal (98.3 L) |
| Hydraulic / Transmission (PowrQuad / AutoQuad w/ Creeper) | 24 gal (91 L) |
| Hydraulic / Transmission (PowrQuad / AutoQuad w/ MFWD and Creeper) | 27 gal (102.3 L) |
| Hydraulic / Transmission (IVT) | 27 gal (102.3 L) |
| Axle Housing Fluid Capacity | 3.7 gal (14.4 L) |
| Wheel Hub Fluid Capacity | 0.5 gal (1.9 L) |
| Wheel Hub (Hi-Crop) Fluid Capacity | 1 gal (3.8 L) |

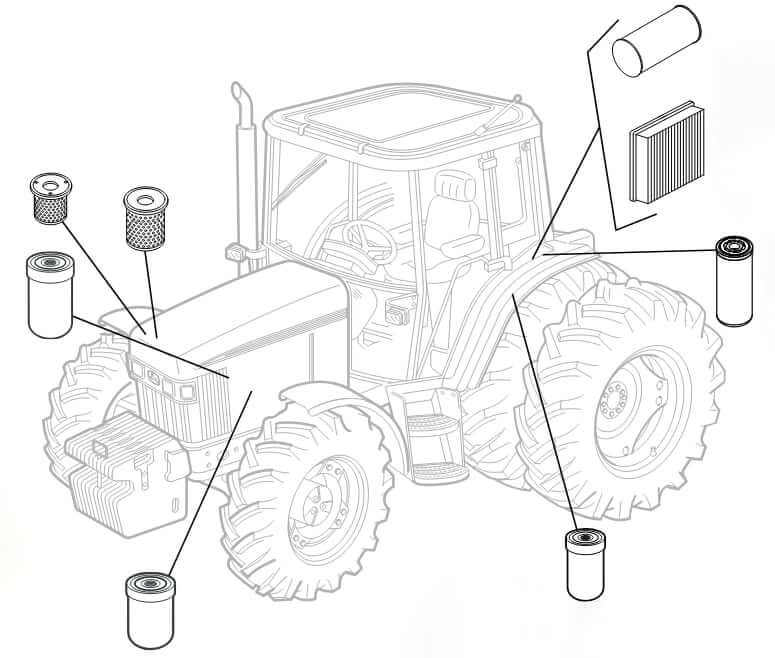

John Deere 7810 Filters
| Cab Fresh Air Filter (Standard) | RE24619 |
| Cab Fresh Air Filter (Heavy Duty) | RE67829 |
| Cab Fresh Air Filter (Activated Carbon) | RE199681 |
| Cab Recirculation Air Filter (Standard) | RE48882 |
| Cab Recirculation Air Filter (Heavy Duty) | RE151778 |
| Cab Recirculation Air Filter (Activated Carbon) | RE201745 |
| Hydraulic Oil Filter (PowrQuad, AutoQuad, SyncroPlus) | RE205726 |
| Hydraulic Oil Filter (IVT) | RE161181 |
| Transmission Oil Filter (PowrQuad / AutoQuad / PowerShift) | RE205726 + R86516 (Screen) |
| Transmission Oil Filter (IVT) | RE161181 |
| Engine Oil Filter (S/N –089999) | DZ101880 |
| Engine Oil Filter (S/N 090000–) | RE509672 |
| Fuel Filter, Primary (S/N –089999) | AR86745 |
| Inline Fuel Strainer (S/N –089999) | AR103220 |
| Fuel Water Separator (Optional) | RE508633 |
| Single Fuel Filter System (S/N 090000–) | RE522372 |
| Dual Fuel Filter System (S/N 090000–) | RE522687 + RE522688 |
| Engine Air Filter, Primary | RE65880 |
| Engine Air Filter, Secondary | RE34967 |
Serial Numbers
| Year | Serial Number | Year | Serial Number |
|---|---|---|---|
| 1997 | 1001 | 2001 | 50001 |
| 1998 | 10001 | 2002 | 70001 |
| 1999 | 20001 | 2003 | 80001 |
| 2000 | 30001 |
