Dimensions
| Overall Length | 175.6 in (4460 mm) |
| Wheelbase, 2WD | 106.3 in (2700 mm) |
| Wheelbase, 4WD | 104.3 in (2650 mm) |
| Height to Top of ROPS | 111.4 in (2830 mm) |
| Height to Top of Exhaust | 110 in (2795 mm) |
| Front Track Width | 59.7 – 79.4 in (1516 – 2016 mm) |
| Rear Track Width | 59.7 – 75.4 in (1516 – 1916 mm) |
| Overall Width | 88.6 in (2250 mm) |
| Ground Clearance | 16.7 in (425 mm) |
Tire Size
| John Deere 6715 | 2WD | 4WD |
|---|---|---|
| Front Tire Size (Standard) | 10.00-16 | 12.4-28 |
| Rear Tire Size (Standard) | 18.4-38 | 18.4-38 |
| Front Tire Size (Optional) | 10.00-16 | 13.6-24 |
| Rear Tire Size (Optional) | 18.4-34 | 18.4-34 |
| Front Tire Size (ag) | 14.9-24; 13.6-28 | |
| Rear Tire Size (ag) | 18.4-34; 18.4-38 |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 6068 |
| Displacement | 414 cu in (6.8 L) |
| Bore | 4.19 in (106 mm) |
| Stroke | 5.00 in (127 mm) |
| Gross Power | 129.4 hp (96.5 kw) |
| Net Power | 125 hp (93.2 kw) |
| PTO Power | 105 hp (78.3 kw) |
| Power Measured @ | 2300 rpm |
| Peak Torque | 750 lb ft (1017 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 2 + 2000/25/EG |
Operational Specs
| Operating Weight, 2WD, ROPS | 8776 lb (3980 kg) |
| Operating Weight, 2WD, Cab | 9658 lb (4380 kg) |
| Operating Weight, 4WD, ROPS | 9361 lb (4246 kg) |
| Operating Weight, 4WD, Cab | 10252 lb (4650 kg) |
| Operator Station (Standard) | Two-post foldable ROPS |
| Operator Station (Optional) | Cab with air-conditioning (John Deere ComfortVantage) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, 154 Ah, CCA 1230 |
| Starter | 12 V, 4.2 hp (3.1 kw) |
Transmission
| Transmission Type | Synchronized | Power Shuttle | Power Shift |
|---|---|---|---|
| Number of Gears | 12F / 4R | 16F / 16R | 16F / 16R |
| Clutch Type | Wet multi-plate disc | Wet multi-plate disc | Wet multi-plate disc |
| Max Forward Speed | 18.9 mph (30.4 km/h) | 18.9 mph (30.4 km/h) | 18.9 mph (30.4 km/h) |
| Max Reverse Speed | 12.5 mph (20.1 km/h) | 22.7 mph (36.5 km/h) | 22.7 mph (36.5 km/h) |
| Service Brakes | Hydraulic wet disc brakes | Hydraulic wet disc brakes | Hydraulic wet disc brakes |
Hydraulic System
| Type | Constant-flow load-sensing hydraulics |
| Pump Flow Capacity | 17.5 gal/min (66.3 L/min) |
| Relief Valve Setting | 2500 psi (17237 kPa) |
| Number of Valves | 1 to 4 |

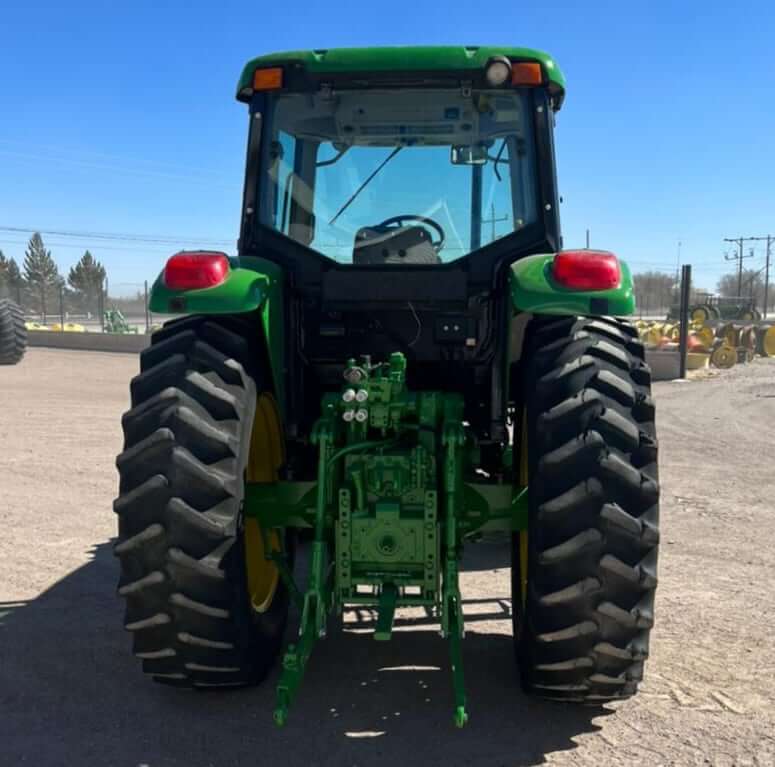

3-Point Hitch
| 3 Point Hitch Type | Category II |
| 3 Point Hitch Lift Capacity @ 24 Inches | 5915 lb (2683 kg) |
| Control | Electro-hydraulic lower-link draft sensing |
Service Refill Capacities
| Fuel Tank Capacity | 54.7 gal (207 L) |
| Engine Oil Capacity | 5.3 gal (20 L) |
| Cooling System Capacity | 4.1 gal (15.5 L) |
| Hydraulic / Transmission Oil Capacity (SyncroPlus) | 13.7 gal (52 L) |
| Hydraulic / Transmission Oil Capacity (PowrReverser) | 13.7 gal (52 L) |
| Transmission Oil Extra with Creeper | 0.3 gal (1 L) |
| Transmission Oil Extra with Front Wheel Drive | 0.8 gal (3 L) |
| Front Wheel Drive, Axle Housing Capacity | 1.7 gal (6.3 L) |
| Front Wheel Drive, Final Drives Capacity | 0.2 gal (0.75 L) |
