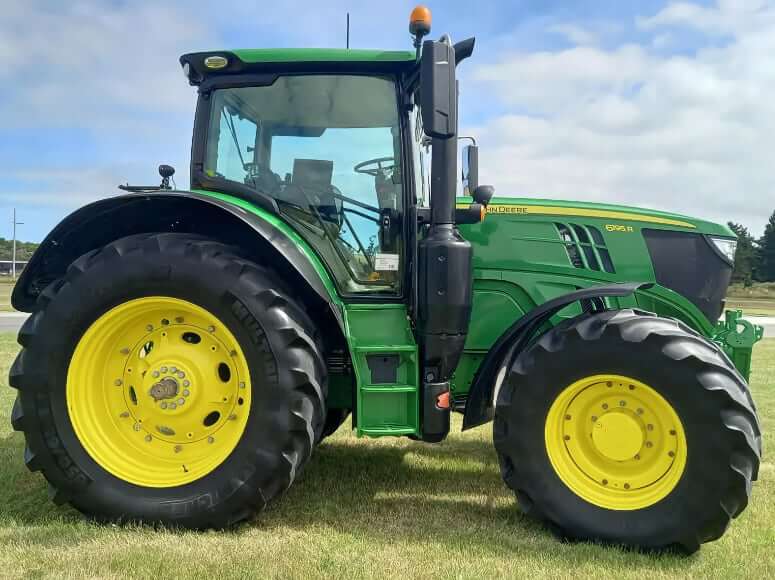

Dimensions
Length | 198.8 in (5050 mm) |
Width | 100.4 in (2550 mm) |
Height | 124.4 in (3160 mm) |
Wheelbase | 110.2 in (2800 mm) |
Height from Centre of Rear Axle to Top of Cab | 85.9 in (2183 mm) |
Ground Clearance (Front Axle) | 23.9 in (607 mm) |
Front Tread Range | 60 to 88 in (1524 to 2235 mm) |
Rear Axle (Standard) | 3.94 x 100.4 in (100 x 2550 mm) |
Rear Axle (Optional) | 3.94 x 110.5 in (100 x 2808 mm) / 3.94 x 118.5 in (100 x 3012 mm) |
Tires
Front Tire Size (Standard) | 420/90R30 |
Front Tire Size (Optional) | 600/70 R30 (SRI 725) |
Rear Tire Size (Standard) | 480/80R46 |
Rear Tire Size (Optional) | 800/70R38 (SRI 975) |
Turning Radius | 221.3 in (5620 mm) |
Engine Details
Number of Cylinders | 6 |
Engine Make | John Deere PowerTech |
Engine Model | John Deere 6068 |
Displacement | 414 cu in (6.788 L) |
Bore | 4.17 in (106 mm) |
Stroke | 5.00 in (127 mm) |
Horsepower | 215 hp (160 kw) |
Horsepower w/ IPM | 235 hp (175 kw) |
Power Measured @ | 2100 rpm |
Peak Torque | 671 lb ft (910 Nm) |
Torque Measured @ | 1600 rpm |
Max Torque Rise | 43 % |
Aftertreatment | Lifetime DPF, DOC and SCR using DEF |
Aspiration | Turbocharger with air-to-air aftercooling and cooled EGR |
Emission Standards | US EPA Tier 4 Final + EU Stage IIIA |
Operational Specs
Shipping Weight | 17200 lb (7802 kg) |
Max Operating Weight | 29652 (13450 kg) |
Operating Volatge | 12 V |
Alternator | 200 amps (240 amps) |
Battery | 12 V, 154 Ah, CCA 1150, A BCI |
Instrument Cluster (Standard) | LCD display CommandCenter 7 in (178 mm) |
Instrument Cluster (Optional) | LCD display CommandCenter 10 in (254 mm) |
Operator Seat | Air suspension seat / Deluxe air suspension (Optional) |
Cab Type | ComfortView cab with ROPS Noise level at operator’s ear, dB(A) 86 |
Noise Level (inside) | 86 dB(A) |
Transmission
Transmission Type (Standard) | PowrQuad Plus, 4 gears / 5 groups (20F / 20R), 1.5 – 25 mph (2.5 – 40 km/h) |
Transmission Type (Optional) | AutoQuad Plus, 4 gears / 5 groups (20F / 20R), 1.5 – 31 mph (2.5 – 50 km/h) |
Transmission Type (Optional) | DirectDrive, 8 gears / 3 groups (24F / 24R), 1.7 – 31 mph (2.7 – 50 km/h) |
Transmission Type (Optional) | AutoPowr IVT, Infinite speed adjustment, 0.03 – 31 mph (0.05 – 50 km/h) |
Steering | Dynamic load sensing, hydrostatic, flow metering; Variable Ratio Steering optional |
Suspended Front Axle | Triple Link Suspension (TLS Plus) MFWD Axle in base; hydro-pneumatic, permanently active, triple link, self-levelling, load adjusting suspension |
Engagement Front Differential Lock | Self-locking differential; 100% differential lock optional |
Engagement Rear Differential Lock | Electro-hydraulic with oil cooled clutch |
Rear Axle | Flange axle or rack & pinion axle |
Service Brakes | Additional brake discs in the TLS Plus axle hubs |
Drive | 4WD (MFWD) |
Max Travel Speed | 31 mph (50 km/h) |
PTO (Power Take-Off)
Rated PTO Power (SAE) | 158 hp (118 kw) |
PTO Actuation | Electrohydraulic |
PTO / Engine RPM | 540/1000 @ 1950 540E @ 1761 1000E @ 1756 |
Rear PTO Type (Standard) | Independent 1.375 in (35 mm), 540, 1000 rpm reversible shaft |
Rear PTO Type (Optional) | Independent 1.375 in (35 mm), 540, 540E, 1000 rpm Independent 1.75 in (44.5 mm), 540, 1000 rpm Independent 1.75 in (44.5 mm), 540, 540E, 1000 rpm Independent 1.75 in (44.5 mm), 540E, 1000, 1000E rpm |
Hydraulic System
Type | Pressure & Flow Compensated (PFC) system with load sensing function |
Pump Flow Capacity (Standard) | 30 gal/min (114 L/min) |
Pump Flow Capacity (Optional) | 41 gal/min (155 L/min) |
Available Flow at a Single SCV | 26.4 gal/min (99.9 L/min) |
Max Pressure | 2900 psi (20000 kPa) |
Number of Selective Control Valves | Up to 6+3 |
3-Point Hitch
3-Point Hitch Type | Electronic lower link sensing; load and depth control, infinite mix, float |
3-Point Hitch Category | III |
3 Point Hitch Lift Capacity @ 24″ | 10692 lb (4850 kg) |
3 Point Hitch Lift Capacity @ Ends | 18783 lb (8520 kg) |
Front 3-Point Hitch Type | Front hitch controlled by rear SCV (Economy option) or dedicated SCV (Premium option) |
Front 3-Point Hitch Category | IIIN |
Front 3 Point Hitch Lift Capacity @ Ends | 8818 lb (4000 kg) |
Front 3 Point Hitch Lift Capacity @ OECD Ends | 7275 lb (3300 kg) |
Service Refill Capacities
Fuel Tank Capacity | 87.2 gal (330 L) |
DEF Tank Capacity | 5.3 gal (20 L) |
Engine Oil Capacity | 6.2 gal (23.5 L) |
Cooling System Capacity | 7.4 gal (28 L) |
Transmission Oil Capacity (PowrQuad Plus) | 18.8 gal (71 L) |
Transmission Oil Capacity (AutoQuad Plus) | 18.8 gal (71 L) |
Transmission Oil Capacity (DirectDrive) | 19.8 gal (75 L) |
Transmission Oil Capacity (AutoPowr IVT) | 21.4 gal (81 L) |
2-Piece Front Axle, Axle Housing (w/ TLS) | 2.25 gal (8.5 L) |
2-Piece Front Axle, Axle Housing (w/o TLS) | 2.11 gal (8.0 L) |
2-Piece Front Axle, Final Drives (per side, w/o brake) | 0.58 gal (2.2 L) |
2-Piece Front Axle, Final Drives (per side, w/ brake) | 0.69 gal (2.6 L) |
3-Piece Front Axle, Axle Housing (w/ TLS) | 3.0 gal (11.4 L) |
3-Piece Front Axle, Axle Housing (w/o TLS) | 2.8 gal (10.6 L) |
3-Piece Front Axle, Final Drives (per side, w/o brake, 750 type Axle) | 0.53 gal (2.0 L) |
3-Piece Front Axle, Final Drives (per side, w/o brake, 755 type Axle) | 0.5 gal (1.9 L) |
3-Piece Front Axle, Final Drives (per side, w/ brake, 750 type Axle) | 0.69 gal (2.6 L) |
3-Piece Front Axle, Final Drives (per side, w/ brake, 755 type Axle) | 0.66 gal (2.5 L) |
