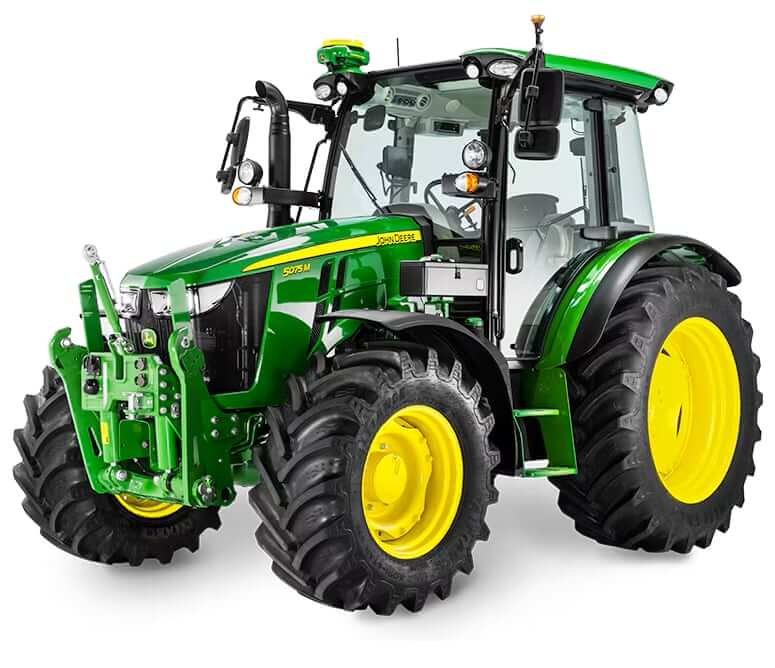

Dimensions
| 5075M | 2WD | MFWD |
|---|---|---|
| Wheelbase | 92.5 in (2350 mm) | 92.5 in (2350 mm) |
| Overall Length | 159.6 in (4054 mm) | 159.6 in (4054 mm) |
| Height (ROPS) | 97 in (2460 mm) | 97 in (2460 mm) |
| Height (Cab) | 100 in (2540 mm) | 100 in (2540 mm) |
| Front Tread Range | 59.8-79.5 in in (1520 – 2020 mm) | 51.1-78.6 in (1299-1997 mm) |
| Rear Tread Range | 53.1-80.9 in (1349-2055 mm) | 53.1-80.9 in (1349-2055 mm) |
| Front Axle Clearance | 18.8 in (477.5 mm) | 15.8 in (401.3 mm) |
| Ground Clearance (front axle) | 18.8 in (470 mm) | 15.8 in (400 mm) |
Tires
| 5075M | 2WD | MFWD |
|---|---|---|
| Front Tire Size | 7.5-16 6PR F2 | 11.2-24 8PR R1 |
| Rear Tire Size | 460/85R30 (18.4R30) R1W Radial | 460/85R30 (18.4R30) R1W Radial |
| Turning Radius w/ Brakes | 12.04 ft (3.67 m) | 12.6 ft (3.85 m) |
| Turning Radius w/o Brakes | 12.6 ft (3.85 m) | 13.1 ft (4.0 m) |
Weight
| 5075M | 2WD | MFWD |
|---|---|---|
| Shipping Weight, Open-Station (OOS) | 8140 lb (3700 kg) | 8765 lb (3975 kg) |
| Shipping Weight, Cab | 8580 lb (3900 kg) | 9185 lb (4175 kg) |
Engine Details
| Number Of Cylinders | 5 |
| Engine Make | John Deere PowerTech |
| Engine Model | PowerTech 3029 EWX |
| Engine Family | NJDXL02.9318 |
| Engine Type | 3029HPY96 |
| Displacement | 179 cu in (2.9 L) |
| Bore | 4.19 in (106 mm) |
| Stroke | 4.33 in (110 mm) |
| Engine Power | 75 hp (55.1 kw) |
| Power Measured @ | 2200 rpm |
| PTO Power | 57.7 hp (43 kw) |
| PTO Power Measured @ | 2100 rpm |
| Peak Torque | 221 lb ft (300 Nm) |
| Torque Measured @ | 1600 rpm |
| Aftertreatment | DOC / DPF |
| Aspiration | Turbocharged and air-to-air aftercooled |
| Emission Standards | US EPA Tier 4 Final |

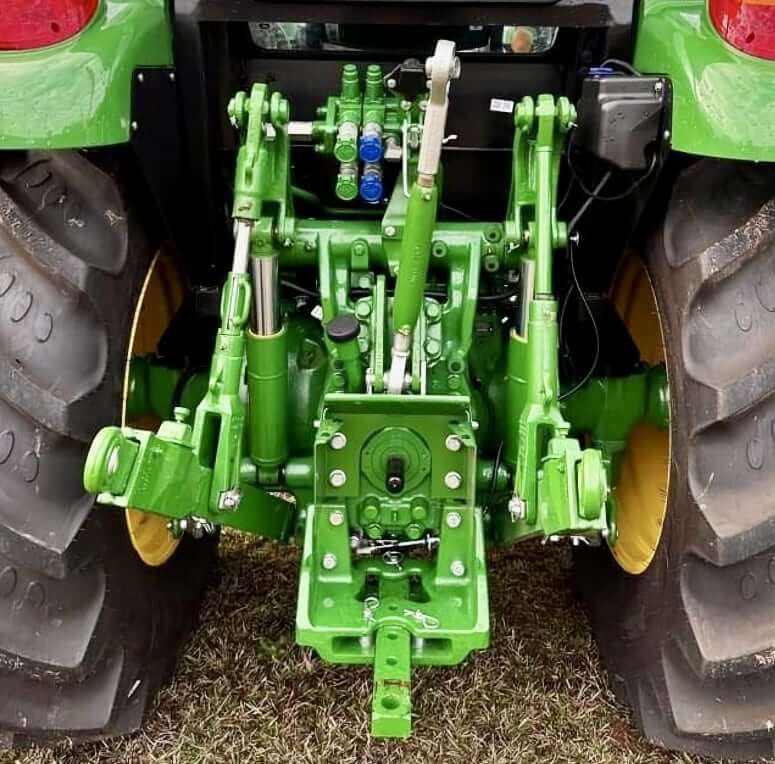

PTO (Power Take-Off)
| PTO Type | Independent, 1.375 in (34.9 mm) |
| PTO Speed | 540/540E |
| PTO Speed (Optional) | 540/540E/1000 |
| PTO Actuation | Electrohydraulic |
| PTO / Engine RPM | 540 @ 2100; 540E @ 1645; 1000 @ 2100 |
Operational Specs
| Max Operating Weight | 9185 lb (4175 kg) |
| Max 3 Point Hitch Lift Capacity | 5950 lb (2699 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps (OOS) / 120 amps (Cab) |
| Battery | 12 V, 180 Ah, CCA 950 |
| Working Lights | Halogen / LED (Optional) |
| ROPS | Foldable, two-post ROPS |
| Gearshift Location | Floor |
| Display | Automotive-style light-emitting diode (LED) instrument cluster |
| Noise Level | 78 dB(A) |
Transmission
| Model | 16F/16R PowrReverser | 32F/16R PowrReverser Hi-Lo |
|---|---|---|
| Type | Power shuttle transmission | Two-speed power shift transmission |
| Clutch | Wet disc | Wet disc |
| Reverser | Left Hand, Mechanical | Left Hand, Mechanical |
| On-The-Go Shifting | Partial | Partial |
| Max Travel Speed | 18.4 mph (29.6 km/h) | 22.4 mph (36.0 km/h) |
Axles, Brakes and Final Drive
| Front Axle | Mechanical Front Wheel Drive (MFWD) |
| Front Axle (Optional) | Two-Wheel Drive (2WD) |
| Rear Axle | Flanged |
| Rear Axle Differential Lock | Electrohydraulic |
| Final Drive Type | Inboard Planetary |
| Service Brakes | Hydraulic Wet Disc |
Hydraulic System
| Hydraulic Type | Open Center |
| Total Pump Flow | 24.7 gal/min (94 L/min) |
| Max Operating Pressure | 2900 psi (20000 kPa) |
| Steering Flow | 6.3 gal/min (24 L/min) |
| Max Steering Pressure | 1900 psi (13100 kPa) |
| Rated Flow @ One SCV | 18.4 gal/min (70 L/min) |
| Number of Rear Selective Control Valves (SCVs) | 2 / 3 |
| Number of Mid Selective Control Valves (SCVs) | 2 / 3 |
| Sensing Type | Lower Link |
| Hitch Draft Control Load Sense Type | Mechanical or Electrohydraulic |
| Joystick SCV Control | Optional |
| 3 Point Hitch Type | Category 2; convertible to 1 |
| 3 Point Hitch Lift Capacity @ 24 Inches | 5150 lb (2336 kg) |
| 3 Point Hitch Lift Capacity @ 24 Inches (Optional) | 5950 lb (2699 kg) |
| Max Drawbar Load, Road/field use (250-mm extended) | 3197 lb (1450 kg) |
| Max Drawbar Load, Field use (350-mm extended) | 2646 lb (1200 kg) |
| Max Drawbar Load, Field use (400-mm extended) | 2646 lb (1200 kg) |
Service Refill Capacities
| John Deere 5075M | OOS | Cab |
|---|---|---|
| Fuel Tank Capacity | 39.1 gal (148 L) | 43.6 gal (165 L) |
| Fuel Tank Capacity (High Capacity) | 46.8 gal (177 L) | 51.8 gal (196 L) |
| DEF Tank Capacity | 3.17 gal (12 L) | 3.17 gal (12 L) |
| Engine Oil Capacity | 3.4 gal (13 L) | 3.4 gal (13 L) |
| Cooling System Capacity | 3.6 gal (13.5 L) | 5.8 gal (22 L) |
| Hydraulic / Transmission Oil Capacity | 10.4 gal (39.5 L) | 10.4 gal (39.5 L) |
| Front Differential Capacity | 1.32 gal (5 L) | 1.32 gal (5 L) |
| Front PTO Capacity | 0.82 gal (3.1 L) | 0.82 gal (3.1 L) |
| Front Hubs (each) | 0.21 gal (0.8 L) | 0.21 gal (0.8 L) |
John Deere 5075M Filters
| Engine Air Filter (Primary) | SU20768 |
| Engine Air Filter (Secondary) | RE253519 |
| Fuel Filter | DZ114096 |
| Engine Oil Filter (S/N -034279) | RE519626 |
| Engine Oil Filter (S/N 034280-) | DZ114256 |
| OCV Filter (Open Crankcase Ventilation) | RE553871 |
| Engine Diesel Particulate Filter (DPF) | DZ104592 |
| Cab Fresh Air Filter | RE198488 |
| Cab Recirculation Air Filter | RE195491 |
| Hydraulic / Transmission Oil Filter | SJ11784 |
