Dimensions
| John Deere 5075E | 2WD | MFWD |
|---|---|---|
| Length | 143.3 in (3639 mm) | 143.3 in (3639 mm) |
| Wheelbase | 80.7 in (2050 mm) | 80.7 in (2050 mm) |
| Width | 74.8 in (1901 mm) | 74.8 in (1901 mm) |
| Ground Clearance (front axle) | 15.8 in (403 mm) | 15.8 in (403 mm) |
Tires
| John Deere 5075E | 2WD | MFWD |
|---|---|---|
| Rear Tire Size (Standard) | 16.9-28 R1 Bias | 16.9-28 R1 Bias |
| Rear Tire Size (Lawn/Turf) | 22.5LL-16.1 6PR R3 | 22.5LL-16.1 In. 6PR R3 |
| Rear Tire Size (Industrial) | 16.9-24 6PR R4 Bias | 16.9-24 6PR R4 Bias |
| Rear Tire Size (Optional) | 21.5L-16.1 6PR R3 Bias; 16.9-30 6PR R1 Bias; 420/85R28 R1W Radial |
21.5L-16.1 6PR R3 Bias; 16.9-30 6PR R1 Bias; 420/85R28 R1W Radial |
| Front Tire Size (Standard) | 11.2 x 24 | 11.2-24 10PR R1 Bias |
| Front Tire Size (Lawn/Turf) | 27/12LL-15 6PR | 27/12LL-15 6PR |
| Front Tire Size (Industrial) | 11L-15 10PR F3 | 11L-15 10PR F3 |
| Front Tire Size (Optional) | 11L-15 8PR F2-M | 12.4-24 8PR R1 Bias; 12.5/80-18 6PR I3; 280/85R24 R1W |
| Turning Radius w/ Brakes | 122 in (3100 mm) | 155 in (3940 mm) |
| Turning Radius w/o Brakes | 138 in (3500 mm) | 183 in (4650 mm) |
Operational Specs
| John Deere 5075E | 2WD | MFWD |
|---|---|---|
| Shipping Weight, OOS (ROPS) | 5555 lb (2520 kg) | 6029 lb (2735 kg) |
| Shipping Weight, Cab | 6590 lb (2989 kg) | 6812 lb (3090 kg) |
| Operating Voltage | 12 V | 12 V |
| Alternator | 70 amps | 110 amps |
| Battery | 12 V, 80 Ah, CCA 625 | 12 V, 95 Ah, CCA 925 |
| Working Lights | Halogen | LED |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | John Deere |
| Engine Model | PowerTech 3029 EWR |
| Engine Type | 3029HPY110 |
| Engine Family | NJDXL02.9339 |
| Displacement | 179 cu in (2.9 L) |
| Bore | 4.19 in (106 mm) |
| Stroke | 4.33 in (110 mm) |
| Gross Power | 73.7 hp (55 kw) |
| PTO Power (OSS) | 60.3 hp (45 kw) |
| PTO Power (Cab) | 57.6 hp (43 kw) |
| Power Measured @ | 2100 rpm |
| Peak Torque | 224 lb ft (304 Nm) |
| Torque Measured @ | 1500 rpm |
| PTO Torque Rise | 21% |
| Compression Ratio | 16.9:1 |
| Fuel System | High-pressure common-rail (HPCR) |
| Aspiration | Turbocharged |
| Aftertreatment | DOC/EGR |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB and Stage V |
Transmission
| Model | SyncShuttle 9F/3R | PowrReverser 12F/12R |
|---|---|---|
| Clutch | Dry disc | Wet disc |
| Number Of Forward Gears | 9 | 12 |
| Number Of Reverse Gears | 3 | 12 |
| Max Travel Speed, Forward | 17.3 mph (27.9 km/h) | 19.8 mph (31.8 km/h) |
| Max Travel Speed, Reverse | 13.7 mph (22.1 km/h) | 19.8 mph (31.8 km/h) |
| Service Brakes | Hydraulic wet disc brakes | Hydraulic wet disc brakes |

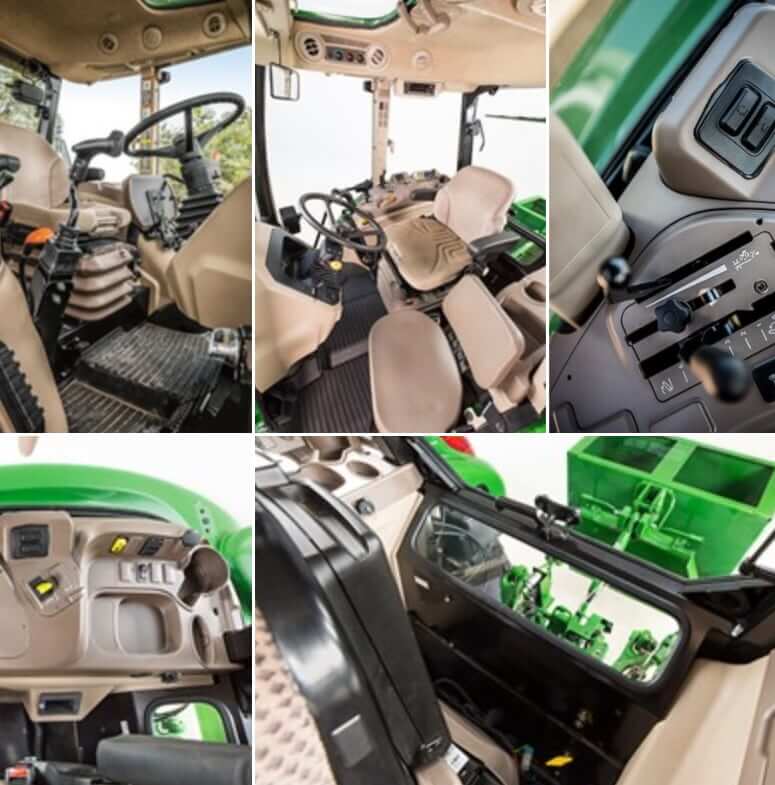

Operator Environment
| Cab Sound Level | 81 dB(A) |
| ROPS | Rigid – foldable – telescopic. Foldable, two-post ROPS |
| Platform (flat/straddle) | Straddle |
| Seat | Mechanical / Air Ride (Premium Cab) / Instructional seat (Optional) |
| Display | Simple automotive-style instrument cluster |
PTO (Power Take-Off)
| Transmission | SyncShuttle | PowrReverser |
|---|---|---|
| PTO Type | Independent | Independent |
| PTO Clutch | Mechanical (lever) | Electrohydraulic |
| Rear PTO Speed | 540 rpm | 540/540E rpm |
| PTO / Engine RPM | 540@2100 | 540@2100 / 540E@1588 |

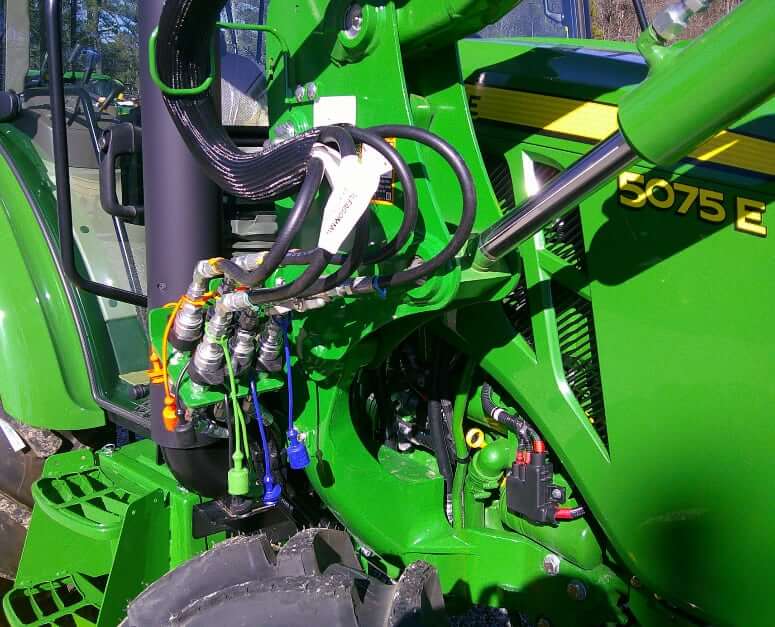

Hydraulic System
| Type | Open center |
| Working Pressure | 2828 psi (19500 kPa) |
| Pump Flow Capacity | 11.4 gal/min (43.1 L/min) |
| Steering Flow Capacity | 6.8 gal/min (25.7 L/min) |
| Total Flow Capacity | 18.2 gal/min (68.8 L/min) |
| Available Flow at a Single Rear SCV | 11.4 gal/min (43.1 L/min) |
| Number of Rear Selective Control Valves (SCVs) | 1 / up to 2 with mechanical Lever control |
| Number of Mid Selective Control Valves (SCVs) | 0 / up to 3 with mechanical joystick control |
| Joystick SCV Control | Mechanical |
| Hitch Draft Control Type | Mechanical – top link sensing |
| 3 Point Hitch Type | Category 2; convertible to 1 |
| 3 Point Hitch Lift Capacity @ 24 Inches | 3192 lb (1448 kg) |
| Maximum Drawbar Vertical Load, Road/field use (short position) | 2470 lb (1120 kg) |
| Maximum Drawbar Vertical Load, Field use (fully extended) | 1675 lb (760 kg) |
Service Refill Capacities
| John Deere 5075E | OSS | Cab |
|---|---|---|
| Fuel Tank Capacity | 19 gal (72.5 L) | 21 gal (82 L) |
| Engine Oil Capacity | 2.2 gal (8.5 L) | 2.2 gal (8.5 L) |
| Cooling System Capacity | 2.5 gal (9.5 L) | 2.5 gal (9.5 L) |
| Hydraulic / Transmission Oil Capacity (Sync Shuttle) | 10 gal (38 L) | 10 gal (38 L) |
| Hydraulic / Transmission Oil Capacity (PowrReverser) | 11.5 gal (43.5 L) | 11.5 gal (43.5 L) |
| Front Axle Capacity (4WD) | 1.2 gal (4.5 L) | 1.2 gal (4.5 L) |
| Front Hubs Capacity (4WD) | 0.2 gal (0.8 L) | 0.2 gal (0.8 L) |
John Deere 5075E Filters (2023 – 2025)
| Primary Air Filter (Pre-Emission Tractors) | SU29300 |
| Primary Air Filter (Tractors w/ T2, IT4, FT4 Engines) | RE282286 |
| Secondary Air Filter (Pre-Emission Tractors) | SU29301 |
| Secondary Air Filter (Tractors w/ T2, IT4, FT4 Engines) | RE282287 |
| Engine Oil Filter | RE519626 |
| Fuel Filter (Tier 2, iT4 Engines) | RE60021 |
| Fuel Filter (FT4 Engines) | R536698 |
| Hydraulic Oil Filter | RE45864 |
| Cab Fresh Air Filter (If Equipped) | 2x RE198488 |
| Cab Recirculation Air Filter (If Equipped) | 2x RE195491 |
| Cab Recirculation Air Filter w/o A.C. (If Equipped) | R198887 |
| Engine Diesel Particulate Filter (If Equipped) | RE567056 |
JD 5075E Attachments
The John Deere 5075E Utility Tractor is designed to handle a wide range of attachments and implements, making it a versatile workhorse for farming, landscaping, and general utility tasks. Here’s a list of compatible attachments and implements typically available for the 5075E:

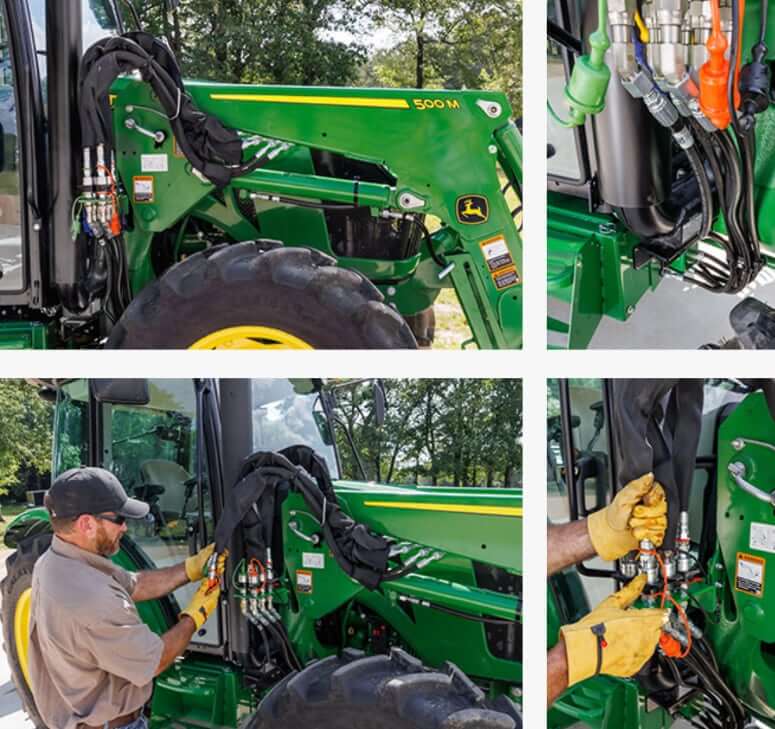

Front Loaders for 5075E
| Model | 500M Loader | 512 Loader | 520M Loader |
|---|---|---|---|
| Bucket Width | 73 in (1850 mm) | 73 in (1850 mm) | 73 in (1850 mm) |
| Bucket Type | General Purpose | General Purpose | General Purpose |
| Bucket Weight | 458 lb (220 kg) | 351 lb (159 kg) | 392 lb (178 kg) |
| Height (to pin) | 124 in (3150 mm) | 112 in (2850 mm) | 132 in (3352 mm) |
| Clearance (at full height – bucket level) | 116 in (2964 mm) | 102.5 in (2605 mm) | 124.3 in (3157 mm) |
| Clearance, dumped bucket | 86 in (2187 mm) | 84 in (2140 mm) | 99.2 in (2520 mm) |
| Dump Reach (at maximum height) | 19 in (486 mm) | 24 in (615 mm) | 40.9 in (1038 mm) |
| Reach (at ground level – bucket level) | 85 in (2157 mm) | 68 in (1730 mm) | 88.5 in (2248 mm) |
| Dump angle | 57° | 43° | 55° |
| Dump angle, ground | 149° | 144.0° | |
| Rollback angle | 44° | 30° | 44° |
| Boom Breakout force (at pin) | 4354 lbf (1975 kgf) | 4451 lbf (2019 kgf) | 4641 lbf (2105 kgf) |
| Boom Breakout force (at 800 mm) | 2855 lbf (1295 kgf) | 2944 lbf (1335 kgf) | 3168 lbf (1437 kgf) |
| Bucket Breakout force (at ground-level) | 7427 lbf (3369 kgf) | 3109 lbf (1410 kgf) | 4830 lbf (2191 kgf) |
| Bucket Breakout force (at maximum height) | 4475 lbf (2030 kgf) | 2158 lbf (979 kgf) | 2665 lbf (1209 kgf) |
| Lift to full height (at pin) | 3225 lb (1463 kg) | 2200 lb (1000 kg) | 3523 lb (1598 kg) |
| Lift to full height (at 800 mm) | 1975 lb (896 kg) | 1500 lb (682 kg) | 2293 lb (1040 kg) |
| Lift to 1.5m (at pin) | 3780 lb (1715 kg) | 3043 lb (1380 kg) | 4030 lb (1828 kg) |
| Lift to 1.5m (at 800 mm) | 2663 lb (1208 kg) | 2161 lb (980 kg) | 2974 lb (1349 kg) |
| Digging Depth | 4.8 in (122 mm) | 7.0 in (180 mm) | 2.9 in (73 mm) |
Material Handling
| Model | Description |
|---|---|
| HS2001 | 3-Point Bale Spear (single tine). Bale capacity: 2200 lb (998 kg) |
| HS2002 | 3-Point Bale Spear (dual tine). Bale capacity: 3000 lb (1361 kg) |
| HS2003 | 3-Point Large Square Bale Spear (triple tine). Bale capacity: 3000 lb (1361 kg) |
| AB11E | Single Tine Bale Spear |
| AB11G | Single Tine Bale Spear |
| AB12E | Triple Tine Bale Spear |
| AB12G | Triple Tine Bale Spear |
| AB13E | Heavy Duty Single Tine Bale Spear |
| AB13G | Heavy Duty Single Tine Bale Spear |
| AB14G | Quad Bale Spear |
| AD11E | 72 in Debris Bucket |
| AF11E 72″ | 72 in Loader Mounted Front Blade |
| AF11E 84″ | 84 in Loader Mounted Front Blade |
| AF11G 84″ | 84 in Loader Mounted Front Blade |
| AF11G 96″ | 96 in Loader Mounted Front Blade |
| AF12G 9′ | 9 ft Loader Mounted Front Blade |
| AF12G 10′ | 10 ft Loader Mounted Front Blade |
| AH11G | Round Bale Hugger |
| AP11G | Pallet Fork |
| AP12F | Pallet Fork |
| AP12G | Pallet Fork |
| AP13F | Floating Pallet Fork |
| AP13G | Floating Pallet Fork |
| AR10E 66″ | 66 in Rock Bucket |
| AR10E 75″ | 75 in Rock Bucket |
| AR10G | 75 in Rock Bucket |
| AV20G | 77 in Root Grapple |
| AV50G | 84 in Hydraulic Root Grapple |
| AV56G | 72 in Hydraulic Root Grapple |
| AY11E | 72 in Bucket 4-in-1 |
| AY12G | 72 in Bucket 4-in-1 |
| AY12G | 84 in Bucket 4-in-1 |
| PG12 | Pallet Fork Grapple |
| SA21E | Skid Steer Carrier Adapter |
Blades and Grading
| Model | Description |
|---|---|
| BB5072 Box Blade | Working width: 73.5 in (1867 mm) |
| BB5084 Box Blade | Working width: 85.5 in (2172 mm) |
| BB5096 Box Blade | Working width: 97.5 in (2477 mm) |
| LP2184 Land Plane | Working width: 84 in (2134 mm). Scarifiers: 6 |
| LP2196 Land Plane | Working width: 96 in (2438 mm). Scarifiers: 7 |
| PR1184 Power Rake | Working width: 84 in (2134 mm) |
| RB2307 Rear Blade | Width: 84 in (2134 mm). Duty: Heavy |
| RB2308 Rear Blade | Width: 96 in (2438 mm). Duty: Heavy |
| RB2309 Rear Blade | Width: 108 in (2743 mm). Duty: Heavy |
| RB2310 Rear Blade | Width: 120 in (3048 mm). Duty: Heavy |
| RB2408 Rear Blade | Width: 96 in (2438 mm). Duty: Heavy Plus |
| RB2409 Rear Blade | Width: 108 in (2743 mm). Duty: Heavy Plus |
| RB2410 Rear Blade | Width: 120 in (3048 mm). Duty: Heavy Plus |
| RB5060 Rear Blade | Width: 60 in (1524 mm). Duty: Standard |
| RB5072 Rear Blade | Width: 72 in (182.9 mm). Duty: Standard |
| RB5084 Rear Blade | Width: 84 in (213.4 mm). Duty: Standard |
| RB5096 Rear Blade | Width: 96 in. (243.8 mm). Duty: Standard |
Digging Attachments
| Model | Description |
|---|---|
| PHD395 | Post Hole Digger. Auger length: 48 in (1219 mm). Quik-Knect kit available |
| PHD400 | Post Hole Digger. Auger length: 48 in (1219 mm). Availability limited to dealer inventory. |
| 485 Backhoe | Backhoe. The exclusive rockshaft assist (RSA) mounting system makes hooking up the backhoe simple and quick. Unique 4-point quick-attach system allows you to install the backhoe from the seat. |
Mowing and Cutting
| Model | Description |
|---|---|
| DM5050 Disc Mower | Cutting width: 6 ft. 6 in. (2 m) |
| DM5060 Disc Mower | Cutting width: 7 ft. 9 in. (2.4 m) |
| DM5070 Disc Mower | Cutting width: 9 ft. (2.7 m) |
| FL1272S Flail Mower | Working width: 72 in. (183 cm). Ability to offset the cutterhead 115 inches off center. |
| FL1262 Flail Mower | Working width: 62 in. (157 cm) |
| FL1291 Flail Mower | Working width: 91 in. (231 cm) |
| FM4112 Flex-Wing Grooming Mower | Working width: 12 ft. (3.1 m). Hitch: Clevis |
| FM4115 Flex-Wing Grooming Mower | Working width: 15 ft. (4.6 m). Hitch: Clevis |
| FM4117 Flex-Wing Grooming Mower | Working width: 17 ft. (5.2 m). Hitch: Clevis |
| GM1190 Grooming Mower | Working width: 90 in. (228.6 cm). Duty: Medium. Quik-Knect kit available |
| GM2190R Grooming Mower | Working width: 90 in. (228.6 cm). Duty: Medium. Quik-Knect kit available |
| GM2109R Grooming Mower | Working width: 110 in. (279.4 cm). Duty: Medium. Quik-Knect kit available |
| RC2060 Rotary Cutter | Working width: 5 ft. (1.5 m). Quik-Knect kit available |
| RC2072 Rotary Cutter | Working width: 6 ft. (1.8 m). Quik-Knect kit available |
| RC2084 Rotary Cutter | Working width: 7 ft. (2.1 m). Quik-Knect kit available |
| RC7M Rotary Cutter | Working width: 7 ft. (2.1 m) |
| RC6R Rotary Cutter | Working width: 6 ft. (1.8 m) |
| RC7R Rotary Cutter | Working width: 7 ft. (2.1 m). Recommended for tough roadside mowing & commercial applications |
| FC12E Flex Wing Rotary Cutter | Working width: 12 ft. (3.7 m). Recommended for small farms & large property owners |
| FC15E Flex Wing Rotary Cutter | Working width: 15 ft. (4.6 m) |
| FC15M Flex Wing Rotary Cutter | Working width: 15 ft. (4.6 m). Recommended for larger property owners & ag producers |
Snow Removal Attachments
| Model | Description |
|---|---|
| SB1184 | Rear 3-Point Hitch Snow Blower. Working width: 84 in (2134 mm) |
| SB1194 | Rear 3-Point Hitch Snow Blower. Working width: 94 in (2388 mm) |
| SB1274 | Rear 3-Point Hitch Snow Blower. Working width: 74 in (1880 mm) |
| SB1280 | Rear 3-Point Hitch Snow Blower. Working width: 80 in (2032 mm) |
| SB1388 | Rear 3-Point Hitch Snow Blower. Working width: 88 in (2235 mm) |
| AF11E 72″ | 72 in Loader Mounted Front Blade |
| AF11E 84″ | 84 in Loader Mounted Front Blade |
| AF11G 84″ | 84 in Loader Mounted Front Blade |
| AF11G 96″ | 96 in Loader Mounted Front Blade |
| AF12G 9′ | 9 ft Loader Mounted Front Blade |
| AF12G 10′ | 10 ft Loader Mounted Front Blade |
| AS11E | 8 ft Snow Push w/ Trip Edge |
| AS11E 9′ | 9 ft Snow Push w/ Trip Edge |
| AS11E 10′ | 10 ft Snow Push w/ Trip Edge |
